NuTone Heat-A-Vent 605RP User manual

Architectural & Engineering Specifications

March 2004

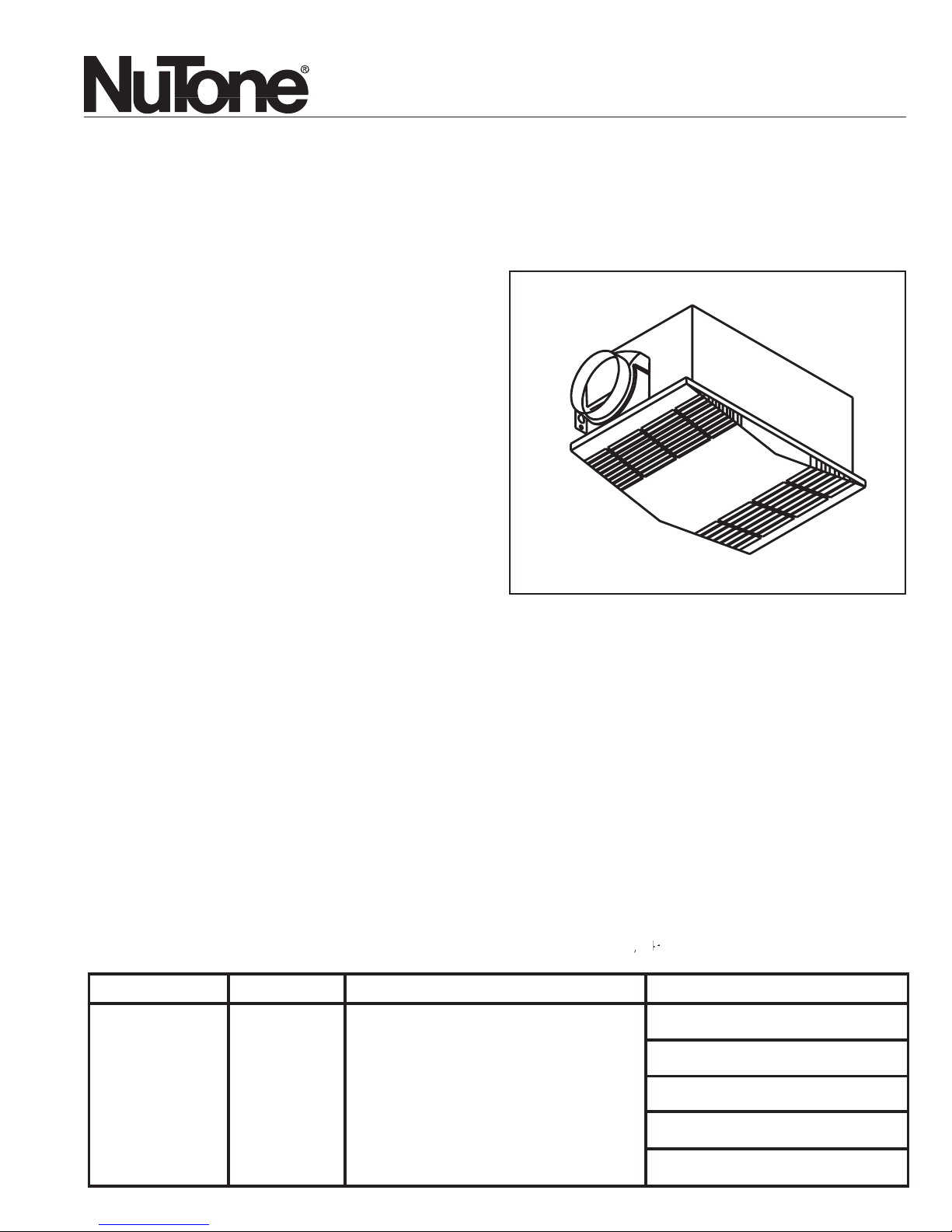

Heat-A-Vent®

MODEL: 605RP

DESCRIPTION

•Two functions in one unit. Use them individually

or together.

1) 1500W heating element provides fast enveloping

heat. Efficient fan evenly distributes warm air

through room.

2) Exhausts stale air and moisture to refresh the bath

atmosphere.

•Streamline design with handsome white grille. Grille

is tough polymeric, impervious to bathroom climate.

•Includes adjustable hanger bars. 16"-24". Built-in

junction box with receptacles for simple plug-in of heater

and fan motors.

•Nickel-chrome heating element.

•Quiet polypropylene duct adapter with silent backdraft

damper snaps on. Longer tapering collar for easy

attachment of 4" duct.

•Connects to 120vAC.

•For your convenience, NuTone offers a complete line

of accessories to adapt this unit to your construction

requirements.

DESIGN FEATURES

Air Delivery: 70 CFM.

Sound Level: 4.0 Sones.

British Thermal 5118.

Units:

Dimensions: Housing: 14

⁄

" x 7

⁄

" x 5

⁄

Grille: 9

⁄

" x 16

⁄

Material & Housing: Galvanized steel,

Component Data: Grille: White polymeric.

Damper: polypropylene.

Impellers: Centrifugal.

Motors: Sleeve bearings, thermally protected.

Element: Open coil, nickel-chromium. 1500W.

Duct Size: 4" diameter.

Electrical Rating: 120V, 60Hz, 13.5A

INSTALLATION

• Adjustable hanger bars attach to 16" or 24" O.C. joists

in new construction.

• Built-in junction box accepts plug-in heater motor,

and fan motor.

• Duct adapter has built-in damper and long, tapering collar

for duct attachment.

• Discharge is horizontal through 4" round duct.

• Each unit includes complete Installation Instructions

for both new and existing construction.

• Do not install unit over bath tub or in shower stall.

• Connect to 20 amp branch circuit.

ARCHITECT'S SPECIFICATIONS

Heat-Vent Combination shall be Model 605RP as

manufactured by NuTone according to listed specifications.

NUTONE, INC. / 4820 RED BANK ROAD, CINCINNATI, OHIO 45227

Product specifications subject to change without notice.

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

CERTIFIED TEST DATA

Air delivery and sound level ratings are certified by

the Home Ventilating Institute Division of AMCA, based

on testing performed by an independent third party testing

laboratory, in accordance with HVI standards. This NuTone

model is listed by Underwriters' Laboratories Inc.

The air delivery of a ventilating system may be

determined by:

1. Determine the equivalent duct length for each 90 degree

elbow by adding one foot of duct length for each inch of

duct diameter, i.e., a 4 inch diameter duct elbow equals

4 feet equivalent duct length and an 8 inch diameter

duct elbow equals 8 feet equivalent duct length.

2. Add the total straight length of duct and the equivalent

length for each elbow to obtain the total equivalent

duct length.

3. Locate the intersection of the fan performance curve and

the total equivalent duct length curves and draw a vertical

line down to the CFM scale and read the system air

performance.

(NOTE: 3

⁄

" x 10" duct equals 6 inch diameter duct.)

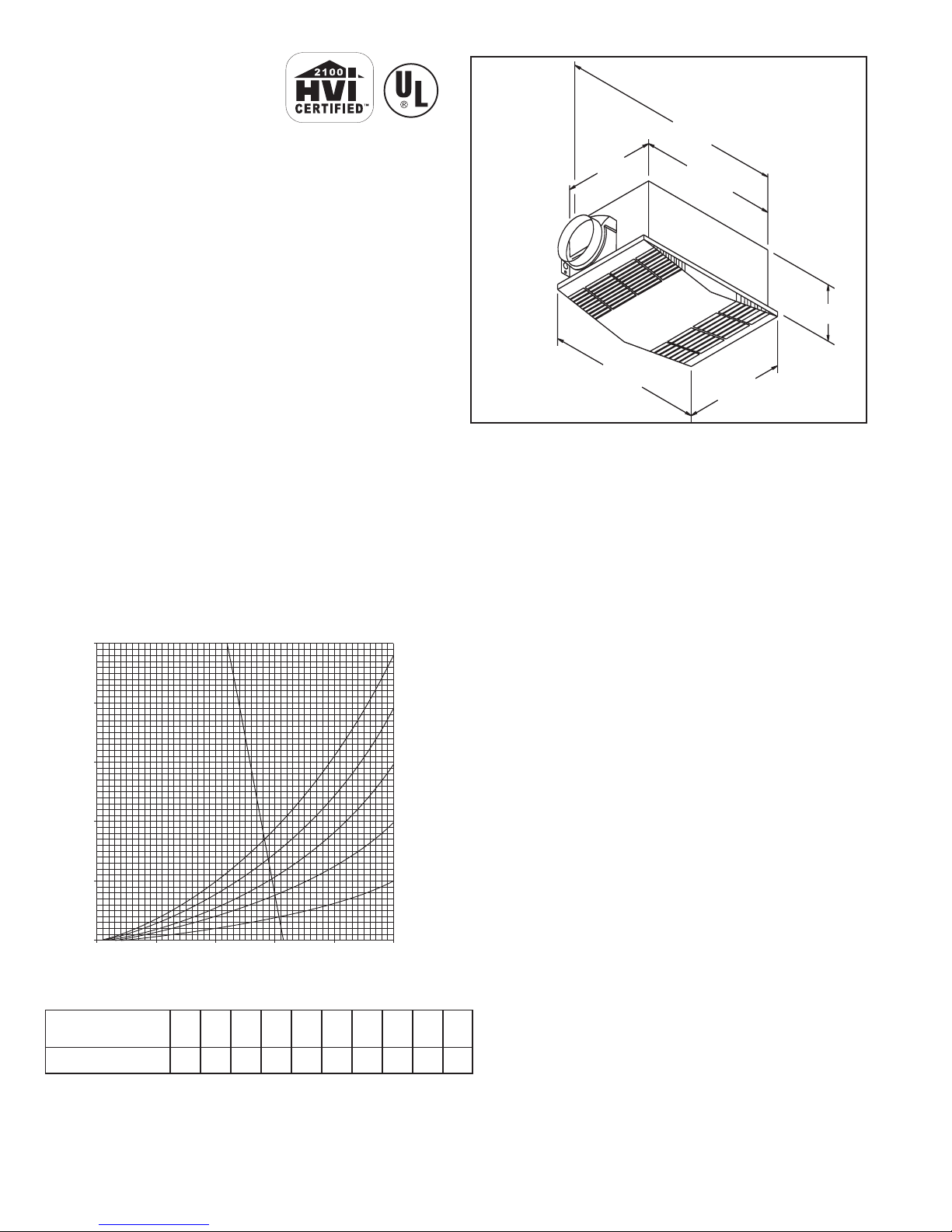

DIMENSIONS

161/4"

14 5/8"

17 1/8"

5 5/8"

97/8"

77/8"

0.45

AIR PERFORMANCE CURVE

(4 In. Duct to 10 Foot Lengths)

STATIC PRESSURE

INCHES OF WATER

CFM

0.05

76 73 71 68 66 64 62 60 57 54

0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.5

10 050

0.00

0.10

0.20

0.30

0.40

0.50

STATIC PRESSURE–INCHES OF WATER

50 Feet

40 Feet

30 Feet

20 Feet

10 Feet

CFM CUBIC FEET PER MINUTE

75 12525
