Numatic TT 1535G User manual

www.numatic.co.uk

Original Instructions

Warning! Read instructions before using the machine

Originalanleitung

Achtung! Vor Verwendung der Maschine bitte die Anleitung lesen

Notice originale

Attention ! Lisez la notice avant d’utiliser la machine

Originele instructies

Waarschuwing! Lees deze instructies voor u de machine gebruikt

TT 1535G / TT 3035G

SCRUBBER DRYER

SCHEUERSAUGMASCHINE

AUTOLAVEUSE

SCHROBZUIGMACHINE

3035G

1535G

3035G

A B

3 4

1 2 3

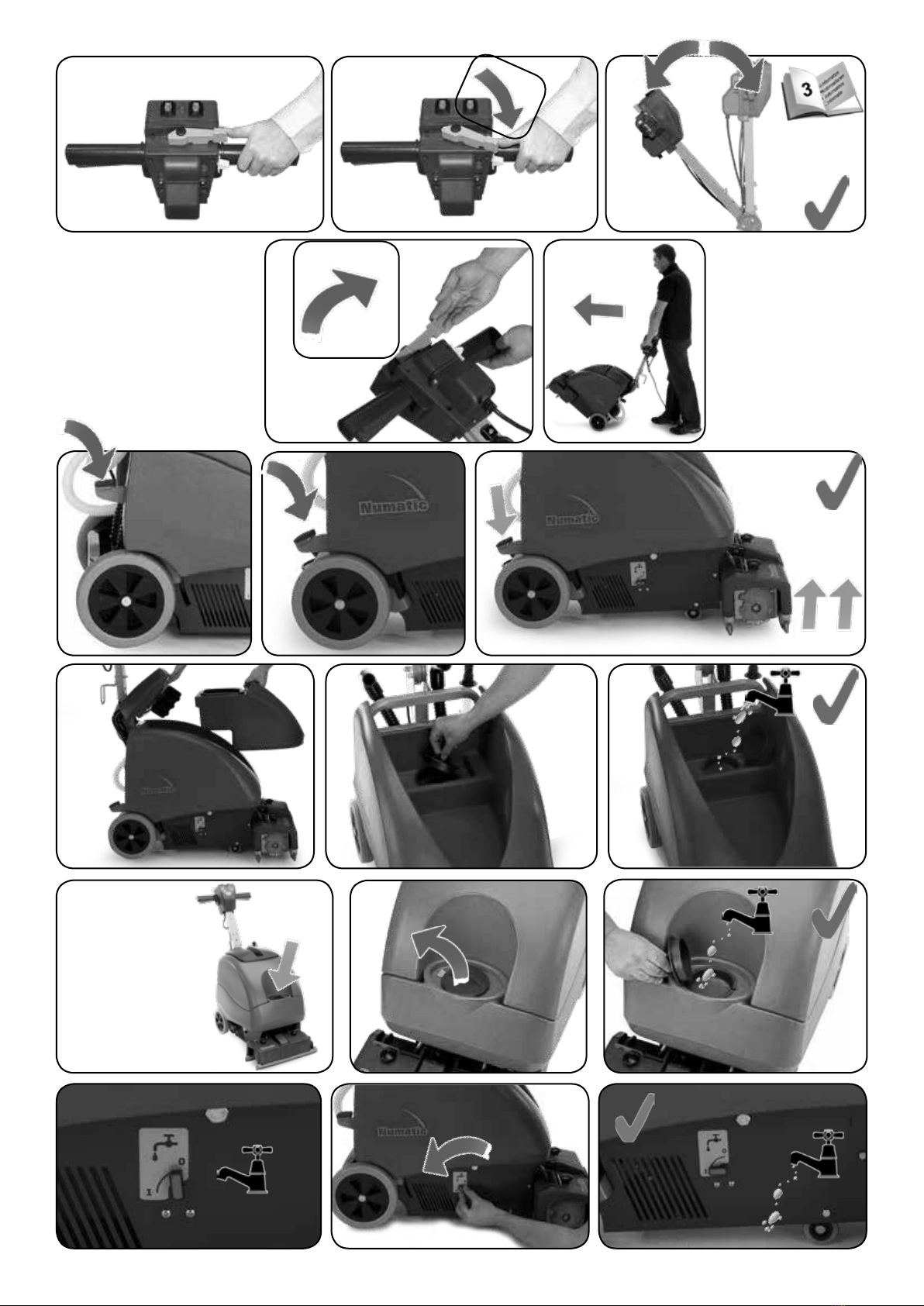

Using the Machine - Arbeiten mit der Maschine

Utilisation de la machine - De machine gebruiken

Brush Motor Vac Motor Voltage Sound

Pressure Speed Brush

TT 1535G

400W 1000W

220-240v 50Hz

220v 60Hz

120v 60Hz

110v 50Hz

77 dB(A) 50Hz = 1000rpm

60Hz = 1200rpm 450mm

Gross Weight

Full Protection Class Hand Arm

Vibration Dimensions Net Weight Cleaning Range Water Capacity

53 Kg Class 1 2.05 +/- 0.05ms² 750x740x480 38 Kg 42m 15 L

Ear Protection Safety Footwear Hat Protection Safety Gloves Dust/Allergens

Protection Eye Protection Protective

Clothing

Machine Description

Company name and address

Voltage Frequency

Gradient

Weight

WEEE Logo

CE Mark

Machine yr/ wk / serial number

Machine Description

Weight

Noise Level

Hand Arm Vibration

Rating Label

WEEE (Waste, Electrical and Electronic Equipment)

Scrubber Dryer Accessories and Packaging should be sorted for

environmentally-friendly recycling.

Only for EU countries.

Do not dispose of Scrubber dryer into household waste.

According to the European directive 2002/96/EC on waste electrical

electronic equipment and its incorporation into national law.

Scrubber dryers that are no longer suitable for use must be separated

collected and sent for recovery in an environmentally-friendly manner.

Safety Critical Component:

Mains Lead: H05VV-F x 1.5mm2x 3 core

Note:

A risk assessment should be conducted to decide

what PPE should be worn.

About the Machine

PPE (Personal protective equipment) that maybe required for certain

operations.

Brush Motor Vac Motor Voltage Sound

Pressure Speed Brush

TT 3035G

400W 1000W

220-240v 50Hz

220v 60Hz

120v 60Hz

110v 50Hz

77 dB(A) 50Hz = 1000rpm

60Hz = 1200rpm 450mm

Gross Weight

Full

Protection Class Hand Arm

Vibration

Dimensions Net Weight Cleaning Range Water Capacity

70 Kg Class 1 2.05 +/- 0.05ms² 750x740x480 40 Kg 42m 30 L

Caution Wet Floor Sign

Hi Vis Jacket
