Numatic EcoMatic EM-3 User manual
EcoMatic EM-3 Fixed Big Wheel
Trolley Assembly
911181 EM-3 Fixed Big Wheel ASSEMBLY INSTRUCTIONS A03 12/2019
2
0.25 HR
Item Description Qty
1Ecomatic long reo base 1
2Rear right hand reo upright 1

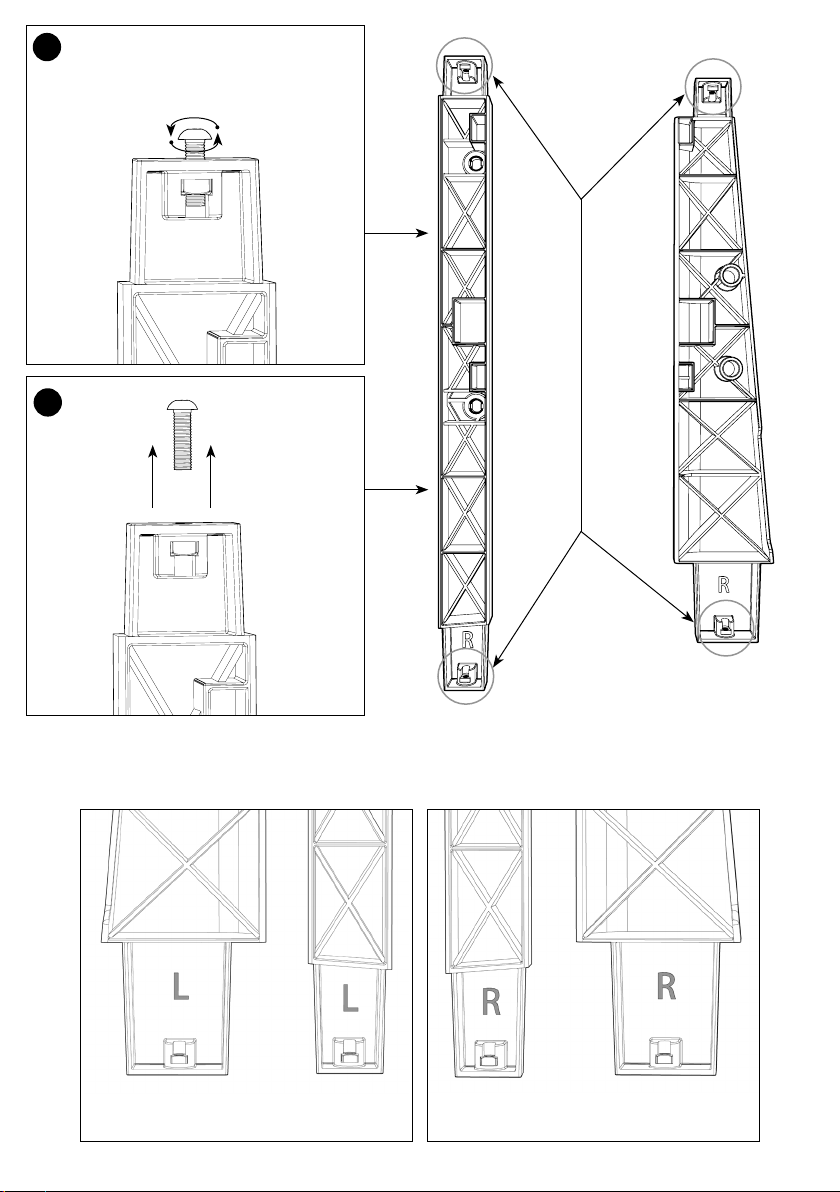

3Rear left hand reo upright 1
4Front right hand reo upright 1
5Front left hand reo upright 1
6 Reo bag frame 1
7Reo bag securing frame 1
8Lid moulding 1

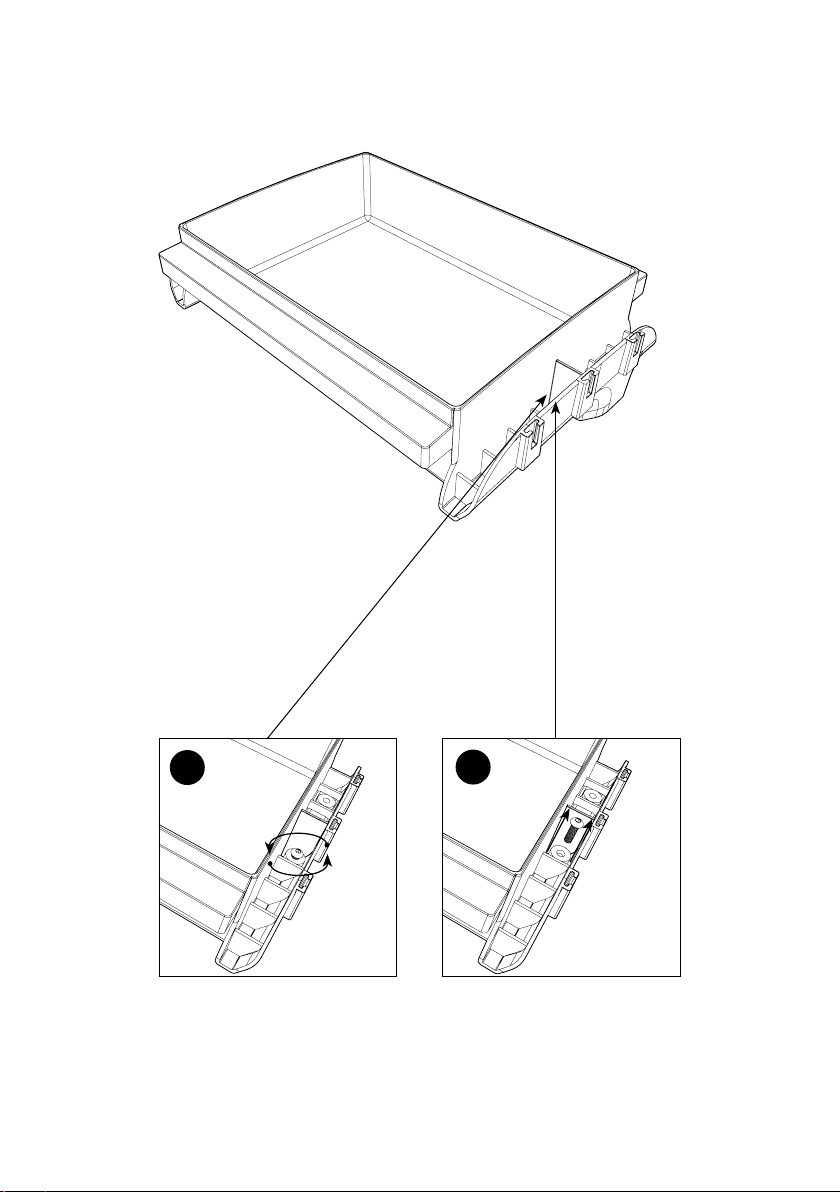

9Reo tray 1
10 Reo top tray 1
11 Ecomatic cover moulding 2
12 Press support tube 2
13 Mop tube prole 1
14 Rear wheels assembly 1
15 Castors & Buffers 2
1
2
3
4
5
6
7
8
9
10
13
14
15
12
11
3
219554
Allen Key X 1
911354
4” Castor
X 2
911354
X 2
219555
M8 25mm Socket Bolt
X 10
909367
X 2
909367
Buffer Moulding
X 2
4
2
1
5
6
7
2
1
8
9
10
