Numark M1 Quick start guide

DJ IN A BOX™

series 2

EASY SETUP GUIDE

INDUSTRIES

11 Helmsman Avenue,

North Kingstown, RI 02852 http://www.numark.com

What you will find in this box:

1 • Blue Dog DJ Mixer

2 • TT1700 DJ Turntables

2 • DJ Cartridges

2 • DJ Slipmats

1 • Pair of M-1 Self Powered Monitor Speakers

Be sure to fill out any registration

cards you received in the boxes

and mail them.

Please read the manual enclosed with each

component to fully understand it’s operation.

1. Find a level surface that is large enough to place your equipment

on.

2. Carefully remove the turntables from their packaging and set up

the units following the inner box instructions!

Notes:

• Be sure to take the belt that is already attached to the

bottom of the platter and loop it around the belt drive

spindle.

• You will find the headshell with cartridge attached on

the side of the foam packing material in the box. (SEE

TURNTABLE INSTRUCTIONS)

• The dust cover is not designed for continual removal.

If you need to remove the cover; press both release

tabs at the same time.

Release tab

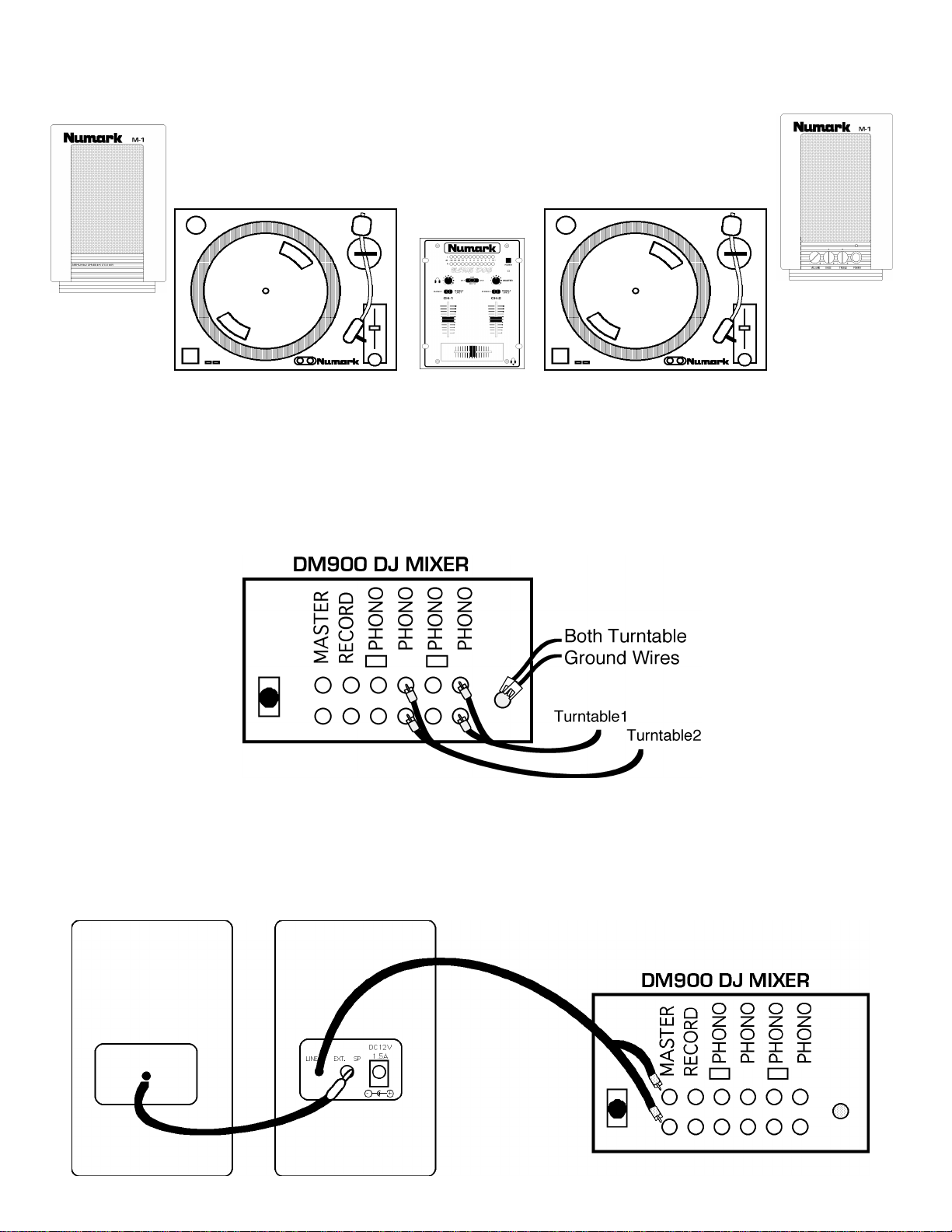

3. Remove your DM900 Blue Dog mixer from it’s packaging and set

all the components up on your working area as diagramed below.

4. Fully read the setup instructions and precautions for the

DM900 Blue Dog mixer.

5. Plug your audio and ground wires from your turntables into your

mixer in the locations shown below.

6. Take rear cable attached to the M-1 monitor speaker with front

panel controls and plug it into the main outputs of the mixer. Take

the speaker cable attached to the second speaker and plug it into

the speaker input of the first speaker

7. Plug in all the components of your new DJ system into an

electrical outlet.

8. If you wish to record your mix, plug the input of your tape deck

into the record output of the mixer.

9. TURN ON YOUR EQUIPMENT IN THIS ORDER

1. Turntables

2. Mixer

3. Speakers

• ALWAYS remember:

“TURN SPEAKERS ONLASTAND OFF

FIRST”. Begin with master faders or volume

controls on minimum and the amplifier

gain/input control(s) down. Wait 8 to 10 seconds

before turning up the volume. This prevents

transients which may cause severe speaker

damage.

TURN OFF YOUR EQUIPMENT IN THIS ORDER

1. Speakers

2. Mixer

3. Turntables

11. Follow the instruction for operation of your

new equipment and start mixing !
