NTI XTENDEX Series User manual

MAN364 Rev Date 1/3/2020

ST-C6DP4K-131

4K 9Gbps DisplayPort HDBase-T Extender

via One CAT6a/7

Installation and Operation Manual

XTENDEX®Series

TRADEMARK

XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the

right to make changes in the product design without reservation and without notification to its users.

Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products

should not be run underground, outdoors or between buildings.

WARNING: Outdoor or underground runs of CATx cable could be dangerous and will void the warranty.

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series

products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will

damage the extender and void your warranty.

TABLE OF CONTENTS

Introduction......................................................................................................................................................................1

Materials..........................................................................................................................................................................1

Preparation for Installation ..............................................................................................................................................2

Features and Functions...................................................................................................................................................3

Installation .......................................................................................................................................................................4

Troubleshooting...............................................................................................................................................................5

Interconnection Cable Wiring Method.............................................................................................................................5

Technical Specifications..................................................................................................................................................6

Warranty Information.......................................................................................................................................................7

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

INTRODUCTION

The XTENDEX®4K DisplayPort HDBase-T Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort

video and audio signals up to 131 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender

consists of a local unit that connects to a DisplayPort source and a remote unit that connects to a DisplayPort display.

Features

Transmits an uncompressed DisplayPort signal over a single CATx cable.

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz 4:4:4, and HDTV resolutions to 1080p

@60Hz.

oRefer to the resolution chart in the specifications section for resolutions using different CATx cable types and

lengths.

Compliant with DisplayPort v1.2a specifications.

Video bandwidth up to 9Gbps.

HDCP compliant.

Integrated mounting brackets for easy surface/wall mounting.

MATERIALS

Materials supplied with this kit:

NTI XTENDEX Local and Remote Units

2 x 100-240VAC, 50 or 60Hz-5VDC/2A AC Adapter

Mounting Screws

URL Slip with path to this manual

Materials Not supplied but REQUIRED:

CAT5e/6/6a solid/stranded UTP; CAT7 solid/stranded STP (referred to as "CATx" throughout this manual) twisted-pair

cables terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see page 7 for proper EIA/TIA 568 B wiring

method).

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series

products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will

damage the extender and void your warranty.

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

PREPARATION FOR INSTALLATION

Locations should be chosen for the monitor and video source that also have space to connect the Remote Unit and Local Unit

units within the distance provided by the CATx cables.

All cables should be installed in such a way that they do not cause stress on their connections to the equipment. Extended

lengths of cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to

minimize this.

Properly shut down and disconnect the power from the video source and monitor to be separated. If other equipment is

involved whose connections are being interrupted, be sure to refer to the instruction manuals for that equipment for proper

disconnection and re-connection procedures before proceeding.

WARNING: The CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series

products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER CABLE will

damage the extender and void your warranty.

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

FEATURES AND FUNCTIONS

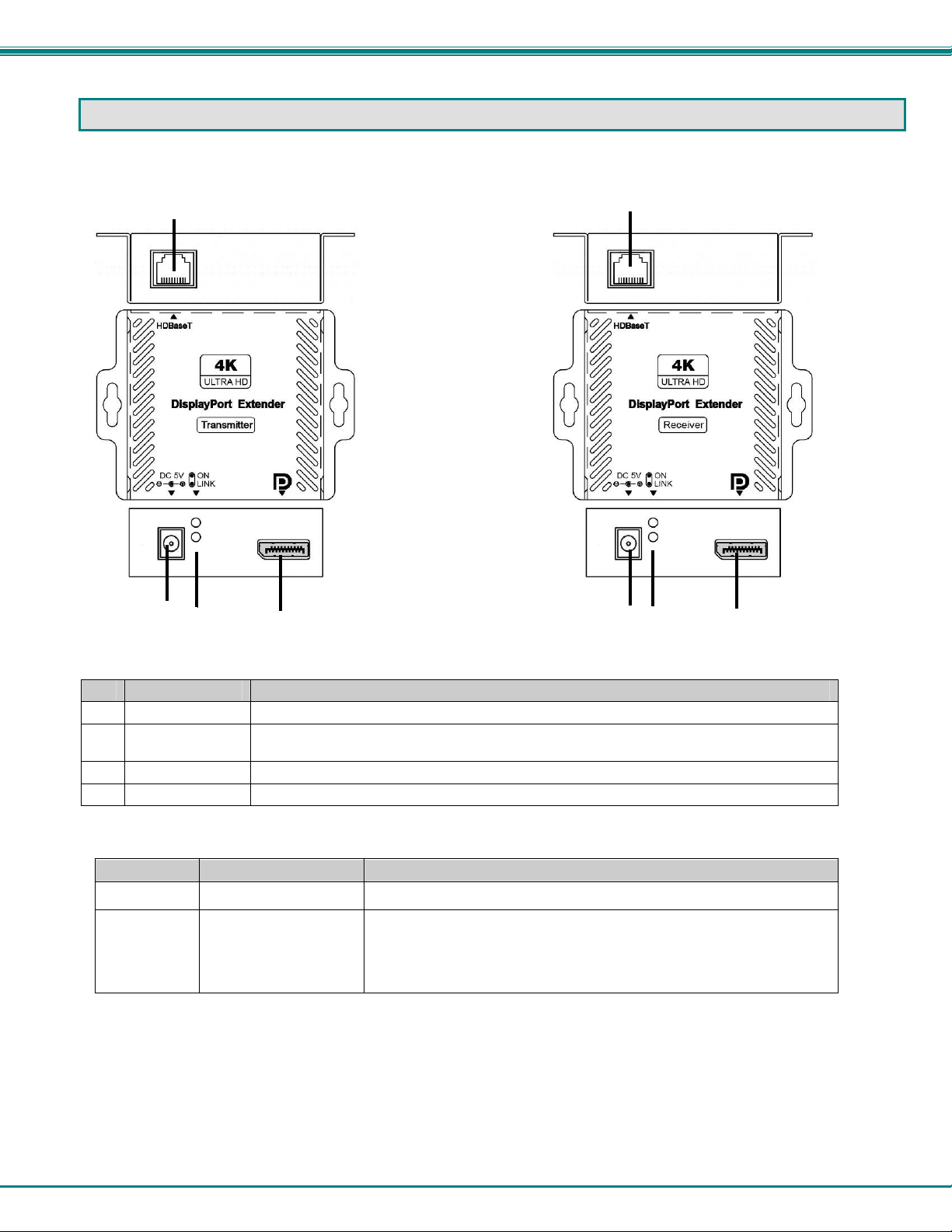

No. Label Description

1 DC 5V For connection of power supply

2 On/Link LEDs Illuminate when the powered ON ("ON")and when connection between Local and

Remote have been established ("Link")

3 DP (Symbol) For connection of DisplayPort Cable to a monitor

4 HDBaseT For connection of a CATx cable between Local and Remote Units

LED Indication：

Color Label Indication (Same for Local and Remote Unit)

GREEN ON On Solid : Power is ON

BLUE LINK

ON Solid：LINK is Normal,

Flashing：Low Power Mode

Low Power Mode= either there is no video source (Local Unit) or there is no

display connected to the Remote Unit

Note: There is a DIP switch on the underside of the Local and Remote Units. This is for future use and as of this

publication serves no purpose.

4 4

Local Unit

(Transmitter) Remote Unit

(Receiver)

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

INSTALLATION

Note: The video source and display device can be powered-ON at any point during this installation.

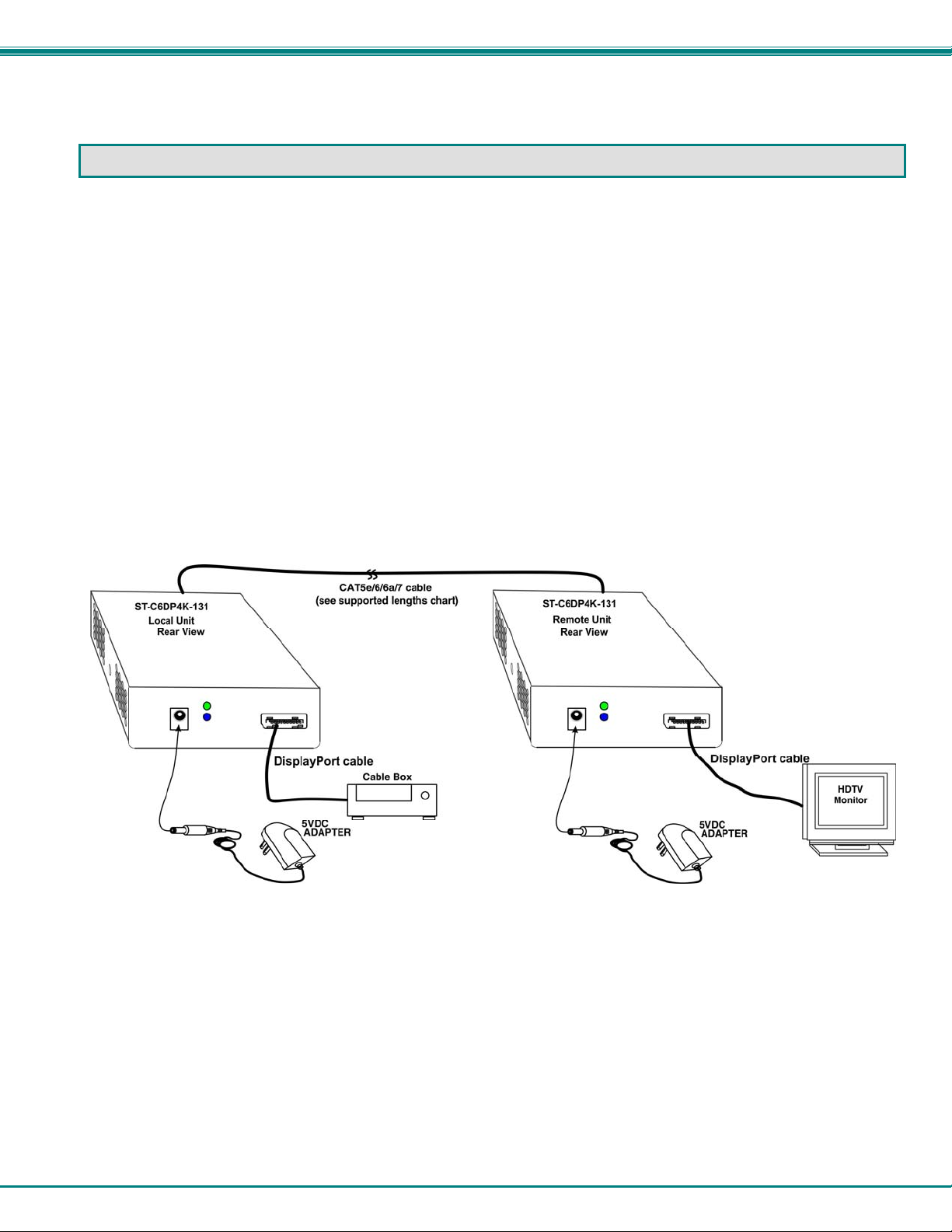

1. Connect a video source to the female DisplayPort connector on the Local Unit using one of the cables recommended in the

chart on page 2.

2. Connect a display to the female DisplayPort connector on the Remote Unit using one of the cables recommended in the chart

on page 2.

3. Connect a CAT5e/6/6a/7 cable (up to 230 feet in length) between the "HDBaseT" ports on the Local and Remote Units.

4. Connect AC Adapters to the "DC 5V" ports on the Local and Remote Units.

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

TROUBLESHOOTING

Problem Solution

No Output on Display Check power supply connection

Make sure all cables are securely connected and fully inserted

Make sure the correct input port on the display has been selected

Make sure the correct video format is selected on the video source

LINK indicator is flashing on the Local

and Remote Unit Make sure the correct input port on the display has been selected

Make sure all cables are securely connected and fully inserted

Make sure the correct video format is selected on the video source

Output image is noisy (snow) Change the DisplayPort cable between the Local Unit and video source. Always

use a short cable when testing and for best results use a cable from the

chart on page 2.

INTERCONNECTION CABLE WIRING METHOD

The CATx connection cables between the Local Unit and Remote Unit are terminated with RJ45 connectors and must be wired

according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below.

Pin Wire Color Pair Function

1 White/Orange 2 T

2 Orange 2 R

3 White/Green 3 T

4 Blue 1 R

5 White/Blue 1 T

6 Green 3 R

7 White/Brown 4 T

8 Brown 4 R

WARNING: The CATx connection cable used between the NTI XTENDEX Series Local Unit and Remote Unit or any

XTENDEX Series products must be wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) The use of a CROSSOVER

CABLE will damage the extender and void your warranty.

Pair 2 Pair 1 Pair 4

Pair 3

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

TECHNICAL SPECIFICATIONS

Item Local Unit Remote Unit

DP Video Support Up to 4096x2160@30Hz,YCbCr 4:4:4, 8-bit

DP Audio Support Embedded Digital Audio

Input / Output Interface DisplayPort x 1 DisplayPort x 1

RJ45 Connector RJ45 x 1 RJ45 x 1

Power Supply 100-240VAC 5/60Hz; 5VDC 2A 100-240VAC 5/60Hz; 5VDC 2A

Power Consumption Max 5W, Low Power 1.32W Max 8W, Low Power 1.62W

Environmental Operation: 14 to 113°F (-10 to 45°C),

Storage: -22 to 158°F (-30 to 70°C),

Humidity: up to 95%

Dimensions (WxDxH) 92.00 x 69.00 x 25.00 mm

3.62 x 2.72 x 0.98 in

92.00 x 69.00 x 25.00 mm

3.62 x 2.72 x 0.98 in

Weight 160 (g) 180 (g)

Supported Cable Lengths:

CATx Cables:

Cable Type Range Supported Video

115 ft

(35m) 3840x2160 and 4096x2160@30Hz, 4:4:4, 8 bit

1080p 60Hz 12 bit

CAT5e / CAT6 197 ft

(60 m) 1080p 60Hz 16 bit

131 ft

(40 m) 3840x2160 and 4096x2160@30Hz, 4:4:4, 8 bit

1080p 60Hz 12 bit

CAT6a / CAT7 230 ft

(70 m) 1080p 60Hz 16 bit

NTI DisplayPort Cables for Input and Output cables

Available Cables Supported Resolution

1920x1080p@60Hz 4096x2160@30Hz

DP-xx-MM

Where xx= 3,6,10 or 15 feet Up to 15 ft Up to 15 ft

DP4K21GB-FO-xxM-MM

Where xx= 10,15,20,25,30,50,70 or 100

meters

Up to 100 meters Up to 100 meters

Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US and Canada or

(330) 562-7070 (worldwide).

NTI 4K HDMI USB KVM EXTENDER VIA CATX CABLE

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network

Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for

information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.

MAN364 Rev. 1/3/20
