North Edge NL02 User manual
Smart Bracelet User Manual
Welcome to use our high-performance wrist-band
smart bracelet which creates thoughtful and health
experience for you.
Device maintenance
Please remember the following tips when you maintain your
smart bracelet:
•Clean the smart bracelet regularly, especially its inner side,
and keep it dry.
•Adjust the smart bracelet tightness to ensure air circulation.
•Excessive skincare product should not be used for the wrist
wearing the smart bracelet.
•Please cease wearing the smart bracelet in case of skin allergy
or any discomfort.

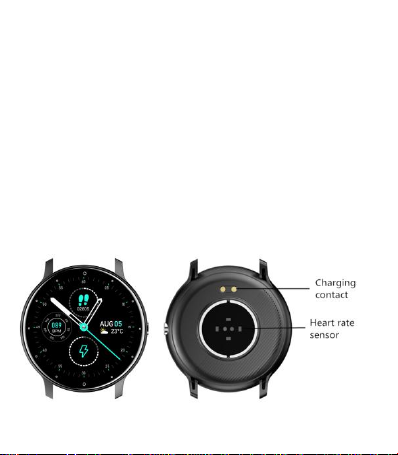

Schematic diagram of main body of the smart
bracelet

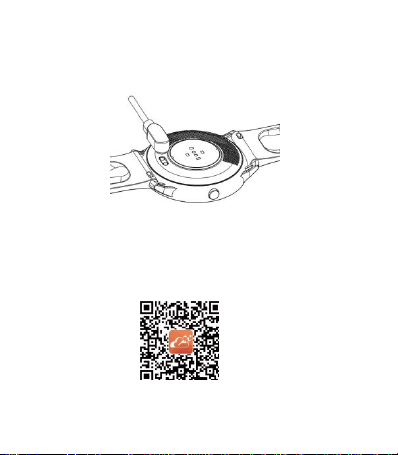

Power-on
Long press the side button for 3 seconds or plug in the
Magnetic line to charge the smart bracelet.
Downloading and binding of smart bracelet APP
Download and install APP
Scan QR code with mobile phone to download APP.
For IOS system, select App Store; and for Android system,
select Google Play Store to download and install JYouPro
JYouPro
Note: your mobile phone must support Android 5.1 or
IOS 8.0 or above, and Bluetooth 4.0 or above.
Bind smart bracelet with APP

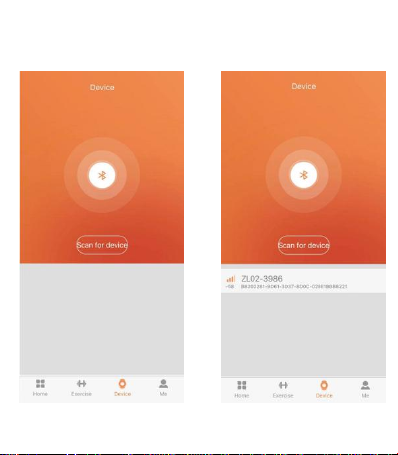

1. Click on "Scan for device"
to bind the smart bracelet.
2. Click on your device
in the device list scanned.

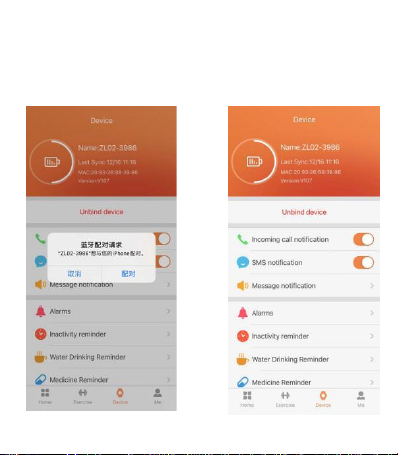

3. The IOS system will show a
Bluetooth pairing request and
you can click on Bluetooth
"Pairing" to confirm. Connect
it directly to Android system.
4. The binding is successful.
Introduction of smart bracelet functions

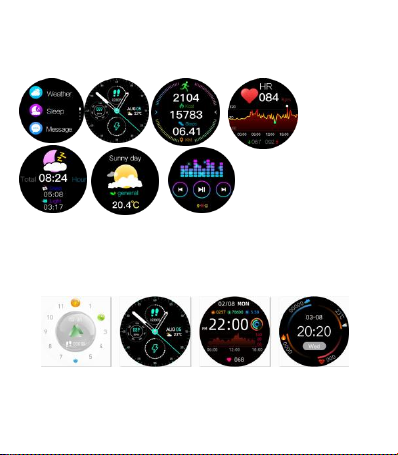

Power-on status
switch the menu interfaces of main screen, as the interfaces
shown in the following;
Introduction of main interface functions
After the smart bracelet and APP are first paired, the time and
date of the mobile phone will be synchronized.
Note: Press and hold the screen for 2 seconds on the main
interface to switch between multiple screen dials.
Steps
The step-counting interface shows steps. Wear the smart
bracelet on wrist, and the smart bracelet can automatically
count steps, distance and calories.
Message
You can view the content pushed by the message in the
information interface. At most Seven messages can be saved.
After Seven messsages are saved, the messages displayed
before will be replaced by new messages one by one.
Sleep
Wearing the smart bracelet at night to automatically judge
whether you are in the sleep state, to record deep sleep and
light sleep respectively, and to summarize the total sleep time
to help you monitor your sleep quality. The sensor can
measure your sleep quality according to the range and
frequency of wrist movements when you sleep.
Heart rate measurement
The heart rate measurement interface supports real-time
dynamic heart rate and understands your own health data.
Be sure that there is no dirt at the bottom of the heart rate
sensor when conduct measurement. Skin color, hair density,
tattoo and scar may affect the accuracy of the measuring
results, in which cases please re-measure the heart rate.
Note:The heart rate sensor shall be closely attached to skin
and well contacted with skin in measurement of heart rate.
The sensor light exposure in case of wearing bracelet too
loosely can result in inaccurate measured figures. Don’t look
steadily at the green light of sensor which may cause eye
irritation.
Blood pressure
The blood pressure shall be measured in a quiet environment
and at proper temperature. Have a rest for at least 5 minutes
before measurement. Avoid nervous, anxious and exciting
feelings; measure three times repeatedly at an interval of 2
minutes. Record the average value of readings measured three
times.
Blood oxygen
Blood oxygen saturation (Sp2) is the percentage of the amount
of Oxyhemoglobin (Hb2) which has been oxygenated in the
blood and the total amount of hemoglobin (Hb, hemoglobin)
which can be oxygenated. It means the concentration of
oxygen in blood.
Note: The blood pressure and blood oxygen data are for
reference only and should not be used as a basis in medical
aspects.
Sport
There are 6 kinds of sports in the sports interface, including
running, walking, mountaineering, cycling, basketball,
swimming .
Weather
The weather page will display the current weather today and
tomorrow. Click on the weather interface to display the weather
forecast for the next 3 days.
For weather information, it needs to connect with the client
end before data can be obtained. If the disconnection time is
long, the weather information cannot be updated.
BRIGHTNESS
Click the icon to select screen brightness, slide to the right to
exit and save the record.
TIMER
Enter the stopwatch page, click on the icon "Start" below to
start timing, then singly click on the icon "Pause" to pause
timing, and the icon in the left is for one-key resetting.
Find mobile phone
Switch to the Find Mobile Phone interface; shake the bracelet,
and the mobile phone can make a ringtone synchronically.
Music
After connecting with the mobile phone, the smart bracelet
can control the music player of the mobile phone. When the
mobile phone plays music, you can use the smart bracelet to
control the mobile phone for playing/pausing, the previous
song and the next song.
More
Click the “More” icon to enter the function interface.
POWER OFF
Click on "Confirm" to turn off the smart bracelet and the
smart bracelet is in a sleep state.
RESET
Click on "Confirm" to clear all data in the smart bracelet, and
to restore factory settings.

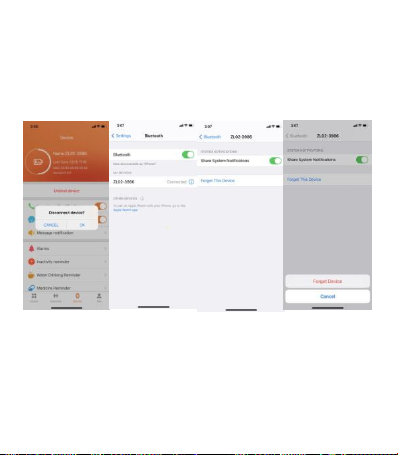

Remove device
For the Android mobile phone, the device can be disconnected
from your mobile phone by simply clicking on Remove device.
For Apple mobile phone after binding removal, you need to
click on the symbol on the right in Setting- Bluetooth, and
choose to ignore the device. As shown below:
Frequently Asked Questions (FAQs)
1. Why does the smart bracelet automatically disconnect
Bluetooth when the Android screen goes out?
1> Lock background APP. When the JYouPro process is cleared,
the smart bracelet will be disconnected from the mobile phone.
2 > Set APP self-startup
