Nortek Control Mighty Mule MM571W User manual

10022116 Rev-D

Installation Manual

(For a single or dual gate installation)

Horizontal Support

Gate Swings Evenly and Freely

Hung Firmly and Plumb

Post Bracket

Fence Post Set in Concrete Fence Post Set in Concrete

Run 1000' (max.) of low voltage

wire to control box from

transformer (wire not included).

Power Cable

PVC conduit (not included)

to protect wire from lawn

mowers and weed eaters.

PVC conduit (not included)

to run second opener power

cable under driveway.

Gate Bracket

Warning Sign

Secondary Opener Primary Gate Opener

Horizontal Support

Post Bracket

Gate Bracket

Warning Sign

Control Box

(mounted on wood)

120 Volt indoor

Transformer

(surge protector

not supplied)

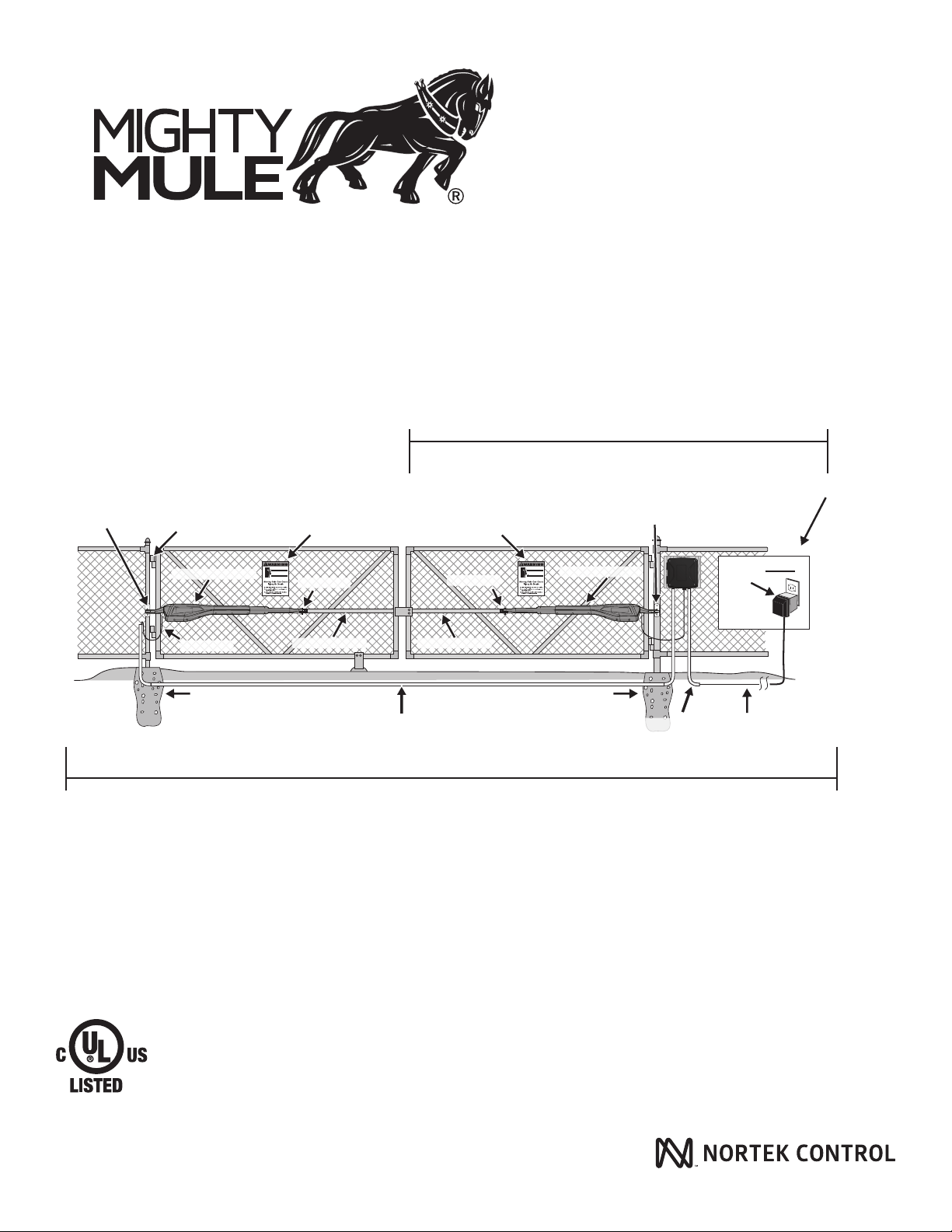

Example of Dual Gate nished installation

(Installations vary slightly on different types of gates)

MM571W

MM572W

Single Gate Installation [MM571W]

Dual gate installation [MM572W]

This product meets the requirements of UL325, the standard for gate operator safety.

Mighty Mule® is the retail brand of Nortek Security & Control, LLC

WARNING

DO NOT SPLICE ANY

POWER WIRES!

DO NOT MODIFY THE

BATTERY HARNESS!

THIS WILL VOID YOUR

MANUFACTURER’S

WARRANTY.

Low voltage wire for transformer not included.

Product Usage

The Mighty Mule Gate Operator meets all of the safety requirements of a Class I Residential Vehicular Gate Operator and is intended for use solely

with vehicular swing gates in single-family residential applications that meet the Class I category listed in the table below.

Residential Vehicular Gate Operator-Class I:

A vehicular gate operator (or system) intended for

use in garages or parking areas associated with a

residence of one-to-four single families.

Commercial/General Access Vehicular Gate

Operator-Class II:

A vehicular gate operator (or system) intended for

use in a commercial location or building such as a

multi-family housing unit (ve or more single family

units), hotel, garages, retail store, or other buildings

accessible by or servicing the general public.

Industrial/Limited Access Vehicular Gate Operator–Class III:

A vehicular gate operator (or system) intended for use in an industrial

location or building such as a factory or loading dock area or other

locations not accessible by or intended to service the general public.

Restricted Access Vehicular Gate Operator – Class IV:

A vehicular gate operator (or system) intended for use in an industrial

location or building such as a factory or loading dock area or other

locations not accessible by or intended to service the general public.

Vehicular Gate Operator Class Categories

WARNING

This equipment meets Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has

hazards associated with its use and therefore by installing this product the installer and user accept

full responsibility for following and noting the installation and safety instructions. Failure to follow

installation and safety instructions can result in hazards developing due to improper assembly. You

agree to properly install this product and that if you fail to do so Nortek Security & Control, LLC, shall

in no event be liable for direct, indirect, incidental, special or consequential damages or loss of prots

whether based in contract tort or any other legal theory during the course of the warranty or at any time

thereafter. The installer and/or user agree to assume responsibility for all liability and use of this product

releasing Nortek Security & Control, LLC, from any and all liability. If you are not in agreement with this

disclaimer or do not feel capable of properly following all installation and safety instructions you may

return this product for full replacement value.

READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before attempting to install and

use this automatic gate operator. This gate operator produces a high level of force. Stay clear of the unit

while it is operating and exercise caution at all times.

ALL AUTOMATIC GATE OPERATORS ARE INTENDED FOR USE ON VEHICULAR GATES ONLY.

Table of Contents

Please Read This First! .......................................................................................................................... 2

Important Safety Information................................................................................................................. 3

Manually Opening and Closing Gate .................................................................................................................................................3

For the Installer and End User...........................................................................................................................................................4

Installing Warning Signs and Pedestrian Gates .................................................................................................................................8

Required Safety Precautions for Gates..............................................................................................................................................9

Technical Specications ...................................................................................................................... 10

Mighty Mule 571W/572W Gate Opener...........................................................................................................................................10

Powering Options...........................................................................................................................................................................11

Solar Panel and Gate Activity Chart.................................................................................................................................................11

Before You Begin.................................................................................................................................. 11

Check Existing Gate Size and Material............................................................................................................................................12

IMPORTANT: Check for Proper Gate Installation...............................................................................................................................12

Items Included for Primary Gate Opener Installation (MM571W)......................................................................................................13

Items Included for Secondary Opener Installation (MM572W) .........................................................................................................13

Tools Needed .................................................................................................................................................................................14

Items Not Included .........................................................................................................................................................................14

Check Direction of Gate Swing .......................................................................................................................................................14

Mechanical Installation ........................................................................................................................ 15

Assessing the Gate for Installation .................................................................................................................................................15

Pull-to-Open Operator Mounting (Most Common)...........................................................................................................................16

Installing the Closed Position Stop Plate / Pull-to-Open...................................................................................................................21

Push-to-Open Operator Mounting...................................................................................................................................................24

Installing the Closed Position Stop Plate / Push-to-Open.................................................................................................................29

Control Box Installation...................................................................................................................................................................30

Connecting the Operator(s) and battery .........................................................................................................................................32

Connecting the Operator(s) and battery .........................................................................................................................................33

Transformer or Solar panel wiring Installation.................................................................................................................................34

Transformer or Solar panel wiring Installation.................................................................................................................................35

Electrical Installation and Setup .......................................................................................................... 37

Dip Switches settings.....................................................................................................................................................................37

Transmitter Programming...............................................................................................................................................................38

Closed Limit Programming - Pull to Open .......................................................................................................................................39

Closed Limit Programming - Push to Open .....................................................................................................................................41

Dual Sense Stall Force Setting........................................................................................................................................................43

Auto Close Setting..........................................................................................................................................................................44

Optional Smart Control Setup.............................................................................................................. 44

Connecting Additional Devices ........................................................................................................... 45

Control Board Connections .............................................................................................................................................................46

Connecting Accessories .................................................................................................................................................................47

Maintenance ......................................................................................................................................... 48

Troubleshooting Guide - Audible Feedback ....................................................................................... 49

Troubleshooting Guide - Visual Feedback .......................................................................................... 51

Repair Service ...................................................................................................................................... 53

Accessories .......................................................................................................................................... 54

Appendix A ........................................................................................................................................ 56

Accessory Installation Instructions..................................................................................................................................................56

Gate Operator Installation Checklist ................................................................................................... 57

MM571W / MM572W Installation Instructions

BEFORE YOU BEGIN TO INSTALL YOUR AUTOMATIC GATE OPERATOR:

Read these instructions carefully to become familiar with all parts and installation steps.

The video is only designed as an overview of the installation procedure.

You must read the installation manual for detailed instructions

on gate operator safety and proper use of the gate operator.

Please Read This First!

Thank you for purchasing a Mighty Mule Gate Operator—

Nortek Security & Control's "do-it-yourself" automatic

gate operator! When correctly installed and properly used,

your Mighty Mule Gate Operator will give you many years

of reliable service. Please read the following information

to ensure you have the correct system for your particular

needs. If so, this manual and will enable you to properly

install your Mighty Mule Gate Operator.

The Mighty Mule Gate Operator is designed for installation

for single or dual gates. The gate(s) must not exceed 18

feet in length or weigh more than 850 pounds (please see

Technical Specications on page 10). The Mighty Mule

Gate Operator can be used on vinyl, aluminum, chain link,

farm tube, and wrought iron gates.

Not rated for use on solid surface gates due to the

potential to damage the operator and/or injure someone.

The Mighty Mule Gate Operator accommodates extra

transmitters, digital keypads, solar panels, push buttons,

automatic gate locks, and other access control products.

These optional accessories (see the Mighty Mule

Accessory Catalog) are available at most stores. Your

store should be able to special order any accessory not in

stock.

If your store cannot special order accessories, please call

the Mighty Mule Sales Department (800-421-1587).

The Mighty Mule Gate Operator features Dual Sense

Technology™. This feature makes the gate stop and

reverse direction when it comes in contact with an

obstruction.

The Mighty Mule Gate Operator also has an adjustable

auto-close feature. After the gate reaches the fully open

position, it can be set to remain open up to 120 seconds

before automatically closing. Pressing the transmitter

button at any time after the gate opens fully will cause it

to close immediately. OFF is the factory setting; meaning

the gate will stay open until you press the transmitter (or

keypad, etc.) again.

Go to www.linearproaccess.com for a dealer or retailer

near you or call 800-421-1587 for information about our

Linear professional line of gate operators and accessories.

Our Sales Department will be glad to give you the name

and phone number of a Linear dealer near you.

NOT FOR THE CONTAINMENT OF ANIMALS.

MM571W / MM572W Installation Instructions 3

CAUTION

The gate will move freely and uncontrolled when the gate operator is removed from the gate.

ONLY disconnect the operator when the control box power switch is OFF and the gate is NOT moving.

Clevis Pin

Hairpin Clip

Gate Bracket

Front Mount

Because automatic gate operators produce high levels

of force, consumers need to know the potential hazards

associated with improperly designed, installed, and

maintained automated gate operator systems. Keep in

mind that the gate operator is just one component of

the total gate operating system. Each component must

work in unison to provide the end user with convenience,

security, and safety.

This manual contains various safety precautions and

warnings for the installer and end user. Because there

are many possible applications of the gate operator,

the safety precautions and warnings contained in this

Disconnecting the Operator

1. Turn control box power switch OFF.

2. Remove the hairpin clip and clevis pin.

3. Remove the operator’s front mount from the gate bracket.

The gate can be opened and closed manually when the operator

is disconnected.

manual cannot be completely exhaustive in nature. It

does, however, provide an overview of the safe design,

installation, and use of this product. CAREFULLY READ

AND FOLLOW ALL SAFETY PRECAUTIONS, WARNINGS,

AND INSTALLATION INSTRUCTIONS TO ENSURE THE

SAFE SYSTEM DESIGN, INSTALLATION, AND USE OF THIS

PRODUCT.

Warnings in this manual are identied with this

warning symbol. The symbol identies conditions that

can result in damage to the operator or its components,

serious injury, or death.

MANUALLY OPENING AND CLOSING GATE

Because Mighty Mule automatic gate operators are only part of the total gate operating system, it is the

responsibility of the installer and end user to ensure that the total system is safe for its intended use.

NOTE: Substitute a Pin Lock for the clevis pin on the front mount of

the gate operator to prevent theft of the operator from the gate (see

accessory pages in back of this book).

Important Safety Information

Part #: FM133

MM571W / MM572W Installation Instructions

WARNING

I. Before Installation

1. Verify this operator is proper for the type and size of gate, frequency of use

and class of the gate system.

2. Make sure the gate has been properly installed and swings freely in both

directions. Repair or replace all worn or damaged gate hardware prior to

installation. A freely moving gate will require less force to operate and will

enhance the performance of the entrapment protection devices used with

the system (see page 7).

3. Review the operation of the system to become familiar with its safety

features. Understand how to disconnect the operator for manual gate

operation (see previous page).

4. The gate and operator installation must comply with any applicable local

codes.

5. This gate operator is intended for vehicular gates only. A separate entrance

or gate must be installed for pedestrian use (see page 8).

6. Always keep people and objects away from the gate and its area of travel.

No one should cross the path of a moving gate.

7. Identify all of the entrapment zones for the type of installation. An

entrapment zone is an area around the automatic gate system where

a person or object could be caught that increase the risk of injury.

Entrapment zones should be eliminated, guarded or protected.

8. When designing a system that will be entered from a highway or main

thoroughfare, make sure the gate system is placed far enough from the

road to prevent trafc congestion.

FOR THE INSTALLER AND END USER

Gate in the

Open Position

ZONE 2

ZONE 3

ZONE 4

ZONE 5

Driveway

ZONE 1

Entrapment

Zones for a

Pull-To-Open

Application

MM571W

Gate in the

Open Position

Gate in the

Open Position

ZONE 2

ZONE 3

ZONE 4

ZONE 5

Driveway

MM572W

ZONE 1

ZONE 2

ZONE 4

ZONE 5

ZONE 3

Entrapment Zones

for a Pull-To-Open

Application

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Never let children operate or play with gate controls. Keep the remote control

away from children.

3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS

THE PATH OF THE MOVING GATE.

4. Test the gate operator monthly. The gate MUST reverse on contact with a

rigid object or stop when an object activates the non-contact sensors. After

adjusting the force or the limit of travel, retest the gate operator. Failure to

adjust and retest the gate operator properly can increase the risk of injury or

death.

5. Use the manual/emergency release only when the gate is not moving.

6. KEEP GATES PROPERLY MAINTAINED. Read the user’s manual. Have

a qualied service person make repairs to gate hardware.

7. The entrance is for vehicles only. Pedestrians must use separate

entrance.

8. The gate must be installed in a location that provides adequate

clearance between it and adjacent structures when opening and

closing to reduce the risk of entrapment. Swinging gates must not

open into public access areas.

9. SAVE THESE INSTRUCTIONS.

To reduce the risk of injury or death:

Important Safety Information

MM571W / MM572W Installation Instructions 5

II. During Installation

1. Install the gate operator on the inside of the property and

fence line. DO NOT install an operator on the outside of

the gate where the public has access to it.

2. Be careful with moving parts and avoid close proximity to

areas where ngers or hands could be pinched.

3. Devices such as contact sensors (sensing

edges) and non contact sensors (photo beams) provide

additional protection against vehicular damage.

4. If push buttons or key switches are installed, they should

be within sight of the gate, located at least 10 feet from

any moving part of the gate (see diagram below).

Never install any control device where a user will

be tempted to reach through the gate to activate the

gate operator.

5. Secure outdoor or easily accessed gate operator controls

in order to prohibit unauthorized use of the gate.

FOR THE INSTALLER AND END USER

Typical Entrapment Zones are shown in the diagrams on page 7:

Zone 1 – leading edge of the gate and the fence post.

Zone 2 – between the gate and the gate post.

Zone 3 – the path of the gate.

Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.

Zone 5 – pinch points between the operator and gate.

Moving Gate

Area

Driveway

10'

NEVER install any control device

within the indicated area

MM571W

Pull-To-Open Application

Important Safety Information

Pull-To-Open

Application

Moving Gate

Area

Moving Gate

Area

Driveway

10'10'

NEVER INSTALL

any control device

within the indicated area

MM572W

Pull-To-Open Application

MM571W / MM572W Installation Instructions

III. After Installation

1. Attach the warning signs (included) to each side of the

gate to alert the public of automatic gate operation. It is

your responsibility to post warning signs on both sides

of your gate. If any of these signs or warning decals

becomes damaged,

illegible, or missing, replace them immediately.

Contact Nortek Security & Control for free replacements.

2. The gate is automatic and could move at any time,

posing serious risk of entrapment. No one should be in

contact with the gate when it is

moving or stationary.

3. Do not attempt to drive into the gate area while the gate

is moving; wait until the gate comes to a complete stop.

4. Do not attempt to “beat the gate” while the gate is

closing. This is extremely dangerous.

5. Do not allow children or pets near your gate. Never let

children operate or play with gate controls. Keep the

remote control away from children and unauthorized

users; store controls where children and unauthorized

users do not have access to them.

6. KEEP GATE SYSTEMS MAINTAINED. Always turn power

to operator OFF before performing any maintenance. See

page 48 for maintenance procedures.

7. To operate this equipment safely, YOU must know how to

disconnect the operator for manual gate operation (see

page 17). If you have read the instructions and still do not

understand how to disconnect the operator, contact the

Mighty Mule Service Department.

8. Disconnect the operator ONLY when the power is

TURNED OFF and the gate is NOT moving.

9. Make arrangements with local re and law

enforcement for emergency access.

10. Distribute and discuss copies of the

IMPORTANT SAFETY INFORMATION

section of this manual with all persons

authorized to use your gate.

11. IMPORTANT: Save these safety instructions. Make sure

everyone who is using or will be around the gate and

gate operator are aware of the dangers associated

with automated gate systems. In the event you sell the

property with the gate operator or sell the gate operator,

provide a copy of these safety instructions to the new

owner.

Should you need a replacement manual, a copy can

be obtained by downloading one from the Mighty

Mule web site (www.mightymule.com), by contacting

Nortek Security & Control by calling 800-543-1236 and

requesting a duplicate copy.

FOR THE INSTALLER AND END USER

Important Safety Information

MM571W / MM572W Installation Instructions 7

FOR THE INSTALLER AND END USER

Mighty Mule gate operators utilize Dual Sense Technology™

entrapment protection. Dual Sense Technology™is built

into every Mighty Mule and provides redundant methods of

entrapment protection for open and close gate directions.

In addition to Dual Sense Technology, every Mighty Mule

gate controller has provisions for the connection of additional

obstruction detection devices such as sensing edges and

photo beams.

These devices may be located where there is an increased

risk of obstruction. Refer to the diagram below. One or more

edge sensors may be located at the leading edge, bottom

edge, and post edge, both inside and outside of a vehicular

swing gate system.

Wiring to sensors must be located and arranged so the wiring

between the sensor and the gate operator is not subjected to

mechanical damage.

A wireless sensor such as one that transmits radio frequency

(RF) signals that promote safety shall be located where the

transmission of the signals is not obstructed or impeded by

building structures, natural landscaping or similar objects.

Vehicular Gate

Photo Beams

(recommended, not included)

Photo Beams

(recommended, not included)

Sensing Edges

(recommended, not included)

Sensing Edges

(recommended, not included)

Leading Edges

of gates

Gate Warning Sign Gate Warning Sign Control Box

Leading Edge

of the gate

Photo Beam

(recommended, not included)

Photo Beam

(recommended, not included)

Sensing Edges

(recommended, not included)

Vehicular Gate

Gate Warning Sign

Control Box

Entrapment and Obstruction Protection

Mighty Mules’s Dual Sense Technology™provides entrapment protection. Since all installations are different, you may need to

add photo beams or sensing edges to help prevent damage to vehicle or other items that could be hit by a moving gate.

Entrapment Alarm

The Mighty Mule Automatic Gate Operator is designed to stop and reverse the gate when the gate comes in contact with an

obstruction. Additionally, these operators are equipped with an audio entrapment alarm which will activate if the unit obstructs

twice while opening or closing. This alarm will sound for a period of 5 minutes, or until the operator receives an intended signal

from a hard wired entry/exit source (e.g. push button control or keypad). Turning the power switch on the control box OFF and

back ON will also deactivate the alarm. Wireless controls such as transmitters and wireless keypads will not deactivate the alarm.

Important Safety Information

Example of MM572W Installation

(Installations vary slightly on different types of gates)

Example of MM571W Installation

(Installations vary slightly on different types of gates)

NOTE: Photo beams should

always be located on the

non-travel side of the gate.

Note: Photo Beams should always be located on the non-travel side of the gate.

This manual suits for next models

Table of contents

Other Nortek Control Gate Opener manuals

Nortek Control

Nortek Control Mighty Mule MM371W User manual

Popular Gate Opener manuals by other brands

Elite

Elite CSW200UL instruction manual

CAME

CAME FROG-PM4 installation manual

SOMFY

SOMFY FX230 installation manual

Aprimatic

Aprimatic ONDA 500 installation instructions

Turnstiles

Turnstiles FSW 900 manual

Erreka

Erreka BUL BL33 Quick installation and programming guide

Erreka

Erreka VULCAN S manual

Beninca

Beninca R1-2 WBV quick start guide

Erreka

Erreka VULCAN D user manual

Motorline professional

Motorline professional FORT User& installer's manual

Beninca

Beninca BOB5024 manual

AGA

AGA GATEMASTER 900 HD installation manual

Chamberlain

Chamberlain MotorLift HC280ML Mechanical installation

SOMFY

SOMFY Dexxo RTS Pro INSTALLATION INSTRUCTIONS-ILLUSTRATIONS

Cardin

Cardin BL Series manual

Westfalia

Westfalia 85 27 06 instruction manual

CAME

CAME F500 installation manual

Extel

Extel VERA quick guide
