Nordyne M1B Operating instructions

For installation in:

1. Manufactured Homes

2. Recreational Vehicles, Park Models,

Manufactured Buildings

3. Modular Homes/Buildings

WARNING:

If the information in this manual is not

followed exactly, a fire or explosion

may result causing property damage,

personal injury or loss of life.

– Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appli-

ance.

– WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch;

do not use any phone in your build-

ing.

• Immediately call your gas supplier

from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas sup-

plier, call the fire department.

– Installation and service must be per-

formed by a qualified installer, ser-

vice agency or the gas supplier.

!WARNING:

Should overheating occur, or the gas

supply fail to shut off, shut off the

manual gas valve to the appliance

before shutting off the electrical sup-

ply.

!WARNING:

Improper installation, adjustment, al-

teration, service or maintenance can

cause injury or property damage. Re-

fer to this manual. For assistance or

additional information consult a quali-

fied installer, service agency or the

gas supplier.

Owners Manual/Installation Instructions

Series M1B, M1G, M1M and M1S

Downflow, Direct Vent (Sealed Combustion)

Forced Air Gas and Oil Furnaces

LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER.

TABLE OF CONTENTS

1. SPECIFICATIONS ................................................................................... 3

2. OWNERS INFORMATION .......................................................................3

3. MANUFACTURER WARRANTY, OWNER RESPONSIBILITY ................. 3

4. INSTALLATION STANDARDS ................................................................. 5

5. UNIT LOCATION ..................................................................................... 6

6. MINIMUM CLEARANCES ........................................................................ 6

7. RETURN AIR PROVISIONS .................................................................... 6

8. AIR DISTRIBUTION SYSTEMS .............................................................. 8

9. ROOF JACK SELECTION ....................................................................... 8

10. DUCT CONNECTOR SELECTION ........................................................... 9

11. INSTALLATION ..................................................................................... 11

12. INSTALLATION OF TRANSIT-MODE VENTING SYSTEM ................... 14

13. ELECTRICAL WIRING ........................................................................... 15

14. FUEL PIPING ........................................................................................ 16

15. FLUE GAS SAMPLING.......................................................................... 19

16. LIGHTING AND FURNACE SHUT DOWN .............................................. 20

17. SERVICE GUIDE ................................................................................... 25

18. MAINTENANCE ..................................................................................... 30

19. OPTIONAL ACCESSORIES .................................................................. 31

20. WIRING DIAGRAMS ......................................................................... 34-39

21. EQUIVALENT ORIFICE SIZES AT HIGH ALTITUDES .......................... 40

Table 1. Model Identification

Door Color

W - White

G - Gray

Cabinet Dimensions

A - 56" x 19-3/4" x 23-3/4”

B - w/Coil Cavity,

76" x 19-3/4" x 23-3/4"

Electrical Code

A - 1PH, 60 Hz, 120 VAC

Heating Capacity

Input, BTUH (000’)

Application

M-Manufactured Home

Furnace Series

Fuel, Type of Combustion

G-Gas, Direct Vent, Pilot Burner

Natural or Forced Draft

M-Gas, Direct Vent, HSI,

Forced Draft

B-Gas, Direct Vent, Gun Burner

S-Oil, Direct Vent, Gun Burner

Comfort Model

H - Heating

A - Heating, A/C Ready

B - A/C Ready, 3 Ton

C - A/C Ready, 4 Ton

D - A/C Ready, 5 Ton

M 1 M B - 056 A - B W

WARNING:

Do not use this appliance if any part

has been submerged under water.

Immediately call a qualified service

technician to inspect the appliance

and to replace any part of the control

system and any gas control that has

been submerged underwater.

NOTICE TO INSTALLER

Installer is advised to follow carefully all instruc-

tions and warnings in this manual to insure

maximum performance, safety, and operating

efficiency of these appliances. Improper instal-

lation may create hazardous conditions, and

will void the appliance warranty.

1.SPECIFICATIONS

General Description

M1 Series gas and oil furnaces are listed direct

vent (sealed combustion), downflow heating

appliances for manufactured (mobile) homes,

recreational vehicles, and for use in residential/

modular/commercial construction. The furnace

must be located so that venting can be properly

achieved.

Air conditioning may be added to structures with

M1 series furnaces using Platinum series air

conditioning or conventional units. This Instal-

lation Instruction manual includes special re-

quirements for incorporation of air conditioning

equipment to the M1 series of furnaces.

Multi-speed blower assemblies as shown in

Table 3 have been certified for field installation

in M1 Series furnaces. An air conditioner can be

easily field installed with M1GH Series furnaces

if used in conjunction with certified 2-wire relay

box, p/n 903092A or 4/5 wire relay box 902898A.

2.OWNER INFORMATION

ABOUT YOUR CENTRAL

FURNACE SYSTEM

NORDYNE has been involved in the design of

products for the manufactured home industry

since the first manufactured home or trailer was

built.

NORDYNE originated the sealed combustion

system, which separates the furnace combus-

tion system from the living area of the home,

now a standard for the manufactured home

industry.

NORDYNE engineers developed the first cen-

tral heating system and the first central air

conditioner for manufactured homes.

NORDYNE is dedicated to bringing to its cus-

tomers the finest heating and cooling comfort

possible. NORDYNE constantly seeks to fur-

ther refine its products to continuously provide

exceptional comfort.

Follow the instructions in this booklet carefully

and this appliance will provide many years of

superior performance.

If you wish to cool your home automatically with

a central air conditioning system investigate the

excellent NORDYNE cooling systems avail-

able from your heating and cooling contractor.

These systems are designed to work best with

your NORDYNE furnace and have been care-

fully engineered to deliver optimum performance

when mated with NORDYNE manufactured

home furnaces.

NORDYNE also offers water heaters, fire-

places and ventilating systems specifically de-

signed for manufactured housing applications.

Check with your manufactured home retailer,

your heating and cooling contractor or your

distributor for information. Write directly to the

factory (PO Box 46911, St. Louis, MO 63146)

if you are not able to locate a source for

NORDYNE manufactured housing products in

your area.

3.MANUFACTURERWARRANTY,

OWNER’S RESPONSIBILITIES

It is the sole responsibility of the homeowner to

make certain the gas furnace has been cor-

rectly set up and converted to the proper fuel

(L.P. gas or Natural gas) and adjusted to oper-

ate properly. All gas furnaces are manufac-

tured for Natural gas and must be field con-

verted when using L.P. gas.

A warranty certificate with full details is included

with these instructions. However, NORDYNE

will not be responsible for any costs found

necessary to correct problems due to improper

setup, improper installation, furnace adjust-

ments, improper operating procedure on the

part of the user, etc.

Some specific examples of service calls which

cannot be included in warranty payments are:

1. Converting the furnace to use another type

of gas.

2. Repairing duct work in the home found to be

faulty.

3. Correcting wiring problems in the electrical

circuit supplying the furnace.

4. Resetting circuit breakers, blown fuses or

other switches.

5. Correcting problems due to improper gas

supply pressure to the furnace.

6. Providing instructional training on how to

light and operate the furnace.

7. Furnace problems caused by installation of

an air conditioner, heat pump or other air

comfort devices.

8. Adding a Roof Jack extension because of

unusual wind and/or snow conditions.

9. Revising installation of the furnace flue as-

sembly (Roof Jack).

10. Adjusting or calibrating of thermostat.

11. Any construction debris which falls into flue

system.

Electrical Supply - 120 volts, 60HZ, 1 Ph.

Fuse or Breaker - 15 amps

Temperature Rise - 45° to 75°F

High Altitude - See Table 11. For Canadian

High Altitude (2,000’ to 4,500’), reduce the

gas manifold pressure to 3.0” W.C. for

natural gas and to 8” W.C. for LP gas.

Thermostat Circuit - 24 volts, 60HZ, 30 vac

Normal Anticipator Setting - 0.4

Manifold Pressure - Natural Gas: 3.5” w.c.

LP Gas: 10” w.c.

*Blower capacity only - needs relay box for AC

Table 2. M1 Furnace Specifications

Furnace Input Output Orifice No E.S.P. Pilot Ignitor Comb. Motor A/C Ready

Model No MBtu/h MBtu/h Nat. LP In WC Burner Direct Blower Hp Tons

M1GH 056 56 45 29 45 0.3 x 1/8 2*

M1GB 056 56 45 29 45 0.3 x 1/4 3

M1GC 056 56 45 29 45 0.3 x 1/2 4

M1GD 056 56 45 29 45 0.3 x 3/4 5

M1GH 070 70 57 24 42 0.3 x 1/5 2½*

M1GB 070 70 57 24 42 0.3 x 1/4 3

M1GC 070 70 57 24 42 0.3 x 1/2 4

M1GD 070 70 57 24 42 0.3 x 3/4 5

M1GH 077 77 62 21 40 0.3 x x 1/4 3*

M1GB 077 77 62 21 40 0.3 x x 1/4 3

M1GC 077 77 62 21 40 0.3 x x 1/2 4

M1GD 077 77 62 21 40 0.3 x x 3/4 5

M1GH 090 90 72 17 36 0.3 x x 1/4 3*

M1GB 090 90 72 17 36 0.3 x x 1/4 3

M1GC 090 90 72 17 36 0.3 x x 1/2 4

M1GD 090 90 72 17 36 0.3 x x 3/4 5

M1MA 056 56 46 29 45 0.3 x x 1/8 2

M1MB 056 56 46 29 45 0.3 x x 1/4 3

M1MC 056 56 46 29 45 0.3 x x 1/2 4

M1MD 056 56 46 29 45 0.3 x x 3/4 5

M1MA 070 70 57 24 42 0.3 x x 1/5 2½

M1MB 070 70 57 24 42 0.3 x x 1/4 3

M1MC 070 70 57 24 42 0.3 x x 1/2 4

M1MD 070 70 57 24 42 0.3 x x 3/4 5

M1MB 077 77 62 21 40 0.3 x x 1/4 3

M1MC 077 77 62 21 40 0.3 x x 1/2 4

M1MD 077 77 62 21 40 0.3 x x 3/4 5

M1MB 090 90 72 17 36 0.3 x x 1/4 3

M1MC 090 90 72 17 36 0.3 x x 1/2 4

M1MD 090 90 72 17 36 0.3 x x 3/4 5

M1BA 066 66 53 26 43 0.3 x x 1/5 2½

M1BB 066 66 53 26 43 0.3 x x 1/4 3

M1BC 066 66 53 26 43 0.3 x x 1/2 4

M1BB 086 86 68 18 37 0.3 x x 1/4 3

M1BC 086 86 68 18 37 0.3 x x 1/2 4

M1SA 066 66 54 .50 Gph 0.3 x 1/5 2½

M1SB 066 66 54 .50 Gph 0.3 x 1/4 3

M1SC 066 66 54 .50 Gph 0.3 x 1/2 4

M1SB 086 86 71 .65 Gph 0.3 x 1/4 3

M1SC 086 86 71 .65 Gph 0.3 x 1/2 4

Burner Model

AF-10 Nozzle

Spray Angle

80° A

Carefully review these responsibilities with your

manufactured housing dealer, service com-

pany or gas supplier so there will be no misun-

derstanding at a later time.

!CAUTION:

• Never attempt to alter or modify this

furnace or any of its components.

• Never attempt to repair damaged or

inoperable components. Such action

could cause unsafe operation, explo-

sion, fire and/or asphyxiation.

• If a malfunction has occurred, or if

you feel that the furnace is not oper-

ating as it should, contact a qualified

service agency or gas utility for as-

sistance.

4.INSTALLATION STANDARDS

Installer shall be familiar with and comply with all

codes and regulations applicable to the instal-

lation of these heating appliances and related

equipment. In lieu of local codes, the installation

shall be in accordance with the current provi-

sions of one or more of the following standards.

Table 3. Field Installation Blower Assemblies

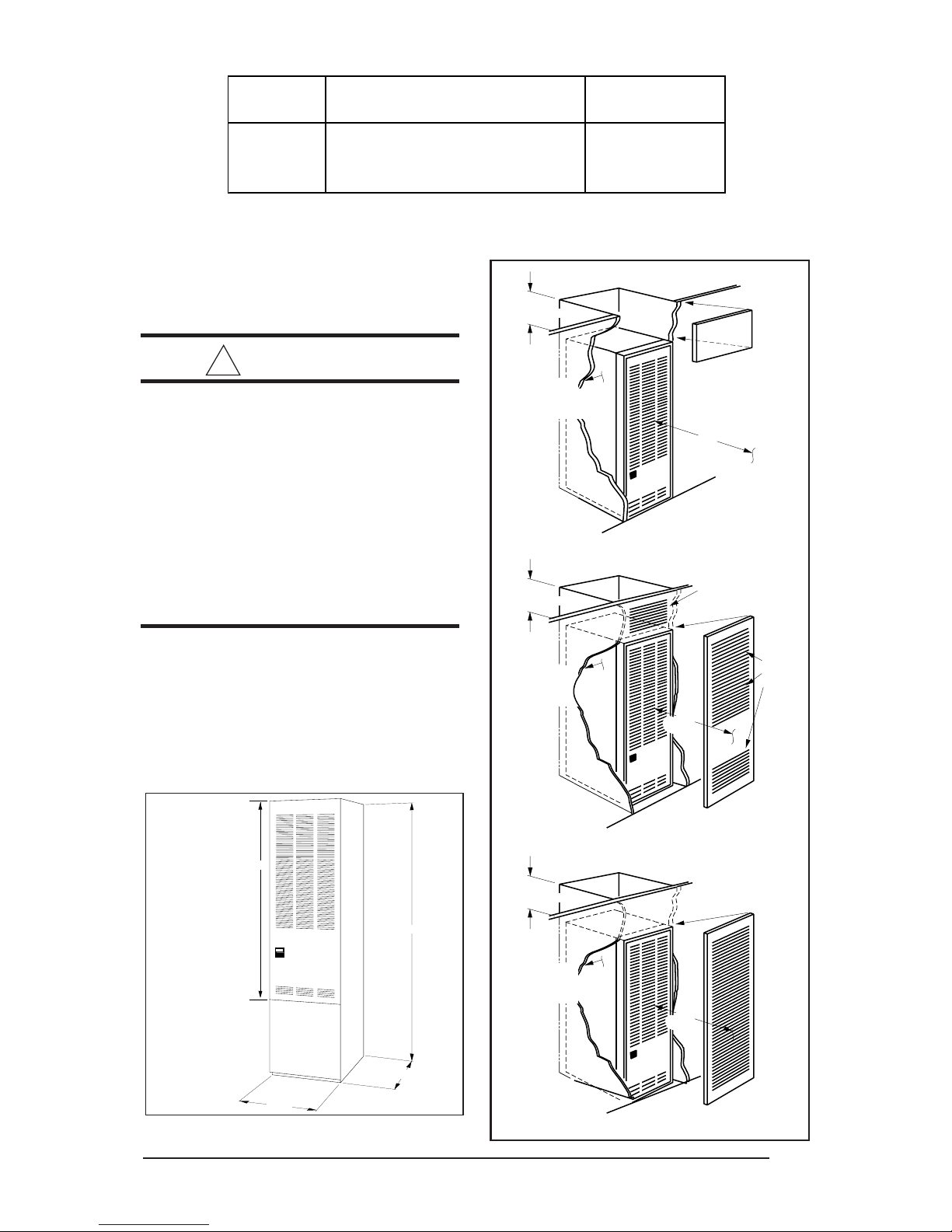

Figure 1. Overall Dimensions

“A”- 56"

23 3/4"

“B”- 76"

19 3/4"

“A” Model-

w/o Coil Cabinet

“B” Model-

w/Coil Cabinet

Removable access

panel should be

installed above

furnace door frame

to access roof jack

Nearest

Wall or

Partition

18"

(457 mm)

6" (152 mm)

Top Clearance

0" Side

Clearance

to Furnace

Cabinet

6" (152 mm)

Top Clearance

0" Side

Clearance

to Furnace

Cabinet

Provide min. 235

sq. in. (1516 cm )

open free area in

front or side wall

In closet

door

located

at top,

center

or bottom

CLOSET DOOR

6" (152 mm)

Top Clearance

Provide min. 250

sq. in. (1613 cm )

open free area in

front or side wall

a fully

louvered

door may

be used

CLOSET DOOR

(152 mm)

(25 mm)

0" Side

Clearance

to Furnace

Cabinet

in closet

door

Figure 4. Special 1” Clearance

Figure 3. Closet Installation

Figure 2. Alcove Installation

A/C Capacity

Blower Wheel Motor-Hp Ton

903773 10 x 8 1/4 2, 2½ & 3

903413 11 x 8 1/2 2, 2½, 3 & 4

903414 11 x 8 3/4 2, 2½, 3, 4 & 5

Part No. Blower / Motor Assembly

ALL MODELS CLOSET ALCOVE

Front 6" 18"

Back 0" 0"

Sides 0" 0"

Roof Jack 0" 0"

Top 6" 6"

Top and Sides of Duct 0" 0"

Bottom of Duct

B Cabinet 0" 0"

A Cabinet (w/ coil box) 0" 0"

A Cabinet (w/o coil box) 1/4" 1/4"

Table 4. Minimum Clearances Figure 5. Non-Platinum

Supply Duct System

A Single trunk duct

BDual trunk duct

w/crossover connector

Transition duct

w/branches

a. Federal Manufactured Home Constructions

& Safety Standard (H.U.D. Title 24, Part

3280.707[a][2])

b. American National Standard (ANSI-119.2/

NFPA-501C) for all recreational vehicle in-

stallations.

c. American National Standard (ANSI-Z223.1/

NFPA-54) and/or CAN/CGA B149 for all gas-

fired furnace models.

d. American National Standard (ANSI-Z95.1/

NFPA-31) and/or CSA B139 for all oil-fired

furnace models.

e. American National Standard (ANSI-C1/

NFPA-70) and/or CSA 22.1 Canadian Elec-

tric Code Part 1 for all electrical field wiring.

f. Units have been investigated under stan-

dards UL 307A & B, UL727-1999, ANSI

21.47a - CAN/2.3a - 1995, and CSA B140.10.

5.UNIT LOCATION

The furnace shall be appropriately located to

the supply and return air distribution system.

(See “AIR DISTRIBUTION”, Page 8) Sides and

back of the furnace may be enclosed by wall

framing. (See “Minimum Clearances,” Table 4,

and Figures 2 through 5.)

The furnace installation is only intended for free

air return through the furnace door louvers. DO

NOT connect a ducted return air system di-

rectly to the furnace. Improper installation may

create a hazard and damage equipment, as well

as void all warranties.

Furnace may be installed on combustible floor-

ing when using NORDYNE Duct Connectors

(see Section 10).

When installed in a residential garage, the fur-

nace must be positioned so the burners and the

source of the ignition are located no less than

18 inches above the floor and protected from

physical damage by vehicles.

6.MINIMUM CLEARANCES

This heating appliance must be installed with

clearances not less than the minimums shown

in Table 4. This heating appliance must be

installed with ample clearance for easy access

to the air filter, blower assembly, burner assem-

bly, controls, and vent connections.

a. Alcove installations (see Figure 2): minimum

18" clearance at front of furnace shall be

provided for future servicing. A removable

access panel should be installed between

top of the furnace door frame and the ceiling.

b. Closet installations must use a louvered door

having a minimum free area of 235 sq. in.

when located 6" from furnace (See Figure 3)

or 390 sq. in. for 5 ton ready M1 furnaces. For

special clearance between 1" and 6", re-

quirements are a louvered door with a mini-

mum of 250 sq. in. free area, with the open-

ings in the closet door in line with the louvered

openings in the furnace door . A fully louvered

closet door may be used (See Figure 4 and

section 7.i. to evaluate compliance with this

requirement).

7.RETURN AIR PROVISIONS

U.S.A. home manufacturers shall comply with

all of the following conditions to have acceptable

return air systems for closet installed forced air

heating appliances:

!CAUTION:

HAZARD OF ASPHYXIATION: Nega-

tive pressure inside the closet, with

closet door closed and the furnace

blower operating on high speed, shall

be no more negative than minus 0.05

inch water column.

ROOF JACK

SLANT DECK

FLASHING

PITCHED

ROOF

CEILING

CEILING CAVITY

ROOF OPENING

CEILING OPENING

"X" (SEE TABLE 6)

S O T 27 45 -5

S= SLAT FLASHING

F= FLAT FLASHING

O= TYPE; STANDARD

H= HIGH WIND

A= ARCTIC ROOF JACK

T= TRANSIT

MODE

TYPE

MIN. ADJ.

LENGTH

MAX. ADJ.LENGTH

5 = 5" FLUE DIA.

MODEL APPROX. ADJ.

NUMBER LENGTHS*

BELOW FLASHING

FO1323 -5 13" - 23"

FO2343 -5 23" - 43"

SO1835 -5 18" - 35"

SO2447 -5 24" - 47"

SO3263 -5 32" -63"

SO4895 -5 48" - 95"

SOT2442 -5 24" - 42"

SOT2745 -5 27" - 45"

SOT4581 -5 45" - 81"

FOT2846 -5 28" - 46"

Table 5. Roof Jack Assemblies

a. Regardless of the location, the return air

opening into the closet shall not be less than

specified in the appliance’s listing.

b. Means shall be provided to prevent inadvert-

ent closure by a flat object placed over the

return air opening when it is located in the floor

of the closet (versus the vertical front or side

wall).

c. The cross-sectional area of the return duct

system leading into the closet, when located

in the floor or ceiling shall not be less than 235

square inches (or 390 square inches for 5 ton

ready M1 Furnaces).

d. The total free area of openings in the floor or

ceiling registers serving the return air duct

system must be at least 235 sq. in. At least

one register should be located where it is not

likely to be covered by carpeting, boxes and

other objects.

e. Materials located in the return duct system

must have a flame spread classification of

200 or less. This includes a closet door if the

furnace is in a closet.

f. Noncombustible pans having 1" upturned

flanges are located beneath openings in a

floor duct system.

g. Wiring materials located in the return duct

system shall conform to Articles 300-22 of

the National Electrical Code (ANSI C1/NFPA-

70).

SSAW T27 47 - 2

AW= ALL WEATHER

FLASHING

PITCH/12" RISE

0=FLAT

2=2.5/12

4=4/12

MIN. ADJ.

LENGTH

FLAT FLASHING

SLANT FLASHING TYPE:

BLANK=NON-TRANSIT

T= TRANSIT MODE

MAX. ADJ.

LENGTH

FLUE STEEL TYPE

A= ALUMINIZED

S=STAINLESS

All Weather Roof Jack Assemblies

Approx. Length

Model Number Below Flashing

(F,S)AW(T)1523-(0,2,4)(A,S) 15" - 23"

(F,S)AW(T)2135-(0,2,4)(A,S) 21" - 35"

(F,S)AW(T)2747-(0,2,4)(A,S) 27" - 47"

(F,S)AW(T)3563-(0,2,4)(A,S) 35" - 63"

(F,S)AW(T)5195-(0,2,4)(A,S) 51" - 95"

Figure 6. Roof Jack Assemblies

ROOF JACK

SLANT DECK

FLASHING

PITCHED

ROOF

CEILING

CAVITY

ROOF

OPENING

"X" (SEE TABLE 1)

Flue Pipe

Combustion

Air Pipe

56" or 76"

Furnace

"A"

"B"

Figure 7. Example of Flat Jack

with Flashing

Figure 8. Example of 2½/12 Slant Jack

with Flashing

5/12 ROOF SLOPE

SLANT DECK

/12

OOF JACK WITH

LASHING

/12 SLANT

b. F=Flat Flashing; flexes from 0/12 to 1/12 roof

slope.

c. S=Slant Flashing. 2.5/12 Slope flexes from 1/

12 to 4/12 roof slope, 4/12 flexes from 3/12

to 5/12.

d. Stainless steel roof jacks are available.

e. If the roof jack crown is covered or blocked

with snow, the furnace will not operate prop-

erly. If the home is located in regions where

snow accumulation exceeds 7” (HUD

snowload zones) use an external roof jack

extension p/n 901937.

f. M1 furnaces may be used with roof jacks as

tall as 170” (except M1M 056 & M1B 066

models, which are limited to 120”). An internal

roof jack extension (p/n 901935 - 10”, p/n

903107 - 18”) can be used to increase roof

jack height. All connections inside the home

must be made below the ceiling.

These extensions are available as optional

accessories and may be purchased through

your NORDYNE distributor.

h. Gas piping is not run in or through the return

duct system.

i. Test the negative pressure in the closet with

the air-circulating fan operating at high speed

and the closet closed. The negative

pressure is to be no more negative than

minus 0.05 inch water column.

j. Air conditioning systems may require more

duct register and open louver area to ob-

tain necessary airflow. Use NORDYNE’s

certiduct program to determine proper duct

size for A/C.

8.AIR DISTRIBUTION SYSTEMS

For proper air distribution, the supply duct

system must be designed so that the static

pressure measured external to the furnace

does not exceed the listed static pressure

rating shown on the furnace rating plate.

Location, size, and number of registers should

be selected on the basis of best air distribution

and floor plan of the home.

CAUTION:

HAZARD OF ASPHYXIATION: Do not

cover or restrict return air opening.

9.ROOF JACK SELECTION

Note: Install only Roof Jack Assemblies listed

in Table 5 on this heating appliance.

a. Determine depth of ceiling cavity from center

of roof opening to center of ceiling opening.

(See Dimension “A” in Figure 6.)

b. Determine ceiling height and subtract height

of furnace. (See Dimension “B” in Figure 6.)

c. Add dimensions A + B (and X from Table 6 and

Figure 7 if slant deck flashing is used). The

total length of (A + B + X) must be within the

minimum and maximum range of one of the

Roof Jacks listed in Table 5.

APPLICATION NOTES:

a. FAW, FAWT, SAW and SAWT Series Roof

Jacks with a 5" diameter inner vent pipe may

be used with all models of M1 Series gas and

oil furnaces.

Table 6. Slant Deck Flashings

Table 7. Floor Cavity Sizes

Optional Deck Flashings for Flat and 2.5/12 Pitch

Roof Jacks.

(4/12 Pitch Roof Jacks not applicable.)

USE SLANT DECK

IF ROOF PITCH IS: FLASHING NO. "X" FACTOR IS:

"F Series Roof Jack

2" in 12" 903893 (2.5/12) 2-1/8"

2-1/2" in 12" 903893 (2.5/12) 2-1/2"

3" in 12" 903894 (3/12) 2-7/8"

3-1/2" in 12" 903894 (3/12) 3-1/4"

4" in 12" 903895 (4/12) 3-5/8"

"S" Series Roof Jack (2.5/12 Pitch only)

4-1/2" in 12" 903895 (2.5/12) 2-1/8"

5" in 12" 903895 (2.5/12) 2-1/2"

5-1/2" in 12" 903894 (3/12) 2-7/8"

6" in 12" 903894 (3/12) 3-1/4"

6-1/2" in 12" 903895 (4/12) 3-5/8"

English Metric (mm) Finger Tab Screw Down

7/8" 22 901987 904008

2" 51 901988 904009

4-1/4" 108 901989 904010

6-1/4" 159 901990 904011

8-1/4" 210 901991 904012

10-1/4" 260 901992 904013

12-1/4" 311 901993 904014

Use Duct Connector

Model Part Number:

If "X"

(

Floor Cavit

is:

10. DUCT CONNECTOR SELECTION b. Select appropriate model from Table 7

which matches X-dimension of the floor

cavity. To maximize air delivery, re-

move reducer “C” (see Figure 11) to

obtain the largest open area that will fit

the duct/floor construction. Screw down

duct connector opening to duct without

reducer is 13” x 13”. With reducer it is

13” x 10-1/8”.

Figure 10.

Figure 9.

13 1/4"

10 1/4"

19”

19"

Top View

Finger Tab

Duct

Connector

SUPPLY AIR DUCT

FLOOR CAVITY

(depth equal to "X" in Figure 11 and Table 7)

Figure 11.

XSEE

TABLE 7

REDUCER

*FELT-SEAL

SPACERS

*OPENING TO DUCT

WITH PLATE (C) REMOVED

OPENING BECOMES

13-1/4” x 13-1/4”

*INDICATES FINGER TAB DUCT CONNECTOR ONLY

PLATINUM SERIES

a. For Platinum ready construction use

the 14” round duct connector, p/n:

903896.

NON-PLATINUM SERIES

a. Determine depth of floor cavity from

surface of floor to top of supply air duct

(See Figure 9).

Figure 12. Closet or Alcove

CEILING AND ROOF

OPENINGS

13-1/2"

10"

23 -1/4"

FLOOR

OPENING

LT. FUEL

INE HOLES

SIDE WALL

REAR WALL

FUEL LINE

HOLE

FLOOR CUT-OUT

FOR DUCT CONN.

CEILING

CUT-OUT FOR

FLUE AND

ROOF JACK

(See Fig 12)

24"

23-1/4"

21-3/4"

14-1/2"

2-1/4"

2-3/4"

20"

14-1/2"

13-1/2"

FURNACE OUTLINE

FLOOR CUT-OUT

FOR OPTIONAL

COOLING COIL

FOR NON-PLATINUM

SERIES UNITS

10"

12-7/8"

14-3/4"

15-1/2"

1-1/4" D.

ALT FUEL-LINE

ENTRY FURNACE

OUTER DOOR

REAR WALL OF CLOSET OR ALCOVE

FUEL-LINE

1-3/4"

3/4"

Figure 13. Cut-Out Locations

Other manuals for M1B

This manual suits for next models

Table of contents

Other Nordyne Furnace manuals

Nordyne

Nordyne Upfl ow/Horizontal User manual

Nordyne

Nordyne M4RC User manual

Nordyne

Nordyne TC Upflow/Horizontal User manual

Nordyne

Nordyne *MQ 97%+ Upfl ow/Horizontal User manual

Nordyne

Nordyne O4LD-140A-16F User manual

Nordyne

Nordyne 80+ AFUE Two Guide

Nordyne

Nordyne M1B Original instructions

Nordyne

Nordyne M3RL Series Manual

Nordyne

Nordyne MGHA Series User manual

Nordyne

Nordyne O5LD-091A-12-R User manual

Nordyne

Nordyne + RC 92+ User manual

Nordyne

Nordyne Residential Gas Furnaces Guide

Nordyne

Nordyne TE Series 95 User manual

Nordyne

Nordyne M1B User manual

Nordyne

Nordyne M4RL-090D-35C User manual

Nordyne

Nordyne CMF User manual

Nordyne

Nordyne O4LD-091A-12-RA User manual

Nordyne

Nordyne CMF95 Series User manual

Nordyne

Nordyne CMF95 Series User manual

Nordyne

Nordyne O4LD-091A-12-RA User manual

Nordyne

Nordyne M3RL 060A AW User manual

Nordyne

Nordyne VG7TC-FS User manual

Nordyne

Nordyne M7RL User manual

Nordyne

Nordyne *TA UPFLOW / HORIZONTAL User manual

Popular Furnace manuals by other brands

Armstrong

Armstrong EG7H SERIES Installation and maintenance instructions

Payne

Payne PG92ESA Installation, start-up, operating and service and maintenance instructions

SUPREME

SUPREME FEM10-M2301CM-A Installation instructions and homeowner's manual

Ingersoll-Rand

Ingersoll-Rand S9V2B080D4VSAC/D Installer's guide

Johnson Controls

Johnson Controls TM9T User's information manual

Fluke

Fluke 9118A user manual

Lennox

Lennox EL195UHE Elite Series Unit information

Intertherm

Intertherm M7RL Series user manual

HDG

HDG Pelletmaster 15 Operation manual

Pinnacle

Pinnacle Aero Bella AB-716C-QH User's manual and operating instructions

Nortek

Nortek MG2S Series installation instructions

VERDER

VERDER CARBOLITE GERO ABF 8/28 Installation, operation and maintenance instructions

Goodman

Goodman GMV9 Installation & operating instructions

SUPREME

SUPREME SUP10-M2301C Installation instructions and homeowner's manual

Dettson

Dettson AMT400B34-SM1PMA Installation instructions and homeowner's manual

Evcon

Evcon DGD 60 MBH installation instructions

Trane

Trane S8B1A026M2PSAB Installer's guide

Hart Sceintific

Hart Sceintific 9113 user manual
