CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. NTCCEL16907.0

Serial No.

Write the serial number in the

space above for reference. USERʼS MANUAL

www.nordictrack.com

Visit our website at

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 8:00 until 17:00 EST

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLPTCALEXERCSER ..................................................10

MANTENANCEANDTROUBLESHOOTNG ...................................................20

EXERCSEGUDELNES ...................................................................21

PARTLST ..............................................................................24

EXPLODEDDRAWNG ....................................................................26

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

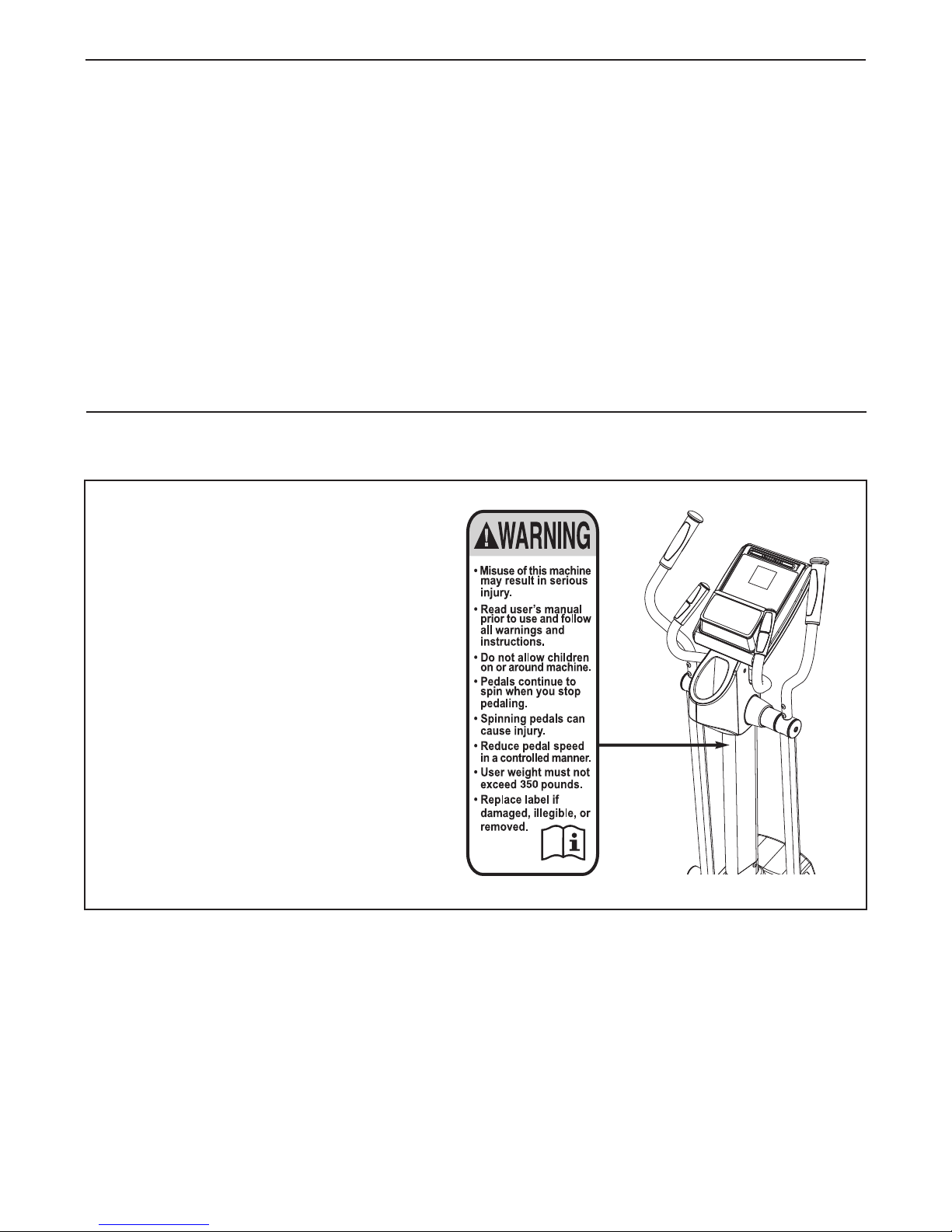

WARNING DECAL PLACEMENT

NordicTrack is a registered trademark of CON P, nc.

This drawing shows the location(s) of the

warning decal(s). If a decal is missing

or illegible, call the telephone number

on the front cover of this manual and

request a free replacement decal.

Apply the decal in the location shown.

Note: The decal(s) may not be shown at

actual size.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for

home use only. Do not use your elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 350 lbs.

(159 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using your elliptical exerciser.

10. Keep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercis-

ing, stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Congratulations for purchasing the revolutionary

NordicTrack COMMERC AL™ 1300 elliptical exer-

ciser. The NordicTrack COMMERC AL 1300 elliptical

exerciser provides a wide array of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. f you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

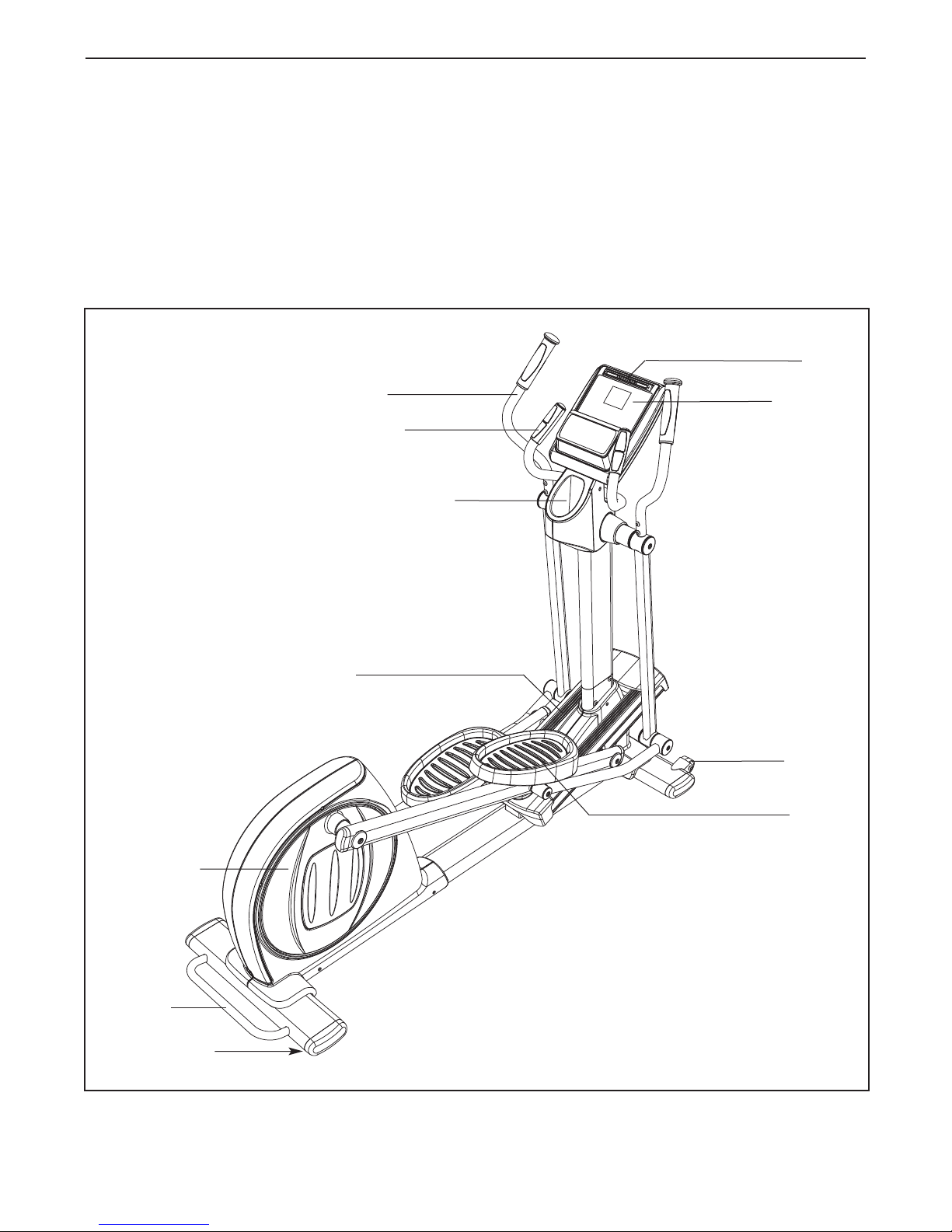

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Ramp

Handlebar

Pedal Disc

Wheel

Pedal

Water Bottle Holder*

Console

Handle

Leveling Foot

Fan

*No water bottle is included

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own Phillips screwdriver , adjustable

wrench , and rubber mallet .

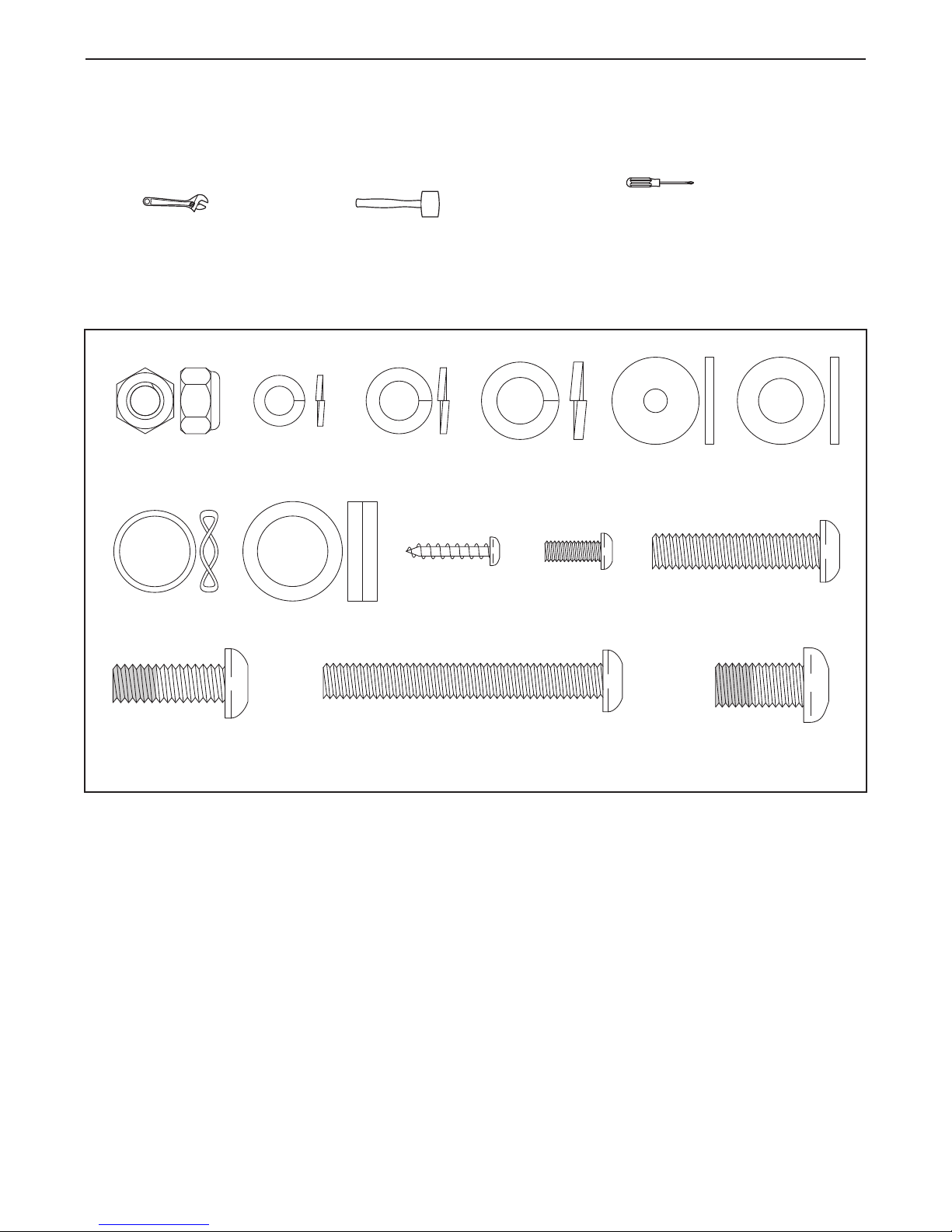

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART L ST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

#8 x 3/4"

Screw (78)–4

5/16" x 1" Patch

Screw (81)–11

#10 x 1/2"

Screw (79)–10

5/16" x 1.5" Button

Bolt (73)–4

5/16" Washer

(104)–6

#10 Fender

Washer (80)–10

5/8" Wave

Washer (102)–6

5/16" Split

Washer (105)–5

5/16" Nylon

Locknut (106)–4

M10 x 20mm Patch

Screw (108)–6

Pivot Spacer

(71)–4

5/16" x 2 1/2" Button

Screw (88)–8

M10 Split

Washer (110)–6

M6 Split

Washer

(111)–10

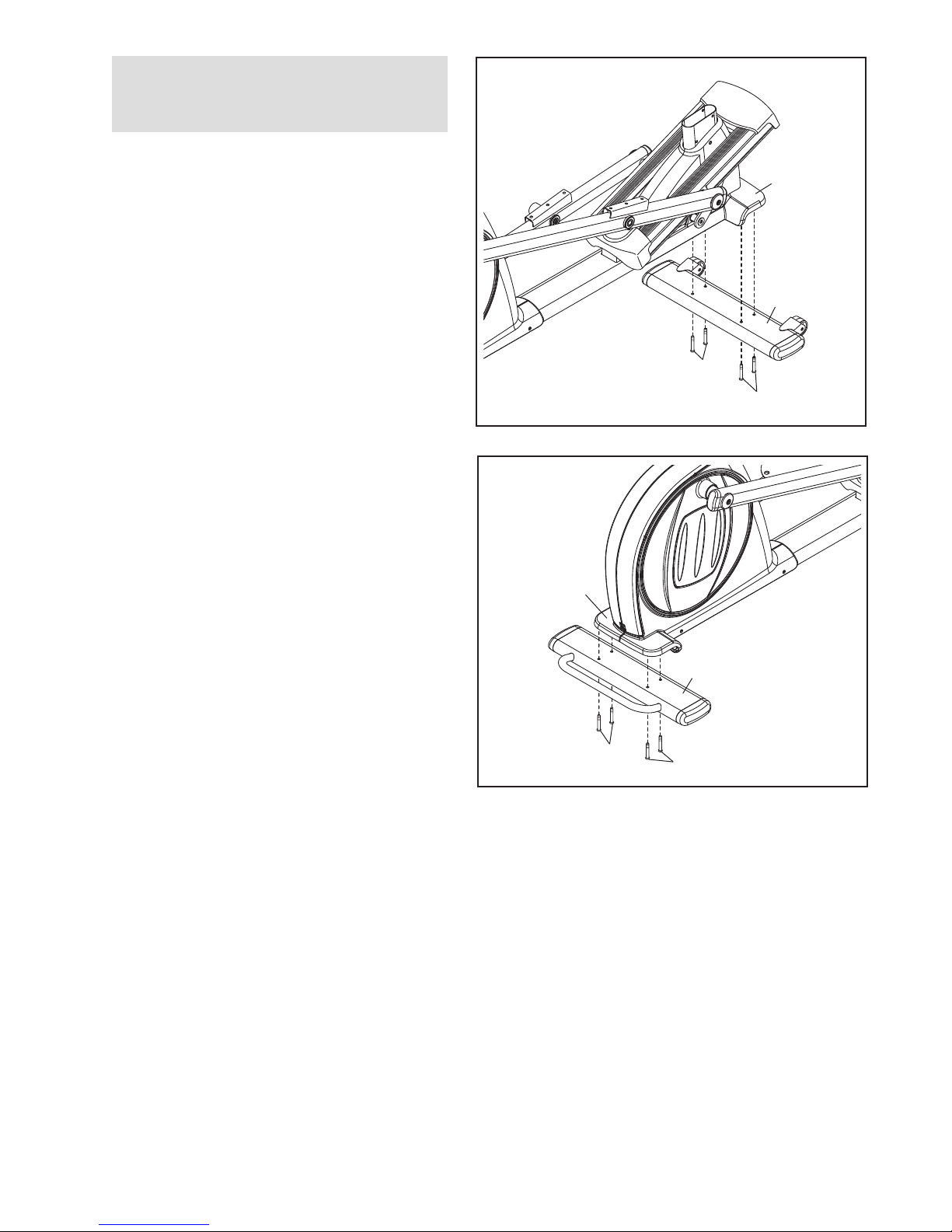

2. With the help of a second person, place two

packing inserts from the packing material under

the rear of the Frame (1) so that the Frame is

lifted off the floor. Have the other person hold

the elliptical exerciser to prevent it from

moving until this step is completed.

Attach the Rear Stabilizer (3) to the Frame (1)

with four 5/16" x 2 1/2" Button Screws (88).

Then, remove the packing inserts and lower the

Rear Stabilizer.

With the help of another person, place the two

packing inserts under the front of the Frame (1)

so that the Frame is lifted off the floor. Have the

other person hold the elliptical exerciser to

prevent it from moving until this step is

completed.

Attach the Front Stabilizer (2) to the Frame (1)

with four 5/16" x 2 1/2" Button Screws (88).

Then, remove the packing inserts and lower the

Front Stabilizer.

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

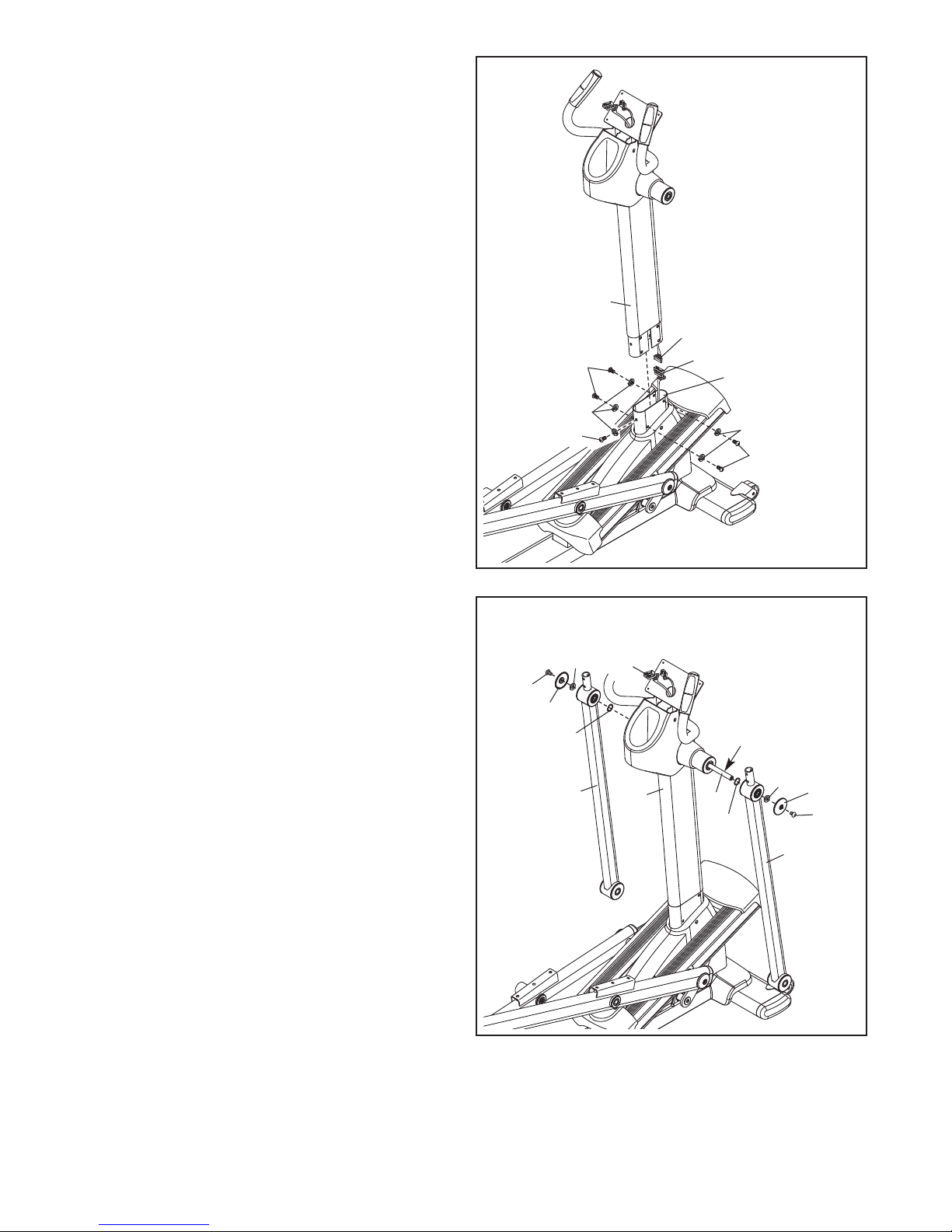

4. Apply a generous amount of the included

grease to the Pivot Axle (33) and to two 5/8"

Wave Washers (102).

Tip: Avoid pinching or damaging the Upper

Wire Harness (97). nsert the Pivot Axle (33)

through the Upright (6). Then, slide a 5/8" Wave

Washer (102) onto each end of the Pivot Axle.

Slide an Upper Body Arm (12) onto the left side

of the Pivot Axle (33). Attach the Upper Body

Arm with a 5/16" x 1" Patch Screw (81), a Large

Axle Cover (94), and a 5/16" Washer (104).

Attach the other Upper Body Arm (12) in the

same way.

3. Tip: Be careful not to pinch the Wire

Harnesses (97, 54) during this step. Start all

screws before tightening any of them.

While a second person holds the Upright (6)

near the Frame (1), connect the Upper Wire

Harness (97) to the Lower Wire Harness (54).

Attach the Upright (6) to the Frame (1) with five

5/16" x 1" Patch Screws (81) and five 5/16"

Split Washers (105).

Avoid pinching the

Wire Harnesses (97,

54) during this step

105

102

Grease

104

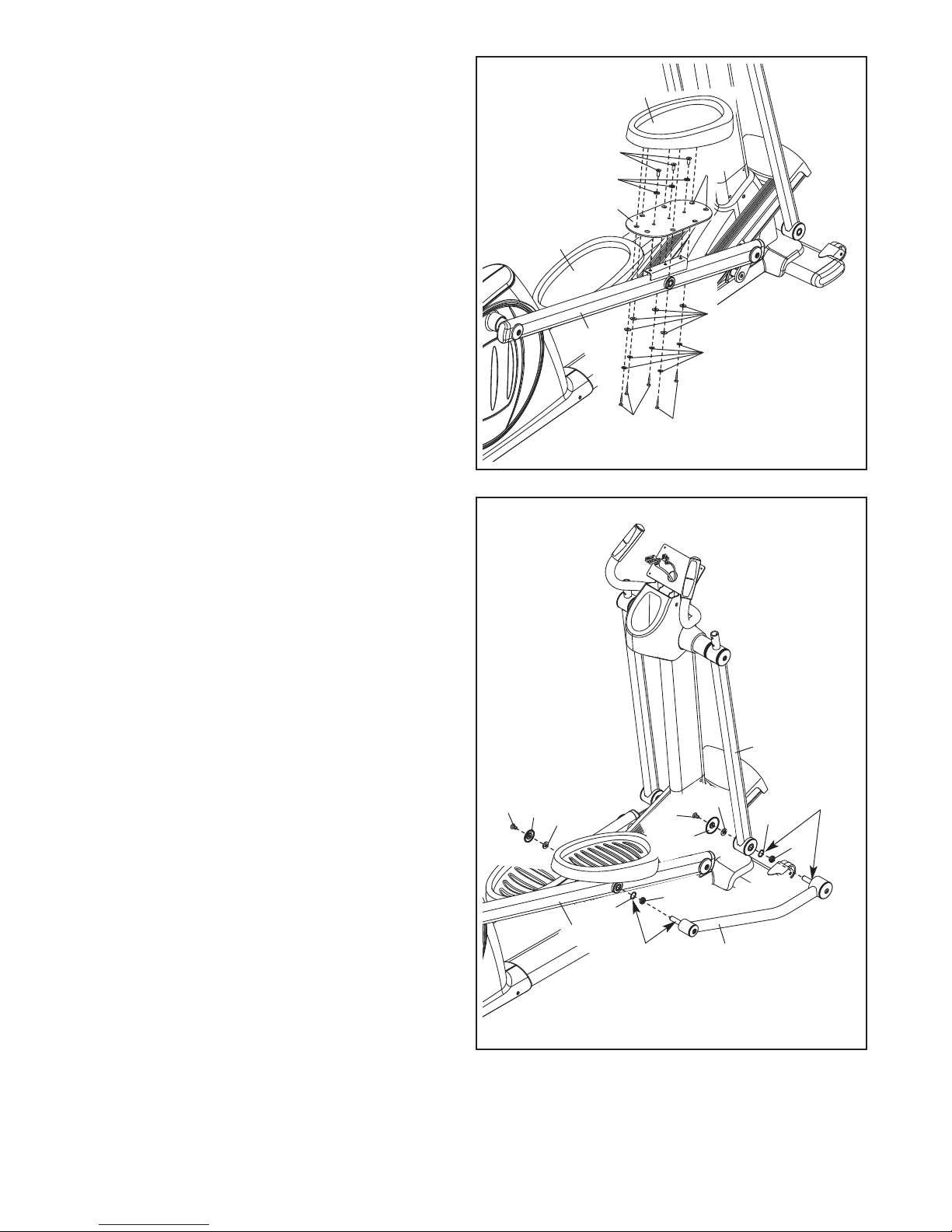

6. dentify the Right Link Arm (10), which is

marked with a sticker. Lightly grease the two

axles on the Right Link Arm and the two 5/8"

Wave Washers (102). Then, slide a Pivot

Spacer (71) and a Wave Washer onto each

axle.

At the same time, work the Right Link Arm (10)

into the right Upper Body Arm (12) and into the

Right Pedal Arm (8).

Attach the Right Link Arm (10) to the right

Upper Body Arm (12) with a 5/16" x 1" Patch

Screw (81), a Large Axle Cover (94), and a

5/16" Washer (104).

Then, attach the Right Link Arm (10) to the

Right Pedal Arm (8) with a 5/16" x 1" Patch

Screw (81), a Small Axle Cover (67), and a

5/16" Washer (104).

Tip: If it is difficult to work the Right Link

Arm (10) into the right Upper Body Arm (12)

and the Right Pedal Arm (8), try working the

Right Link Arm in halfway and then tighten-

ing the 5/16" x 1" Patch Screws (81) to pull it

in the rest of the way.

Repeat this step for the other side of the

elliptical exerciser.

102

Grease

5. dentify the Right Pedal Plate (107), which is

marked with an “R” sticker. Attach the Right

Pedal Plate to the Right Pedal Arm (8) with

three M10 x 20mm Patch Screws (108) and

three M10 Split Washers (110).

dentify the Right Pedal Assembly (62), which is

located in a package marked with a “Right”

sticker. Attach the Right Pedal Assembly to the

Right Pedal Plate (107) with five #10 x 1/2"

Screws (79), five M6 Split Washers (111), and

five #10 Fender Washers (80). Tip: To avoid

damaging the Pedal, do not overtighten the

Screws.

Repeat this step for the Left Pedal Plate (not

shown) and the Left Pedal Assembly (56).

108

107

110

111

102

104 81

104

7. While a second person holds the Console (60)

near the Upright (6), connect the console wire to

the Upper Wire Harness (97). Then, connect the

console pulse wire to the Hand Pulse Wire (65).

nsert the excess wire downward into the

Upright.

Tip: Avoid pinching the wires during this

step. Attach the Console (60) to the Upright (6)

with four #8 x 3/4" Screws (78).

7Avoid pinching the

wires during this step

Pulse Wire

Console Wire

9. Plug the Power Cord (55) into the power socket

at the rear of the elliptical exerciser (see HOW

TO PLUG N THE POWER CORD on page 10).

IMPORTANT: If the elliptical exerciser has

been exposed to cold temperatures, allow it

to warm to room temperature before plug-

ging in the power cord. If you do not do this,

the console displays or other electronic

components may become damaged.

The ramp will calibrate automatically when

the elliptical exerciser is plugged in for the

first time.

8. dentify the Right Handlebar (31), which is

marked with a “Right” sticker and orient it as

shown. Attach the Right Handlebar to the right

Upper Body Arm (12) with two 5/16" x 1.5"

Button Bolts (73) and two 5/16" Locknuts (106).

Make sure that the Locknuts are in the

hexagonal holes.

Repeat this step to attach the Left Handlebar

(7) to the left Upper Body Arm (12).

106

10. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

Hexagonal

Holes

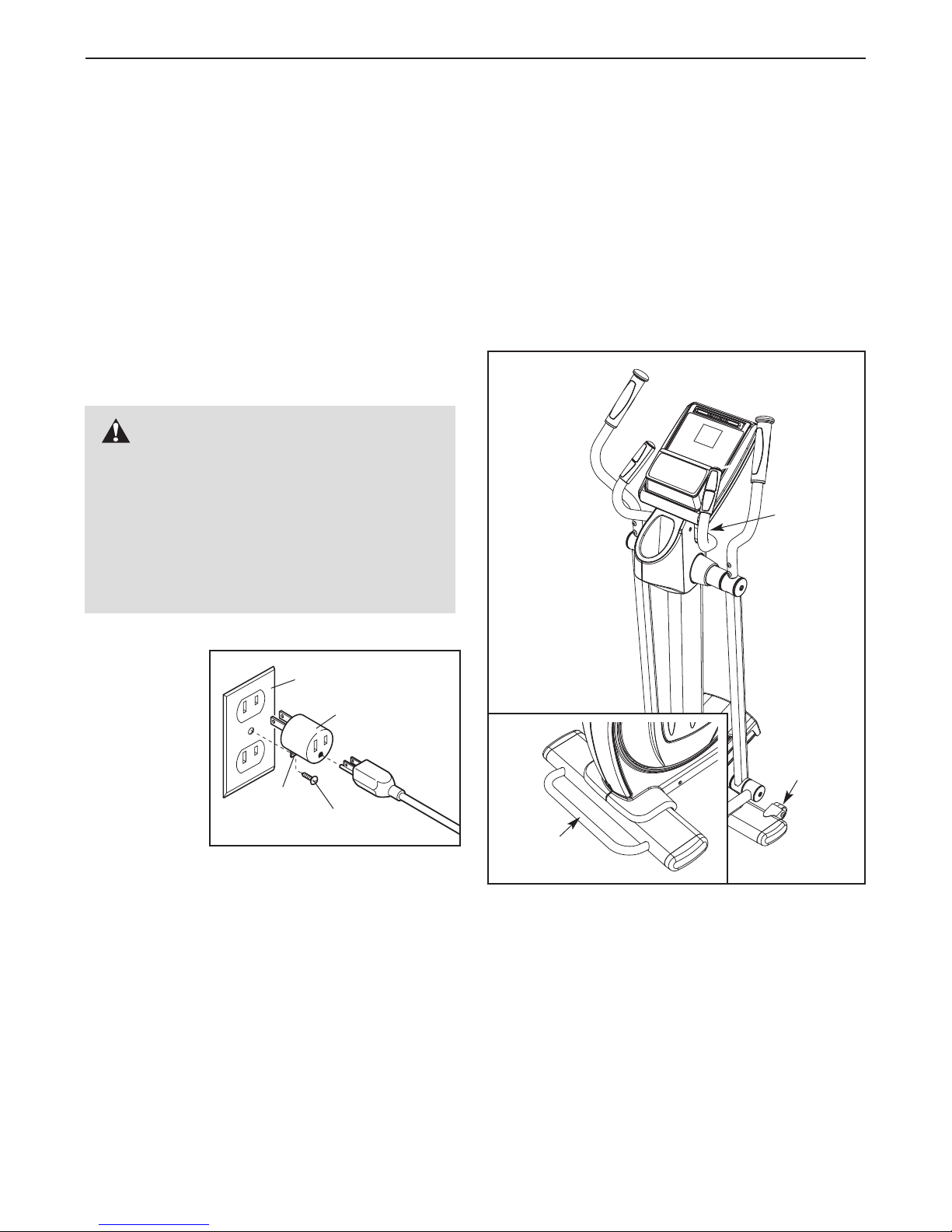

HOW TO PLUG IN THE POWER CORD

This product must be grounded. f it should mal-

function or break down, grounding provides a path of

least resistance for electric current to reduce the risk

of electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into an appro-

priate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances. This product is for use on a nominal

120-volt circuit. IMPORTANT: The elliptical exer-

ciser is not compatible with GFCI-equipped out-

lets.

A temporary

adapter may

be used to

connect the

power cord to

a 2-pole

receptacle as

shown at the

right if a prop-

erly grounded

outlet is not

available. The

temporary adapter should be used only until a prop-

erly grounded outlet can be installed by a qualified

electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used, it must be held in

place by a metal screw. Some 2-pole receptacle out-

let box covers are not grounded. Contact a quali-

fied electrician to determine if the outlet box cover

is grounded before using an adapter.

HOW TO MOVE THE ELLIPTICAL EXERCISER

Due to the size and weight of the elliptical exer-

ciser, moving it requires two persons. Stand in

front of the elliptical exerciser, hold the upright, and

place one foot against one of the front wheels. Pull on

the upright and have a second person lift the handle

on the rear of the frame until the elliptical exerciser

will roll on the front wheels. Carefully move the ellipti-

cal exerciser to the desired location, and then lower it

to the floor.

HOW TO LEVEL THE ELLIPTICAL EXERCISER

f the elliptical exerciser rocks slightly on your floor

during use, turn one or both of the leveling feet

beneath the rear stabilizer until the rocking motion is

eliminated.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Adapter

Lug

Metal Screw

HOW TO USE THE ELLIPTICAL EXERCISER

Place

your foot

here

Lift here

Pull on

upright

This manual suits for next models

Other NordicTrack Elliptical Trainer manuals

NordicTrack

NordicTrack NTIVEL69016.0 User manual

NordicTrack

NordicTrack CXT 990 User manual

NordicTrack

NordicTrack E 7.2 Elliptical User manual

NordicTrack

NordicTrack E10 Rear Drive Elliptical System manual

NordicTrack

NordicTrack FreeStrider 35 S NTSR01909.0 User manual

NordicTrack

NordicTrack A.c.t. 7 Elliptical User manual

NordicTrack

NordicTrack Cx 1055 Elliptical Exerciser User manual

NordicTrack

NordicTrack C 1750 Pro Treadmill User manual

NordicTrack

NordicTrack A.C.T. NTEL08911.0 User manual

NordicTrack

NordicTrack NTEL00909.3 User manual

NordicTrack

NordicTrack 130 Elliptical User manual

NordicTrack

NordicTrack CX 998 NEL70950 User manual

NordicTrack

NordicTrack E 7.2 Elliptical User manual

NordicTrack

NordicTrack 29835.0 User manual

NordicTrack

NordicTrack Xlt 1200 Elliptcal User manual

NordicTrack

NordicTrack 14.0 Elliptical User manual

NordicTrack

NordicTrack E4.1 Elliptical Manual

NordicTrack

NordicTrack NTE13920 User manual

NordicTrack

NordicTrack Freestrider 35 S Elliptical User manual

NordicTrack

NordicTrack CX 1055 NEL90951 User manual

NordicTrack

NordicTrack 9600 Elliptical Trainer User manual

NordicTrack

NordicTrack E 7.1 User manual

NordicTrack

NordicTrack E 5.9 Elliptical User manual

NordicTrack

NordicTrack NordicTrack E 7.0 NTEVEL87910 User manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual

Reebok

Reebok 1000 Zx Elliptical Manuel de l'utilisateur
