Norcold N260 User manual

PART NO. 619261

NORCOLD 01/04/2007

N260

N260.3

N260SERIES

PARTS LIST

PARTS LIST N260 SERIES Page 2

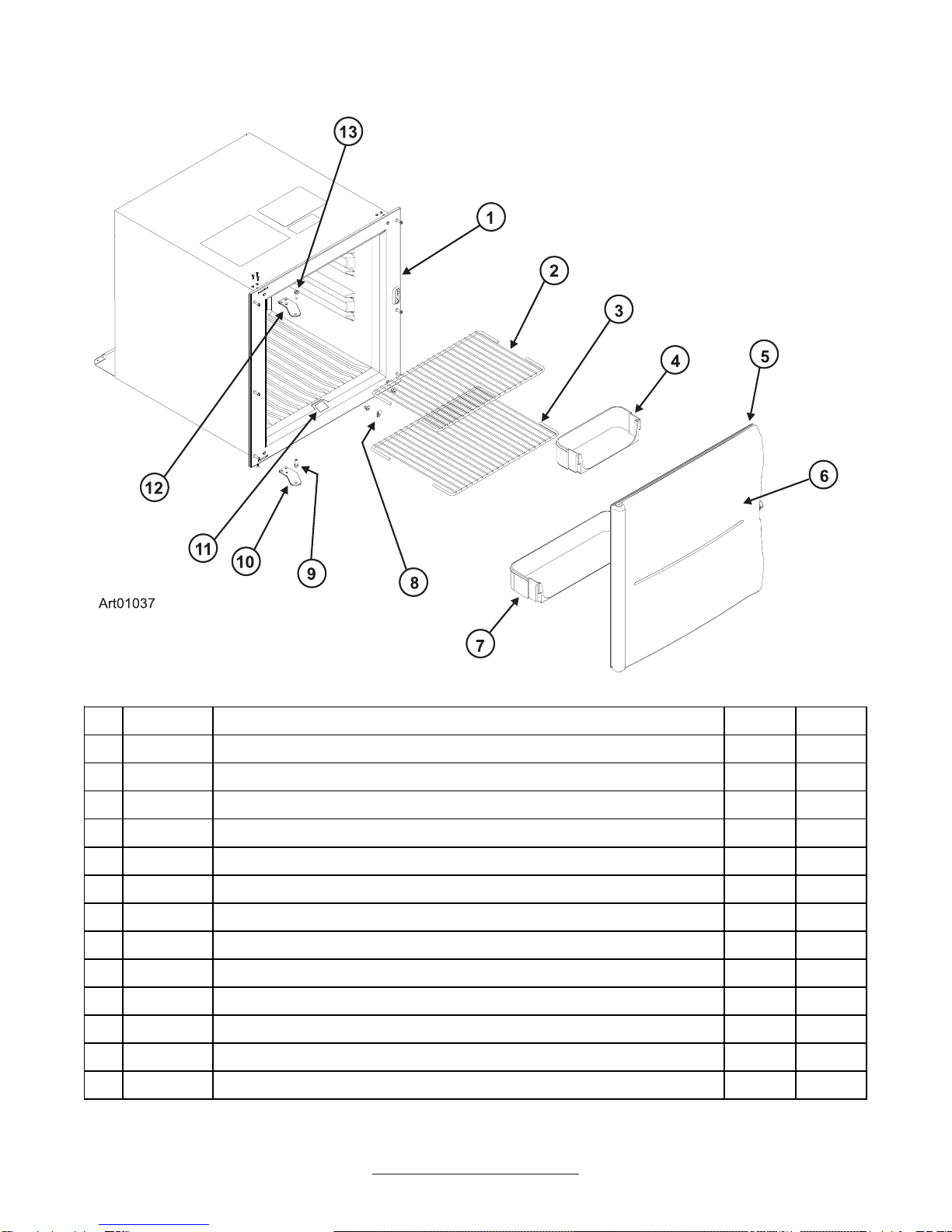

CABINET ASSEMBLY - FRONT VIEW - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

1 619232 BREAKER-CABINET/METAL X X

2 619237 SHELF-WIRE/TOP XX

3 619236 SHELF-WIRE/BOTTOM X X

4 619242 BIN-DOOR SHELF/SMALL X X

5 619233 DOOR GASKET XX

6 619234 DOOR ASSY XX

7 619235 BIN-DOOR SHELF/LARGE X X

8 61409622 CLIP-SHELF XX

9 61550722 HINGEPIN-BOTTOM X X

10 619222 HINGE-LOWER LH/UPPER RH X X

11 619238 NAMEPLATE XX

12 619221 HINGE-LOWER RH/UPPER LH X X

13 61114600 HINGEPIN-TOP XX

PARTS LIST N260 SERIES Page 3

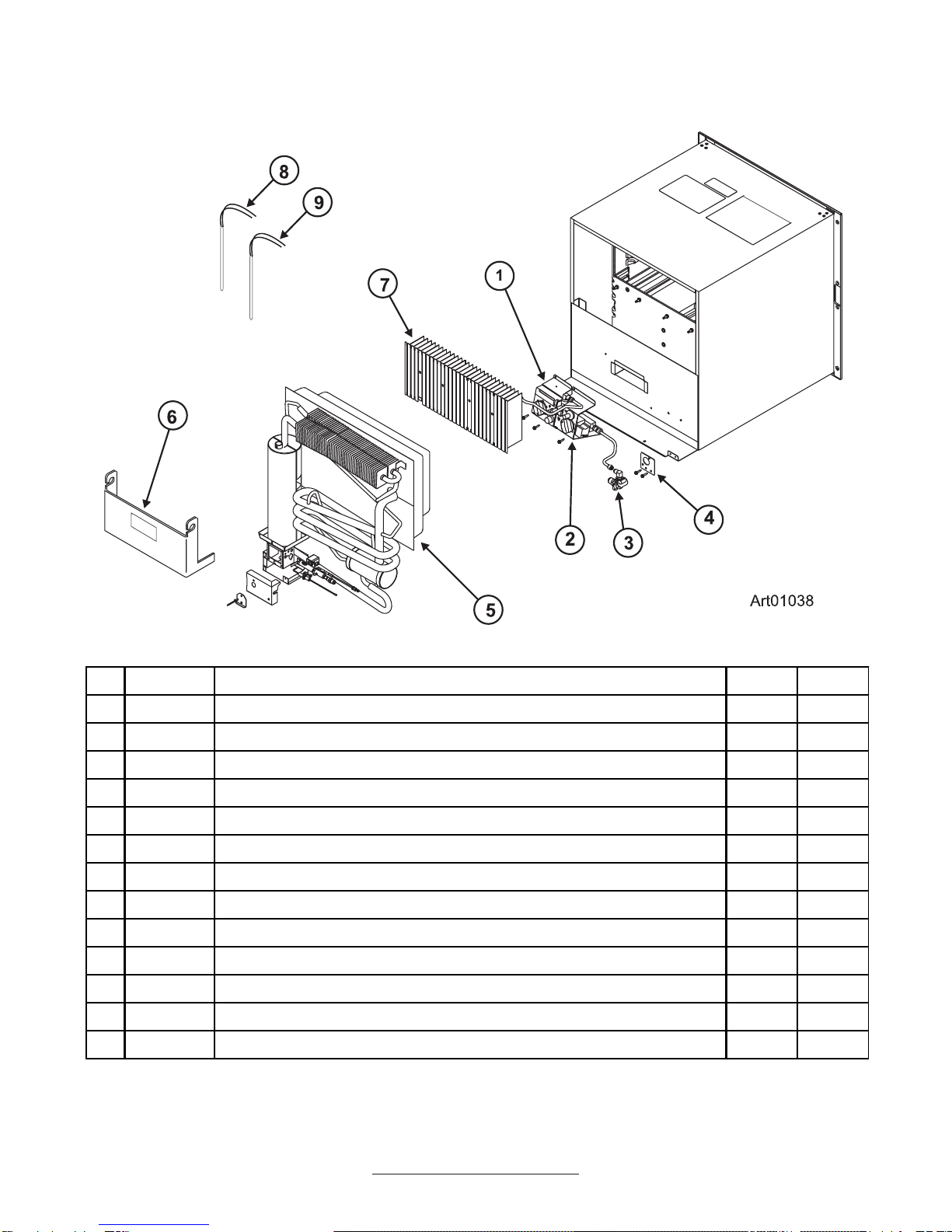

CABINET ASSEMBLY - REAR VIEW - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

1 619272 CONTROL ASSEMBLY-ELECTRICAL/EG3 X

620203 CONTROL ASSEMBLY-ELECTRICAL/EG2 (USE619272 X

2 619271 CONTROL ASSEMBLY-GAS X X

3 61749122 MANUAL SHUT OFF VALVE X X

4 61749822 BRACKET-MANUAL SHUT OFF VALVE X X

5 619091 NSC SYSTEM PACK-COOLING UNIT X X

6 619068 BAFFLEASSY-REAR X X

7 61686823 FINS XX

NS 61728722 CLIP-FIN (NOT SHOWN) X X

8 61745322 HEATER-AC XX

9 61745422 HEATER-DC/EG3 X

NS 619188 BRACKET-MOUNTING/CONDENSER (NOT SHOWN) X X

NS 61754922 CAP-FLUEHEAT (NOT SHOWN) X X

PARTS LIST N260 SERIES Page 4

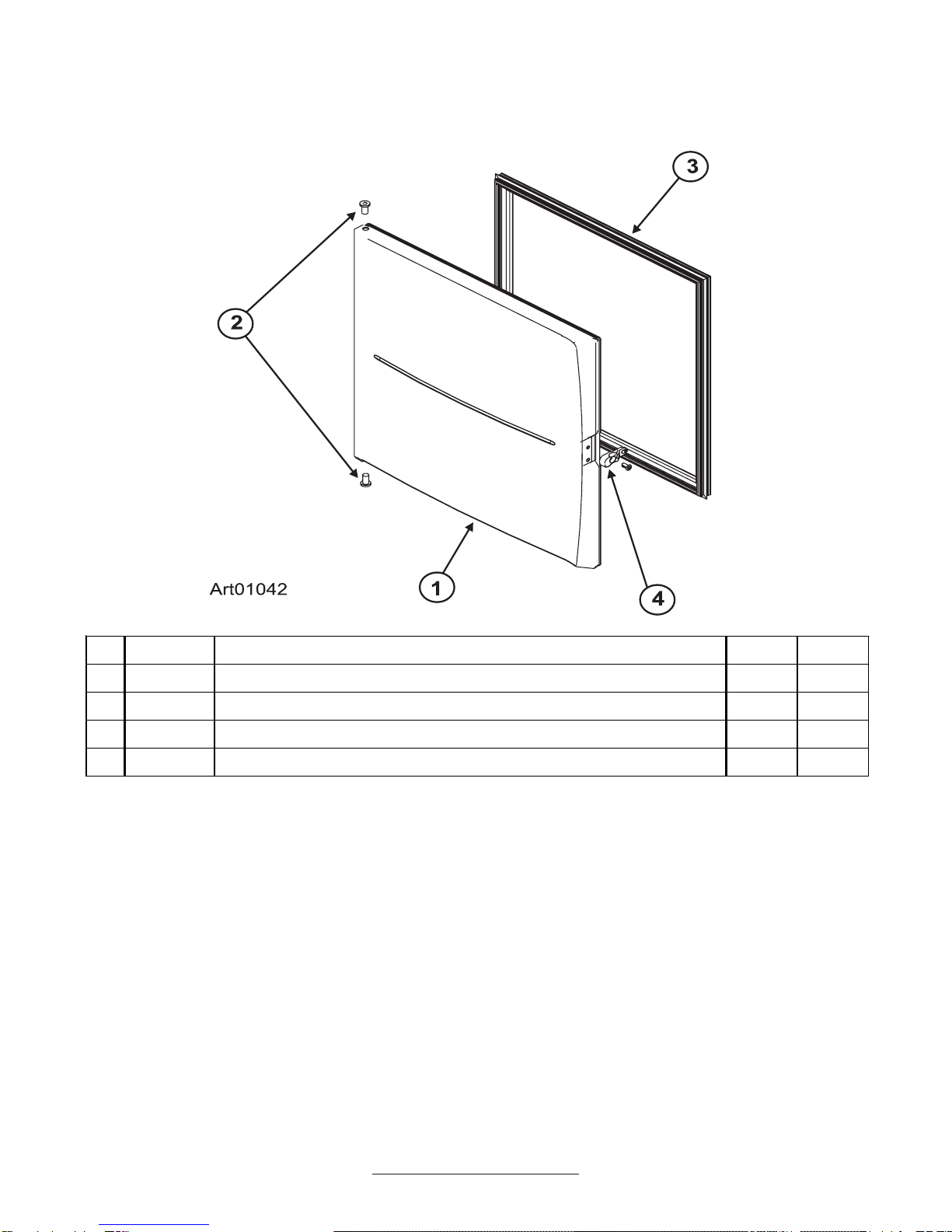

DOOR ASSEMBLY - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

1 619234 DOOR ASSY XX

2 61742022 HINGEBUSHING XX

3 619233 DOOR GASKET XX

4 619228 LATCH-DOOR XX

PARTS LIST N260 SERIES Page 5

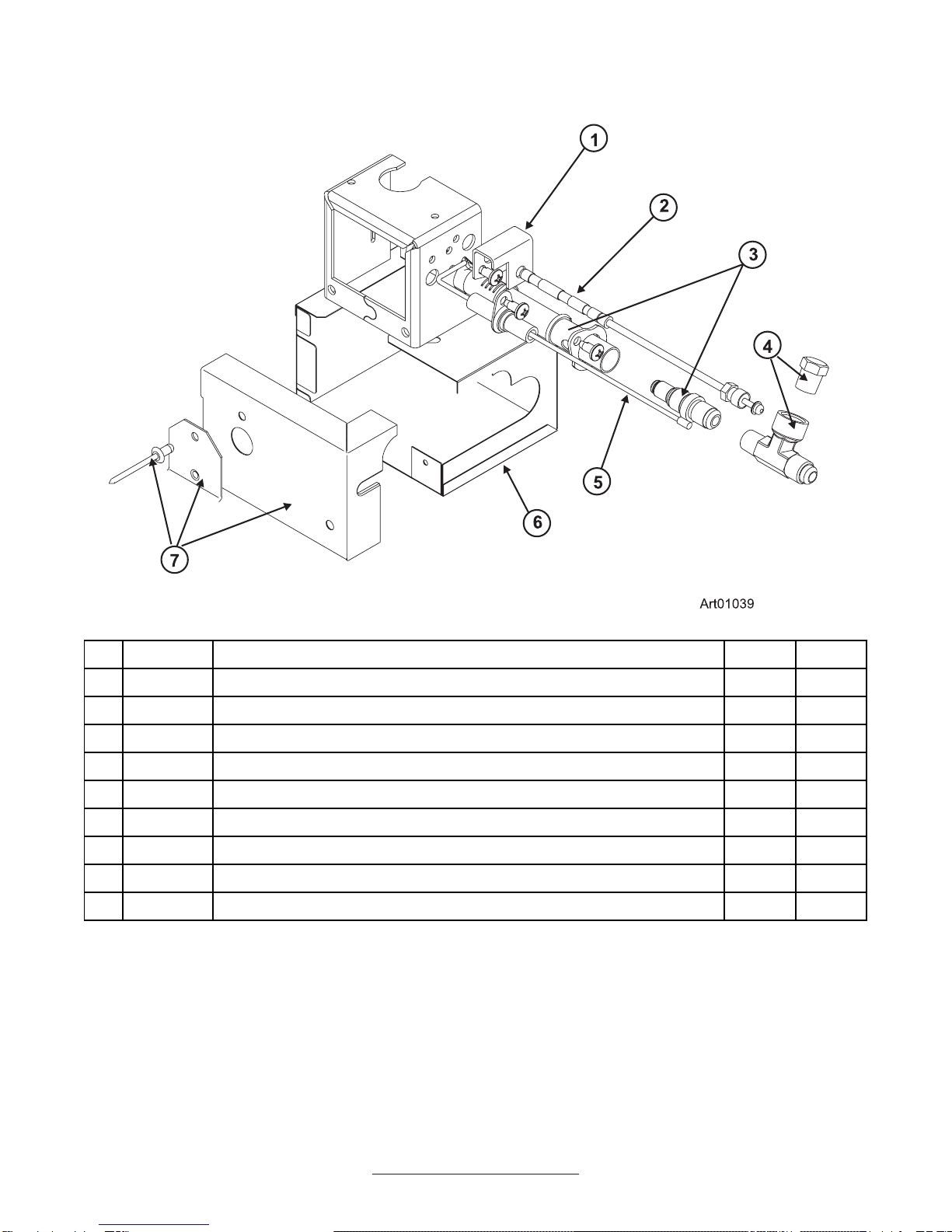

BURNER ORIFICE AREA - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

1 618448 BRACKET-THERMOCOUPLE X X

2 618445 THERMOCOUPLE XX

3 621949 KIT-BURNER/ORIFICE ADAPTER ASSY X X

4 621077 PRESSURE TAP XX

4 621084 PRESSURE TEEASSY X X

61755322 PRESSURETAP (CONTACT NORCOLD) X X

5 61722922 ELECTRODE-SPARK X X

6 61721622 BURNER BOX-BOTTOM X X

7 620850 COVER ASSY-BURNER BOX/WITH DOOR/TOP X X

PARTS LIST N260 SERIES Page 6

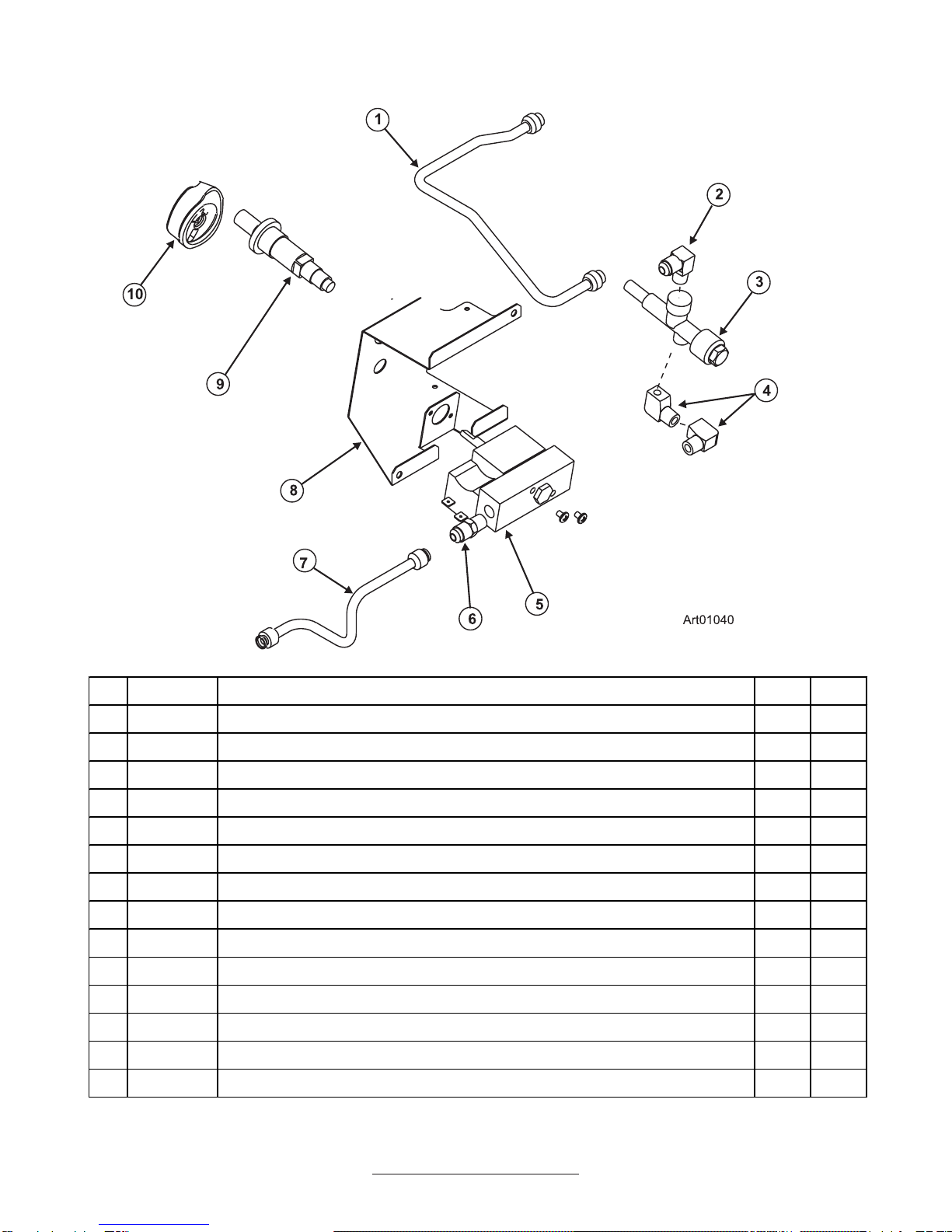

CONTROL ASSEMBLY - GAS CONTROLS - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

619271 CONTROL ASSEMBLY-GAS X X

1 621053 BURNER TUBE XX

619256 BURNER TUBE (CONTACT NORCOLD) X X

2 61621622 BRASS ELBOW-UNION TUBE X X

3 622098 SAFETY VALVE XX

4 619278 BRASS ELBOW-90 DEGREE/1/8 NPTF X X

5 620418 GAS VALVE/THERMOSTAT X X

6 61546822 CONNECTOR-MALE XX

7 619257 INLET TUBE-GAS XX

8 619223 BRACKET-CONTROL/GAS X X

9 61645622 SPARK IGNITOR-MANUAL X X

10 619070 KNOB-TAUPE (SUBSTITUTE 629357 - WARM GRAY) X X

NS 620534 BY PASS SCREW-#8 (NOT SHOWN) X X

NS 621737 INTERRUPTER(NOT SHOWN) X X

PARTS LIST N260 SERIES Page 7

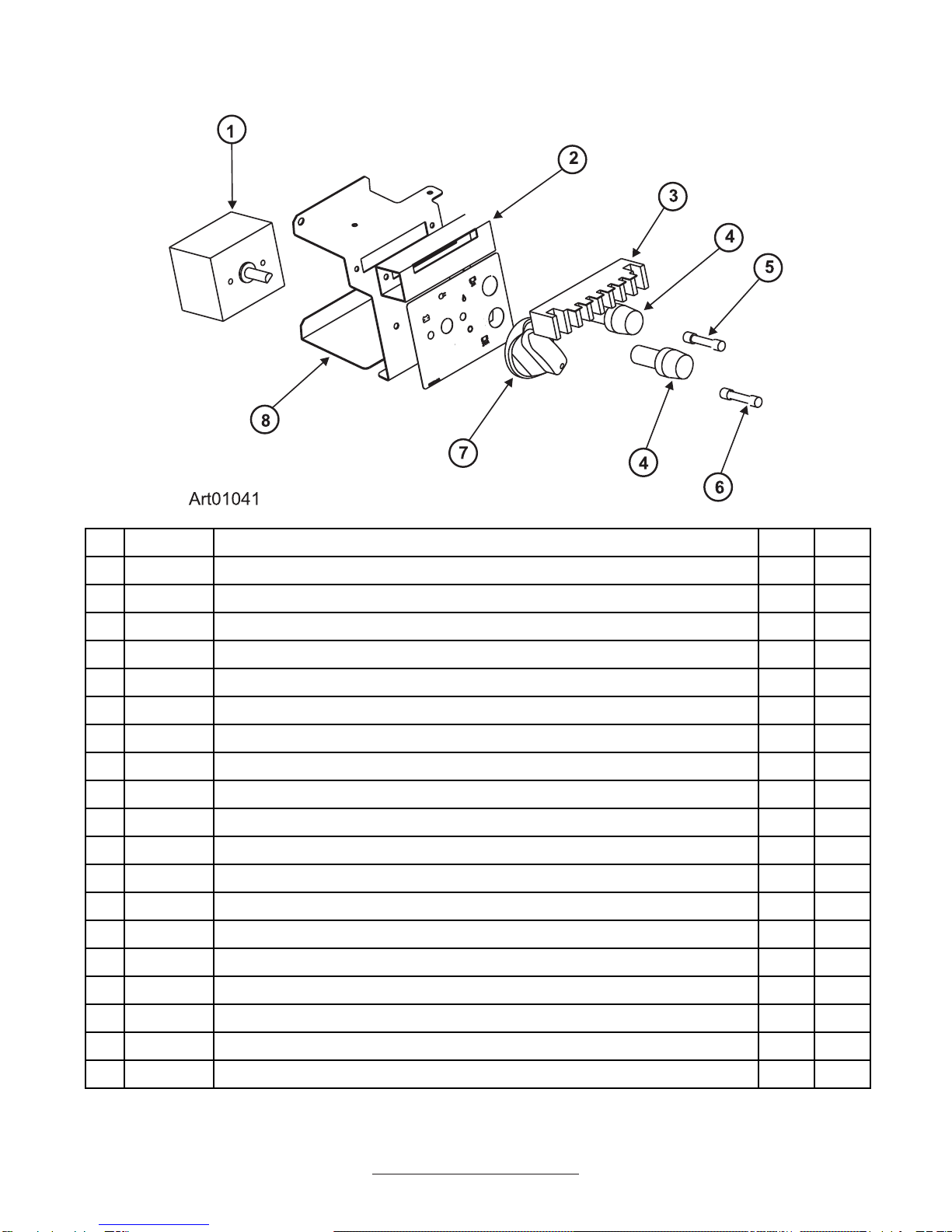

CONTROL ASSEMBLY - ELECTRIC CONTROLS - N260 SERIES

NO. PART # DESCRIPTION N260 N260.3

619272 CONTROL ASSEMBLY-ELECTRICAL/EG3 X

620203 CONTROL ASSEMBLY-ELECTRICAL/EG2 (USE619272 X

1 619168 SWITCH-SELECTOR/4 POSITION X X

2 61756322 COVER-TERMINAL BLOCK X X

3 61754722 TERMINAL BLOCK XX

4 61638722 FUSEHOLDER XX

5 61440522 FUSE-GLASS/20 AMP XX

6 61654622 FUSE-GLASS/3 AMP/32V OR LESS X X

7 619070 KNOB XX

8 619227 BRACKET-CONTROL/ELECTRIC X X

NS 617918 CORD-AC POWER (NOT SHOWN) X X

NS 619170 WIRE-11"/RED (NOT SHOWN) X X

NS 619172 WIRE-2"/BLUE(NOT SHOWN) X X

NS 619176 WIRE-2"/ORANGE (NOT SHOWN) X X

NS 619171 WIRE-2"/RED(NOT SHOWN) X X

NS 61752322 WIRE-4"/BLUE(NOT SHOWN) X X

NS 619169 WIRE-4"/ORANGE (NOT SHOWN) X X

NS 618557 WIRE-CONTROL/BLACK (NOT SHOWN) X

NS 618558 WIRE-CONTROL/RED (NOT SHOWN) X
