Norcold DE-540 User manual

PARTS LIST

PART NO.619729

NORCOLD 10/20/2002

DE541F

DE540

DE541

EV541

EV540

DE54/EV54 SERIES

DE54/EV54 SERIES PARTS LIST - PAGE 2

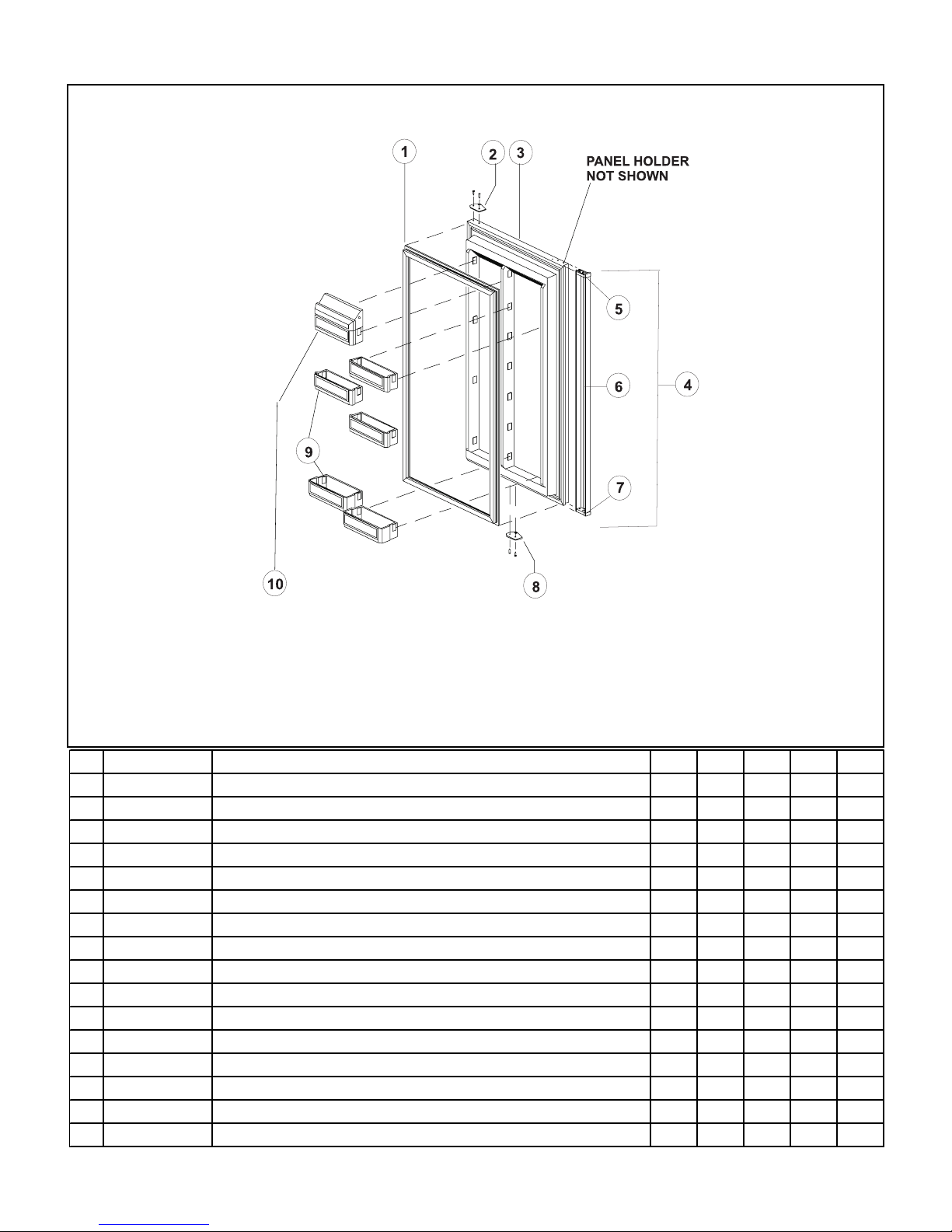

DOOR - (FRESH FOOD) - DE54/EV54 SERIES

NO. PART # DESCRIPTION DE540 DE541 DE541F EV540 EV541

161640030 DOORGASKET-GRAY XXXXX

261631330 HINGEPLATE-BLACK/RHTOP/LHBOTTOM/PLASTIC XXXXX

361678238 DOORLINERASSY-FOAMED/BLACKFRAME/WHITELINER XXXXX

NS61639830 PANELHOLDER-BLACK(NOTSHOWN) XXXXX

461639638 DOORHANDLEASSY-BLACK XXXXX

561593830 ENDCAP-BLACK/STOPCATCH XXXXX

661648122 DOORHANDLE XXXXX

761593730 ENDCAP-BLACK/SPRINGCATCH XXXXX

NS61558822 SPRING-DOORHANDLE(NOTSHOWN) XXXXX

861631430 HINGEPLATE-BLACK/LHTOP/RHBOTTOM/PLASTIC XXXXX

9 61564060 BIN-DOOR SHEL F/GRAY/SIL V ER BORDER (USE 61564025) 5 5

617759 BIN-DOOR SHEL F/WHIT E/BLUE TRIM (USE 61564025) 5 5

61564025 BIN-DOORSHELF/WHITE(5PERDOOR) 55555

10 61580460 DAIRY KEEPER-GRAY/SIL V ER BORDER N/A N/A

61580425 DAIRY KEEPER-WHITE N/A N/A

617760 DAIRY KEEPER-WHITE/BLUE TRIM N/A N/A

DE54/EV54 SERIES PARTS LIST - PAGE 3

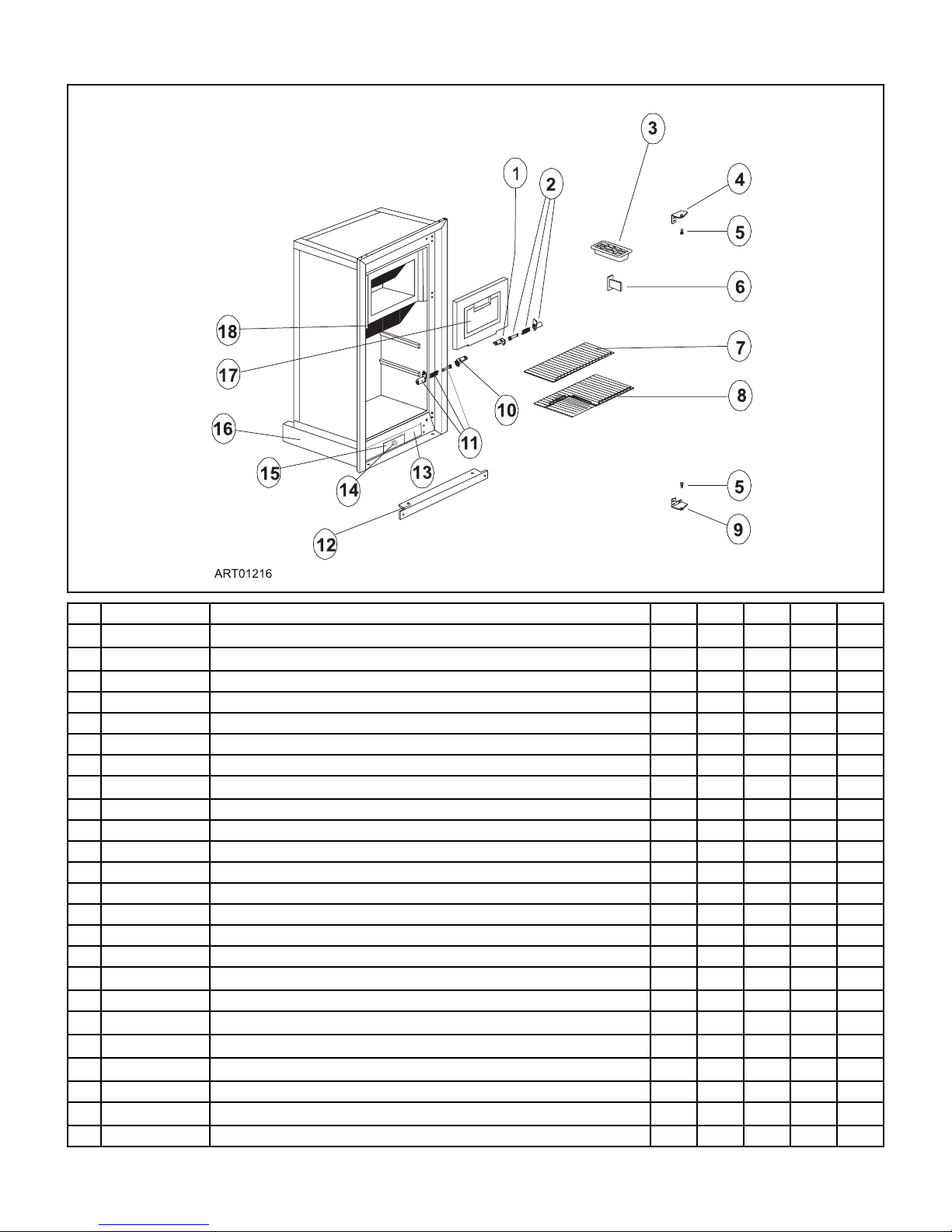

CABINET ASSEMBLY - FRONT VIEW - DE54/EV54 SERIES

NO. PART # DESCRIPTION DE540 DE541 DE541F EV540 EV541

161632930 MOUNTINGCLIP-RH/WHITE/EVAPORATORDOOR XXXXX

2619041 SPRINGHOLDERASSY-RH/EVAPDOOR/SILVERSPRING XXXXX

361630422 ICECUBETRAY-PLASTIC(ONEPERREFRIGERATOR) 11111

461580830 HINGEBRACKET-RHTOP/LHBTM/BLACK XXXXX

561578130 HINGEPIN-BLACK/MALE XXXXX

NS61580630 HINGEPIN-BLACK/TOP/BOTTOMHINGE/FEMALE(NOTSHOWN) XXXXX

661578522 DOORLATCH XXXXX

7618052 SHELF-WIRE/MIDDLE XXXXX

8618056 SHELF-WIRE/WHITE/FLIPPER XXXXX

NS618065 CAP-CLEAR/FORFLIPPERSHELF(NOTSHOWN) XXXXX

NS61580222 RETAINER-WIRESHELF(NOTSHOWN) XXXXX

961580930 HINGEBRACKET-LHTOP/RHBTM/BLACK XXXXX

1061633030 MOUNTINGCLIP-LH/WHITE/EVAPORATORDOOR XXXXX

11619042 SPRINGHOLDERASSY-LH/EVAPDOOR/YELLOWSPRING XXXXX

1261622130 FRONTCOVER-BLACK/REPLACEABLEBOTTOMTRIM XXXXX

1361686722 COVERPLATE-FRONT/BLACK XXXXX

14 61700622 THERMOSTAT-NO THERM ISTER OR CORD ASSY/160110510 XXXXX

160206700 KNOB-THERMOSTAT XXXXX

1561686622 COVERPLATE-THERMOSTAT XXXXX

1661772122 BOTTOMPAN-SUPPORTASSY XXXXX

1761678338 EVAPORATORDOORASSY XXXXX

NS61698030 DOORGASKET-EVAPORATOR/GRAY(NOTSHOWN) XXXXX

1861693710 DRIPTRAY XXXXX

NS61579730 CAP-SNAPON/BLACK/INSTALLATIONHOLES(NOTSHOWN) XXXXX

DE54/EV54 SERIES PARTS LIST - PAGE 4

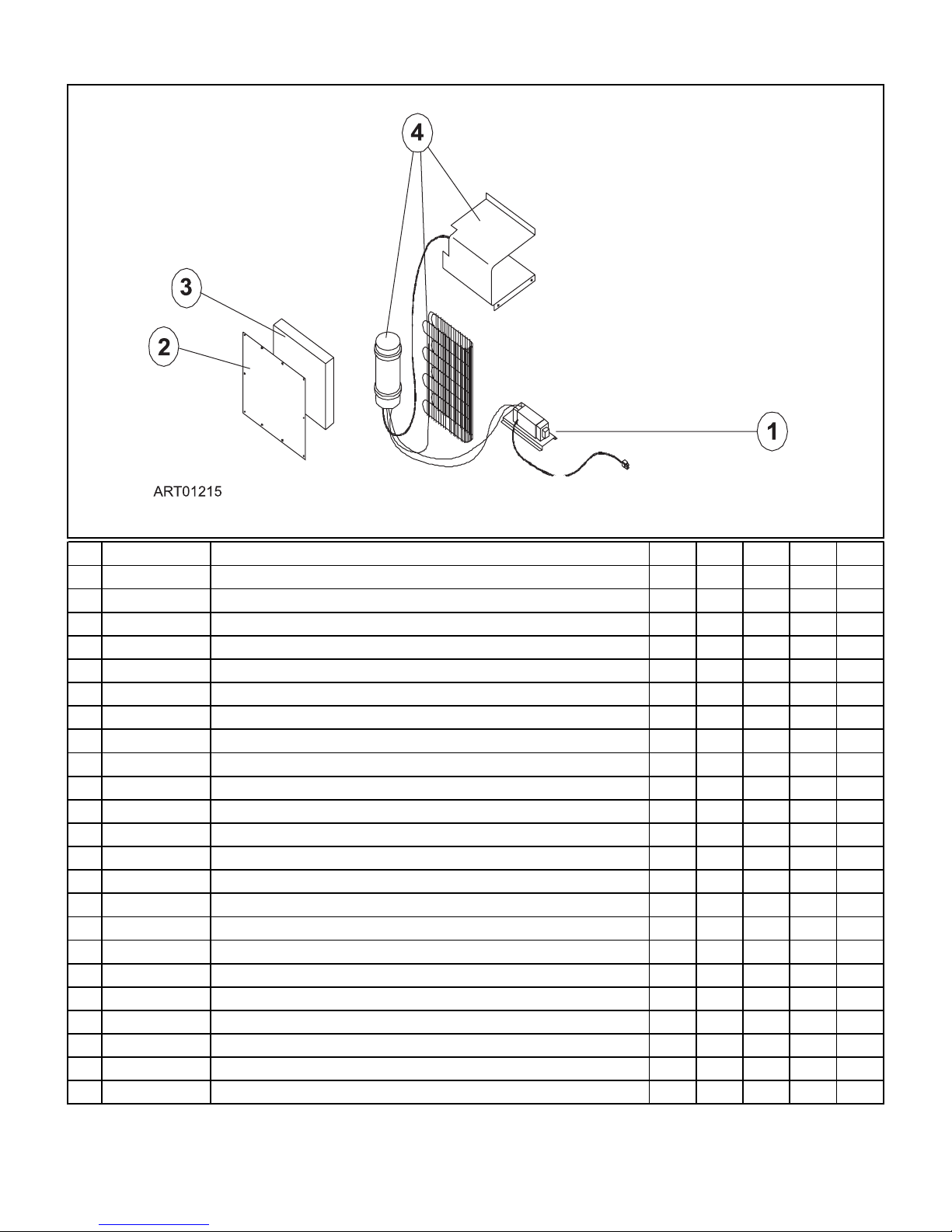

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - DE54/EV54 SERIES

NO. PART # DESCRIPTION DE540 DE541 DE541F EV540 EV541

1 16011396009 KIT-POWER SUPPLY/DE54 X X X

61700322 POWER SUPPLY-DE54 SERIES (USE 16011396009) X X X

61706722 POWER SUPPLY-EV541 SERIES X X

163007840 OSCILLATOR ONLY (USE 16011396009) X X X

163007740 OSCILLATOR ONLY XX

196013100 TRANSFORMER ASSY (USE 16011396009) X X X

196013110 TRANSFORMER ASSY XX

1 191203410 CORD ASSY-AC XXXXX

261694522 PANELCOVER-UPPERBACK XXXXX

361694438 FOAMBLOCKASSY XXXXX

4 61634022 COOLING UNIT-DE540/DE704D (USE 617854) X

617854 COOLING UNIT-DE541/161008900 X X

61679822 COOLING UNIT-EV540 (USE 617855) X

617855 COOLING UNIT-DE441/EV541/161008910 X

NS 16092496009 FAN KIT ASSY-DE541 (NOT SHOWN) X X

NS605503201 THERMISTER-EVAPORATOR(NOTSHOWN) XXXXX

NS605503300 THERMISTER-WIRECONDENSER(USE605503301)(NOTSHOWN) XXXXX

NS 190228620 CORD ASSY-COMPRESSOR (NOT SHOWN) XXXXX

NS 191225600 CORD ASSY-EVAPORATOR THERM ISTER (NOT SHOWN) XXXXX

NS 191224800 CORD ASSY-EXTENSION/EV APORATOR THERM ISTER (NOT SHOWN) XXXXX

NS 191227020 CORD ASSY-TEMPERATURE CONTROL (NOT SHOWN) X

NS 191227010 CORD ASSY-THERMOSTAT EXTENSION (NOT SHOWN) XXXXX

NS192116605 CORDWITHTERMINAL-GROUNDCORD(NOTSHOWN) XXXXX
