Norcold DE-400D User manual

PARTS LIST

DE400D PARTS LIST

NORCOLD 10/30/2002

DE400D

DE400DPARTSLIST-PAGE2

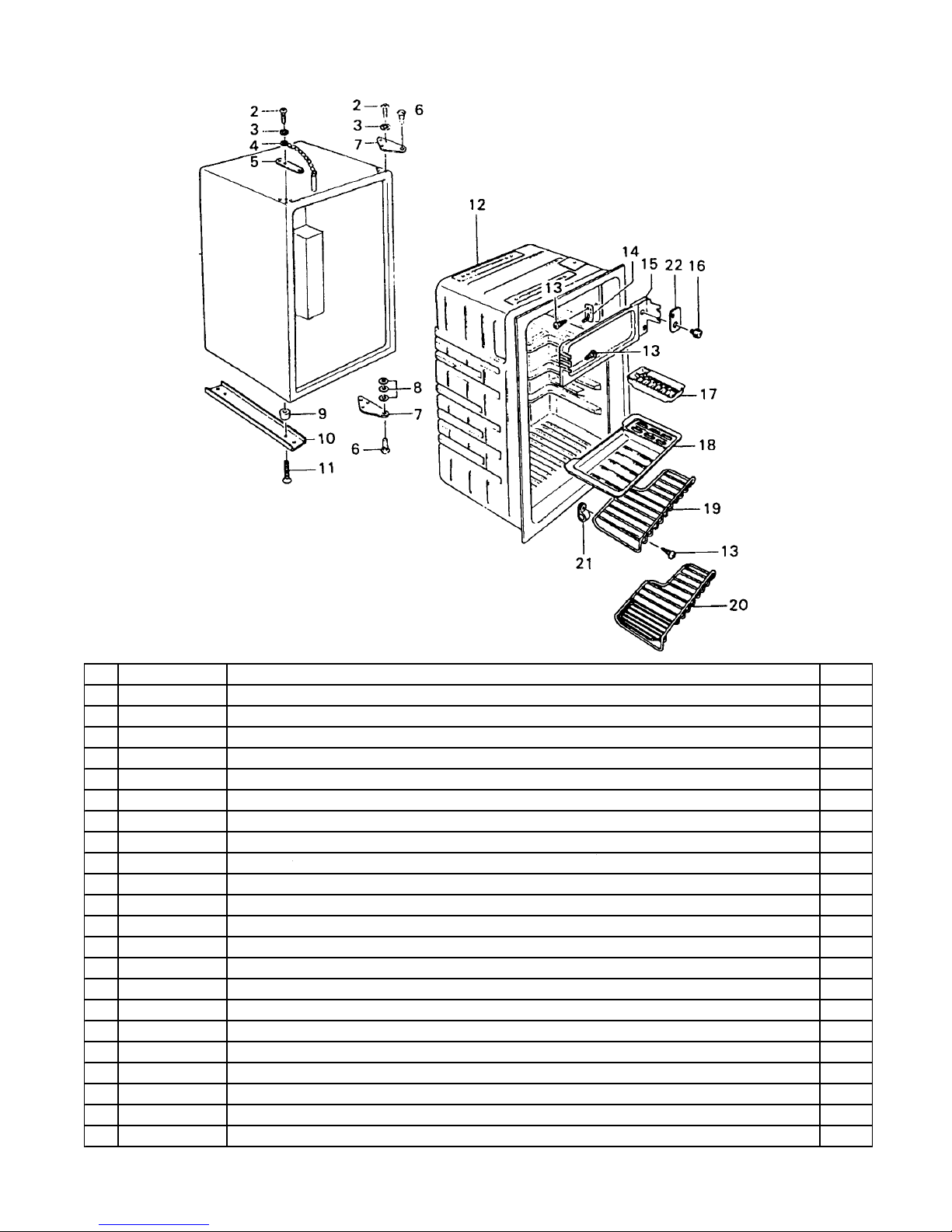

CABINET ASSEMBLY - DE400D

NO. PART # DESCRIPTION DE400D

2 8000050124 SCREW X

3 83400500010 WASHER-TEETH LOCK X

4 160201440 TRAVEL PINASSY (USE160207600) X

160207600 TRAVEL PIN ASSY-0.75" X

5 304100230 PLATE-HOLDS TRAVEL PIN X

6 505502320 HINGEPIN (USE61114600) X

7 304105240 PLATE-HINGE X

8 503001900 WASHER X

9 412000800 CUSHION-RUBBER LEG X

10 322301900 SUPPORT-BOTTOM RAIL X

11 8010060401 SCREW X

12 160905600 INNERCASEASSY X

13 80830441220 SCREW-TAPPING/M4x12 X

14 160904800 HINGE-EVAPORATORDOOR X

15 422600120 EVAPORATORFRAME X

16 160206700 KNOB-THERMOSTAT/61729422 X

17 160203000 ICECUBETRAY X

18 433000500 DRAINAGEPAN X

19 523001200 SHELF-UPPER X

20 523002700 SHELF-LOWER X

21 645103950 HOLDER-SHELF X

22 545020770 MARK-EVAPORATORFRAME X

DE400DPARTSLIST-PAGE3

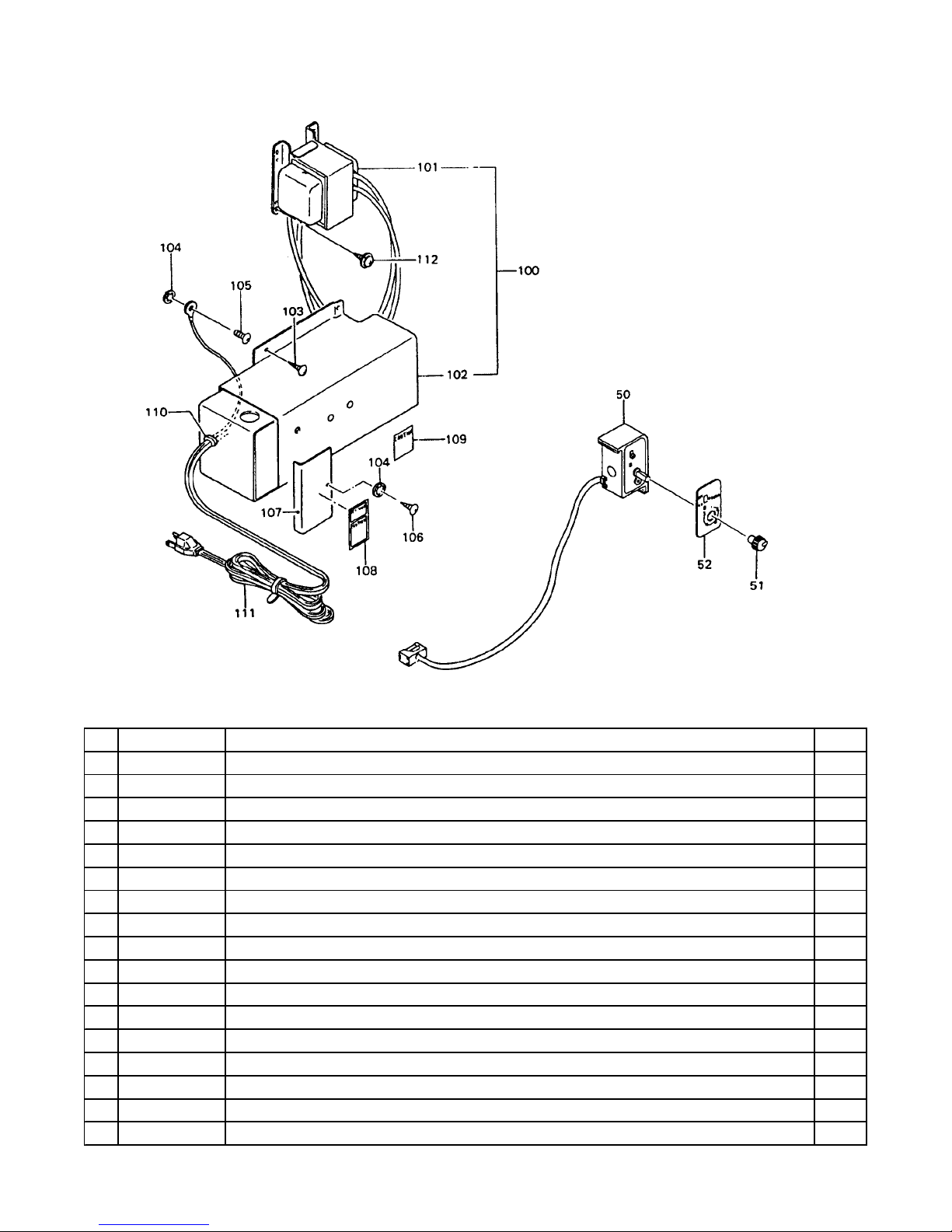

THERMOSTAT & POWER SUPPLY - DE400D

NO. PART # DESCRIPTION DE400D

50 160107200 THERMOSTAT X

51 160206700 KNOB-THERMOSTAT X

52 545020740 MARK-THERMOSTAT COVER X

100 16011396007 KIT-POWER SUPPLY X

160107100 POWER SUPPLY (USE16011396007) X

101 196013100 TRANSFORMER ASSY (USE16011396007) X

102 163007800 OSCILLATOR ONLY (USE16011396007) X

103 80830441210 SCREW-TRUSS TAPPING/M4x12 X

104 834004000 WASHER-TEETH LOCK X

105 8000040121 SCREW X

106 80840430810 SCREW-TRUSS TAPPING/M4x8 X

107 322119100 COVER-DC WIRES X

108 546017100 CAUTION PLATE (ON DC COVER) X

109 546028000 CAUTION PLATE X

110 601600010 GROMMET-STRAIN RELIEF X

111 191203410 CORD ASSY-AC X

112 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X

DE400DPARTSLIST-PAGE4

COOLING UNIT AREA - DE400D

NO. PART # DESCRIPTION DE400D

150 80840430810 SCREW-TRUSS TAPPING/M4x8 X

151 433000800 BLIND COVER X

152 439004000 HEAT INSULATOR X

153 304300310 BLIND PLATE X

154 80830441210 SCREW-TRUSS TAPPING/M4x12 X

155 161005510 COOLING UNIT X

156 416004200 BUSHING-FOR BLIND PLATE X

157 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X

158 422305000 HOLDER-THERMISTER/AT EVAPORATOR X

159 8080043082 SCREW-TAPPING X

160 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X

161 320101300 HOLDER-CONDENSER X

162 412000700 CUSHION-CONDENSER HOLDER X

163 322005310 HOLDER-CONDENSER WASHER X

164 8320042003 WASHER-SPRING LOCK X

165 8080043163 SCREW-TAPPING X

166 502000510 NUT-FRANGE X

167 605503202 THERMISTER-EVAPORATOR X

168 605503300 THERMISTER-WIRECONDENSER (USE605503301) X

169 410110200 CAP-THERMISTER X

170 645105900 FASTENER X

171 190228610 COUPLER ASSY X

172 192116604 CORD WITH TERMINAL-GROUND CORD X

173 80840430810 SCREW-TRUSS TAPPING/M4x8 X

DE400DPARTSLIST-PAGE5

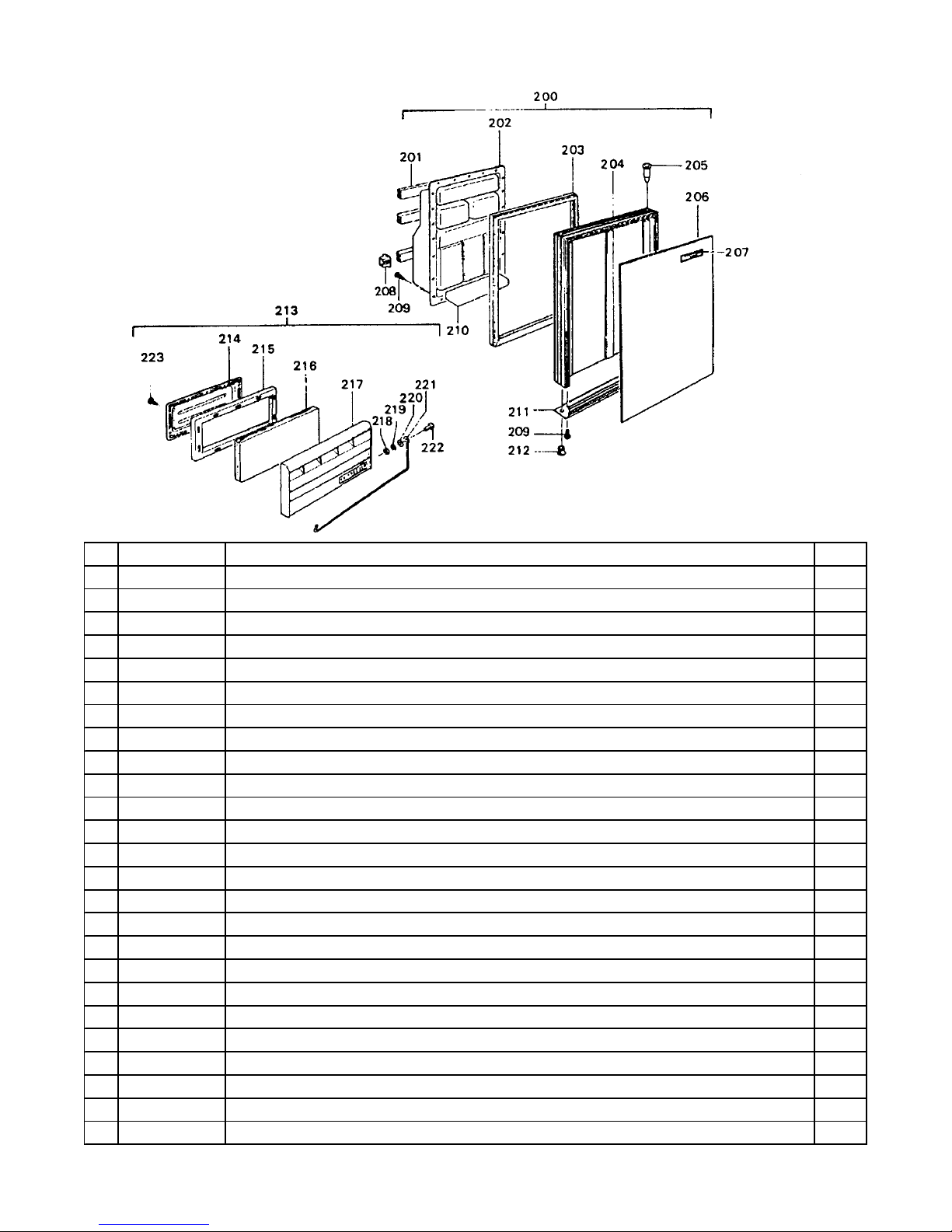

DOOR ASSEMBLY - DE400D

NO. PART # DESCRIPTION DE400D

200 160031710 DOOR KIT ASSY-GRAY/REPLACES 160007740/160907110 X

160007740 DOOR ASSY-BLACK (USE160031710) X

201 242512260 BAR-BLACK X

202 433100610 DOOR LINER X

203 414801100 DOOR GASKET X

204 160907110 DOOR FRAME ASSY-BLACK/3 SIDES (USE160031710-DOOR ASSY) X

205 404004700 HINGEBUSHING-POINTED X

206 302304340 DOOR PANEL-BLACK X

207 545008203 MARK-NORCOLD/BLACK X

208 422302000 HOLDER-"I"/FOR BAR X

209 80830441210 SCREW-TRUSS TAPPING/M4x12 X

210 439004100 DOOR LINER STUFFING X

211 427600210 DOOR FRAME-BOTTOM/BLACK X

212 404001000 HINGEBUSHING X

213 160003820 EVAPORATOR DOOR ASSY-BLACK X

214 433101000 EVAPORATOR DOOR LINER-EVAPORATOR DOOR X

215 414800700 DOOR GASKET-EVAPORATOR X

216 439004800 HEAT INSULATOR-EVAPORATOR DOOR ASSY X

217 422500620 EVAPORATOR DOOR PANEL-BLACK X

218 8260041009 NUT X

219 8320042001 WASHER-SPRING X

220 8300041009 WASHER X

221 520600200 TORSION BAR-EVAPORATOR DOOR X

222 8000040124 SCREW X

223 8083034062 SCREW-TAPPING X
