Norcold DE-390D User manual

PARTS LIST

DE390D

DE390 SERIES

PART#619727

NORCOLD 10/29/2002

DE390F

DE390SERIESPARTSLIST-PAGE2

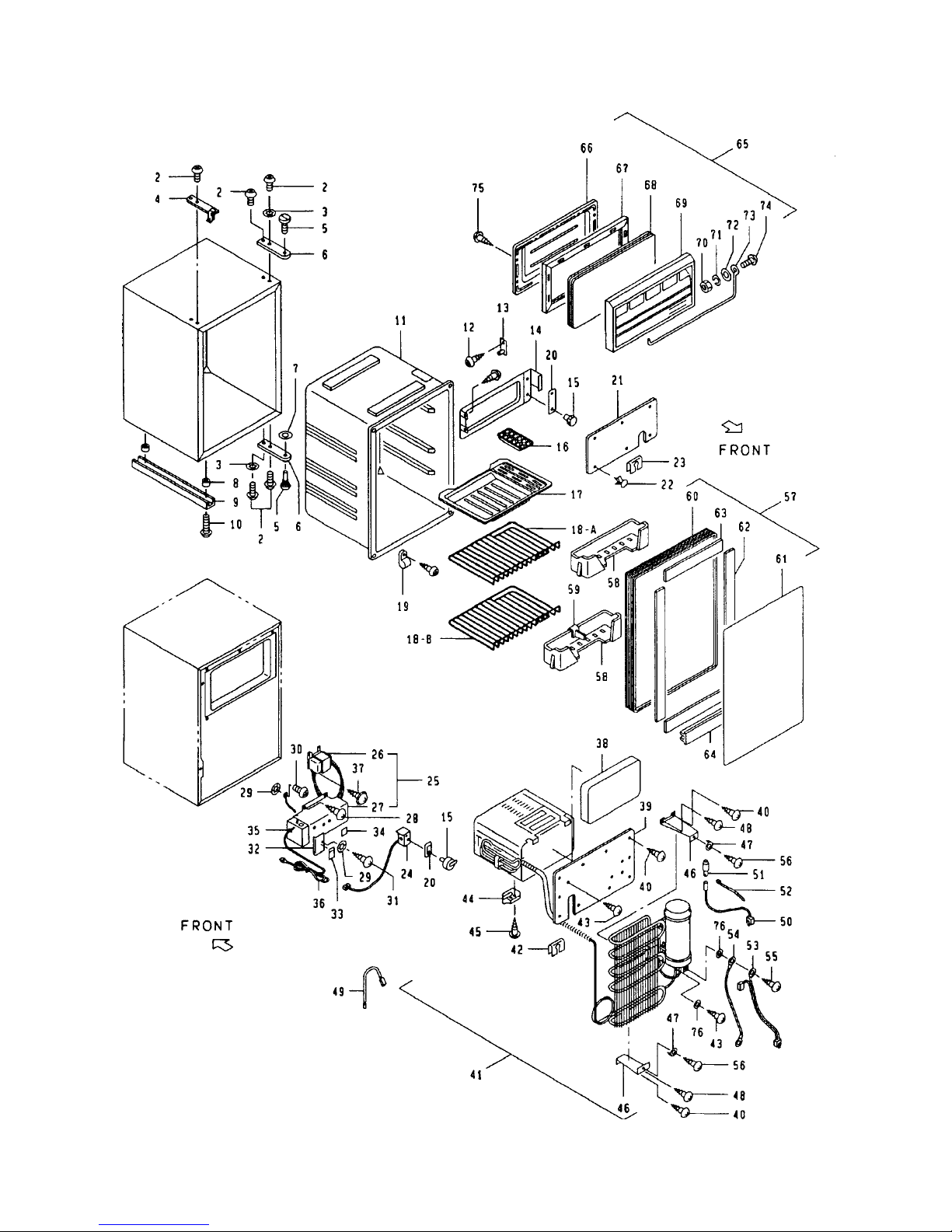

REFRIGERATOR ASSEMBLY - DE390 SERIES

DE390SERIESPARTSLIST-PAGE3

REFRIGERATOR ASSEMBLY - DE390 SERIES

NO. PART # DESCRIPTION DE390D DE390F

2 8050050104 SCREW XX

3 83400500010 WASHER-TEETH LOCK X X

4 160924300 HOLDER ASSY-TRAVEL LATCH X X

5 505502330 HINGEPIN-0.625" XX

6 304111000 PLATE-HINGE(USE304111020) X X

7 8300087001 WASHER XX

8 412000800 CUSHION-RUBBER LEG X X

9 322301900 SUPPORT-BOTTOM RAIL X X

10 8010060401 SCREW XX

11 160924000 INNER CASE ASSY XX

12 80830441220 SCREW-TAPPING/M4x12 X X

13 160904800 HINGE-EVAPORATOR DOOR X X

14 422600120 EVAPORATOR FRAME X X

15 160206700 KNOB-THERMOSTAT X X

16 160203000 ICECUBETRAY XX

17 433000500 DRAINAGEPAN XX

18-A 523001210 SHELF-TOP XX

18-B 523001220 SHELF-BOTTOM XX

19 645103950 HOLDER-SHELF XX

20 545020770 MARK-EVAPORATOR FRAME X X

21 430307000 PLATE-"I" XX

22 645100510 FASTENER-PLASTIC RIVET X X

23 416004200 BUSHING-FOR BLIND PLATE X X

24 160107210 THERMOSTAT XX

25 16011396007 KIT-POWER SUPPLY X X

160107100 POWER SUPPLY (USE16011396007) X X

26 196013100 TRANSFORMER ASSY (USE 16011396007) X X

27 163007800 OSCILLATOR ONLY (USE16011396007) X X

NS 16092497009 FAN KIT ASSY (NOT SHOWN) X X

28 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

29 834004000 WASHER-TEETH LOCK X X

30 8000040121 SCREW XX

31 80840430810 SCREW-TRUSS TAPPING/M4x8 X X

32 322119100 COVER-DC WIRES XX

33 546017100 CAUTION PLATE(ON DC COVER) X X

34 546028000 CAUTION PLATE XX

35 601600010 GROMMET-STRAIN RELIEF X X

36 191203410 CORD ASSY-AC XX

37 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X X

(CONTINUED ON PAGE 4)

DE390SERIESPARTSLIST-PAGE4

(CONTINUED FROM PAGE 4)

REFRIGERATOR ASSEMBLY - DE390 SERIES

NO. PART # DESCRIPTION DE390D DE390F

38 439010300 HEAT INSULATOR XX

39 161212700 BLIND PLATE XX

40 80830441210 SCREW-TRUSS TAPPING/M4x12 X X

41 161008020 COOLING UNIT XX

42 416004200 BUSHING-FOR BLIND PLATE X X

43 8073044121 SCREW-TAPPING/WITH TEETH LOCK WASHER X X

44 422305000 HOLDER-THERMISTER/AT EVAPORATOR X X

45 8080043082 SCREW-TAPPING XX

46 321105900 HOLDER-COOLING UNIT X X

47 322005310 HOLDER-CONDENSER WASHER X X

48 8073044124 SCREW-TAPPING XX

49 605503200 THERMISTER-EVAPORATOR (USE605503201) X X

50 605503301 THERMISTER-WIRECONDENSER X X

51 410110200 CAP-THERMISTER X X

52 645105900 FASTENER XX

53 190228630 COUPLER ASSY XX

54 192116605 CORD WITH TERMINAL-GROUND CORD X X

55 80840430810 SCREW-TRUSS TAPPING/M4x8 X X

56 8071043163 SCREW-TAPPING XX

57 160027910 DOOR ASSY-WITHOUT POCKETS X X

58 422508900 DOOR POCKET-DOOR SHELF BIN X X

59 422508600 PARTITION-DOOR POCKET X X

60 160923910 DOOR FRAMEASSY-FOAMED LINER X X

61 302311710 DOOR PANEL-BLACK X X

62 412006690 CUSHION-VERTICAL/DOOR FRAMEASSY/FOAM X X

63 412006680 CUSHION-HORIZONTAL/DOOR FRAMEASSY/FOAM X X

64 427602720 DOOR FRAME-BOTTOM/GRAY X X

65 160003820 EVAPORATOR DOOR ASSY-BLACK X X

66 433101000 EVAPORATOR DOOR LINER-EVAPORATOR DOOR X X

67 414800700 DOOR GASKET-EVAPORATOR X X

68 439004800 HEAT INSULATOR-EVAPORATORDOOR ASSY X X

69 422500620 EVAPORATORDOORPANEL-BLACK X X

70 8260041009 NUT XX

71 8320042001 WASHER-SPRING XX

72 8300041009 WASHER XX

73 520600200 TORSION BAR-EVAPORATOR DOOR X X

74 8000040124 SCREW XX

75 8083034062 SCREW-TAPPING XX

76 83400400010 WASHER-TEETH LOCK X X
