Norcold DC-4100 User manual

PARTS LIST

PART # 624213

NORCOLD 07/16/2007

DC68 SERIES

DC6843

DC6844

DC6845

DC6846

DC85 SERIES

DC8511

DC8512

DC41 SERIES

DC4100

DC4101

DC4102

DC4103

DC68/DC85/DC41 SERIES (L4)

DC851 SERIES PARTS LIST - PAGE 2

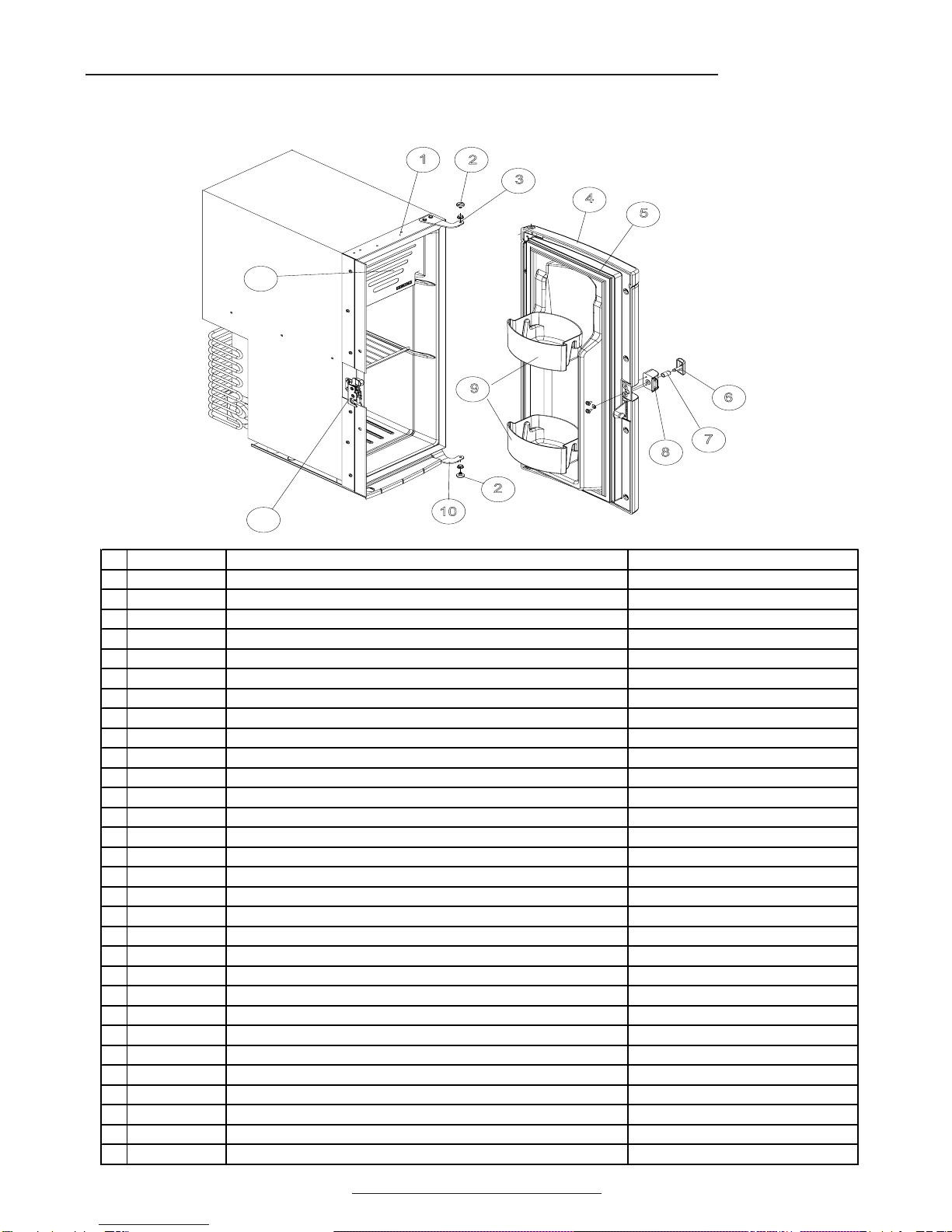

FRONT VIEW - DOOR AND CABINET PARTS - DC68/DC85/DC41 SERIES

NO PART # DESCRIPTION MODELS

1 323011200 FRAME-CABINET/COVER/UPPER/LOWER ALL

2 505503600 HINGEPIN ALL

3 304112800 PLATE-HINGE/UPPER ALL

4 160119120 DOOR ASSY-WARM GRAY/GRAY INSERT DC6843

160119130 DOORASSY-WARM GRAY/BURL WOOD INSERT DC6844

160119140 DOOR ASSY-CHARCOAL/BRUSHED SILVER INSERT DC6845

160119150 DOOR ASSY-CHARCOAL/GALLOWAY BURL INSERT DC6846

160119100 DOORASSY-GRAY/PALLADIUM INSERT (SILVER) DC8511

160119110 DOOR ASSY-GRAY/WOODINSERT DC8512

160120300 DOORASSY-GRAY/PALLADIUM INSERT (SILVER) DC4100

160120310 DOOR ASSY-GRAY/WOODINSERT DC4101

160120330 DOOR ASSY-TAN/PALADIUM INSERT DC4102

160120320 DOOR ASSY-TAN/WOOD INSERT DC4103

160120340 DOOR ASSY-TAN/BRICK (RED) DC4104

5 414803600 DOOR GASKET ALL

6 422512010 PUSH BUTTON-DOOR LATCH/GRAY(REDDISH) DC6843, DC6844

422512020 PUSHBUTTON-DOOR LATCH/DARKCHARCOAL DC6845, DC6846

422512000 PUSHBUTTON-DOOR LATCH/GRAY DC8511, DC8512, DC4100, DC4101

422512030 PUSHBUTTON-DOOR LATCH/TAN DC4102, DC4103, DC4104,

7 52000450020 SPRING-DOOR LATCH ALL

NS 858005200 CLIP-SPRING RETAINING/DOOR LATCH (NOT SHOWN) ALL

8 422512110 RECEPTACLE-PUSH BUTTON/DOOR LATCH/WARM GRAY DC6843, DC6844

422512120 RECEPTACLE-PUSHBUTTON/DOOR LATCH/DARKCHARCOAL DC6845, DC6846

422512100 RECEPTACLE-PUSHBUTTON/DOOR LATCH/GRANITE DC851,1 DC8512

422512130 RECEPTACLE-PUSHBUTTON/DOOR LATCH/GRANITE DC4100, DC4101

422512140 RECEPTACLE-PUSHBUTTON/DOOR LATCH/TAN DC4102, DC4103, DC4104

9 422511600 DOOR POCKET-DOOR SHELF BIN ALL

10 304112900 PLATE-HINGE/LOWER ALL

11 160227500 LATCHASSY ALL

12 422511900 EVAPORATOR DOOR ALL

DC851 SERIES PARTS LIST - PAGE 3

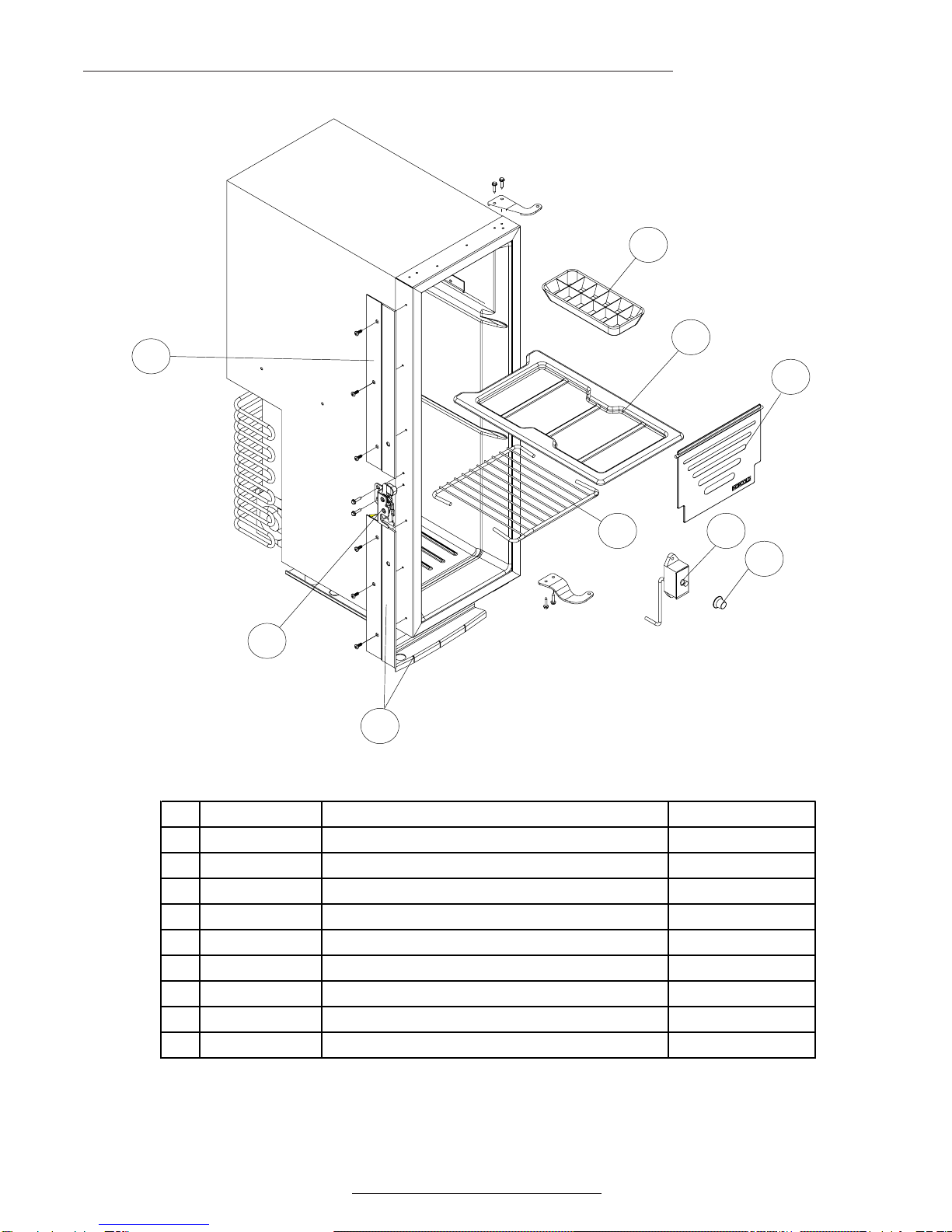

FRONT VIEW - INNER CABINET PARTS - DC68/DC85/DC41 SERIES

NO PART # DESCRIPTION MODELS

1 160203000 ICECUBE TRAY ALL

2 433004400 DRAINAGE PAN ALL

3 422511900 EVAPORATORDOOR ALL

4 160119200 THERMOSTAT ALL

5 160206700 KNOB-THERMOSTAT/61729422 ALL

6 523004200 SHELF ALL

7 160946200 PLATEASSEMBLY-TRIM ALL

8 160227500 LATCHASSY ALL

9 322398200 PLATE-TRIM ALL

DC851 SERIES PARTS LIST - PAGE 4

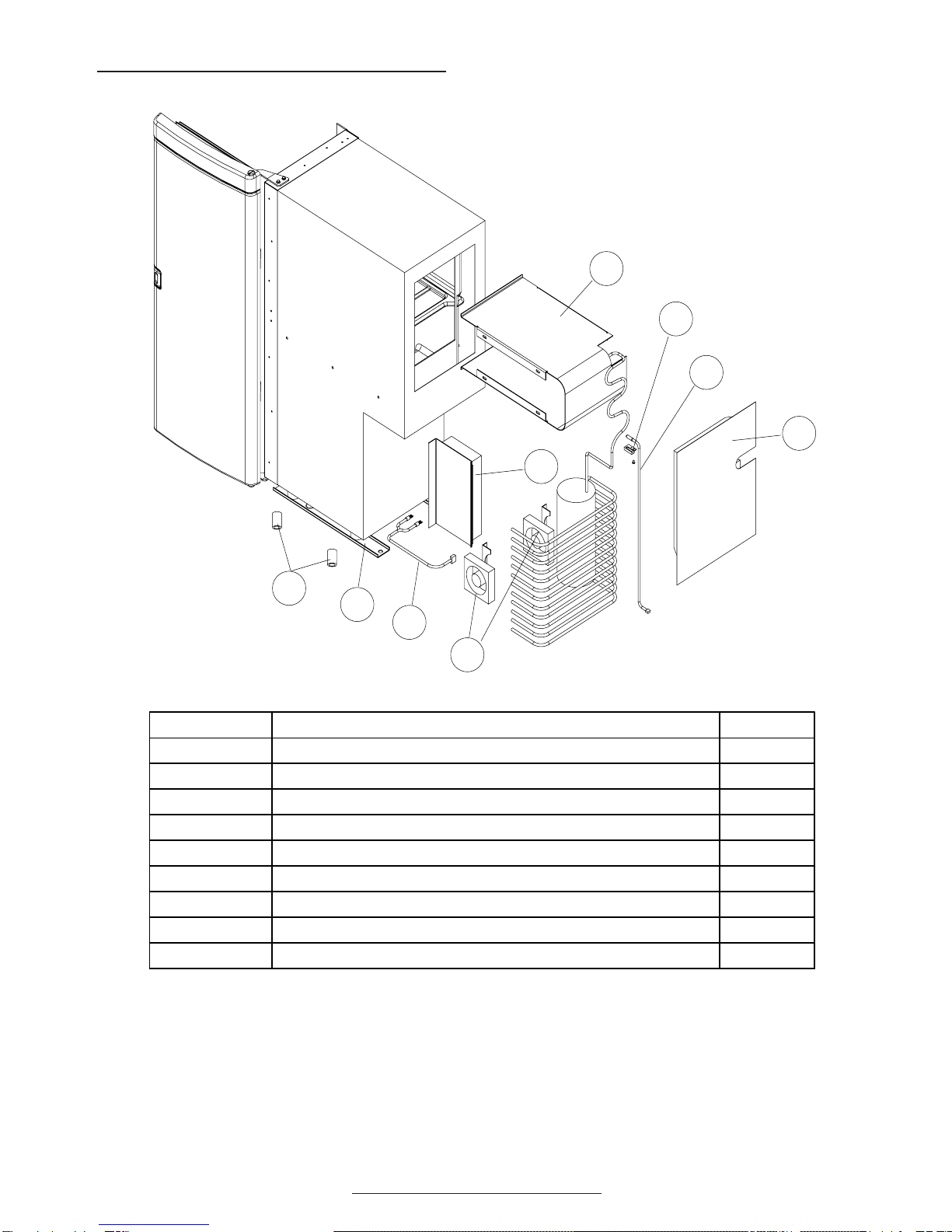

REAR VIEW - DC68/DC85/DC41 SERIES

PART # DESCRIPTION MODELS

161013200 COOLINGUNIT ALL

422305000 HOLDER-THERMISTER/AT EVAPORATOR ALL

605505450 THERMISTER-EVAPORATOR ALL

439014900 HEAT INSULATOR ALL

163011000 POWERSUPPLY-DC/NO COUPLERASSY ALL

160928900 FANONLY-50 CYCLE/40 WATT (2 PERREFRIGERATOR) ALL

190279800 COUPLERASSY-DCINPUT ALL

322397410 SUPPORT-RAIL/BOTTOM ALL

360907110 SPACER-BOTTOM SUPPORT RAIL ALL
