Nilfisk-Advance A15EXP User manual

A15EXP

C326-US-F-E

06/2013

INSTRUCTIONS MANUAL

MANUEL D’INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUCCIONES DE USO

EXPLOSION-PROOF/DUST IGNITION-PROOF AIR VACUUM CLEANER MODEL

A15EXP

INSTRUCTIONS FOR USE

MODÈLE DE L'ASPIRATEUR À AIR ADAPTÉ À L'ASPIRATION DES POUDRES EXPLOSIVES SANS RISQUE D'EXPLOSION

MODELO DE ASPIRADORA DE AIRE A PRUEBA DE EXPLOSIÓN/DEFLAGRACIÓN DEL POLVO

(dry use only) (sólo uso en seco) (utilisation sèche seulement)

For Use in Class I: Group D - Class II: Group E, F and G Hazardous Locations

Para la utilización en lugares peligrosos de clase I: grupo D - Clase II: grupo E, F y G

Pour utilisation dans les emplacements dangereux de

Classe I: Groupe D -Classe II: Groupes E, F et G

C326 06/2013

ATENCIÓN: PARA GARANTIZAR LA UTILIZACIÓN SEGURA DE ESTE ASPIRADOR,

INSTRUCCIONES DE USO

ATEX Zone 1, Zone 2, Zone 21 and Zone 22

ATEX zona 1, zona 2, zona 21 y zona 22

INSTRUCTIONS D'UTILISATION

ASPIRATEUR, LES OPERATEURS DOIVENT LIRE ET COMPRENDRE LES

Zone 1, Zone 2, Zone 21 et Zone 22 ATEX

INSTRUCTIONS BEFORE ATTEMPTING TO PLACE THE MACHINE IN SERVICE

INSTRUCTIONS QUI SUIVENT AVANT LA MISE EN MARCHE DE CETTE MACHINE

LOS OPERADORES DEBEN LEER Y COMPRENDER LAS SIGUIENTES

OPERATORS MUST READ AND UNDERSTAND THE FOLLOWING

CAUTION: TO INSURE THE SAFE USE OF THIS VACUUM MACHINE,

INSTRUCCIONES ANTES DE INTENTAR PONER LA MÁQUINA EN MARCHA

MISE EN GARDE: AFIN D'ASSURER UNE UTILISATION SECURITAIRE DE CET

Nilfisk Advance, Inc. Industrial Vacuum Division 740 Hemlock Road, Suite 100, Morgantown, PA 19543, (610) 913-5300

English

INSTRUCTIONS FOR USE PAGE 1

Contents Page

Table of contents ……………………………………………………………………………………… 2

Test For Ground Continuity ………………………………………………………………………… 3

Making Adjustments to Container Gaskets ……………………………………………………… 3

Using the Vacuum………………………………………………………………………………………. 4

Using the Vacuum/ Starting and stopping…………………………………………………………… 5

Using the Vacuum/ Cleaning the Main Filter…………………………………………………………. 5

Using the Vacuum/ Emptying the Container…………………………………………………………. 5

Replacing Parts ………………………………………………………………………………………… 6

Replacing Parts/ Replacing Main filter ……………………………………………………………… 6

Replacing Parts/ Replacing the optional (upstream) Hepa Filter ………………………………… 7

Parts Explosion ………………………………………………………………………………………… 8

Parts Explosion/ Container unit ……………………………………………………………………….. 8

Parts Explosion/ Venturi power-head ……………………………………………………………….. 9

Dimensions ………………………………………………………………………………………………. 10

Applications …………………………………………………………………………………………….. 11

Grounding Instructions ………………………………………………………………………………. 11

Tools and Attachments ……………………………………………………………………………….

Warranty ………………………………………………………………………………………………… 12

INSTRUCTIONS FOR USE PAGE 2

TEST FOR GROUND CONTINUITY BEFORE EACH USE

Test for ground continuity before each use:

a)The compressed airline supplied with the A15EXP machine is impregnated with

carbon for the purpose of transferring static charge to an earth ground source.

Check to insure that there is electrical conductivity between the body of the vacuum

and the hose fitting attached to the compressed airline.

b) Connect the conductive, collection hose to the inlet of the stainless steel

tank and check to insure that there is electrical conductivity between

end of the hose and the tank inlet.

NOTE: This vacuum must be connected to an earth ground source. If the vacuum

cleaner should malfunction or break down, grounding provides a path of

least resistance for electrical current to reduce the risk of electrical shock.

For added safety, an auxiliary grounding clamp has been included with the machine.

WARNING: If unacceptable results are recorded, DO NOT OPERATE THE CLEANER.

Using the tester, check for continuity between each connection of the vacuum

cleaner (example: tool to wand, wand to hose, hose to machine, etc) If the problem

can not be corrected refer the unit to an AUTHORIZED SERVICE CENTER ONLY.

WARNING: Insure that the conductive, polyester filter assembly (#25, #26, #27, page 9)

is properly mounted inside the recovery tank. If not, refer to the instructions for

“Replacing the Main Filter” (page 6).

INSTRUCTIONS FOR USE PAGE 3

“Replacing the Main Filter” (page 6).

MAKING ADJUSTMENTS TO CONTAINER GASKETS

If you suspect the gasket between the Venturi power-head and the filter

chamber is not sealing properly:

1. Loosen latch screws "A" and slide latch downward.

2. Tighten latch screws.

3. Turn on the unit and inspect the seal between the Venturi power-head

and filter chamber.

4. Replace the gasket if the seal continues to leak.

If you suspect the gasket between the filter chamber and the

collection can is not sealing properly:

1. Loosen the screws "A" that lock filter chamber "B" against

the vacuum structure.

2. Lower filter chamber "B" slightly and retighten screws "A".

3. Turn on the unit and inspect the seal between the filter

chamber and the collection can.

4. Replace the gasket if the seal continues to leak.

USING THE VACUUM

CAUTION:

OPERATORS SHOULD TEST THE VACUUM MACHINE .

FOR GROUND CONTINUITY BEFORE EACH USE

WARNING

: A HEPA FILTER MUST BE INSTALLED IN THE VACUUM MACHINE

WHILE WORKING WITH HAZARDOUS MATERIAL.

FAILURE TO DO SO WILL EXPOSE PEOPLE IN THE WORK

AREA AND OTHERS TO HAZARDOUS MATERIALS WHICH

IS A SERIOUS HEALTH RISK.

EMPTYING:

IF THIS VACUUM CLEANER IS USED TO COLLECT HAZARDOUS

MATERIALS, DO NOT ATTEMPT TO OPEN OR EMPTY ITS CONTENTS

WITHOUT PERSONAL PROTECTIVE CLOTHING AND RESPIRATORY

PROTECTION. ALL DISPOSED FILTERS, BAGS, DEBRIS SHOULD

BE TREATED AS A HAZARDOUS SUBSTANCE AND MUST BE

DISPOSED OF IN ACCORDANCE WITH ALL FEDERAL, STATE

AND LOCAL REGULATIONS.

WARNING:

THIS EQUIPMENT IS INTENDED FOR EXPLOSION-PROOF/DUST-IGNITION PROOF

INSTRUCTIONS FOR USE PAGE 4

OPERATION,ONLY IF USED WITH SUPPLIED OR RECOMMENDED

HOSE AND TOOLS. ANY ALTERATION TO THIS EQUIPMENT BY

A THIRD PARTY WILL NULLIFY ITS WARRANTY.

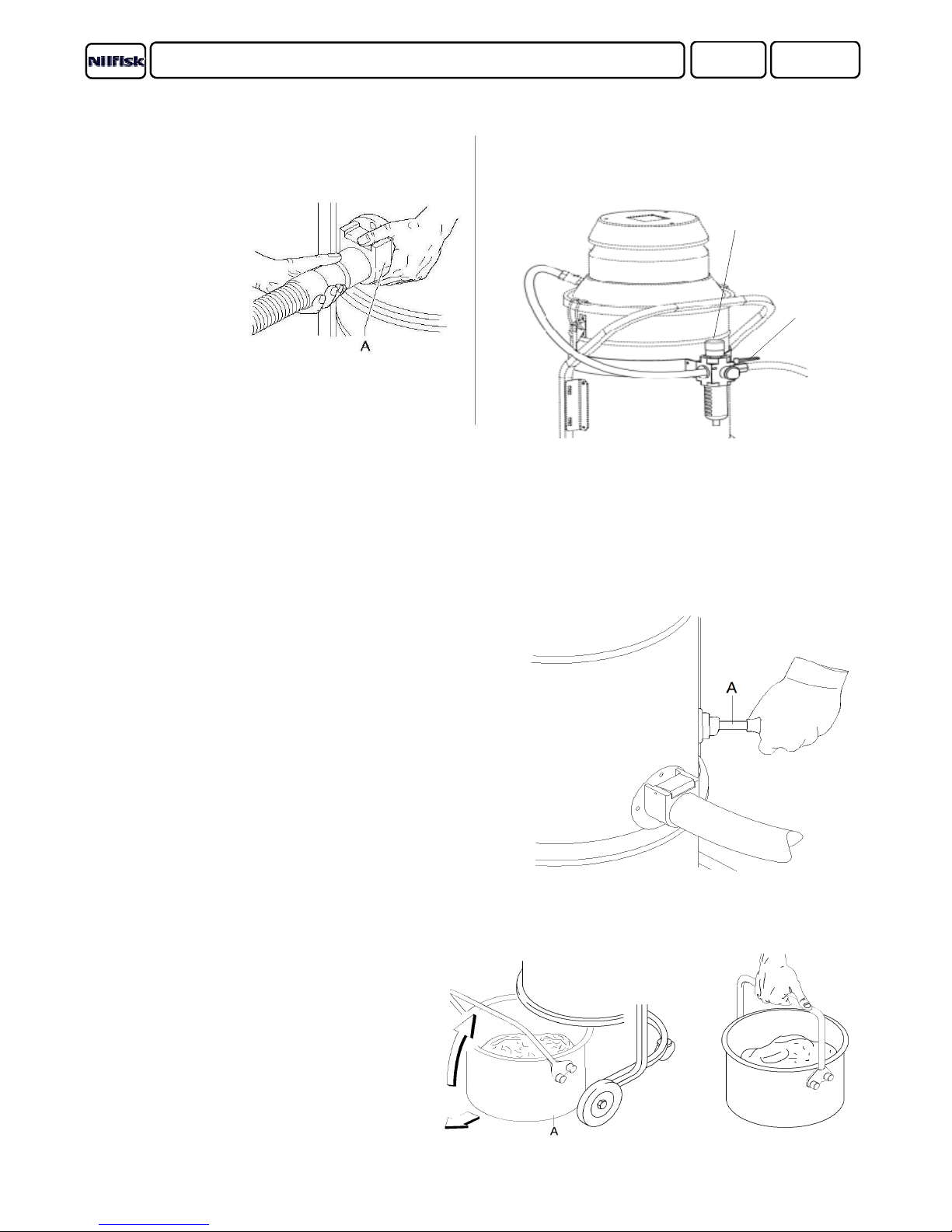

USING THE VACUUM:STARTING AND STOPPING

1.Fit the accessories on suction inlet "A".

2.Connect the machine to the air main.

3.Start and stop the Vacuum Cleaner by turning the lock valves "B".

4.The pressure governor "C" is used to regulate the suction capacity

INSTRUCTIONS FOR USE PAGE 5

CLEANING THE MAIN FILTER

If the performance of the vacuum cleaner decreases during

use, it may be necessary to clean the primary filter:

1. Turn off the vacuum and disconnect the vacuum from

its power source.

2. Actuate the filter shaker "A" (Figure 2) by raising

and lowering the lever.

3. Repeat this several times to shake the dirt from the

primary filter.

4. Wait a few minutes for the dust to settle at the bottom

of the container.

5. Empty the container

EMPTYING THE CONTAINER

1. Turn off the vacuum and disconnect the

vacuum from its power source.

2. Detach container "A" (Figure 3) by lifting

the handle.

3. Slide the container out from the machine

and carry the container by the handle (figure 4).

REPLACING THE MAIN FILTER

1. Release the latches "A" and remove the Venturi power-head "B" (Figure 3).

2. Raise one side of the filter and reach down under the filter

with one hand to remove split pin "D". This will release

the filter shaker lever "E" from the filter ring "F" (Figure 5).

3. Lift up of the filter and cut the ties (G) that attach the filter

to the ring "F"(Figure 5).

4. Unscrew clamp "H" and remove the upper ring "I" (Figure 4).

5. Mount the upper ring "I" onto the new filter and secure

the ring in place with clamp "H" (Figure 4).

INSTRUCTIONS FOR USE PAGE 6

6. Secure the Filter "C" to the ring "F" using the ties "G"

supplied in the new filter kit (Figure 5).

7. Place the new filter assembly inside the filter chamber and

reconnect the assembly using the split pin "D" (Figure 5).

8. Mount the suction unit "B" onto the machine and secure

in place with the latches "A" (Figure 3).

9. Dispose of the old filter in accordance with all federal,

state and local regulations.

REPLACING PARTS

REPLACING THE OPTIONAL (UPSTREAM) HEPA FILTER

1. Release the latches and remove the Venturi power-head

2. Separate disc "A" from gasket "B" and remove

disc/filter assembly from the vacuum machine.

3. Loosen nut "C" and remove the HEPA filter "D".

4. Fit a new HEPA Filter onto Disc"A" and tighten

in place.

5. Slide the disc with new filter into gasket "B".

6. Replace the suction unit onto the vacuum machine.

7. Dispose of the old filter in accordance with all

federal, state and local regulations.

INSTRUCTION FOR USE PAGE 7

POS. N^CODE Q DESCRIPTION POS. N^CODE Q DESCRIPTION

1 Z8 33323G 1 DISC 3

ZBRO10X

1 WASHER

2 Z8 17262 1 HEPA FILTER 4

ZBDN10X

1 NUT

PARTS EXPLOSION

CONTAINER UNIT

POS. N^CODE Q DESCRIPTION POS. N^CODE Q DESCRIPTION

1 Z8 36359 1 CAR 29 ZBRO0824X 4 WASHER

4083600658

CAR, 50 L

ZBROD08X

WASHER

INSTRUCTION FOR USE PAGE 8

4083600658

CAR, 50 L

ZBROD08X

WASHER

2 Z8 40261 2 WHEEL 31 ZBRO08X 4 WASHER

3 Z8 40910 2 WHEEL 32 ZBDN08X 4 NUT

4 ZBSEE15G 2 CLIP 33 Z8 32332 1 FILLER

5ZBRO14ZB 1 WASHER 34 Z8 32171 1 PUSH-BOTTON

6 Z8 38059 4 RIVET 35 Z8 13010 1 SPRING

7 ZBVTBCE0840ZB 2 SCREW 36 Z8 38021 2 PIN

8 ZBRO08ZB 2 WASHER 37 Z8 17005 1 SEAL

9 ZBDABO8ZB 2 NUT 38 Z8 32314 1 DEFLECTOR

10 ZBVTEO62OZB 4 SCREW 39 ZBDN05X 4 NUT

11 ZBROO618ZB 4 WASHER 40 ZBVTBCE0525X 4 SCREW

12 ZBVTBCEO816X 4 SCREW 41 Z8 18970 2 BRACHET

13 Z8 17226 1 SILICON SEAL 42 Z8 40402 3 WHEEL

14 Z8 11110 1 CHAMBER 43 ZBVTBCE0820X 3 SCREW

15 ZBVTEZ0608X 4 SCREW 44 ZBRO0832X 3 WASHER

16 Z8 18010 2 PLAQUE 45 ZBRO08ZB 3 WASHER

17 Z8 36030 2 LOCK 46 ZBDAB08ZB 3 NUT

18 Z8 40393 1 BELLOWS 47 Z8 30337 1 CONTAINER, 25 L

19 Z8 33221 1 ROD 47 4083000575 1 CONTAINER, 50 L

20 Z8 40373 1 HANDGRIP 48 Z8 14579 2 PIN

21 Z8 38018 1 COTTER PIN 49 ZBDAB08X 2 NUT

22 ZBVTBC0616X 1 SCREW 50 Z8 18971 1 HANDLE

23 ZBVSTCEC0406X 1 DOWEL 51 ZBRO0832X 2 WASHER

24 ZBDA06X 1 NUT 52 ZBRO08X 2 WASHER

25 Z8 33174 1 RING 53 ZBDN08X 2 NUT

26 Z8 15130 1 SUPPORT 54 4083901363 1 GROUND CABLE

27 Z8 38047 1 ARTICULATION

28 Z8 15131 1 BELOWS HOLDER

Table of contents

Languages:

Other Nilfisk-Advance Vacuum Cleaner manuals

Nilfisk-Advance

Nilfisk-Advance Coupe Neo User manual

Nilfisk-Advance

Nilfisk-Advance Advance AdVac 12DC Installation and maintenance instructions

Nilfisk-Advance

Nilfisk-Advance UZ 878 User manual

Nilfisk-Advance

Nilfisk-Advance 56315044(855) User manual

Nilfisk-Advance

Nilfisk-Advance GD 930 User manual

Nilfisk-Advance

Nilfisk-Advance SPECTRUM 12H User manual

Nilfisk-Advance

Nilfisk-Advance GD 10 Back User manual

Nilfisk-Advance

Nilfisk-Advance GM 80 User manual

Nilfisk-Advance

Nilfisk-Advance SC370 43B User manual

Nilfisk-Advance

Nilfisk-Advance UZ 964 Ergoclean User manual

Nilfisk-Advance

Nilfisk-Advance COMBAT User manual

Nilfisk-Advance

Nilfisk-Advance SC100 User manual

Nilfisk-Advance

Nilfisk-Advance S2 User manual

Nilfisk-Advance

Nilfisk-Advance ATTIX 145-01 User manual

Nilfisk-Advance

Nilfisk-Advance S2 User manual

Nilfisk-Advance

Nilfisk-Advance Dry Vacuum Cleaner User manual

Nilfisk-Advance

Nilfisk-Advance IVB 995-0H/M SD XC Type 22 User manual

Nilfisk-Advance

Nilfisk-Advance ecoflex BA 451 User manual

Nilfisk-Advance

Nilfisk-Advance Viper Shovelnose SN18WD-U User manual

Nilfisk-Advance

Nilfisk-Advance WD 215 User manual

Nilfisk-Advance

Nilfisk-Advance VP300 SERIES User manual

Nilfisk-Advance

Nilfisk-Advance VHC200 EXP User manual

Nilfisk-Advance

Nilfisk-Advance WDNI-1 User manual

Nilfisk-Advance

Nilfisk-Advance Neo User manual

Popular Vacuum Cleaner manuals by other brands

Bissell

Bissell LittleGreen Proheat 1425 Series user guide

Panasonic

Panasonic MC-YL637S147-AE Service manual

NEFF

NEFF N17XH10 0 Series instruction manual

LG A9 Series owner's manual

Oreck

Oreck Cordless Captura BK51700 Series user guide

Kogan

Kogan KAVACROBVWA user manual

Kränzle

Kränzle VENTOS 50 ID Use and maintenance

EVVO

EVVO Ai35 instruction manual

DeWalt

DeWalt DWH200D instruction manual

Pontec

Pontec Pondomatic Vacuum Cleaner operating instructions

Cleanmaxx

Cleanmaxx PC-P007E instruction manual

Exido

Exido 240-114 manual

RIDGID

RIDGID WD1685AU0 owner's manual

Ezviz

Ezviz RE4P manual

STG global

STG global TANVAC HDV3000 Operator's manual

Shark

Shark ROTATOR PRO COMPLETE NV550 Series manual

Factory

Factory M3340 operating manual

Shop-Vac

Shop-Vac VN92 SERIES user manual
