Niles ABS-1 User manual
SPECIFICATIONS SHEET
ABS-1
AUTOMATED SWITCHING SYSTEM
• Includes 16Volt AC power supply
• Audio-Triggered
•Individually boxed
Speaker-Level A-B Switcher
AUTOMATED SWITCHING SYSTEMS
NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.259.4434 – www.nilesaudio.com NAABS1PDF
FEATURES
■Replaces manually operated A-B switches
■Audio power handling: 600W per channel
■ABS-1 is activated by sensing the presence of an audio signal
■Exclusive adjustable signal-detection circuitry ensures reliable operation
■Spring-loaded push terminal connections
■Adjustable delay back to default
SPECIFICATIONS
■Dimensions: 6-1/4" wide x 2-1/2" high x 3-3/4" deep
Warranty: Two-year limited
Speaker-Level Switching System
ABS-1
Stock Number
FG00271
Product Detail

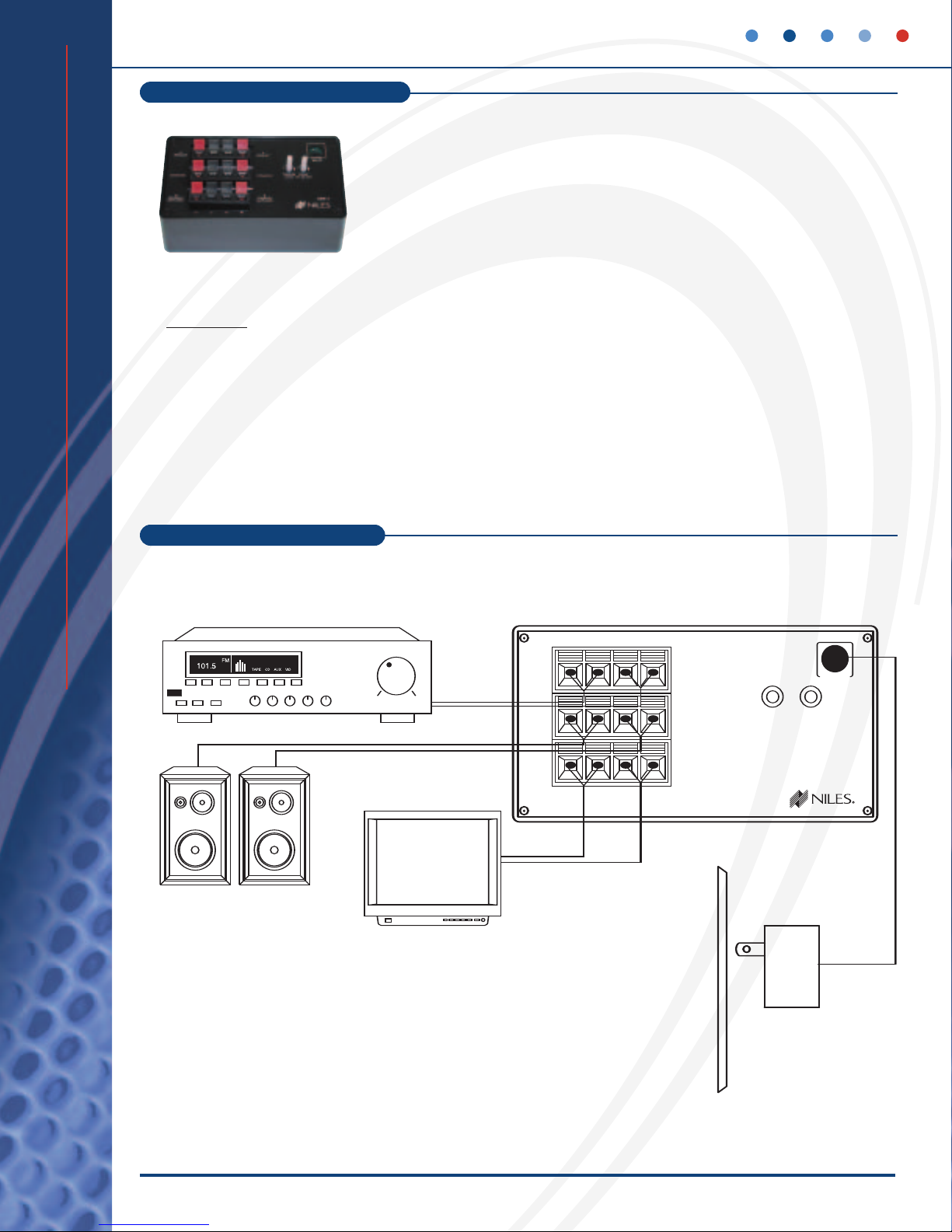

Installation examples using the ABS-1 signal activated switch
COMMON
SPEAKER OUT
SPEAKER
OUT
TV
SPEAKERS
AM/FM RECEIVER
TRIGGER
LEVEL
UNSWITCHED
AC OUTLET
AC TRANSFORMER
SUPPLIED WITH
ABS-1
POWER
DELAY
A
B
L+L-R-R+
ABS-1
