Congratulations. The psc[communicate is an advanced
Portable Sport Communication device. Use it to broadcast
and receive voice transmissions over a range of up to 2
miles. The psc[communicate was specially designed by Nike
for sport utility and reliability. It is small and lightweight,
easy to use, and includes special features that improve
battery life and ensure dependability.
This manual provides simple instructions for 2 different
products, the Nike psc[communicate and the Nike
psc[communicate wx.
The symbol points to especially important
information and helpful tips.
introduction
1
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 1

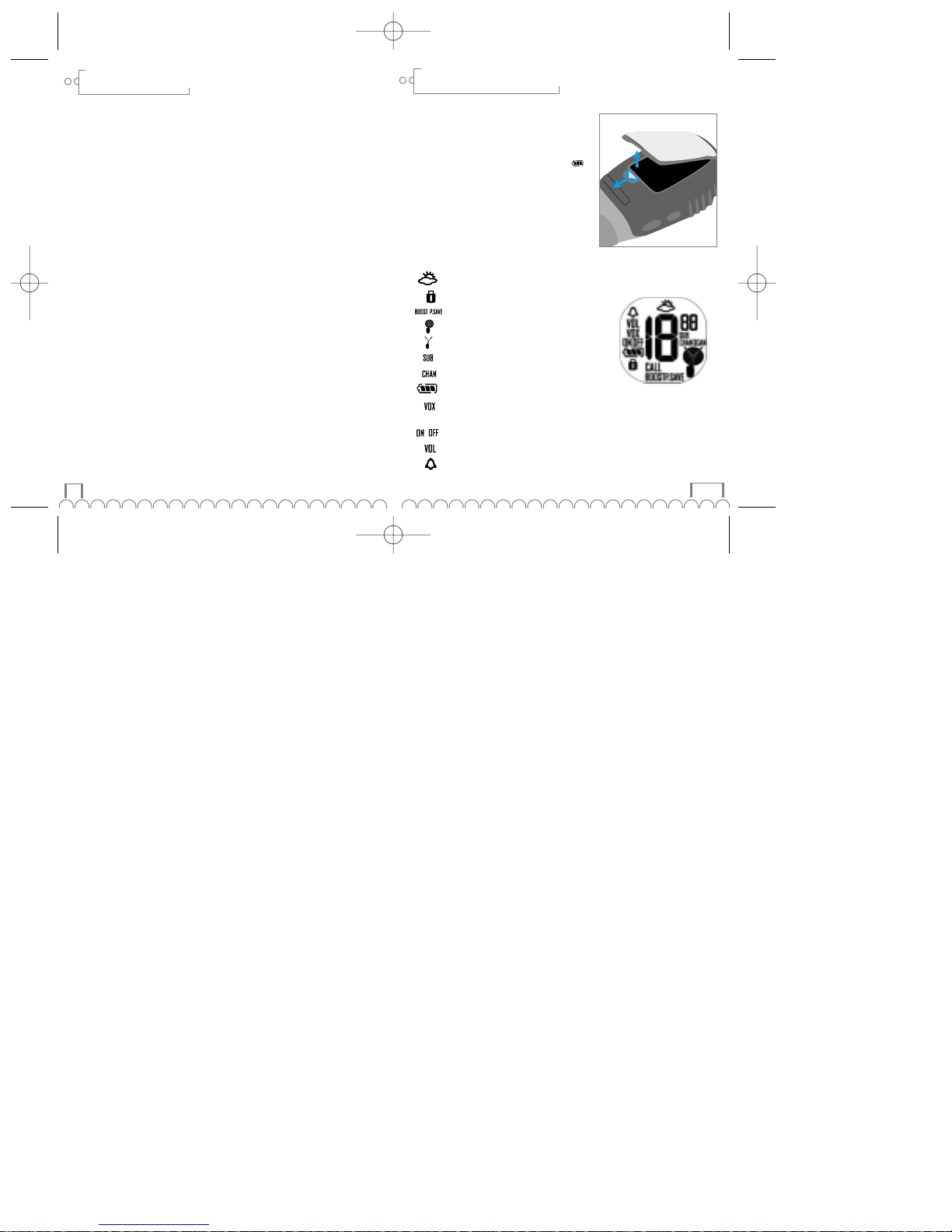

battery installation
Replace with three AAA batteries as shown.
Note: When Battery power is low the
indicator will blink.
liquid crystal display
¥Weather Mode Indicator
¥Button Lock Indicator
¥Boost/Power save Indicator
¥Transmitting indicator
¥Receiving Indicator
¥Sub Channel Indicator
¥ Channel indicator
¥Battery power remaining indicator
¥ Voice activated call Indicator (psc
communicate wx only)
¥On/off indicator
¥Volume indicator
¥Button confirmation tone/roger beep indicator
2
battery installation
liquid crystal display
power button
select power settings
talk button
adjust volume
call button
light/lock button
10 mode button
12 select main channel
12 select sub channel
14 scan channels
16 scan sub channels
18 button confirmation tone
20 vox
22 weather mode
24 attaching the lanyard
24 microphone / speaker jack
26 warranty
FCC Warning: Replacement or substitution of transistors,
regular diodes or other parts of a unique nature, with parts
other than those recommended by Nike, may cause a violation
of the technical regulations of part 95 of the FCC rules, or
violation of Type Acceptance requirements of Part 2 of the
Rules.
table of contents battery installation, lcd
3
battery compartment access
liquid crystal display
3
3
4
4
6
6
8
8
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 2
power button
There are 3 different power settings:
1. Power Off
2. Power Save Mode.
¥Power is on. Transmit at 60% of maximum power. Use Power
Save Mode to save battery life when talking over shorter
distances. This is the default setting. When you first turn on
the unit, Power Save is selected.
3. Power Boost Mode.
¥Power is on. Transmit at 100% power. Use Power Boost Mode
to achieve maximum talk range.
select power settings
1. Press POWER once to turn unit on. Power Save mode is selected.
2. Press POWER again to alternate between Power Save and
Power Boost mode.
3. Press and hold POWER to turn off the unit.
Note: Power Save and Power Boost modes don’t effect the receiver. The
psc[communicate always receives at maximum power.
basic operation power button
45
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 4
talk button
Just push and speak clearly into the microphone. Users on the
same channel who are within range will be able to hear you.
You cannot hear incoming voice transmissions when the talk
button is being pressed!
About the effective range
The range of the psc[communicate on Power Boost is about 2
miles. However, this range may be extended or lessened by
many factors. Among these are battery power remaining,
obstacles to clear transmission like buildings, mountains or
hills, cloud cover, trees, altitude, etc.
adjust volume
Adjust the volume of incoming transmissions and button
confirmation tones by pressing the + and - keys.
basic operation talk button, volume
67
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 6
Several buttons have more than one function. The primary
function of each button is labeled with an icon on the button
itself. If there is a secondary function it will be indicated by an
icon on the edge of the LCD display. Press and release to
activate the primary function. Press and hold to activate the
secondary function.
call button
¥Press once to alert other users that you want to talk. Anyone
on the same channel who is within range will hear a tone.
¥Your psc[communicate normally filters out weak signals and
static. Press and hold the CALL to deactivate this filter. By
doing so, you “open the speaker,” increasing your ability to
receive weak signals normally eliminated by the filter.
/ button
¥Press once to briefly illuminate the display.
¥To avoid accidental button operation, press and hold. Locks
all the buttons except TALK, CALL and +/-.
basic operation call, light/lock button
89
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 8
mode button
Press MODE to select the setting you want to change.
The normal display is replaced by the adjustable setting. Use
the + and - buttons to adjust the settings. These are the
settings you can change.
1. Main Channel (1-14)
2. Sub Channel (1-38)
3. Channel Scan (ON/OFF)
4. Sub Channel Scan (ON/OFF)
5. Button Confirmation Tone and Roger Beep ON/OFF)
6. Vox (OFF, ON LO, ON HI) (psc[communicate wx only)
When you have proceeded through all adjustable settings, the
normal display will reappear. Or, press TALK at any time to
return to the normal display.
basic operation mode button
10 11
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 10
select main channel
There are 14 main channels.
To select main channels:
1. Press MODE until CHAN is displayed.
2. Press + and - keys to select the main channel.
select sub channel
Each main channel has 38 sub channels, sometimes called
CTCSS channels. Select one of these sub channels to transmit
on a channel that is free from traffic.
To select sub channels:
1. Press MODE until SUB CHAN is displayed
2. Press + and - keys to select the sub channel.
Note :If you select channel “0,” you will be able to receive transmissions
from all the sub channels of the main channel you selected.
basic operation select main channel
12 13
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 12
scan channels
The channel scan feature allows you to scan all channels for
broadcast traffic. You can also scan the sub channels of a
channel in order to identify the specific sub channel of the
broadcast traffic.
To scan main channel:
1. Press MODE until SCAN is displayed.
2. Press + or - keys to begin scanning the main channels.
The unit will scan all main channels and stop on a channel
where broadcast traffic is detected. Once traffic is found, you
have 10 seconds to do one of the following:
¥Press TALK to begin broadcasting on that channel.
¥Press + or - keys to continue scanning other main channels.
¥Proceed to sub channel scan to identify the specific sub
channel of the broadcast.
basic operation channel scan
14 15
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 14
scan sub channels
The sub channel scan feature allows you to identify the exact
sub channel of a broadcast on one main channel.
To scan sub channels:
1. Select a main channel to scan, either by scanning main
channels for broadcast activity (see above) or manually
selecting a channel.
2. Press MODE until SCAN SUB is displayed.
3. Press + or - keys to begin scanning the sub channels.
*The unit will scan the sub channels of the selected
channel. It will stop where broadcast traffic is detected. Once
traffic is found, you have 10 seconds to do one of the
following:
¥Press TALK to begin broadcasting on that channel.
¥Press + and - keys to continue scanning other sub channels.
basic operation sub channel scan
16 17
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 16
Table of contents
Other Nike Fitness Electronic manuals
Nike
Nike TRIAX ARMORED II User manual
Nike
Nike SportBand User manual
Nike
Nike Nike + iPod User manual
Nike
Nike AMBIENT User manual
Nike
Nike TEMPEST User manual
Nike
Nike TRIAX FURY User manual
Nike
Nike TRIAX BATTLEGROUNDS User manual
Nike
Nike V10 User manual
Nike
Nike TRIAX 26 User manual
Nike
Nike SDM 100 User manual
