Document information

This technical manual is a complement to the Installer

handbook for VVM 320, containing:

■Description of functions and component description.

■Information to facilitate fault-tracing.

■Instructions for replacing components.

■Wiring diagram.

■Supplementary technical information.

The document applies to VVM 320 with software ver-

sions up to and including v4272R5.

The heat pump software version can be found in the

info menu (menu 3.1).

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Chil-

dren shall not play with the appliance.

Cleaning and user maintenance shall

not be made by children without super-

vision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2014.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when main-

taining your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

VVM 320 is CE marked and fulfils IP21.

The CE marking means that NIBE ensures that the

product meets all regulations that are placed on it

based on relevant EU directives. The CE mark is obligat-

ory for most products sold in the EU, regardless where

they are made.

IP21 means that the product can be touched by hand,

that objects with a diameter larger than or equivalent

to 12.5 mm cannot penetrate and cause damage and

that the product is protected against vertically falling

drops.

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1).

Serial number

Caution

Always give the product's serial number (14

digits) when reporting a fault.

NIBE™ VVM 320Chapter 1 | Important information2

1 Important information

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at

NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: [email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: [email protected] www.nibe.de

Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: [email protected] www.volundvt.dk

NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: inf[email protected] www.nibe.fi

NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR

Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: [email protected] www.nibe.fr

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: [email protected].uk www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL

Tel: 0168 477722 Fax: 0168 476998 E-mail: [email protected] www.nibenl.nl

ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO

Tel. sentralbord: +47 23 17 05 20 E-mail: [email protected] www.nibeenergysystems.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: [email protected] www.nibe.se

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.

3Chapter 1 | Important informationNIBE™ VVM 320

VVM 320

Wilo

VVM320

Wilo

VVM320

AA3

PF1

PF3

XL4 XL3 XL9 XL8 XL1 XL2

BT63

GP6

EB1

PF1

GP1

AA4

AA4-XJ4

AA4-XJ3

SF1

FL2

FL1

QM20

BT30

FD1

AA1

AA1-S2

FA1

AA2

W130

QM11

BT6

QN10

BT7

BP5

QM22

NIBE™ VVM 320Chapter 2 | Indoor module's design4

2 Indoor module's design

BT3

BT2

UB2

UB1

BF1*

XL5

RM1

CM1

Pipe connections

Connection, heating medium supply line Ø22

XL1

Connection, heating medium return line Ø22

XL2

Connection, cold water Ø22 mmXL3

Connection, hot water Ø22 mmXL4

Connection, docking in heating medium Ø22

XL8

Connection, docking out heating medium Ø22

XL9

HVAC components

Expansion vessel, closed, heating mediumCM1

Safety valve, water heaterFL1

Safety valve, heating mediumFL2

Circulation pumpGP1

Circulation pump, heating mediumGP6

Venting, climate systemQM20

Venting valve, coilQM22

Reversing valve, climate system/water heating,

flow line

QN10

Filler valve, heating mediumQM11

Check valve, cold waterRM1

Sensors etc.

Manometer, heating systemBP5

Temperature sensors, heating medium flowBT2

Temperature sensors, heating medium returnBT3

Temperature sensor, hot water, chargingBT6

Temperature sensor, hot water, topBT7

Thermostat, standby modeBT30

Temperature sensor, heating medium supply

after immersion heater

BT63

Electrical components

Immersion heater cardAA1

AA1-SF1 Switch

Base cardAA2

Input circuit boardAA3

Display unitAA4

AA4-XJ3 USB socket

AA4-XJ4 Service socket

Energy meterBF1*

Immersion heaterEB1

Miniature circuit-breakerFA1

Temperature limiterFD1

SwitchSF1

Network cable for NIBE UplinkTM

W130

Miscellaneous

Rating platePF1

Serial number platePF3

Cable glandUB1

Cable glandUB2

Designations in component locations according to

standard IEC 81346-1 and 81346-2.

*Applies to VVM 320 R, VVM 320 3x230V R and VVM 320 E EM. Available as accessory EMK 300 for other markets.

5Chapter 2 | Indoor module's designNIBE™ VVM 320

Principle of operation

XL2XL9

XL3

QN10

XL8

XL4

XL1

BT6

BT7

EB1

BT63

GP1

FL1 GP6

BT3

CM1

BT2

RM1

FL2

Pipe connections

Connection, heating medium supply line Ø22

XL1

Connection, heating medium return line Ø22

XL2

Connection, cold water Ø22 mmXL3

Connection, hot water Ø22 mmXL4

Connection, docking in heating medium Ø22

XL8

Connection, docking out heating medium Ø22

XL9

HVAC components

Expansion vessel, closed, heating mediumCM1

Safety valve, water heaterFL1

Safety valve, heating mediumFL2

Circulation pumpGP1

Circulation pump, heating mediumGP6

Reversing valve, climate system/water heating,

flow line

QN10

Check valve, cold waterRM1

Sensors etc.

Manometer, heating systemBP5

Temperature sensors, heating medium flowBT2

Temperature sensors, heating medium returnBT3

Temperature sensor, hot water, chargingBT6

Temperature sensor, hot water, topBT7

Temperature sensor, heating medium supply

after immersion heater

BT63

Designations in component locations according to

standard IEC 81346-1 and 81346-2.

NIBE™ VVM 320Chapter 3 | System description6

3 System description

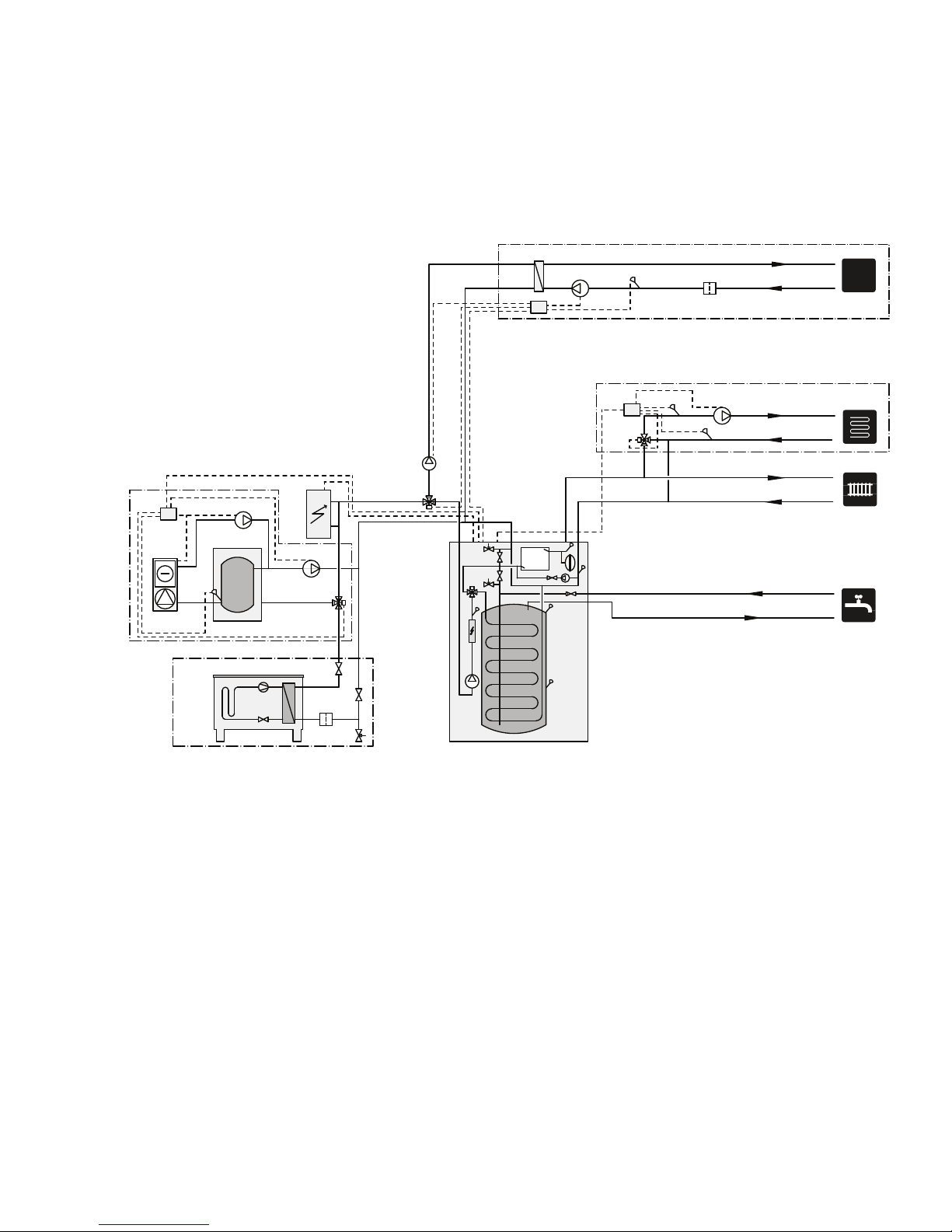

System diagram

Outline diagram

-EB1

-GP9 -BT51 -HQ4

-EP5

-AA25

-CL11

-CL11-QN19

-CL11-GP12

POOL

-CP10

-QN12

-AA25

-EQ1

-GP13

-GP12

-BT64

-BT3

-BT2

-EP21

-GP20

-QN25

-AA25

-FL10

-QM41

-QM40

-HQ1

-EB101

-EB15

Explanation

Pool packageCL11

Unit boxAA25

Temperature sensor, poolBT51

Exchanger, poolEP5

Pool, pumpGP9

Charge pump, poolGP12

Particle filterHQ4

Three way valve, poolQN19

VVM 320EB15

Heat pumpEB101

Safety valveFL10

Particle filterHQ1

Shut-off valveQM40

Shut-off valveQM41

Climate system 2EP21

Unit boxAA25

Temperature sensor, heating medium, flowBT2

Temperature sensor, heating medium, returnBT3

Circulation pump, heating medium, lower shuntGP20

Mixing valve, additionQN25

Active cooling module ACS 310EQ1

Unit boxAA25

Temperature sensor, cooling, supply lineBT64

Single jacket accumulator tank, coolingCP10

Charge pumpGP12

Circulation pump, coolingGP13

Three way valve cooling/heatingQN12

Miscel-

laneous

Extra electric additional heatEB1

7Chapter 3 | System descriptionNIBE™ VVM 320

Description of functions

Menu tree

Menu 1 - INDOOR CLIMATE

1.1 - temperature1 - INDOOR CLIMATE

1.3.1 - heating1.3 - scheduling

1.9.1 - heating curve1.9 - advanced

1.9.2 - external adjustment

1.9.3 - min. flow line temp.

1.9.4 - room sensor settings

1.9.5 - cooling settings *

1.9.7 - own curve

1.9.8 - point offset

1.9.11 - +Adjust

Menu 2 - HOT WATER

2.1 - temporary lux2 - HOT WATER

2.2 - comfort mode

2.3 - scheduling

2.9.1 - periodic increase2.9 - advanced

2.9.2 - hot water recirc.

Menu 3 - INFO

3.1 - service info3 - INFO

3.2 - compressor info

3.3 - add. heat info

3.4 - alarm log

3.5 - indoor temp. log

* Accessories are needed.

NIBE™ VVM 320Chapter 4 | Description of functions8

4 Description of functions

Other manuals for VVM 320

Table of contents

Other Nibe Water Heater manuals

Popular Water Heater manuals by other brands

Kenmore

Kenmore 153.582400 Use & care guide

Applimo

Applimo Edel AIR Installation and operating instructions

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Operating and installation instructions

clage

clage E-Mini Series Operating and installation instructions

Toyotomi

Toyotomi Oil Miser OM-180 installation manual

Bradford White

Bradford White EF Series Service manual

Eccotemp

Eccotemp 40-H Use & care manual

Dimplex

Dimplex ECSd125-580 Installation and user instructions

Dux

Dux 32FCR6N installation manual

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Operation and maintenance instructions

Noritz

Noritz N-132M Owner's guide and installation manual

TESY

TESY GCV7/4S 10047 Instructions for use and maintenance

A.O. Smith

A.O. Smith Gphe 50 instruction manual

Koryo

Koryo KWHZF15Y user manual

Pentair

Pentair PSC-14-4-02 Installation and operation manual

GE 40M06AAG Energy guide

Thermor

Thermor AEROMAX SPLIT 2 Instructions for use

American Hometec

American Hometec AHQ-B03X Installation and operation manual
