Neumann PS 10 User manual

Neumann-Information VI Aug.

1989

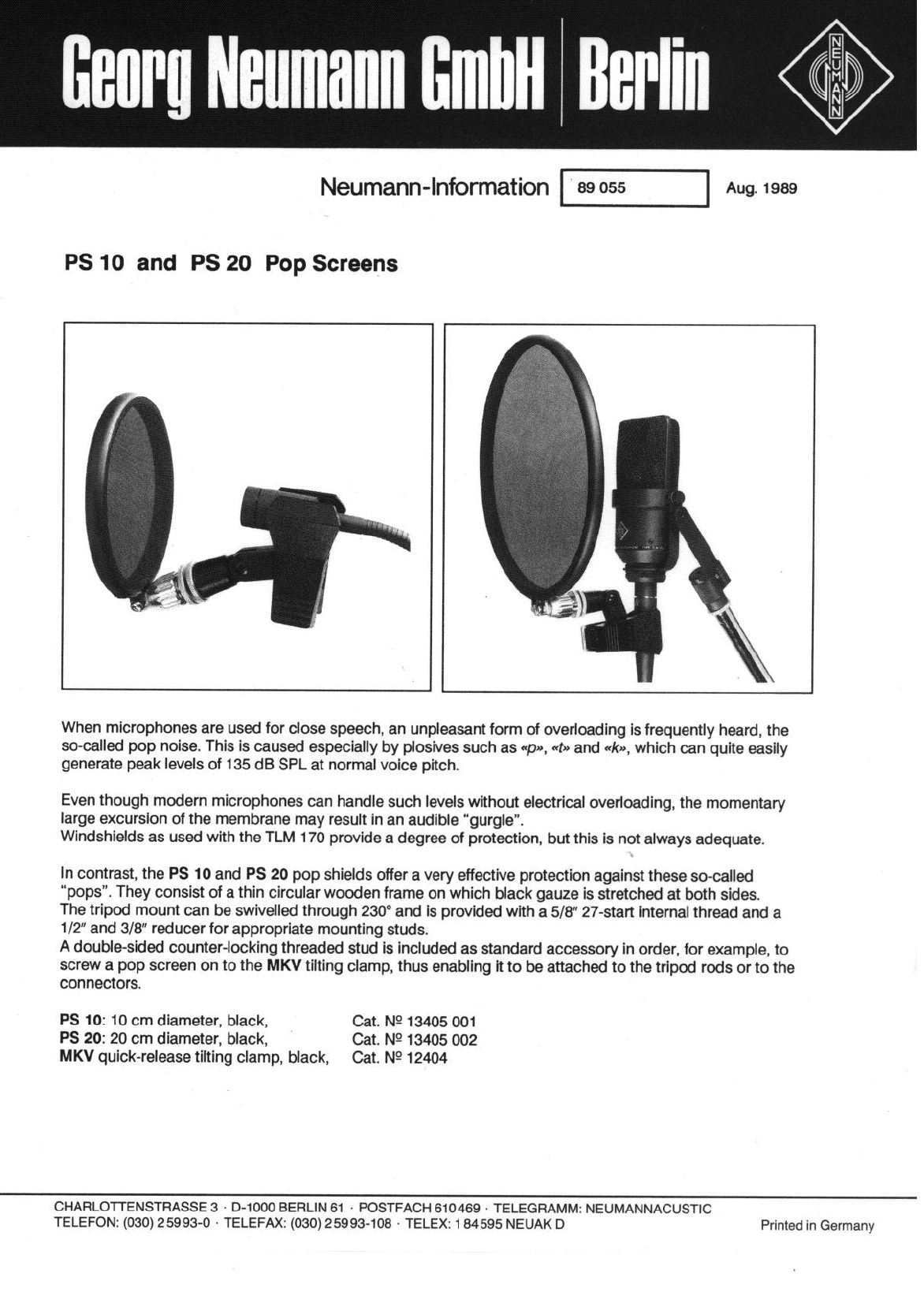

PS 10 and PS 20 Pep Screery

When microphones are used for close Speech, an unpleasant form of overloading is frequently heard, the

so-called pop noise. This is caused especially by plosives such as

Q Y,nf= and &, which tan quite easily

generate peak levels of 135 dB SPL at normal voice pitch.

Even though modern microphones tan handle such levels without electrical overloading, the momentary

large excursion of the membrane may result in an audible “gurgle”.

Windshields as used with the TLM

170

provide a degree of protection, but this is not always adequate.

In contrast, the PS IO and PS 20 pop shields offer a very effective protection against these so-called

“pops”. They consist of a thin circular wooden frame on which black gauze is stretched at both sides.

The tripod mount tan be swivelled through 230” and is provided with a 5/8” 27-statt internal thread and a

1/2” and 3/8” reducer for appropriate mounting studs.

A double-sided counter-locking threaded stud is included as Standard accessory in Order, for example, to

screw a pop Screen on to the MKV tilting clamp, thus enabling it to be attached to the tripod rods or to the

connectors.

PS 10: 10 cm diameter, black, Cat. Ns 13405 001

PS 20: 20 cm diameter, black, Cat. Ns 13405 002

MKV quick-release tilting clamp, black, Cat. Ns 12404

CHARLOTI-ENSTRASSE 3 * D-l000 BERLIN 61 . POSTFACH 610469 * TELEGRAMM: NEUMANNACUSTIC

TELEFON: (030) 25993-0 . TELEFAX: (030) 25993-108 f TELEX: 184595 NEUAK D Printed in Germany
