Netvox R313MA User manual

Model：R313MA

Wireless Emergency Button

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained

in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX

Technology. The specifications are subject to change without prior notice

Table of Content

1. Introduction.......................................................................................................................................................................................2

2.Appearance........................................................................................................................................................................................2

3. Main Features ...................................................................................................................................................................................2

4.Set up Instruction...............................................................................................................................................................................3

5. Data Report.......................................................................................................................................................................................3

6. Control Command ............................................................................................................................................................................4

6-1 ConfigureCmd(Bi-Direction)...................................................................................................................................................4

6-2 ConfigButtonPressTime(Bi-Direction)....................................................................................................................................6

7. Installation ........................................................................................................................................................................................7

8. Important Maintenance Instruction ..................................................................................................................................................8

1. Introduction

The R313MA is a long-range emergency button device for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with

the LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods,

LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely used in long-distance, low-data wireless

communications. For example, automatic meter reading, building automation equipment, wireless security systems, industrial monitoring. Main

features include small size, low power consumption, transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and gateways from different

manufacturers.

2. Appearance

3. Main Features

Compatible with LoRaWAN

2 sections of 3V CR2450 button battery power supply

Detectable voltage value and emergency button status

Simple operation and setting

Easy to fix and carry with key ring

Protection class IP30

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum

Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text and email

(optional)

Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Low power consumption and long battery life

Battery Life:

⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

⁻At this website, users can find battery life time for varier models at different configurations.

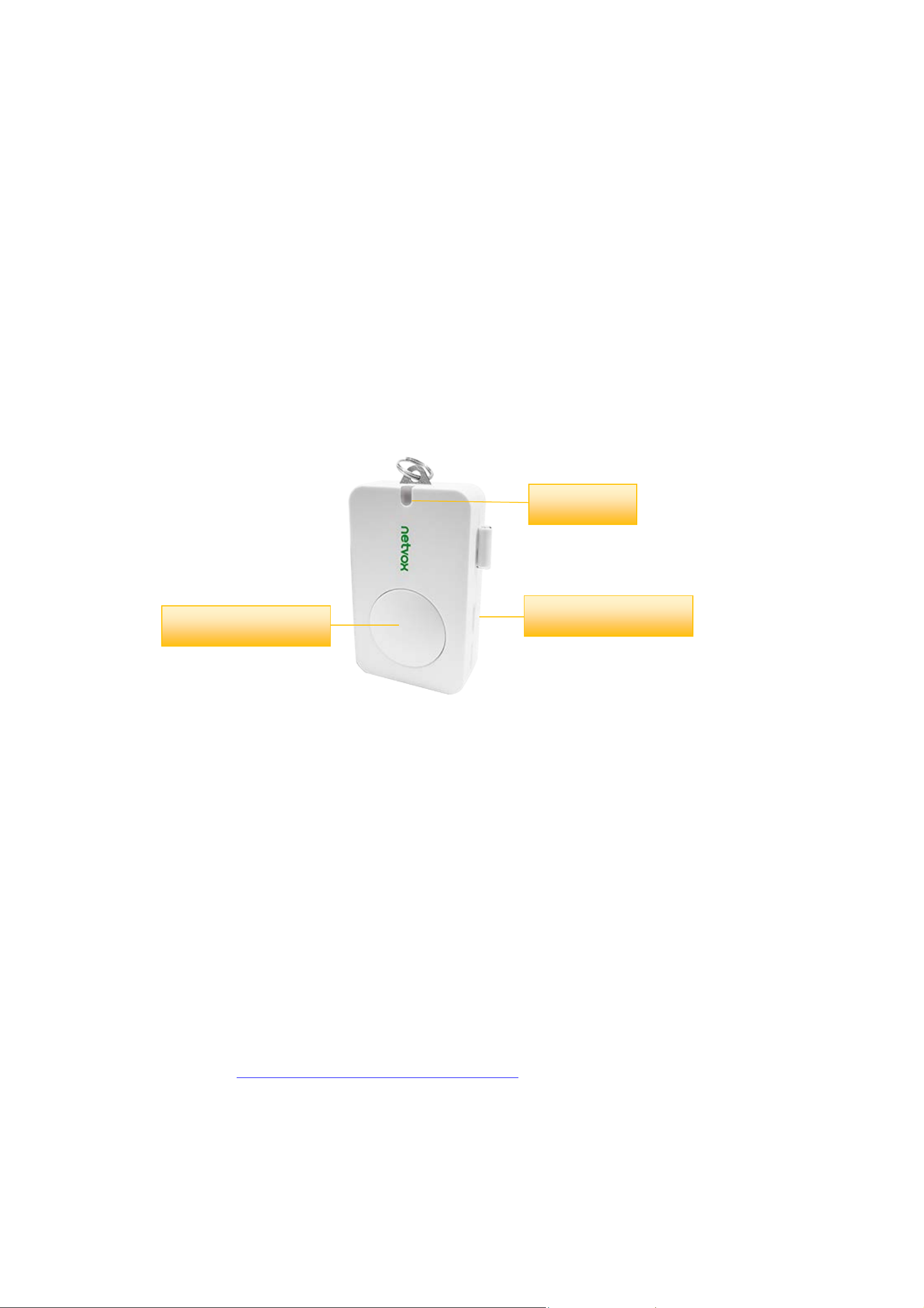

Emergency button

Indicator

Function Key

4.Set up Instruction

On/Off

Power on

Insert batteries. (users may need a flat blade screwdriver to open);

insert two sections of 3V CR2450 button batteries and close the battery cover.)

Turn on Press any function key till green and red indicator flashes once.

Turn off

(Restore to factory setting)

Press and hold both function keys for 5 seconds till green indicator flashes for 20 times.

Power off Remove Batteries.

Note:

1. Remove and insert the battery; the device memorizes previous on/off state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor inductance and other

energy storage components.

3. Press and hold any function key and insert batteries at the same time; it will enter engineer testing mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(not at factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to join the network

(when the device is on)

First two mins:wake up every 15 seconds to send request.

After two mins: enter sleeping mode and wake up every 15 minutes to send request.

Note: Suggest to remove batteries if the device is not used to save power.

Suggest to check device verification on gateway.

Function Key

Press and hold both keys

on the

side for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes for 20 times: success

The green indicator remains off: fail

Press any key on the side once

The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Emergency Button

Default: press and hold the button for 3 seconds to send an alarm data

Remark: users can configure the button pressing time to send alarm by command

Sleeping Mode

The device is on and in the

network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report according to Min Interval.

The device is on but not in

the network

First two mins: wake up every 15 seconds to send request.

After two mins: enter sleeping mode and wake up every 15 minutes to send request.

Note: Suggest to remove batteries if the device is not used.

Suggest to check device verification on gateway.

Low Voltage Warning

Low Voltage

2.4V

5. Data Report

The device will immediately send a version packet report along with an uplink packet including alarm status

The device sends data in the default configuration before any configuration is done.

Maximum time: Max Interval =1 hour (default)

Minimum time: Min Interval=1 hour (default) (by default, the current voltage value is detected every Min Interval)

*if there is special custom shipping, the setting is changed according to customer requirements

Default reportchange:

Battery --- 0x01 (0.1V)

Alarm button trigger:

Alarm status: 1

Normal state: 0

Note:

The actual data sending cycle of the device is subject to the programming configuration before shipment.

The interval between two reports must be the minimum time

The data report can be decoded by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index

Report configuration and sending cycle are as follows:

6. Control Command

6-1 ConfigureCmd(Bi-Direction)

FPort：0x07

Bytes

1 Byte

Var(Fix =9 Bytes)

CmdID

DeviceType

NetvoxPayLoadData

CmdID– 1 bytes

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

（1）Command Configuration:

MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v

Downlink：014D003C003C0100000000 003C(Hex) = 60(Dec)

Response：

814D000000000000000000（Configuration success）

814D010000000000000000（Configuration failure）

（2）Read Configuration:

Downlink：024D000000000000000000

Response：

824D003C003C0100000000（Current configuration）

Min Interval

(Unit:second) Max Interval

(Unit:second) Reportable Change Current Change≥

Reportable Change Current Change＜

Reportable Change

Any number between

1~65535

Any number between

1~65535

Can not be 0.

Report

per Min Interval

Report

per Max Interval

Description Device CmdID Device

Type NetvoxPayLoadData

Config

ReportReq

R313MA

0x01

0x4D

MinTime

(2bytes Unit:s) MaxTime

(2bytes Unit:s) BatteryChange

(1byte Unit:0.1v) Reserved

(4Bytes,Fixed 0x00)

Config

ReportRsp 0x81 Status

(0x00_success) Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq 0x02 Reserved

(9Bytes,Fixed 0x00)

ReadConfig

ReportRsp 0x82 MinTime

(2bytes Unit:s) MaxTime

(2bytes Unit:s) BatteryChange

(1byte Unit:0.1v) Reserved

(4Bytes,Fixed 0x00)

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BtteryVoltageChange value.

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40th M 1H 55th M 2H 10th M

Notes:

1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data.

2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value, the device reports

according to MinTime interval. If the data variation is not greater than the last data reported, the device reports according to MaxTime interval.

3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up frequently and the battery

will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle of MinTime /

MaxTime calculation is started.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORTS

2.8V

Wakes up and collects

data

REPORT 2.8V

Wakes up and

collects data

REPORTS 2.8V

Wakes up and collects data

2.7V |2.7-2.8|=0.1

REPORTS 2.7V

Wakes up and

collects data

2.7V Does not

report

Wakes up and

collects data 2.7V

Does not report

Wakes up and

collects data

2.7V Does not

report

Wakes up and collects data

2.7V Does not report

Wakes up and

collects data

2.7V Does not

report

Wakes up and

collects data

REPORTS 2.7V

Wake up and collects data

REPORTS 2.5V

Wakes up and collects data

REPORTS 2.7V

Wakes up and collects data

REPORTS 2.8V

Wakes up and

collects data

2.8V Does not

report

Users push the button,

REPORTS 2.7V.

Recalculate MaxTime.

6-2 ConfigButtonPressTime(Bi-Direction)

FPort：0x0D Default：3s

Description

CmdID

PayLoad (Var bytes)

SetButtonPress

TimeReq 0x01

PressTime(1bytes)

0x00_QuickPush_Less then 1 Second,

0x01_1 Second push,

0x02_2 Seconds push,

0x03_3 Seconds push,

0x04_4 Seconds push,

0x05_5 Seconds push,

Other value is reserved

SetButtonPress

TimeRsp

0x81

Status

(0x00_Success 0x01_Failure)

GetButtonPress

TimeReq

0x02

GetButtonPress

TimeRsp 0x82

PressTime(1bytes)

0x00_QuickPush_Less then 1 Second,

0x01_1 Second push,

0x02_2 Seconds push,

0x03_3 Seconds push,

0x04_4 Seconds push,

0x05_5 Seconds push,

Other value is reserved

7. Installation

(1) This product does not have a waterproof function.After the screening is completed, please place it indoors.

(2) The dust at the equipment installation position needs to be wiped clean and then pasted.

(3) The battery installation method is as shown below (the battery has a "+" side facing outward)

1.The key ring of the portable one-button

emergency button (R313MA

) can be

snapped onto the backpack, the keychain

around the waist, or hangs around the neck

with a lanyard.

Note:

Do not install the device in a metal

shielded box or other electrical equipment

around it to avoid affecting the wireless

transmission of the device.

The emergency button (R313MA) can be applied to the following scenarios:

Nursing home

Family (bathroom)

School

Hospital

Bank

Wisdom site

Wait for scenes where there is a possibility of an emergency.

2.Press and hole the emergency button for 3 seconds, the "alarm" message is

generated.

When the device reports data periodically, it restores the "normal" status and

sends "normal" status information.

Note:

When alarming, the data alarm bit is “1”;

When it returns to normal, the data alarm bit is “0”.

8. Important Maintenance Instruction

Your device is a product of superior design and craftsmanship and should be used with care. The

following suggestions will help you use the warranty service effectively.

• Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the device

is wet, please dry it completely.

• Do not use or store in dusty or dirty areas. This can damage its detachable parts and electronic components.

• Do not store in excessive heat. High temperatures can shorten the life of electronic devices,destroy batteries, and deform or melt some plastic parts.
