netvox ZigBee Z103A User manual
ZigBeeTM- Combined Interface
User Manual
Combined Interface
Model: Z103A
20131202
FW V4.0 (20131202)
HW V1.1
1
Table of Contents
1. Introduction..................................................................................................................................... 2
2. ProductAppearance ....................................................................................................................... 3
3. Specification .................................................................................................................................... 4
4. Installation....................................................................................................................................... 4
5. Setting up Z103A ............................................................................................................................ 4
5-1. Join the ZigBee Network........................................................................................................ 4
5-2. Permit-Join ............................................................................................................................. 4
5-3. Restore to Factory Setting ...................................................................................................... 5
6. Home Automation Clusters for Z103A......................................................................................... 5
7. ZiG-BUTLER.................................................................................................................................. 6
8. Important Maintenance Instructions............................................................................................ 8
2
1. Introduction
Netvox Z103A, a ZigBee USB Dongle, acts as a coordinator or a router in ZigBee network. It is designed for
computer to communicate with ZigBee network through ZiG-BUTLER - the Netvox application software. Users
can search devices, send commands, control devices, or perform customized scheduling using ZiG-BUTLER.
What is ZigBee?
ZigBee is a short range wireless transmission technology based on IEEE802.15.4 standard and supports multiple
network topologies such as point-to-point, point-to-multipoint, and mesh networks. It is defined for a
general-purpose, cost-effective, low-power-consumption, low-data-rate, and easy-to-install wireless solution for
industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation
and home automation, etc.
3
2. Product Appearance
USB Adaptor
Status Indicator
Permit-Join Key
4
3. Specification
yFully IEEE 802.15.4 compliant
yUtilizes 2.4GHz ISM band; up to 16 channels
yPower supply: USB port
yUp to 70 meters wireless transmission range in non-obstacle space
yEasy installation and configuration
4. Installation
yPlug Z103A into the USB port of a computer or a laptop.
5. Setting up Z103A
5-1. Join the ZigBee Network
Z103A can act as:
A. Coordinator: After Z103A is powered on, it will create a ZigBee network. After the ZigBee network is
built up, the indicator will stay ON.
B. Router: Z103A will search and try to join a ZigBee network after it is powered on. The indicator flashes
while it is searching. After Z103A joined a network, the indicator would stay ON.
5-2. Permit-Join
Z103A is designed to work as a coordinator or a router. To allow other devices to join the ZigBee network,
users could enable the Permit-Join feature using the tips:
A. Press the Permit-Join Key to enable the Permit-Join feature. The indicator will flash once per second.
B. The default Permit-Join period of time is 60 seconds.
C. Under the circumstances Permit-Join feature is turned on, users can press the Permit-Join key to turn off
the Permit-Join feature. When the Permit-Join is off, the indicator would stay ON.
5
5-3. Restore to Factory Setting
To restore Z103A to factory setting, please follow the steps:
Step1. Remove Z103A from the USB port to power it off.
Step2. Press and hold the Permit-Join Key.
Step3. Do not release the key and plug Z103A into the USB port to complete the restore.
6. Home Automation Clusters for Z103A
A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A
simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. This table
lists the clusters which are supported by Z103A.
1.End Point(s)：0x0A
2.Device ID：Combined Interface（0x0007）
3.Cluster ID
Server side Client side
Mandatory
Basic(0x0000)
Identify(0x0003)
Commissioning(0x0015)
Diagnostics(0x0B05)
Optional
This lists the attributes of the basic information.
Identifier Name Type Range Access Default Mandatory
/ Optional
0x0000 ZCLVersion Unsigned
8-bit integer
0x00 –
0xff
Read only 0x03 M
0x0001 ApplicationVersion Unsigned
8-bit integer
0x00 –
0xff
Read only 0x28 O
0x0002 StackVersion Unsigned
8-bit integer
0x00 –
0xff
Read only 0x33 O
0x0003 HWVersion Unsigned
8-bit integer
0x00 –
0xff
Read only 0x0B O
0x0004 ManufacturerName Character 0 – 32 Read only netvox O
6
string bytes
0x0005 ModelIdentifier Character
string
0 – 32
bytes
Read only Z103AE3C/
Z103AE3R
O
0x0006 DateCode Character
string
0 – 16
bytes
Read only 20131202 O
0x0007 PowerSource 8-bit
Enumeration
0x00 –
0xff
Read only 0x04 M
0x0010 LocationDescription Character
string
0 – 16
bytes
Read/write O
0x0011 PhysicalEnvironment 8-bit
Enumeration
0x00 –
0xff
Read/write 0x00 O
0x0012 DeviceEnabled Boolean 0x00 –
0x01
Read/write 0x01 M
7. ZiG-BUTLER
ZiG-BUTLER is an exclusive program which allows users to easily control the devices, such as enable permit-join
feature, wirelessly through computer or laptop. Of course, any other 3rd party ZigBee enabled software is also
applicable. The system needs a Z103 USB dongle or a Z202 ZigBee gateway to communicate with the ZigBee
network.
A. On the menu, go to System →Select ZigBee Adapter/Gateway.
7

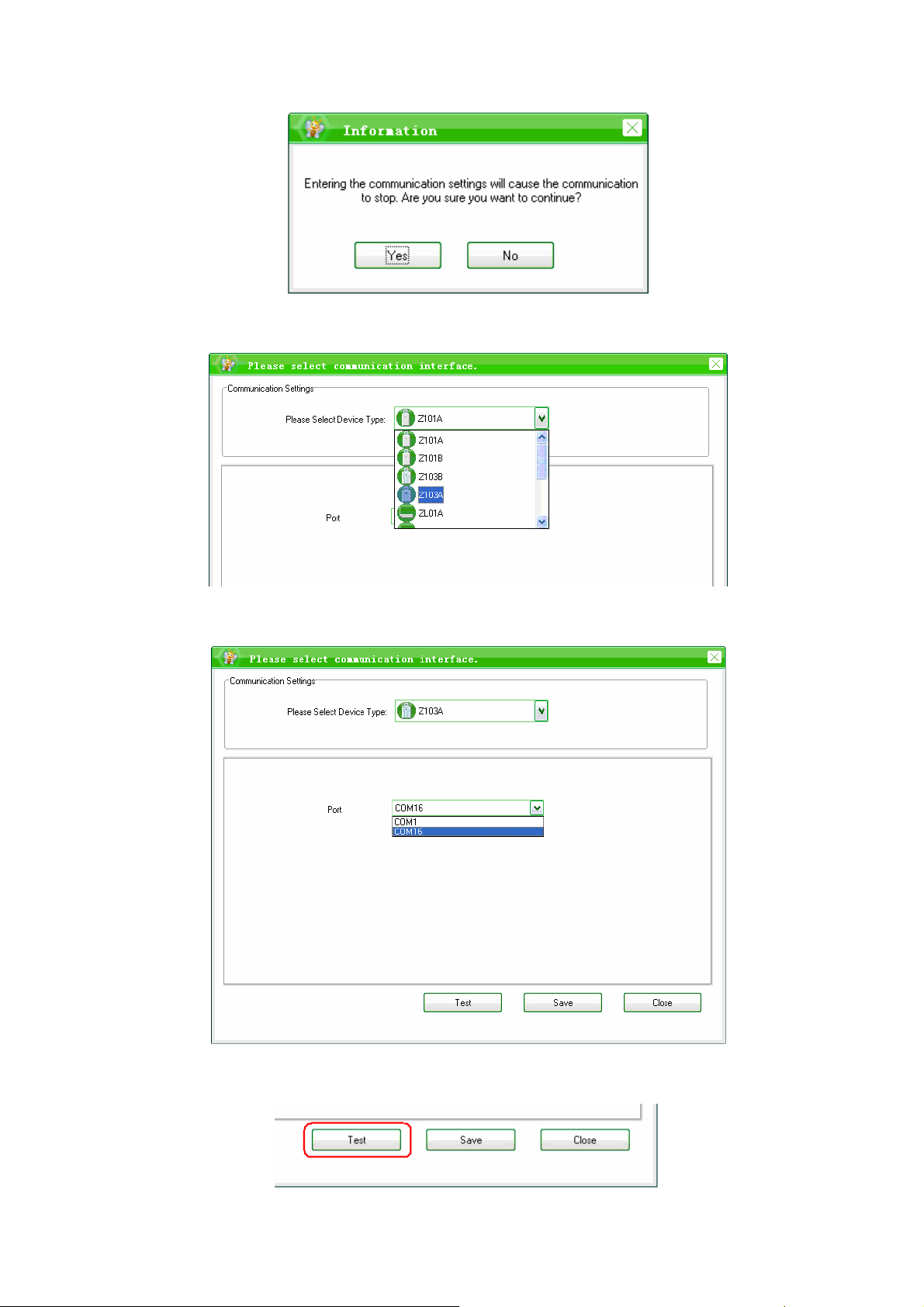

B. Click Yes.
C. Choose Z103A.
D. Select the port number.
E. Click Test.
8
F. When the connection is detected, it shows Successful Connection; otherwise, it will show Connection
Failed.
G. Click Save to finish the settings.
8. Important Maintenance Instructions
•Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device
dry properly before storing or using.
•Do not use or store the device in dusty or dirty areas.
•Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or
battery.
•Do not use or store the device in extremely cold temperatures. When the device warms to its normal
temperature, moisture can form inside the device and damage the device or battery.
•Do not drop, knock, or shake the device. Rough handling would break it.
•Do not use strong chemicals or washing to clean the device.
•Do not paint the device. Paint would cause improper operation.
Handle your device, battery, and accessories with care. The suggestions above help you keep your device
9
operational. For damaged device, please contact the authorized service center in your area.
