NetPing 2 IP PDU ETH 53R14 User manual
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP
PDU GSM3G 203R15, User guide
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -
2
Содержание
[ENG][2PWR] Introduction.......................................................................................... 5
[ENG][2PWR] Disclaimer and Copyright..................................................................... 6
[ENG][2PWR] Shipping Kit for The Device.................................................................. 7
[ENG][2PWR] Overview and Key Features.................................................................. 8
Appearance ........................................................................................................................................ 8
Device Specifications....................................................................................................................... 10
[ENG][2PWR] Features of Local Controls, LEDs, and Sockets on a Case of the
Device ........................................................................................................................ 12
Front View......................................................................................................................................... 12
Back View.......................................................................................................................................... 14
[ENG][2PWR] Connection, Installion, and Initial Configuration of the Device....... 16
Step 1................................................................................................................................................ 16
Step 2................................................................................................................................................ 16
Step 3................................................................................................................................................ 17
Step 4................................................................................................................................................ 18
Step 5................................................................................................................................................ 19
Step 6................................................................................................................................................ 20
[ENG][2PWR] Autonomous operation...................................................................... 22
[ENG][2PWR] Connecting External Sensors and Accessories ................................. 23
The description of contacts............................................................................................................. 23
i2C Connecting sensors and devices to the i2C bus ....................................................................... 24
Sensors of the "Dry contact" type................................................................................................... 27
Two wire sensors.............................................................................................................................................................. 27
Liquid sensor (mod.2605) ................................................................................................................................................ 27
PIR DETECTOR (mod.M105-1E)........................................................................................................................................ 28
Actuation Devices............................................................................................................................. 29
Buzzer (mod.STD-3025) ................................................................................................................................................... 29
NetPing AC/DIN socket .................................................................................................................................................... 30
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -
3
[ENG][2PWR] Using IO Lines in the «Output» Mode for Controlling External
Devices....................................................................................................................... 32
Electric Parameters of IO Lines ....................................................................................................... 32
[ENG][2PWR] Resetting Parameters to Default Values............................................ 34
[ENG][2PWR] Operating, Storage, Transportation and Disposal Information....... 36
[ENG][2PWR] Safety Precautions ............................................................................. 37
[ENG][2PWR] Firmware Update................................................................................ 38
[ENG][2PWR] Warranty.............................................................................................. 39
[ENG][2PWR] Where to Get the Document with the Firmware Description? ......... 40
[ENG][2PWR] What to Do if There Are Still Some Questions? ................................. 41
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -
–
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Introduction
[ENG][2PWR] Introduction
–
•
•
•
[ENG][2PWR] Introduction
The document containsa description of preparing devices for remotepower supply control (IP PDU) NetPing 2 IP
PDU ETH 53R14andNetPing 2 IP PDU GSM3G 203R15for operation, external electric interfaces, and peculiarities of
the usage.
A User Guide is designed for network administrators and users, who set up or operate a device. To work with a
device properly, a user must have an idea about the principles of building and functioning of local networks as well
as possess the next knowledge and skills:
Basic knowledge in the area of local and global networks;
Basicknowledgeintheareaofarchitectureandprinciples of work of TCP/IP networks;
Basic knowledge in the area of architecture and principles of work of Ethernet networks.
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Disclaimer and Copyright
[ENG][2PWR] Disclaimer and Copyright
–
[ENG][2PWR] Disclaimer and Copyright
The information, contained in this document, can be changed by a manufacturer without a prior notice.Although
every effort was made to make the information in this document accurate and without errors, a manufacturer is not
liable for their possible presence and for the consequences that may result from the errors herein. A manufacturer is
not liable if supplied equipment, software and this user guide does not correspond to expectations of a user and
his/her opinion about where and how to use all the above.All copyrights on supplied devices, described in this User
Guide, as well as firmware and software of devices and this User Guide belong to NetPing global Ltd. Сopying,
replication and translation of this user guide to other languagesare not allowed without a prior written permission
of a rightholder. Copying, replication, changing, disassembling of provided software are not allowed without a prior
written permission of a rightholder. For the part of software that is provided in source codes, there is a separate
license agreement, which defines an order of its use and modification. Other trademarks used in this description
belong to corresponding rightholders.
Developer and manufacturer:
NetPing east Co Ltd.
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Shipping Kit for The Device
[ENG][2PWR] Shipping Kit for The Device
–
•
•
•
•
•
•
•
[ENG][2PWR] Shipping Kit for The Device
This shipping kit includes:
NetPing 2 IP PDU ETH 53R14orNetPing 2 IP PDU GSM3G 203R15 - 1 pc.;
mate terminal block STK-15EDGK-3.5-8P - 1 pc.;
power cord- 1 pc.;
GSM antenna (for the version of the modelNetPing 2 IP PDU GSM3G 203R15) - 1 pc.;
screwdriver- 1 pc.;
quick start guide - 1 pc.;
package cardboard box - 1 pc.
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Overview and Key Features
[ENG][2PWR] Overview and Key Features
–
[ENG][2PWR] Overview and Key Features
It is possible to connect up to two power consumers of the total capacity of 1500W to a device using controlled
electric outlets. To be protected from a short circuit in load and/orexceeding the maximum permissible power, the
device is equipped with an automatic built-inresettable fuse. Spreading the load capacity between the two
channels is random. The load connected to the device is controlled using the own web interface, SNMP protocol,
using HTTP API and by SMS (for a NetPing 2 IP PDU GSM3G 203R15 device with a built-in GSM modem). The device
has a feature of a «watchdog» that allows to reboot connected equipment automatically if it freezes or according to
a previously specified schedule. Electric load of each of the two channelsis controlled independently from each
other, at the same time, individual settings are possible for any of these channels.
Appearance

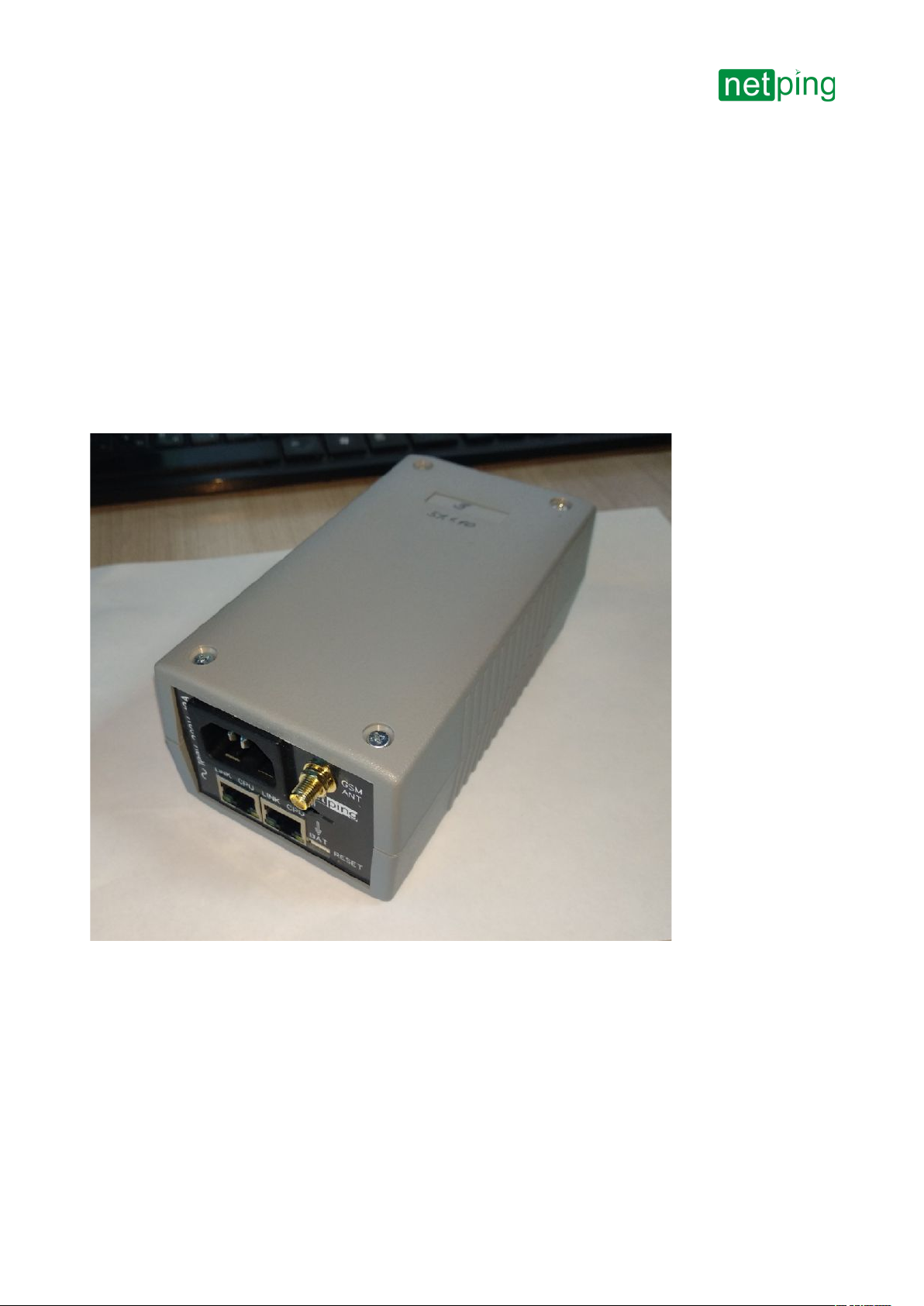

General appearance. A photo represents a modelNetPing 2 IP PDU GSM3G 203R15

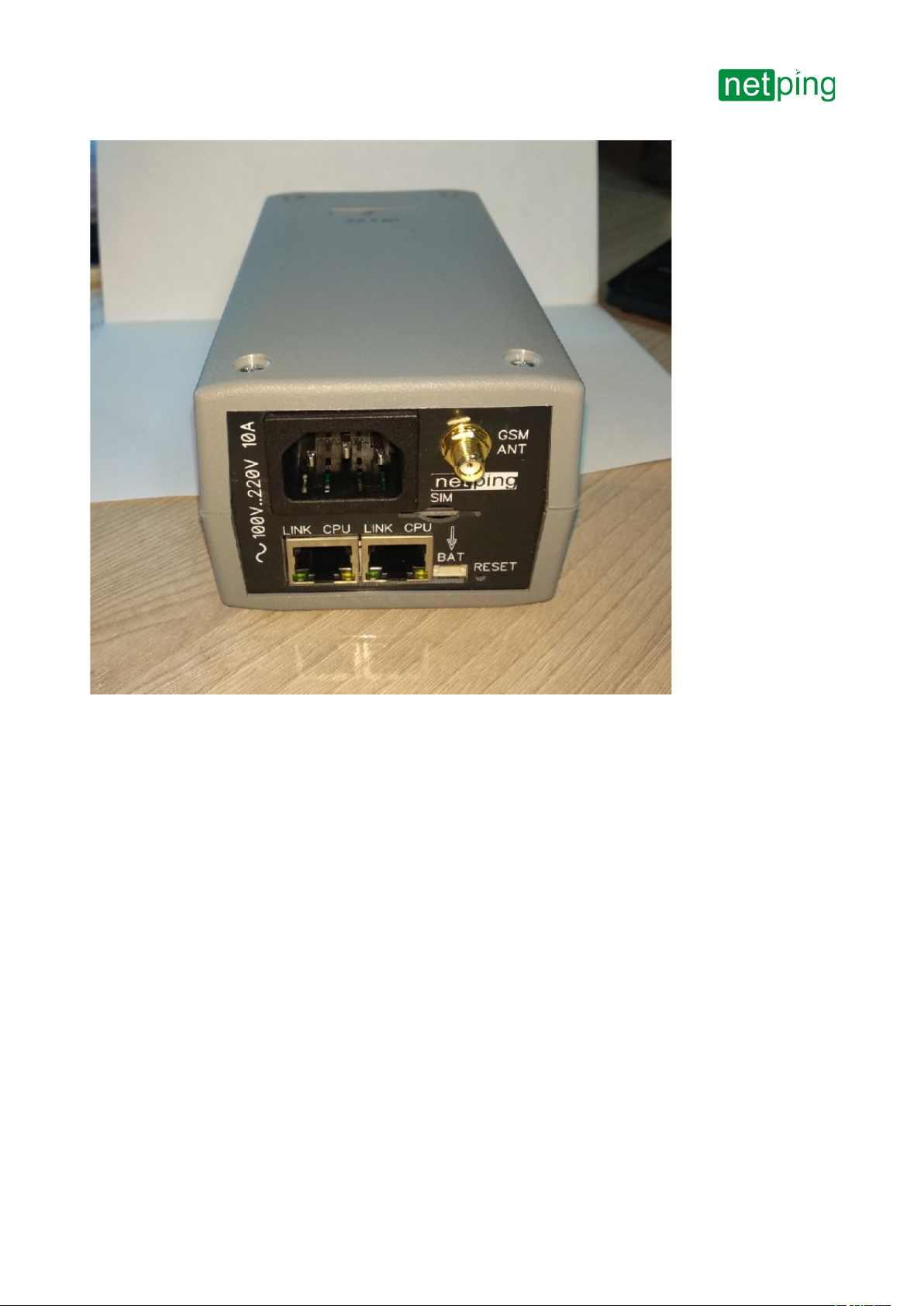

Front view
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Overview and Key Features
[ENG][2PWR] Overview and Key Features
–

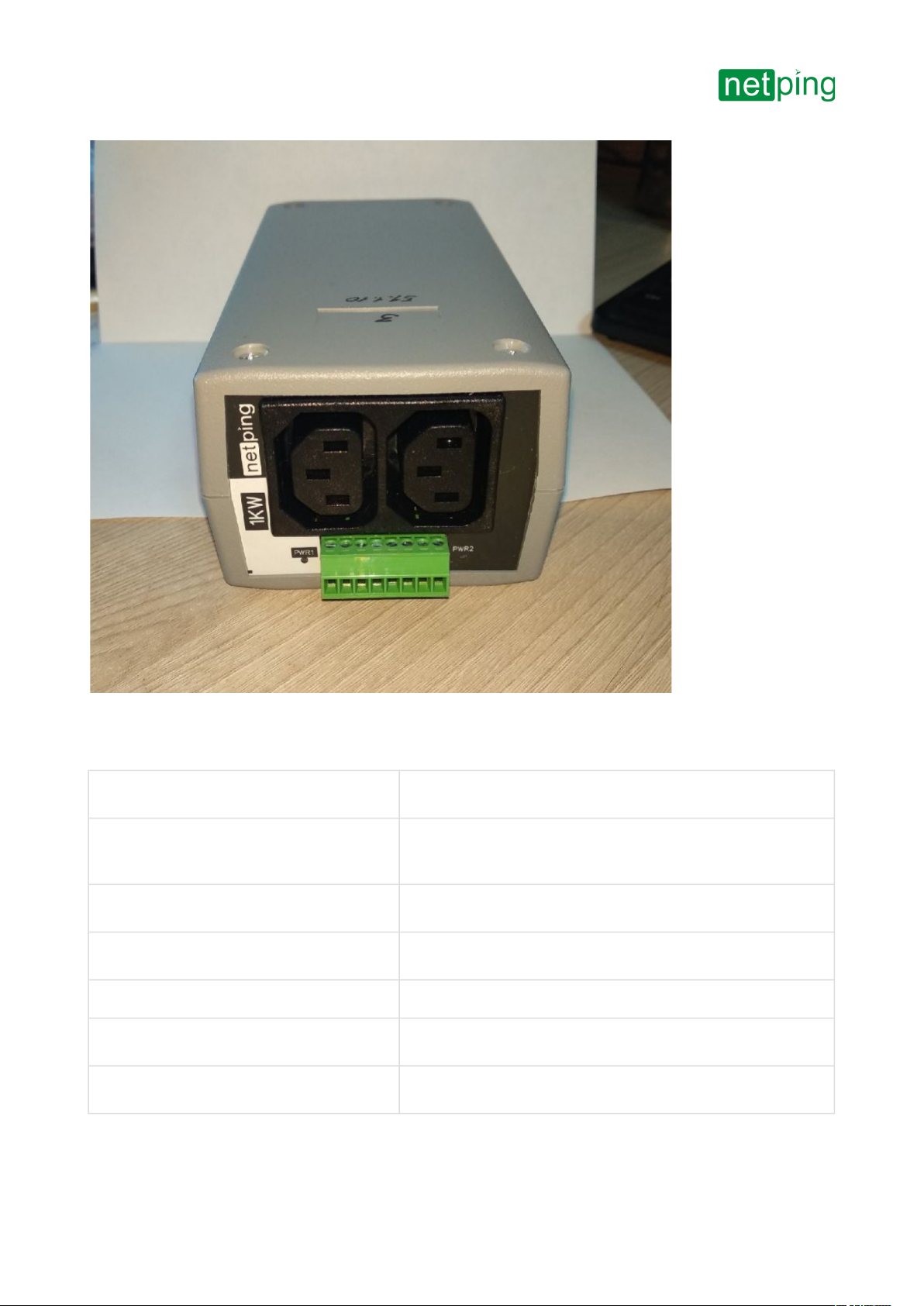

Back view
[ENG] NetPing 2 IP PDU ETH 53R14 & NetPing 2 IP PDU GSM3G 203R15, User guide -[ENG][2PWR] Overview and Key Features
[ENG][2PWR] Overview and Key Features
–
Device Specifications
Device Specifications Value
Switched load power up to 1,5 kW (in total for both channels with the random
distribution between the channels)
Device power consumption 8.5 W
Supply voltage frequency 100..250В50/60 Hz
Temperature range -30С°..+50С° (non-condensing, normal humidity).
Device dimensions 145 x 78 x 57
Packaging dimensions 225 x 93 x 82
