NETGEAR DGN2200v3 User manual

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134, USA

July 2012

Technical Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label

of your product and use it to register your product at

NETGEAR.com/register. Registration is required before you can

use our telephone support service. Registration through our

website is strongly recommended.

Go to support.netgear.com for product updates and web support.

N300 Wireless ADSL2+ Modem Router

DGN2200v3 Installation Guide

Package Contents

The box should contain the following items. If any items are

incorrect, missing, or damaged, contact your NETGEAR dealer.

Phone

ADSL

Phone

Line

The filter or

splitter provided

depends on the

region.

N300 Modem Router

Ethernet cable Power adapterPhone cable

Filter Splitter Filter/Splitter

You can use this diagram to cable your modem router or follow the instructions in this booklet.

Internet

ADSL

Phone

Line

1. ADSL

3. Computer

2. Power

4. Browser

Note: A user manual is available online at http://downloadcenter.netgear.com or through a link in this modem router’s user interface.

Compliance

Declarations of Conformity

For complete DoC please visit the NETGEAR EU Declarations of Conformity

website at: support.netgear.com/app/answers/detail/a_id/11621/.

For GNU General Public License (GPL) related information, please visit

support.netgear.com/app/answers/detail/a_id/2649.

This symbol is placed in accordance with the European Union

Directive 2002/96 on the Waste Electrical and Electronic Equipment

(the WEEE Directive). If disposed of within the European Union, this

product should be treated and recycled in accordance with the laws of

your jurisdiction implementing the WEEE Directive.

For indoor use only in all EU countries and Switzerland.

Contents

Before You Begin 2

Install Your Modem Router 3

Preset Wireless Security 5

Wireless Network Settings 6

Add Wireless Devices to the Network 7

WPS Method 7

Manual Method 7

Access the Modem Router to Make Changes 8

Troubleshooting 9

ReadySHARE Access 11

Other Features 12

Before You Begin

Make sure that your DSL service is active before you install the

modem router. You need the information listed here to install your

DSL modem and connect to the Internet. Please locate it and have it

on hand before you start the installation procedure.

• DSL user name and password. These credentials are usually

included in the welcome letter your DSL ISP sent to you when

you signed up for your service. Record your DSL Internet service

account user name and password here:

• Your telephone number or DSL account number. If you do not

have voice service, you can use your DSL account number in

place of a phone number.

User name:

Password:

Install Your Modem Router

A microfilter filters DSL interference out of standard phone equipment

that shares the same line with your DSL service. Example devices

are telephones, fax machines, answering machines, and caller ID

displays.

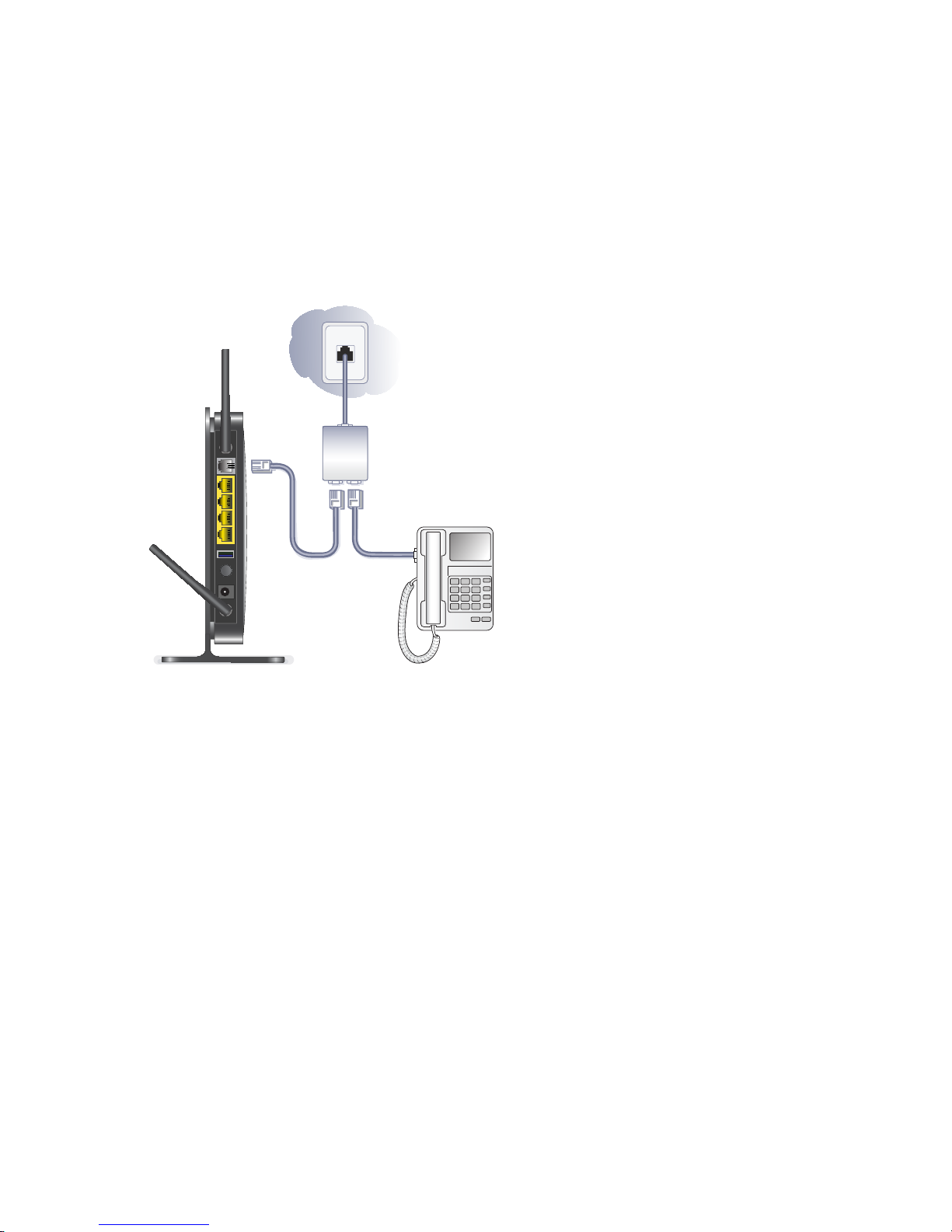

1. Connect the ADSL.

a. Install an ADSL microfilter between the phone line and the

phone.

b. Connect the ADSL port of the modem router to the ADSL

port of the microfilter

c. Use an ADSL microfilter for every phone line in the house if

your modem router and telephone connect to the same

phone line.

ADSL

Phone

Line

2. Add power to the modem router.

a. Connect the power adapter to the router and plug the power

adapter into an outlet.

b. Wait for the WiFi LED on the front panel to turn on. If none

of the LEDs on the front panel are on, press the Power On/

Off button on the rear panel of the modem router.

3. Connect a computer.

You can use an Ethernet cable or connect wirelessly.

• Use the yellow Ethernet cable to connect your computer to an

Ethernet port on your router.

• Or, connect wirelessly by using the preset wireless security

settings located on the label on the bottom of the router.

Internet

ADSL

Phone

Line

Internet

ADSL

Phone

Line

4. Open a browser.

If a web page does not open,

close and reopen the browser

and enter http://routerlogin.net

in the address bar. For help, see

Troubleshooting on page 9.

Preset Wireless Security

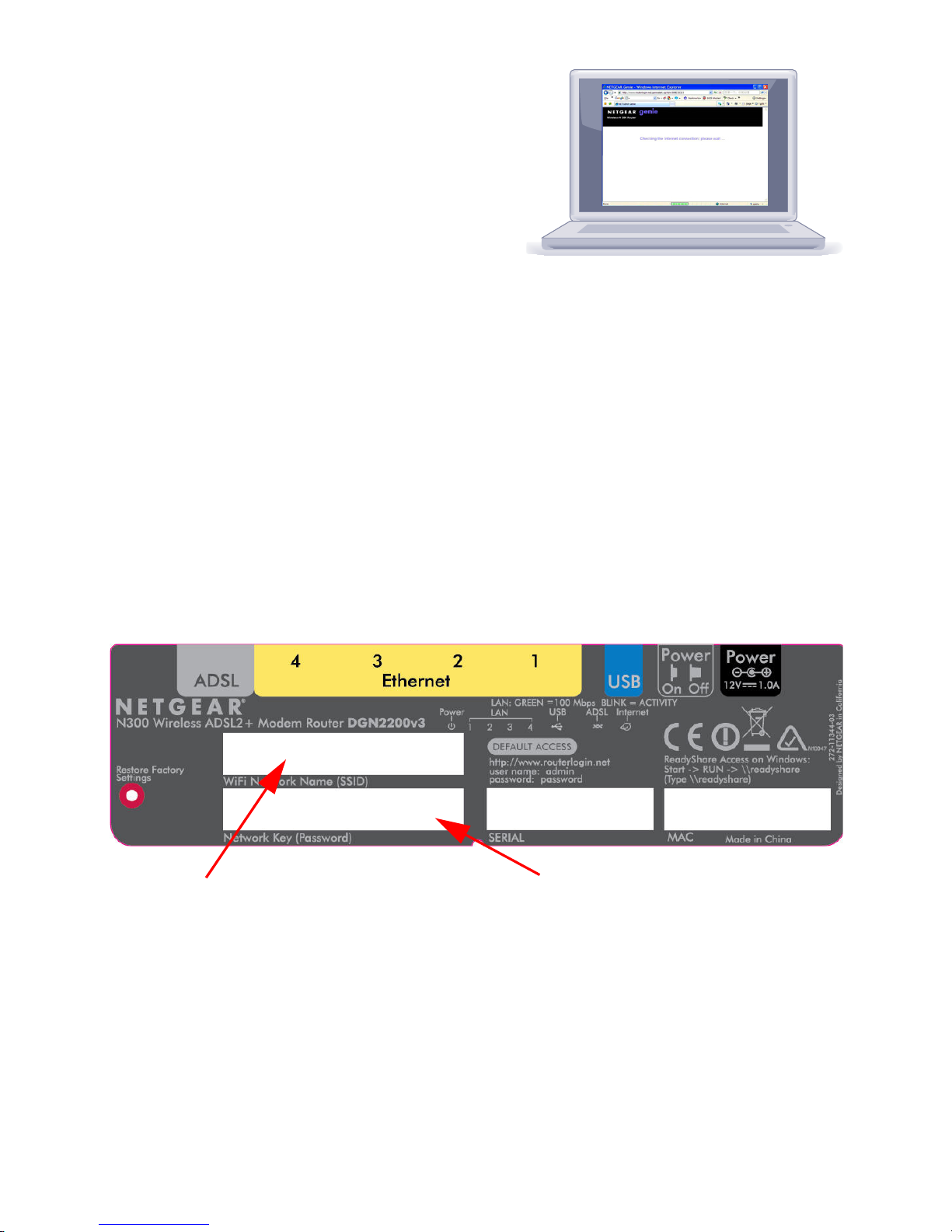

This product has a unique WiFi network name (SSID) and network

key (password). The default SSID and network key (password) are

uniquely generated for every device, like a serial number, to protect

and maximize your wireless security. This information is located on

the label on the bottom of the product.

NETGEAR recommends that you do not change the preset WiFi

network name (SSID) and network key (password). If you do change

the settings, the security SSID and password on the bottom of the

product no longer apply.

WiFi Network Name (SSID) Network Key (Password)

Wireless Network Settings

Record the default preset wireless settings that are printed on the

label in the space below for easy reference.

If you change the default settings, record them here for easy

reference and store this booklet in a safe place:

To retrieve or update your wireless password after your router is

installed, type http://www.routerlogin.net in a web browser and log in

using the default user name (admin) and password (password).

Select Wireless Settings to locate your wireless password.

WiFi Network Name (SSID):

Network Key (Password):

WiFi Network Name (SSID):

Network Key (Password):

Add Wireless Devices to the Network

Choose either the Wi-Fi Protected Setup (WPS) or manual method to

add wireless computers and other devices to your wireless network.

WPS Method

Note: WPS does not support WEP security. If you try to connect a

WEP client to your network using WPS, it will not work.

If your wireless device supports WPS (WiFi Protected Setup)—

NETGEAR calls this method Push 'N' Connect—you might be

prompted to press the WPS button on the router instead of entering a

password. If this happens:

1. Press the WPS button on the router.

2. Within 2 minutes, press the WPS button on the client device, or

follow the WPS instructions that came with your wireless device to

complete the WPS process. The device will then be connected to

your router.

3. Repeat this process to add other WPS wireless devices.

Manual Method

1. On the wireless device that you want to connect to your router

(iPhone, laptop, computer, gaming device), open the software

utility that manages its wireless connections. This utility scans

for all wireless networks in your area.

2. Look for the preset NETGEAR WiFi network name (SSID) and

select it. The SSID is located on the product label on the bottom of

the router.

Note: If you changed the name of your network during the setup

process, look for that network name.

3. Enter the preset password (or your custom password if you

changed it), and click Connect.

Repeat steps 1–3 to add other wireless devices.

Access the Modem Router to Make

Changes

After you use NETGEAR Genie to set up the modem router, you can

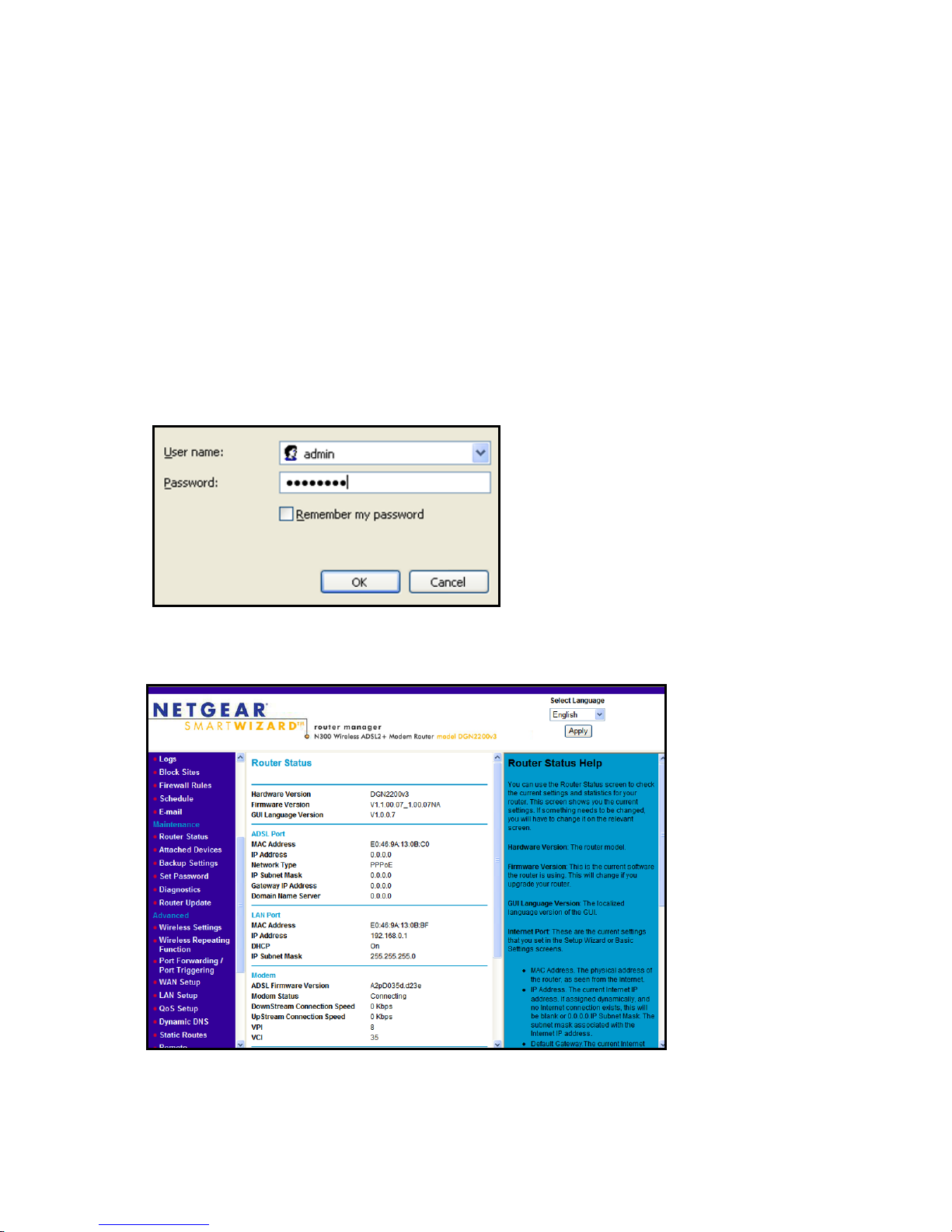

To log in to the modem router:

1. Launch a web browser from a computer or a wireless device that

is connected to the modem router.

2. Type www.routerlogin.net or www.routerlogin.com in the

address field of the browser. A login screen displays:

3. Enter admin for the user name and password for the password.

The modem router interface screen displays:
