NETGEAR ProSAFE FS116Pv2 User manual

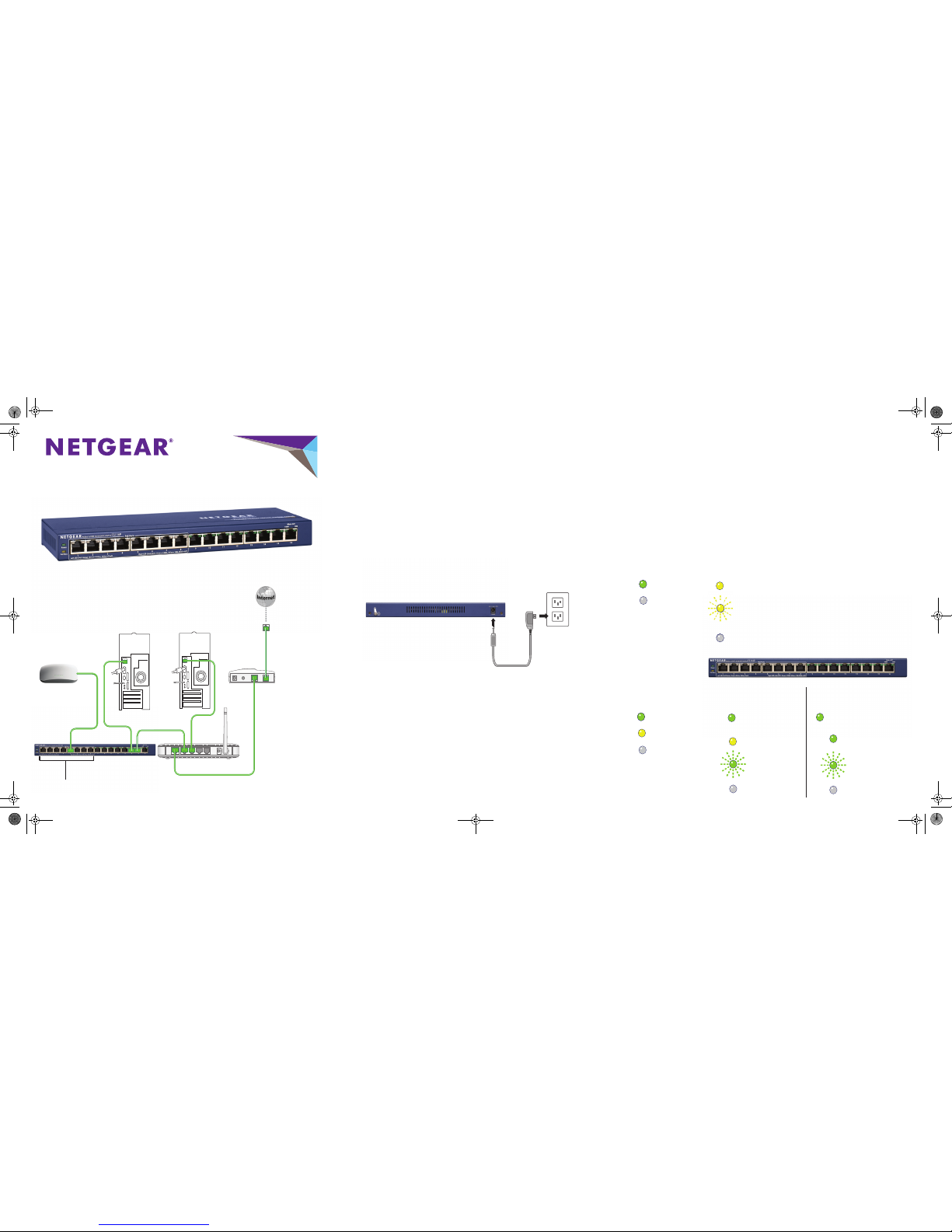

ProSAFE® FS116Pv2 16-Port 10/100 Desktop Switch with 8-port PoE

Installation Guide

Step 2. Connect power

Step 3. Check status

Optional

modem

Step 1. Connect equipment

FS116P

Optional router

Computer Server

Internet

Off

Power LED

Activity (blinking)

No link (off)

(right LED)

10 Mbps link

Port 9-16 LEDs

(left LED)

100 Mbps link

Less than 7W of

PoE power is available

PoE Max. LED

PoE ports are

working normally (off)

PoE MAX LED was

active in the previous

2 minutes

PoE in use

No PoE use (off)

Activity (blinking)

No link (off)

10 Mbps link

Port 1-8 left LEDs

100 Mbps link

PoE fault

Port 1-8 right LEDs

Optional

Wireless Access Point

PoE Ports (1-8)

FS116Pv2 IG 22sept12.fm Page 1 Wednesday, May 22, 2013 5:27 PM

May 2013

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered

trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134 USA

Specifications

Specification Description

Network interface RJ-45 connector for 10BASE-T, or 100BASE-TX

Network cable Category 5 (Cat 5) or better Ethernet cable

Ports 16

Power adapter 48V @ 1.66A/1.875A DC input

Power consumption 80W max.

PoE Power budget 70W max. (all PoE ports, Port 1 – Port 8), 15.4W max. per PoE

port

Weight 0.85 kg (1.874 lbs)

Dimensions

(W x D x H)

286 mm x 102 mm x 27 mm

11.26 in. x 4.02 in. x 1.06 in.

Operating

temperature

0° to 40° C (32° to 104° F)

Operating humidity 10% to 90% relative humidity, non-condensing

Electromagnetic

compliance

CE Class A, FCC Class A, VCCI Class A,

Safety agency

approvals

CB, CCC

Technical Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of your product and

use it to register your product at https://my.netgear.com.

You must register your product before you can use NETGEAR telephone support.

NETGEAR recommends registering your product through the NETGEAR website.

For product updates and web support, visit http://support.netgear.com.

NETGEAR recommends that you use only the official NETGEAR support

resources.

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

FS116Pv2 IG 22sept12.fm Page 2 Wednesday, May 22, 2013 5:27 PM
