NETGEAR GS724TP - ProSafe Smart PoE Switch User manual

Quick Installation Guide

Follow these instructions to set up your smart switch.

Prepare to Install Your Smart Switch

• Prepare a PC with an Ethernet adapter and a CD ROM drive.

• Before proceeding with the smart switch installation, familiarize yourself with the

contents of the Resource CD, especially the manuals.

First, Install the Smartwizard Discovery Utility on a

1. Insert the disc into your CD-ROM drive.

2. Select the \Software folder or click ‘install’ from Browser auto-executed after

inserting the Resource CD.

3. Run the Setup program to install the Smartwizard Discovery.

4. The Installation Wizard will guide you through.

Next, Connect Your Smart Switch in the Correct

Order

Note: These instructions assume you are using DHCP in your network. If you are

using static IP addressing in your network, configure the switch IP address before

connecting it to your network. In the absence of a DHCP server, the switch will

default to 192.168.0.239 for its IP address. To configure the switch before

connecting it to your network, set up the PC with an IP address in the 192.168.0.x

subnet, and connect the PC to the switch. Then, use the Smartwizard Discovery

utility as illustrated below to configure the switch.

1. Connect each PC to an RJ-45 network port on the Switch front panel. Use

category 5 (Cat5) unshielded twisted-pair (UTP) cable terminated with an RJ-45

connector to make these connections.

2. Connect the smart switch to your network.

3. Power on the switch.

4. Verify that the PC with the SmartWizard GearDiscovery utility is on the same

subnet as the switch.

Now, Configure the Switch with the SmartWizard

1. Run SmartWizard from the Windows Start menu Programs.

2. Click Discover to find your switch in the network.

The SmartWizard Discovery utility finds the switch and displays its MAC

Address, IP Address, and model number. If you cannot configure your switch,

verify that the cable connections are secure, that the IP address configuration of

the PC is in the same subnet as the switch, and click the Discover button.

3. Click to select the line displaying the details of your switch. If there are multiple

smart switches in your network, be sure to select the one you want to configure.

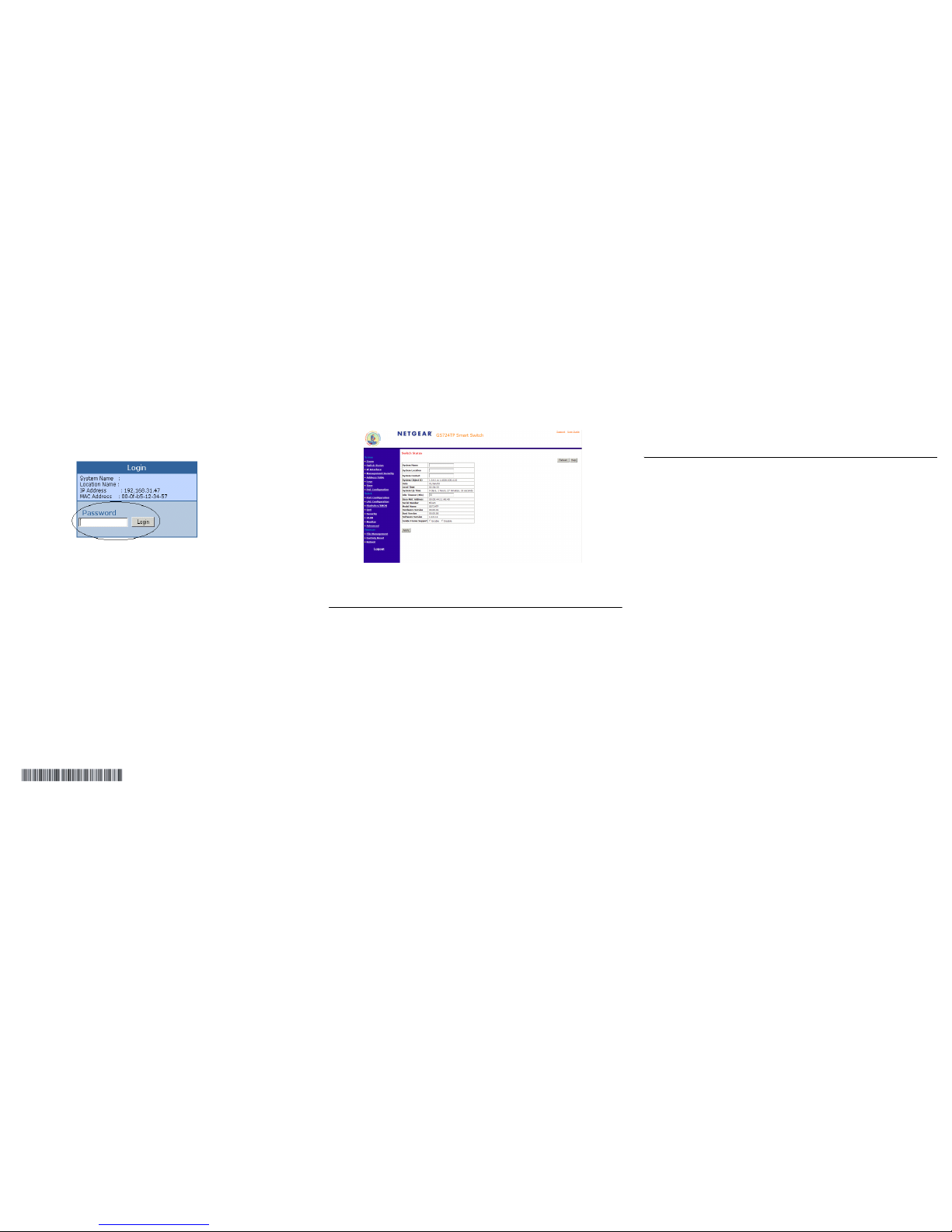

4. Click Web Access to view the switch log in screen.

5. Enter the default password of password in lower case letters and click Login. The

switch will display the switch settings main page. Configure the switch for your

network. Consult the manual on the CD or the online help in the switch for

assistance with configuration procedures.

After you log in to the switch, the main Web Access menu displays.

Use the configuration menu options to configure your switch.

Troubleshooting Tips

Here are some tips for correcting simple problems you may have.

Be sure to power on your PC and smart switch in the correct sequence.

Follow this sequence. Turn off the smart switch and computer. First, turn on the

smart switch and wait two minutes. Next turn on the computer.

Make sure the Ethernet cables are securely plugged in.

For each powered on computer connected to the smart switch with a securely

plugged in Ethernet cable, the corresponding smart switch LAN port status light

will be lit.

Make sure the network settings of the computer are correct.

In most cases, computers should be configured to obtain an IP address

automatically via DHCP. For help with this, please see the animated tutorials on

the CD or the Reference Manual Appendix C on the CD.

If your network uses static IP addresses, be sure the switch and computer are

configured with valid IP addresses.

Technical Support

Thank you for selecting NETGEAR products.

To register, go to: http://www.NETGEAR.com/register

Go to http://www.NETGEAR.com/support for support information.

NETGEAR is a registered trademark of NETGEAR, Inc. in the United States and/or

other countries.

Other brand and product names are trademarks or registered trademarks of their

respective holders. Information is subject to change without notice.

January 2007

201-11026-01
