Using a stud finder, locate and mark the edges of the wood stud used in
mounting this product. Use of an edge to edge stud finder is highly
recommended. Use of level to draw a vertical line down the center of the
stud. Use wall plate as template to mark center of holes along the
vertical line. Drill two 5/32" (4mm) diaphones 2.5"(65mm) deep. Attach
wall arm assembly (AA) to wall using two #14x2.5" flat head wood
screws (D).
FOR VESA 75 MOUNTING PATTERN:
Choose whole pattern as shown below. Attach Wall arm assembly (AA) to back of screen using four M4x14mm screws (A).
Note: If whole Patten is in a pocket, attach wall arm assembly (AA) to back of screen using four M4x25mm screws (B) and four spacers (C).
FOR VESA 100 MOUNTING PATTERN:
Choose whole pattern as shown below.
Attach Wall arm assembly (AA) to
Back of screen using four M4x14mm
Screws (A).
If more or less tension is desired in the arm pivot points, do the following:
To increase tension, turn socket screw clockwise with 4mm Allen wrench (E) or 5mm Allen wrench (F).
To reduce tension, turn socket screw counter-clockwise with 4mm Allen wrench (E) or 5mm Allen
Important
Make sure that the supporting surface will safely
support the combined load of the equipment and
all attached hardware and components.
Important
Tighten screws so that wall plate is firmly attached,
but do not overtighten.Overtightening can damage
the screws, greatly reducing three holding power.
Never tighten in excess of 80 lbs.
Make sure that mounting screws are anchored into
the center of the studs. The use of an “edge to edge”
stud finder is highly recommended.
Important
If screws don’t get three complete turns in the screen inserts or if screws bottom out and
wall arm assembly is still not tightly secured, damage may occur to screen or product
may

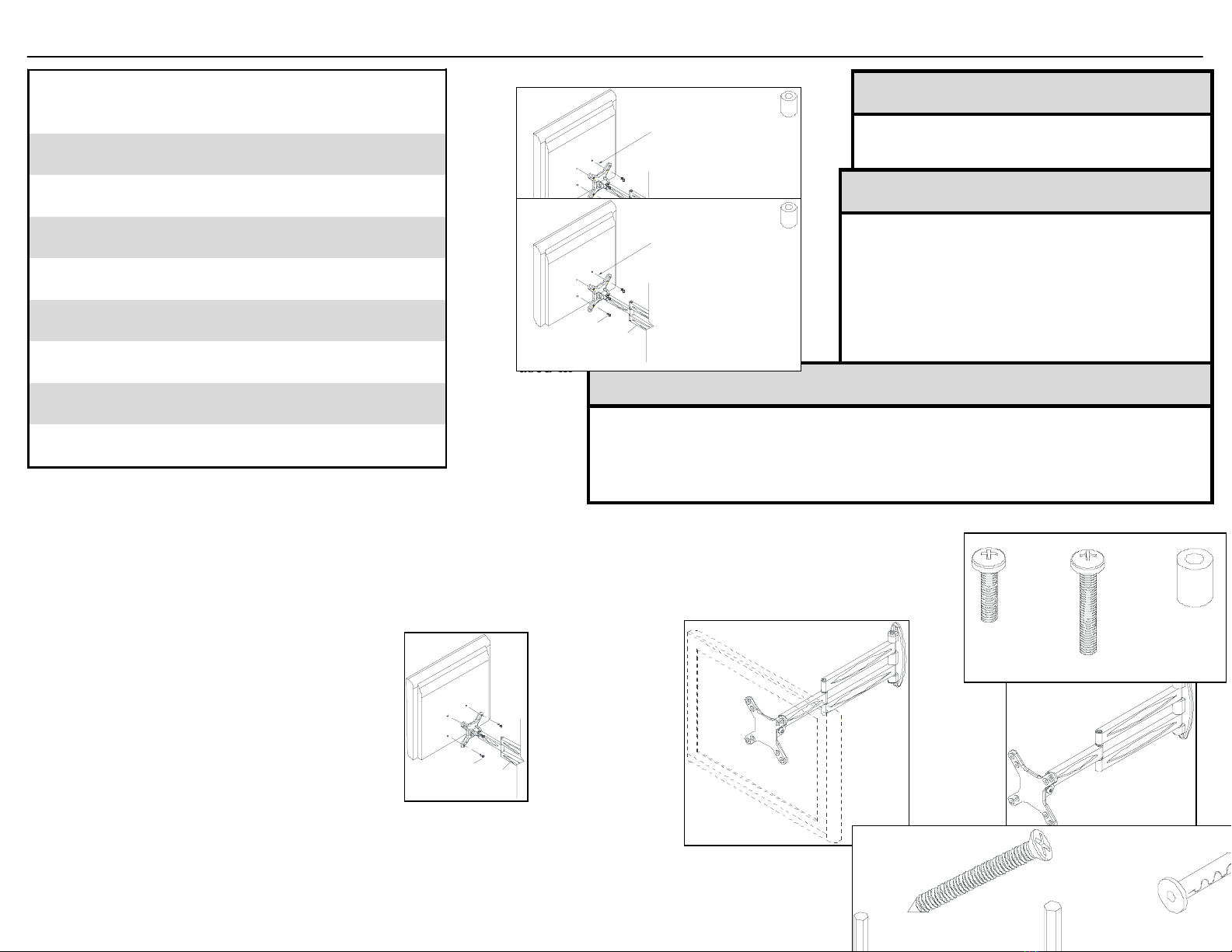

Parts List
Description ty. Part#
AA Wall arm
095-0358-S
A M4x.7x14m
520-2239
B M4x.7x25mm phillips screw
504-2015
C 437H spacer
590-5003
D #14x2. 5”flat head wood screw
520-2165
E 4 mm alle
560-9706
F 5 mm allen wrench
560-9640
G concrete anchor
590-0097
AA
A
C
fig. 2.1
AA
A
C
fig. 2.1
AA
A
AA
DG
C
A
