Neousys Technology Nuvo-9531 User manual

Nuvo-9531

Quick Introduction Guide

• Only qualified service personnel should install and service this

product to avoid damage or injury.

• Observe all ESD procedures during installation to avoid damaging

the equipment.

Unpack the equipment and make sure the following tools are

available and delivered contents are correct.

1-1. User-provided tools

1-2. Packing List

• Anti-static wrist wrap

1Preparing tools

Warning

Nuvo-9531 system

CPU bracket

Wall-mount bracket

3-pin pluggable terminal block

Drivers & utilities disc

Screw pack

Item Description Quantity

Overview - Front Panel Power Button

The power button is a non-latched switch for ATX mode on/off

operation. To turn on the system, press the power button and the

PWR LED should light-up green. To turn off the system, issuing a

shutdown command in OS is preferred, or you can simply press the

power button. To force shutdown when the system freezes, press

and hold the power button for 5 seconds. Please note that there is a

5-second interval between on/off operations (i.e. once the system is

turned off, there is a 5-second wait before you can power-on the

system).

System Status LED

There are four LED indicators on the I/O panel: PWR (power),

WDT (Watchdog timer), HDD (hard disk drive), IGN (ignition

power control, an optional feature). The descriptions of these

four LED are listed in the following table.

Reset Button

The reset button is used to manually reset the system in case of

system halt or malfunction. To avoid unexpected reset, the button is

purposely placed behind the panel. To reset, please use a pin-like

object (eg. tip of a pen) to access the reset button.

2.5G Ethernet Port (Optional PoE+)

The system offers four 2.5Gb Ethernet ports using Intel® I226 controller,

and each port each come with screw-lock mechanism (indicated in ).

When plugged in and connected via the Ethernet cable, the LEDs on the

RJ45 connector indicate connection status and speed.

The optional Power over Ethernet (PoE) supplies electrical power and

data on a standard CAT-5/CAT-6 Ethernet cable. Acting as a PoE PSE

(Power Sourcing Equipment), compliant with IEEE 802.3at, each PoE

port delivers up to 25W to a Powered Device (PD). The system has a total

100W power budget. PoE ports can automatically detect and determine if

the connected device requires power or not, so it is compatible with

standard Ethernet devices as well.

red

CMOS Reset Button

DisplayPort 8

7USB3.2 Gen1 Port

13 USB2.0 Port

The USB2.0 ports are implemented via native xHCI (eXtensible Host

Controller Interface) in the Intel 600 chipset and are backward

compatible with USB 1.1 and USB 1.0 devices. UEFI USB support is

also provided so you can use USB keyboard/ mouse in UEFI shell

environment.

xHCI driver is supported natively in Windows 10, therefore you do not

need to install xHCI driver to utilize USB functions.

The system has a DisplayPort (DP) output which is a digital display

interfaces that mainly connect video source and carry audio to a

display device. When connecting a DP, it can deliver up to 4K UHD

(4096 x 2304) in resolution. The system is designed to support

passive DP adapter/ cable. You can connect to other display

devices using DP-to-HDMI cable or DP-to-DVI cable.

With the VGA output on the rear panel, the system supports dual

independent display outputs. To support dual display outputs and

achieve best VGA/ DisplayPort output resolution in Windows, you

need to install corresponding graphics drivers.

The system offers four USB 3.2 Gen1 (SuperSpeed USB) ports on its

front panel with screw-lock mechanism. They are backward

compatible with USB 2.0, USB 1.1 and USB 1.0 devices. UEFI USB is

also supported so you can use USB keyboard/ mouse in UEFI shell

environment. USB 3.2 Gen1 driver is supported natively in Windows

10. The screw-lock mechanism is available on the three ports

indicated in and and due to the width of the

connector, only t

blue red

red

, screw-lock

he USB ports indicated in can be connected

simultaneously when using the screw-lock mechanism

The CMOS Reset button is used to manually reset the motherboard

BIOS in case of system halt or malfunction. To avoid unexpected

operation, it is purposely placed behind the panel. To reset, please use

the tip of a pen, press and hold for at least 5 seconds to reset the BIOS.

Depending on the design of your screw-lock USB connector, the CMOS

reset button may be obstructed if the USB pot below is connected.

10 2.5” HDD/ SSD Hot-swappable Tray

The system features an external hot-swappable 2.5" hot-swappable

tray that supports a 7mm 2.5" HDD/ SSD. Designed for easy access,

the HDD tray is secured by a lock (indicated in ). red

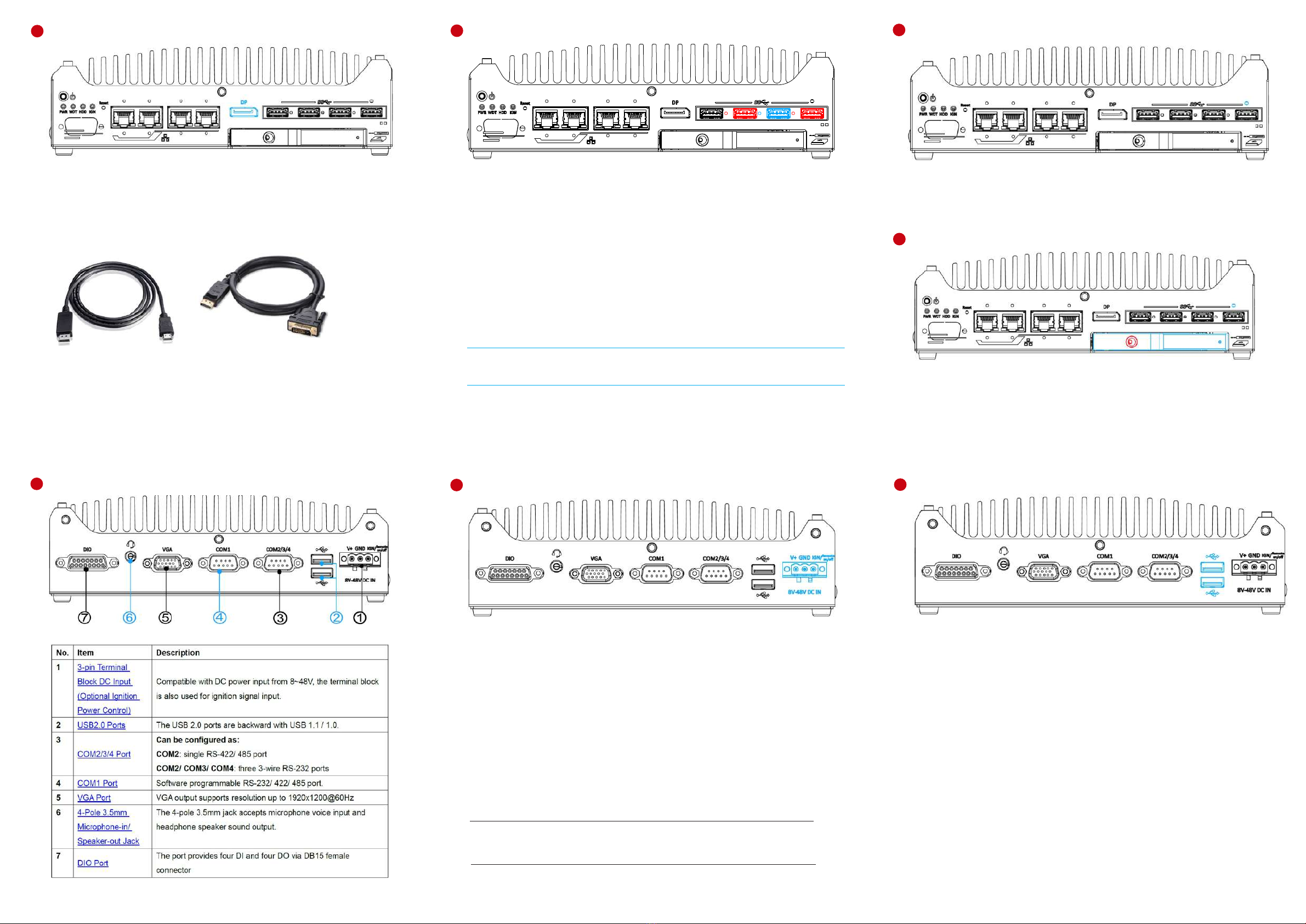

11 Overview - Rear Panel 3-pin Terminal Block for DC, Remote ON/ Off, and Optional Ignition Power Control

The system accepts a wide range of DC power input from 8 to 48V via

a 3-pin pluggable terminal block, which is fit for field usage where DC

power is usually provided. The screw clamping mechanism on the

terminal block offers connection reliability when wiring DC power.

The Remote On/ Off connection allows for external switch extension.

It is useful when the system is placed in a cabinet or a not easily

accessed location.

In addition to DC power input and Remote On/ Off, this terminal block

can also accept optional ignition signal input (IGN) for in-vehicle

applications.

Please make sure the voltage of DC power is correct before you

connect it to the system. Supplying a voltage over 48V will

damage the system.

Warning

Note

COM2/3/4 Port

DIO Port

4-Pole 3.5mm Microphone-in/ Speaker-out Jack

16 VGA Port

Note

Please make sure your VGA cable includes SDA and SCL (DDC clock and

data) signals for correct communication with monitor to get

resolution/timing information. A cable without SDA/ SCL can cause blank

screen on your VGA monitor due to incorrect resolution/timing output.

COM1 Port

The port s it

provide up to 921600 bps baud rate, can be configured in

the BIOS as single RS-422/ 485 port (COM2) or three 3-wire RS-232

ports (COM2/ / 4). An optional 1-to-3 Y-cable is available to

connect three RS-232 devices.

The port s itprovide up to 921600 bps baud rate, is a software-configurable

RS-232/422/485 port via 9-pin D-Sub male connector. The operation

mode, slew rate and termination of COM1 can be set in BIOS setup utility.

The following table describes the pin definition of COM ports.

VGA connector is the most common video display connection. The

VGA output supports up to 1920x1200@60Hz resolution.

With the DisplayPort on the front panel, the system supports dual

independent display outputs. To support dual display outputs and

achieve best VGA/ DisplayPort output resolution in Windows, you

need to install corresponding graphics drivers.

There is a female 4-pole audio jack for headphone (speaker)

output and microphone input. To utilize the audio function in

Windows, you need to install corresponding drivers.

The digital input (DI) and digital output (DO) function provides four digital

input and four digital output on the rear panel of the system via DB15

female connector.
