NeoMounts PLASMA-M1900E User manual

PLASMA-M1900E

430mm

335mm

min200~max600mm

min200~max404mm

min1325~max1645mm

max2220mm

710mm

840mm

440mm

145mm

724mm

285mm

150mm

100mm

50mm

110mm

60mm

75mm

Floor stand

Vloersteun

Bodenständer

Support au sol

Supporto da pavimento

Soporte de suelo

Suporte de chão

Gulvstander

Gulv stativ

Golvstativ

Lattiateline

Stojak podłogowy

Podlahový stojan

Stativ pentru podea

WWW.NEOMOUNTS.COM

INSTRUCTION MANUAL

PARTS

PLASMA-M1900E

200x200 -

600x400 mm

130-162 cm

0-50 kg

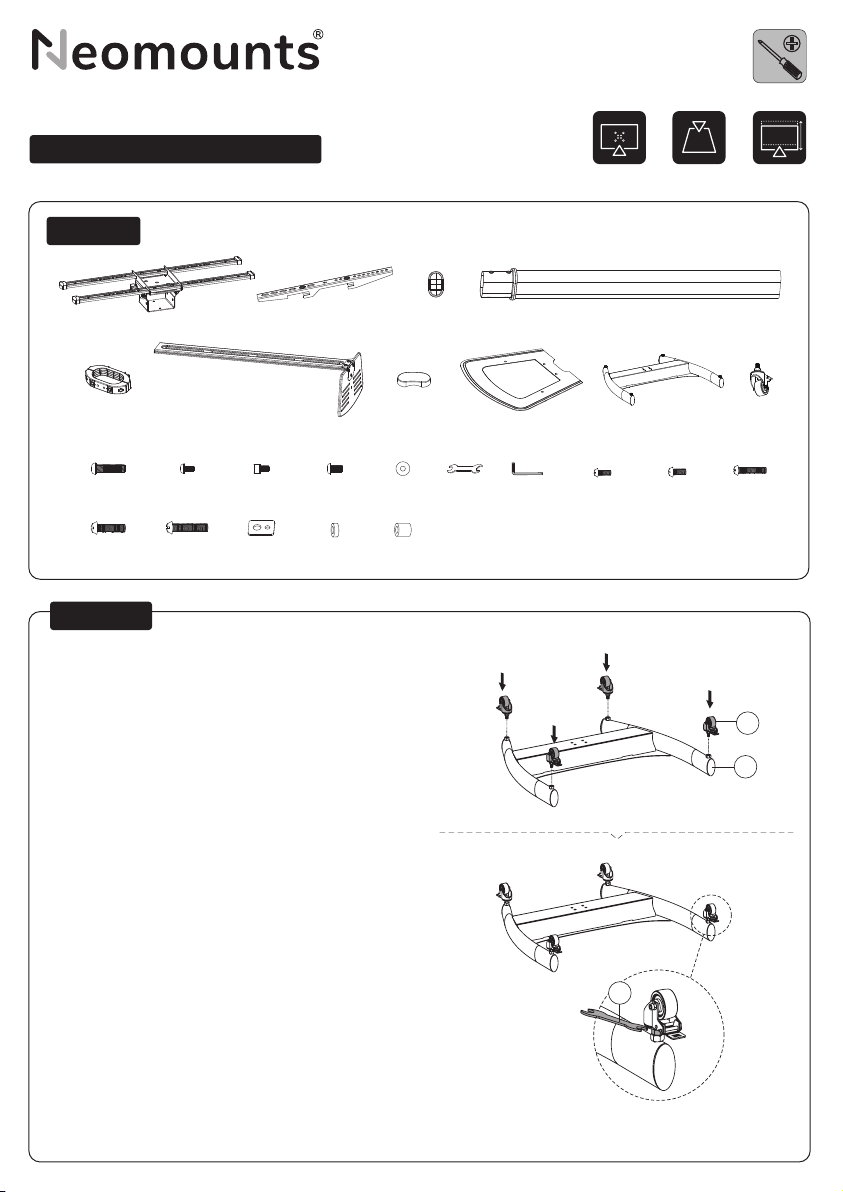

Install the casters

Installeer de wielen

Montieren Sie die Rollen

Installez les roulettes

Installare le ruote

Instalar las ruedas

Instale as rodas

Zainstaluj kółka

STEP 1

Tool

A. (x1) B. (x2) C. (x1)

E. (x1) F. (x1)

M-F. (x4) M-G. (x8) M-H. (x8)

G. (x1)

P. (x1)

H. (x1) I. (x1) J. (x4)

D. (x1)

K. M8x30

(x4)

L. M6x12

(x8)

M. M6x10

(x3)

N. M8x16

(x4)

O. D6

(x2)

M-A. M5x14

(x4)

M-D. M8x30

(x4)

M-E. M8x50

(x4)

M-B. M6x14

(x4)

M-C. M6x30

(x4)

Q. 5mm

(x1)

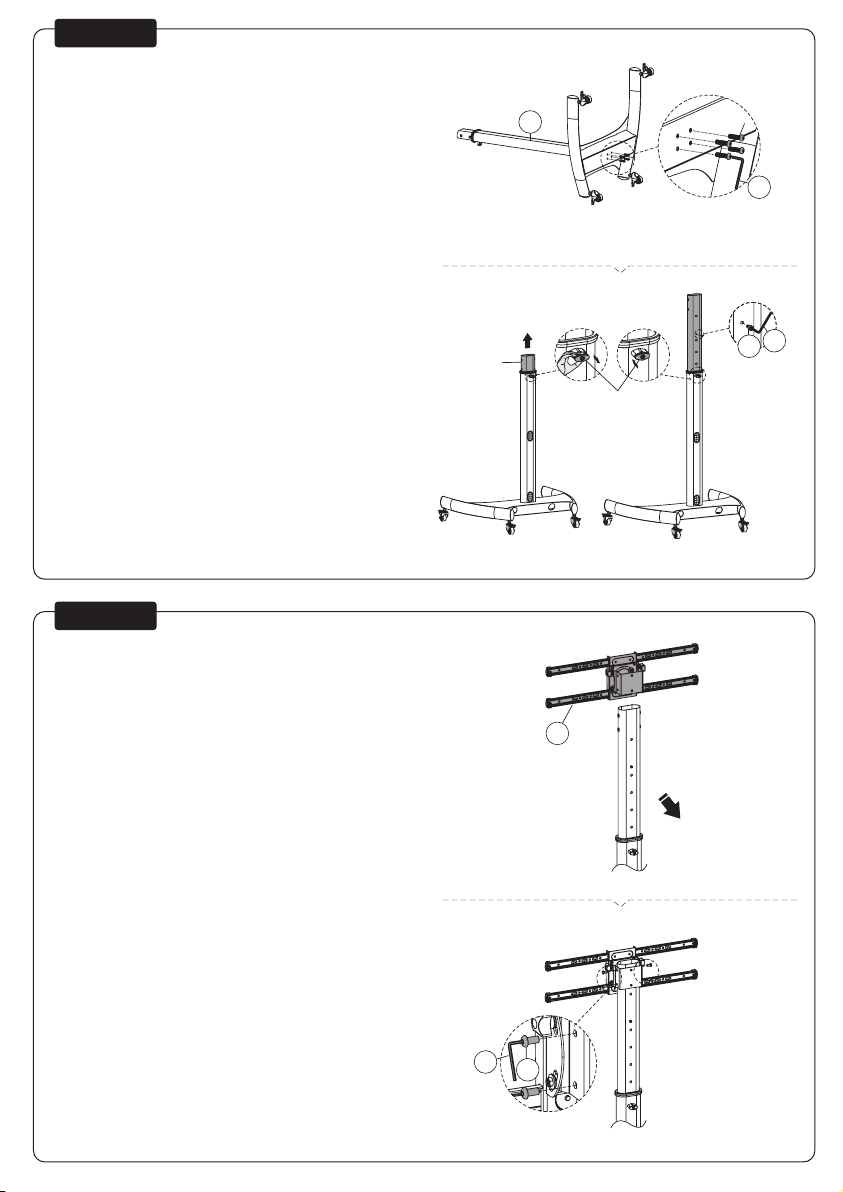

Attach the upright support to the chassis

Bevestig de staander aan het onderstel

Bringen Sie die aufrechten Stützen am Fahrgestell an

Fixer les supports verticaux au châssis

Fissare i supporti del montante al telaio

Fije los soportes verticales al chasis

Fixar os suportes verticais ao chassis

Przymocuj wsporniki pionowe do obudowy

STEP 2

Install the VESA plate

Installeer de VESA plaat

Montieren Sie die VESA-Platte

Installation de la plaque VESA

Installare la piasta VESA

Instalar la placa VESA

Instalar a placa VESA

Instalowanie płytki VESA

STEP 3

Tighten the safety

screw.

inner column

* Not Included

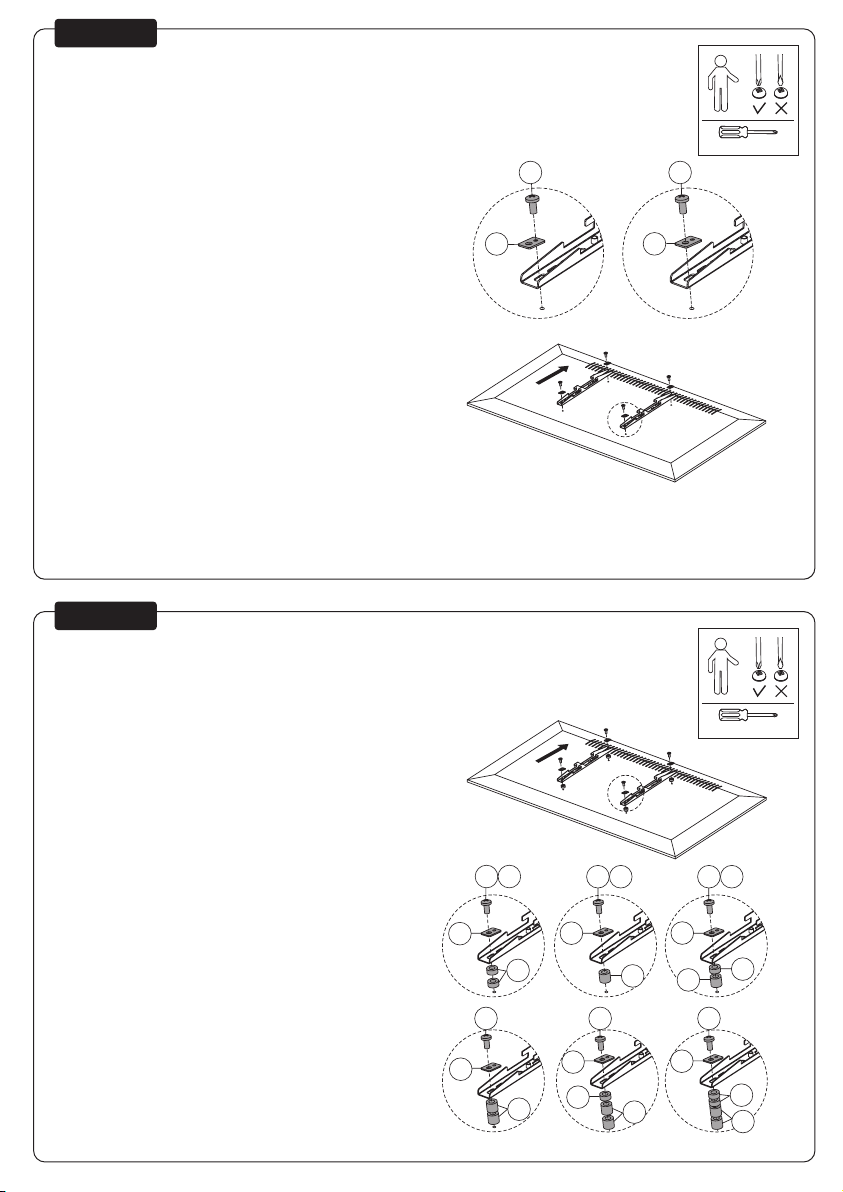

Install the adapter brackets

Bevestig de adapter steunen

Montage die Halterungsschienen

Installation des supports d'adaptateur

Il montaggio del adattatore

Coloque los soportes del adaptador

Instalação de braços adaptadores

Zainstaluj ramiona uchwytu

STEP 4

Use spacers if necessary

Gebruik afstandhouders indien nodig

Montage der Distanzscheiben wenn nötig

Utilisez des entretoises si nécessaire

Utilizzare distanziatori, se necessario

Utilice separadores si es necesario

Utilize separadores se necessário

Użyj dystansów jeśli jest taka potrzeba

OPTION

M-B

M-F

M-A

M-F

M-G

M-F

M-E

M-F

M-H

M-F

M-G

M-E

M-F

M-H

M-E

M-F

M-G

M-BM-A

M-C M-D M-C M-D M-C M-D

M-F

M-F M-F M-F

M-F M-F

M-G

M-G M-G

M-E M-EM-E

M-G

M-H

M-H M-H

M-H

M-F M-F

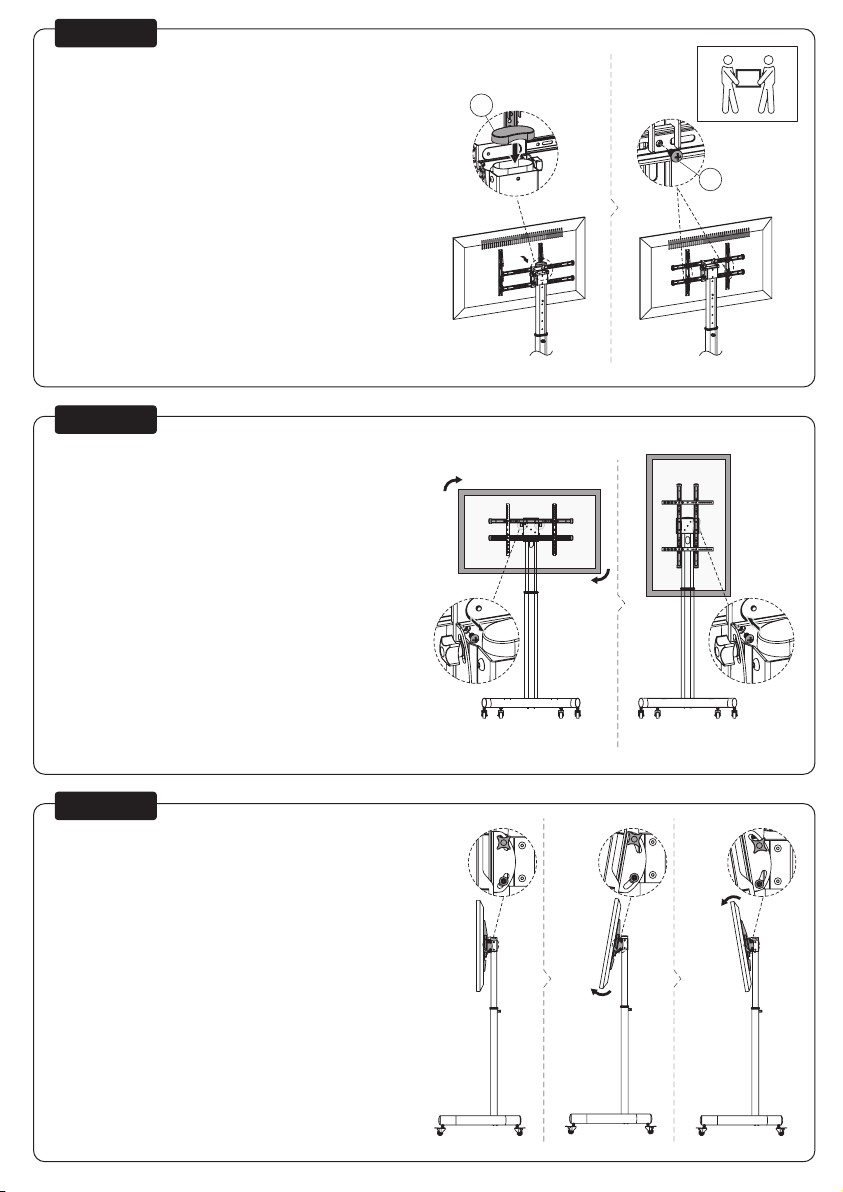

Attach the screen to the bracket and secure it

Bevestig het scherm op de beugel en zet vast

Befestigen Sie den Bildschirm an der Halterung

und sichern Sie ihn

Attachez l'écran au support et ﬁxez-le

Fissare lo schermo alla staffa e ﬁssarlo

Coloque la pantalla en el soporte y fíjela

Fixar o ecrã ao suporte e ﬁxá-lo

Przymocuj ekran do uchwytu i zabezpiecz go

STEP 5

Turn the screen to portrait mode

Draai het scherm in portret modus

Drehen Sie den Bildschirm ins Hochformat/Portrait

Possibilité de positionner l'écran en mode paysage ou

en mode portrait

Trasforma lo schermo in modalità verticale

Gire la pantalla el modo retrato

Virar a tela para o modo retrato

Przekręć ekran w pionie

OPTION

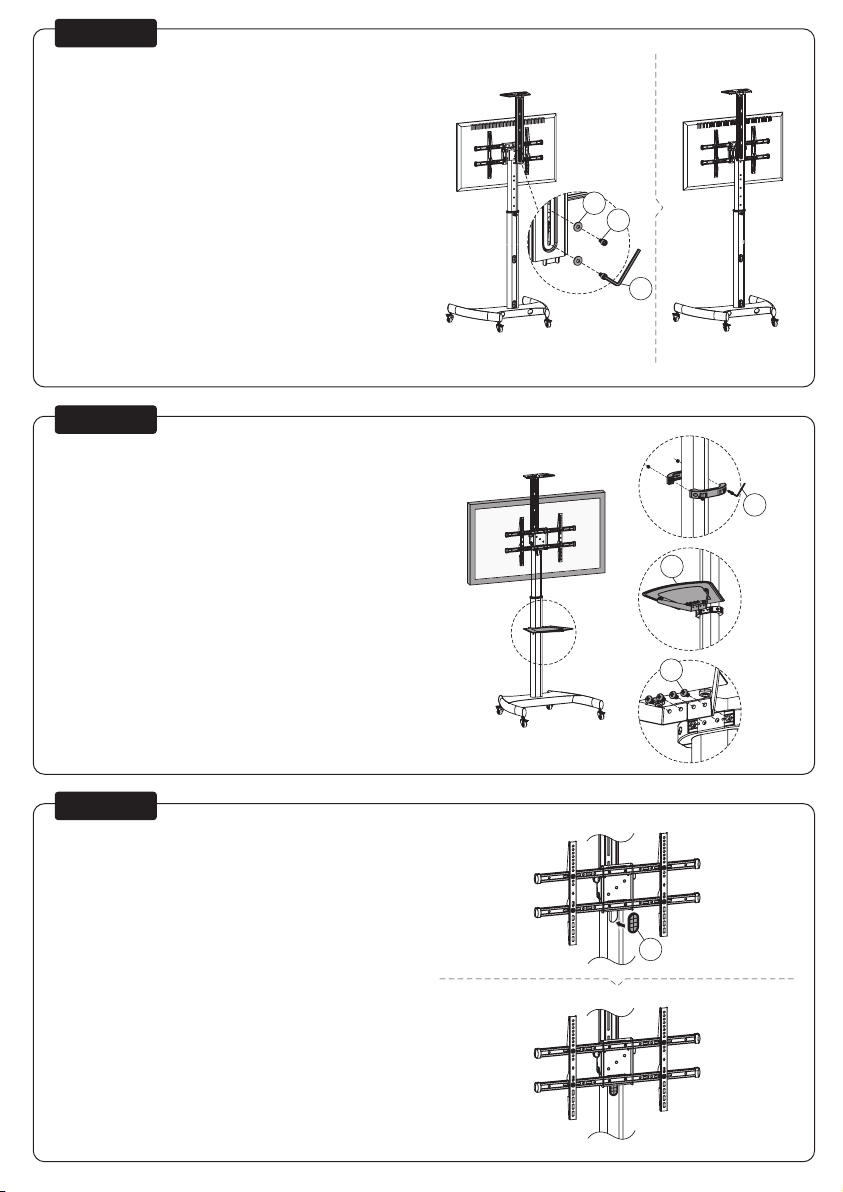

Put the screen in the desired tilting position

Zet het scherm in de gewenste kantelpositie

Bringen Sie den Bildschirm in die gewünschte Kipp-

stellung

Placer l'écran dans la position d'inclinaison souhaitée

Posizionare lo schermo nella posizione di inclinazione

desiderata

Coloque la pantalla en la posición de inclinación dese-

ada

Colocar o ecrã na posição de inclinação desejada

Ustaw ekran w żądanej pozycji odchylenia

STEP 6

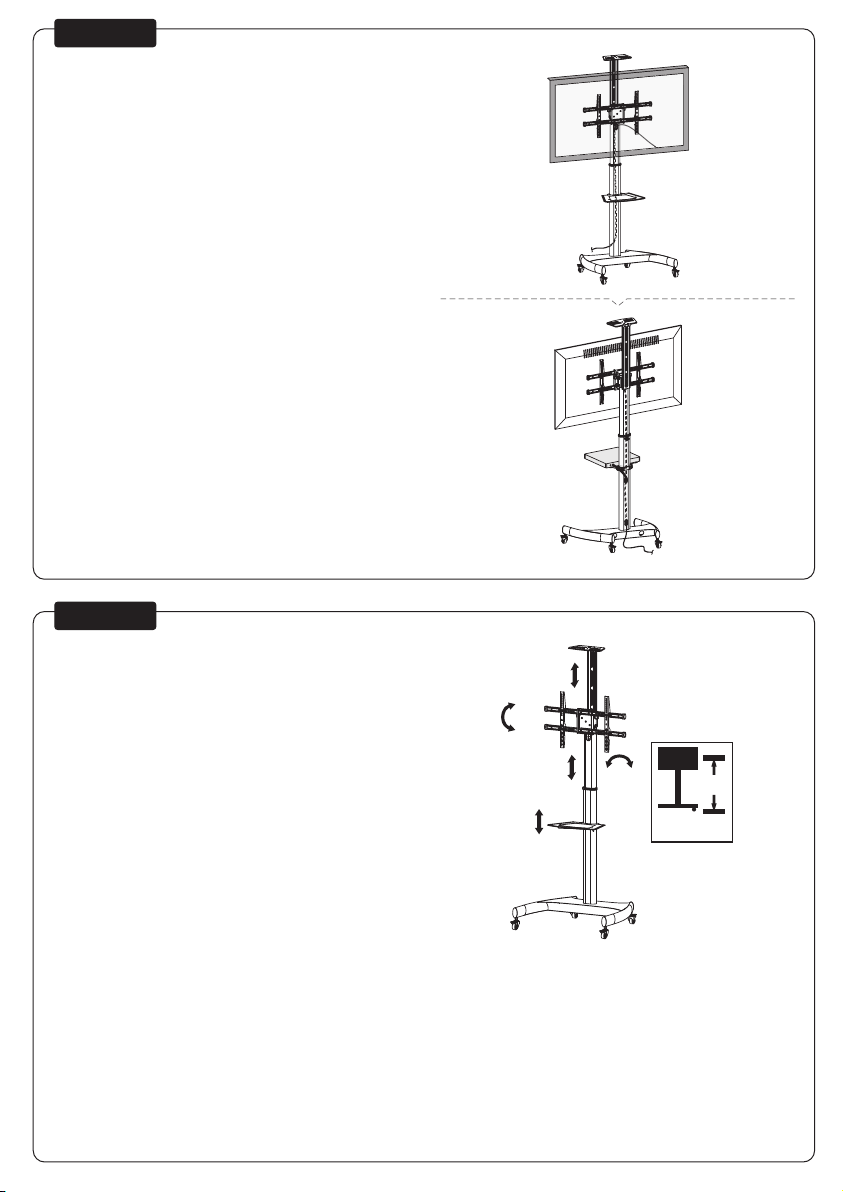

Install the plateau to the top of the mount

Bevestig het plateau aan de bovenzijde van de steun

Befestigen der Platte am oberen Ende die Halterung

Installation du plateau supérieur à la hauteur désirée

Attaccare l'altopiano alla parte superiore del supporto

Instale la meseta en la parte Superior del soporte

Instale o platô na parte Superior do suporte

Zainstaluj półkę do kamery u góry stojaka

STEP 7

Attach the shelf to the bottom of the mount

Bevestig de plank aan de onderzijde van de steun

Befestigen Sie der Platte an die Halterung

Fixation de l'étagère inférieure à la hauteur désirée

Attaccare il ripiano alla parte inferiore del supporto

Instale el estante en la parte inferior del soporte

Instale a prateleira na parte inferior do suporte

Zainstaluj półkę u dołu uchwytu

STEP 8

Place the decorative cover

Plaats het decoratieve afdekkapje

Montieren Sie die dekorative Abdeckung

Placez les capuchons de protection

Metti le coperte decorative

Coloque las tapas de la cubierta

Coloque as tampas

Umieść osłony

STEP 9

Route the cables

Geleid de kabels

Verlegen Sie die Kabel

Guidez les câbles

Guidare i cavi

Guíe los cables

Guiar os cabos

Poprowadzić kable

STEP 10

Adjust the mount to the desired position

Stel de steun in op de gewenste positie

Einstellen die Halterung in die gewünschte Position

Ajustez le support à la position souhaitée

Regolare il supporto nella posizione desiderata

Establecer el soporte en la posición deseada

Ajuste o suporte na posição desejada

Dostosuj pozycję uchwytu do twoich wymagań

STEP 11

DVD

Display panel center

height measured

from floor.

+10°

+90°

-10°

0°
