NEO Dynamic NDK-1600.1D User manual

NDK-1600.1D

NDK-2000.1D

NDK-3000.1D

NDK-4000.1D

Class D Linkable Mono Amplifier

FEATURES

-2-

NDK-1600.1D / NDK-2000.1D / NDK-3000.1D

Digital Class-D Linkable Mono Block Amplifier

1 Ohm Stability

RCA Line Input and Master Output

24dB Octave Crossover Slope

Wired Remote Controller

Double Sided Through Hole Epoxy PCB

Daisy-Chain Through Output RCA

Efficiency : 86% @ 4 ohm, at 100Hz

Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)

Variable Subsonic

Variable Bass Boost

Variable Low Pass Filter

Variable Phase Shift

Tested Voltage & THD : 14.4V & Less than 1% THD

Operating Voltage : DC 10V~16V

NDK-4000.1D

Digital Class-D Linkable Mono Block Amplifier

1 Ohm Stability

RCA Line Input and Master Output

24dB Octave Crossover Slope

2 zero(0) gauge power supply connectors

Wired Remote Controller

Double Sided Through Hole Epoxy PCB

Daisy-Chain Through Output RCA

Efficiency : 86% @ 4 ohm, at 100Hz

Multi-Way Protection Circuitry (Thermal/Over Current/Speaker Short/Speaker DC Protection)

Variable Subsonic

Variable Bass Boost

Variable Low Pass Filter

Variable Phase Shift

Tested Voltage & THD : 14.4V & Less than 1% THD

Operating Voltage : DC 10V~16V

This amplifier is not

supplied with internal

fuse in itself.

Make sure you instal

in-line fuse holder from

the terminal of battery.

Caution

SPEAKER OUTPUT

REM B+

GND

POWER

INPUT

POWER CONNECTIONS

-3-

Caution

This amplifier is not supplied with internal fuse in itself.

Make sure you install in-line fuse holder from

the +terminal of battery.

Recommend 400 Ampere fuse.

to REMOTE Turn-on

from HEAD UNIT

GROUND

To +12V DC

BATTERY

GROUND

Caution

This amplifier is not supplied with internal fuse in itself.

Make sure you install in-line fuse holder from

the +terminal of battery.

Recommend 150 Ampere fuse.(NDK-1600.1D)

Recommend 200 Ampere fuse.(NDK-2000.1D)

Recommend 300 Ampere fuse.(NDK-3000.1D)

NDK-1600.1D / NDK-2000.1D / NDK-3000.1D

GND REM B+ B+ GND

SPEAKER OUTPUT

NDK-4000.1D

To +12V DC

BATTERY

GROUND

to REMOTE Turn-on

from HEAD UNIT

CAR STEREO HEAD UNIT

GROUND

+12V Power

Connect the +12V terminal of the amplifier to the + terminal of the battery using the same

diameteras the ground cable, making sure you install in-line fuse holder, approximately 300 or 400 mm.

From the + terminal of battery, make sure there is no fuse in the battery holder.

GROUND

Disconnect the battery and connect the GND (ground) terminal to the cars chassis.

Keep this cable as short as possible (not longer than 500 mm).

Making sure that the connection with the chassis is rust free and clear of paint or grime.

REMOTE

Connect the REM terminal of the amplifier to the power antenna terminal in the car ignition switch

using 12 or 16 ga. electrical wire.

First make the ground connection, then +12V wire connection and finally the remote

connection. Furthermore, the +12V wire must always be fused at the battery for protection

against possible damage. If you need to replace the power fuse, replace it with a fuse of

the same value. It may result in a serious hazard to use a fuse of a different type or rating.

Caution

INPUT

CH2

CH1

MIN MAX 10Hz 60Hz 30Hz 250Hz 0dB 12dB 0180

GAIN SUBSONIC LPF

BASS BOOST PHASE SHIFT

CLASS-D MONO BLOCK AMPLIFIER

PROTECTION

POWER

REMOTE

OUTPUT MASTER

INPUT SLAVE

INPUT

CH2

CH1

MIN MAX 10Hz 60Hz 30Hz 250Hz 0dB 12dB 0180

GAIN SUBSONIC LPF

BASS BOOST PHASE SHIFT

CLASS-D MONO BLOCK AMPLIFIER

PROTECTION

POWER

REMOTE

OUTPUT MASTER

INPUT SLAVE

INPUT

CH2

CH1

MIN MAX 10Hz 60Hz 30Hz 250Hz 0dB 12dB 0180

GAIN SUBSONIC LPF

BASS BOOST PHASE SHIFT

CLASS-D MONO BLOCK AMPLIFIER

PROTECTION

POWER

REMOTE

OUTPUT MASTER

INPUT SLAVE

RCA CONNECTIONS

-4-

Single Amp Input Connection

Wired Remote Control

HEAD UNIT

This amplifier has a signal input terminal of RCA connector type for low level inputs.

Adjustment of input levels is accomplished by the gain control of both channels.

Adjusting this control allows the amplifier gain to be controlled to match and balance both

channels. The RCA input connector should be used when connecting the radio/cassette line out

and this connection is usually made using RCA-RCA connector wires.

Dual Amp Input Connection (MASTER & SLAVE RCA Connection)

"SLAVE UNIT"

"MASTER UNIT"

To "INPUT SLAVE" of "SLAVE UNIT"

HEAD UNIT

Wired Remote Control

NDK-1600.1D / NDK-2000.1D / NDK-3000.1D / NDK-4000.1D

This amplifier is not

supplied with internal

fuse in itself.

Make sure you instal

in-line fuse holder from

the terminal of battery.

Caution

SPEAKER OUTPUT

REM B+

GND

POWER

INPUT

SINGLE AMP SPEAKER CONNECTION

-5-

2~8 ohms

1~4 ohms

Please note that this unit is a mono block unit and has only one channel.

Speakers A and B have been used for illustration purposes only.

For example, if you connect two 2 ohm subwoofers, this will mean 1 ohm load connection with amp.

Speaker "A"

Speaker "B"

NDK-1600.1D / NDK-2000.1D / NDK-3000.1D

This amplifier is not

supplied with internal

fuse in itself.

Make sure you instal

in-line fuse holder from

the terminal of battery.

Caution

SPEAKER OUTPUT

REM B+

GND

POWER

INPUT

NDK-4000.1D

GND REM B+ B+ GND

SPEAKER OUTPUT

1~4 ohms

Speaker "A"

Please note that this unit is a mono block unit and only has one channel.

GND REM B+ B+ GND

SPEAKER OUTPUT

GND REM B+ B+ GND

SPEAKER OUTPUT

This amplifier is not

supplied with internal

fuse in itself.

Make sure you instal

in-line fuse holder from

the terminal of battery.

Caution

SPEAKER OUTPUT

REM B+

GND

POWER

INPUT

This amplifier is not

supplied with internal

fuse in itself.

Make sure you instal

in-line fuse holder from

the terminal of battery.

Caution

SPEAKER OUTPUT

REM B+

GND

POWER

INPUT

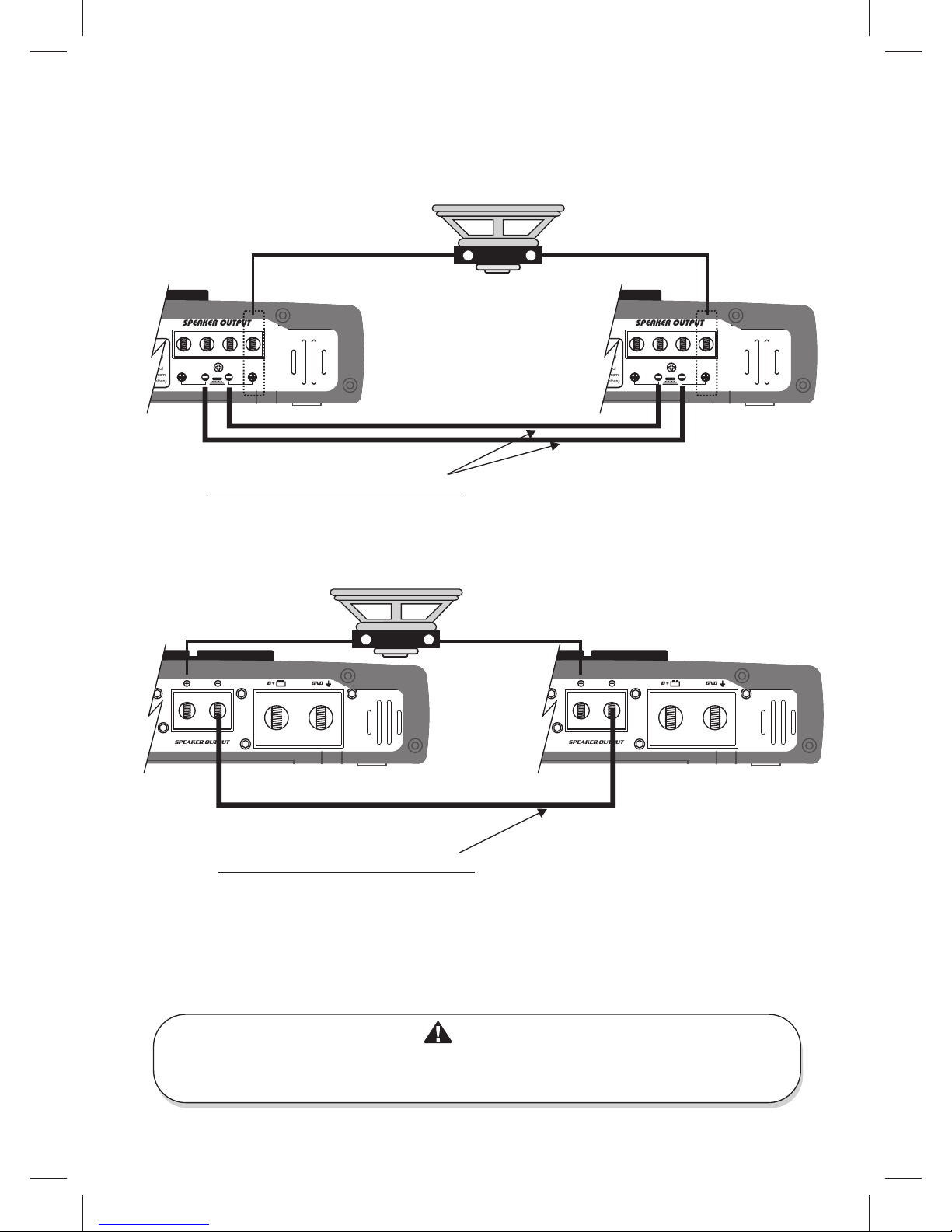

DUAL AMP SPEAKER CONNECTION

-6-

2~8 ohms

Use 8 Gauge(AWG) wire cable

Caution

Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier.

The positive terminal of the subwoofer's voice coil must be connected to the positive terminal of

the MASTER Amplifier and the negative terminal of the subwoofer's voice coil must be connected to

positive terminal of the SLAVE Amplifier. Since the dual amplifier configuration has tremendous

outputpotential, please ensure that your subwoofers can handle such a large amount of power.

When utilizing the dual amplifier configuration, it is important to note that the connected

speakers' load cannot be lower than 2Ω. Connecting a lower impedance load can

damage the amplifier and void your warranty.

NDK-1600.1D / NDK-2000.1D / NDK-3000.1D

2~8 ohms

"SLAVE UNIT"

"MASTER UNIT"

Use 8 Gauge(AWG) wire cable

NDK-4000.1D

"SLAVE UNIT"

"MASTER UNIT"

760W x 1CH

1400W x 1CH

2000W x 1CH

2900W x 1CH

4400W x 1CH

>90dB

30Hz~250Hz

10Hz~60Hz

0~12dB

0~180 degree

10Hz~350Hz (+/- 1dB)

<0.1%

86%

200A (external type fuse)

Variable 200mV~8V (+/- 5%)

235(W) x 58 x 439(L)

Rated power output, at 100Hz, 14.4V Input

-RMS power, 4 ohms mono ---------------------

-RMS power, 2 ohms mono ----------------------

-RMS power, 1 ohm mono -----------------------

-RMS power, 4 ohms linkable/dual mono ----

-RMS power, 2 ohms linkable/dual mono ----

Signal to Noise Ratio ----------------------------------

Low pass frequency crossover ----------------------

Subsonic filter --------------------------------------------

Bass boost @ 45Hz -------------------------------------

Phase shift control---------------------------------------

Frequency response------------------------------------

T.H.D @ 4 ohm-------------------------------------------

Efficiency @ 4 ohm-------------------------------------

Fuse rating-------------------------------------------------

Input Sensitivity -------------------------------------------

Dimensions(mm) ----------------------------------------

SPECIFICATIONS

-7-

NDK-1600.1D

550W x 1CH

950W x 1CH

1600W x 1CH

1950W x 1CH

3000W x 1CH

>90dB

30Hz~250Hz

10Hz~60Hz

0~12dB

0~180 degree

10Hz~350Hz (+/- 1dB)

<0.1%

86%

150A (external type fuse)

Variable 200mV~8V (+/- 5%)

235(W) x 58 x 349(L)

NDK-2000.1D

1200W x 1CH

2300W x 1CH

4000W x 1CH

5300W x 1CH

8500W x 1CH

>90dB

30Hz~250Hz

10Hz~60Hz

0~12dB

0~180 degree

10Hz~350Hz (+/- 1dB)

<0.1%

86%

400A (external type fuse)

Variable 200mV~8V (+/- 5%)

235(W) x 58 x 594(L)

Rated power output, at 100Hz, 14.4V Input

-RMS power, 4 ohms mono ---------------------

-RMS power, 2 ohms mono ----------------------

-RMS power, 1 ohm mono -----------------------

-RMS power, 4 ohms linkable/dual mono ----

-RMS power, 2 ohms linkable/dual mono ----

Signal to Noise Ratio ----------------------------------

Low pass frequency crossover ----------------------

Subsonic filter --------------------------------------------

Bass boost @ 45Hz -------------------------------------

Phase shift control---------------------------------------

Frequency response------------------------------------

T.H.D @ 4 ohm-------------------------------------------

Efficiency @ 4 ohm-------------------------------------

Fuse rating-------------------------------------------------

Input Sensitivity -------------------------------------------

Dimensions(mm) ----------------------------------------

NDK-3000.1D

1050W x 1CH

2000W x 1CH

3000W x 1CH

3800W x 1CH

6500W x 1CH

>90dB

30Hz~250Hz

10Hz~60Hz

0~12dB

0~180 degree

10Hz~350Hz (+/- 1dB)

<0.1%

86%

300A (external type fuse)

Variable 200mV~8V (+/- 5%)

235(W) x 58 x 564(L)

NDK-4000.1D

This power amplifier has protection features to prevent damage from misuse or faulty conditions.

If the unit senses excessive heat, short circuited speakers or overload, protection LED will light up

and system will be turned off. Prior to checking the wiring for any fault, you should turn all level

controls down and turn off power. If the amplifier shuts down due to excessive heat, protection LED

will not light up. In this case, simply allow the amplifier to cool down.

Before removing your amplifier, refer to the list below and follow the troubleshooting instructions.

Always test the speakers and their wires first.

Trouble Shooting

PROTECTION LED LIGHTS UP WHEN AMPLIFIER IS POWERED ON

FUSE BLOW

OVERHEATING

Check the value of minimum speaker impedance.

Check speakers for short-circuits.

Check if there is good airflow around the amplifier.

Check if a good ground connection is present and check speakers for short-circuits.

Disconnect all RCA inputs from the amplifier. If hissing / engine noise disappears, replace the

RCA connectors and re-check. Then check the component driving the amplifier.

SOUND TOO LOW-DISTORTED SOUND

Check if the input level control has been set to match the output level of the unit.

Check the volume of head unit.

Check speakers for short-circuits.

Check if crossover frequencies have been properly set.

HIGH HISS-ENGINE NOISE IN SPEAKERS

Check the value of minimum speaker impedance.

Check for short-circuits on power cable and vehicle chassis.

AMPLIFIER DOES NOT POWER UP

Check if at least +12V DC is available on the battery power terminal.

Check if at least +13.8V DC is available on the remote terminal.

Check if a good ground connection is present. Check all fuses.

Check if protection LED is not lit.

Check if speaker wires are short-circuited.

Remove speaker wires and reset the amplifier. If protection LED still lights up,

then the amplifier is faulty.

Made in Korea

This manual suits for next models

Table of contents

Popular Car Amplifier manuals by other brands

Cyfre

Cyfre CHACDMA-819 installation manual

MTX

MTX Thunder Marine TM904 user guide

MTX

MTX Thunder TA Super TA92001 Connection guide

Lanier

Lanier 480-0239 Material safety data sheet

Kenwood

Kenwood KAC-642 instruction manual

Pioneer

Pioneer GM-D8500M owner's manual

Jensen

Jensen XA4150 owner's manual

Sony

Sony XM-405EQX Marketing Specifications Product guide

Audiopipe

Audiopipe AQX-660.2 owner's manual

Clarion

Clarion APA2001 APA2001 APA2001 Owners & installation manual

Sony

Sony XM-7547 Service manual

Alpine

Alpine PDX11000 - Amplifier Review guide

Steg

Steg Qx Mos 105.4x user manual

JL Audio

JL Audio HD900/5 owner's manual

Memphis

Memphis 16-MC5.700 owner's manual

Audiopipe

Audiopipe APSM-1150 owner's manual

Boss Audio Systems

Boss Audio Systems Riot GT1000M Service manual

Kenwood

Kenwood KAC-PS811D instruction manual
