Neilsen CT1973 User manual
Page 1of 6
CAUTION
Please take safety precautions when using the tool chest.
oNew drawer glides may be stiff and difficult to open when first expanding the glide. A
gentle outward pull should release the safety catch that is built into the glide to prevent
drawer opening while moving the tool chest.
oGently set parts on a flat, protective surface.
oDo not open more than one drawer at a time.
oDo not step or climb on drawers.
oDo not let children near the tool chest.
oFill the bottom drawer first. If the tool chest is filled from the top drawer down, then the
tool chest will be top-heavy and might fall over.
oSet the brake on locking casters unless you are moving the tool chest.
oLock drawers and lid before moving the chest.
oMake sure all drawers are closed tightly before closing the lid.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
INSTRUCTION BOOKLET
60" STAINLESS STEEL ROLLING WORKBENCH
CT1973
Page 2of 6
MAXIMUM LOAD 15 lb / 6.8 kg
MAXIMUM LOAD 25 lb / 11.3 kg
MAXIMUM LOAD 40 lb / 18.2 kg
FOR DRAWERS (EVENLY DISTRIBUTED)
MAXIMUM LOAD 60 lb / 27.3 kg
FOR CABINET (EVENLY DISTRIBUTED)
ENTIRE UNIT MAXIMUM CAPACITY: 1,540 lb / 700 kg
Concentrated Load Capacities (per square foot):
Wood Top : 175 lb / 79.5 kg
Cabinet: 30 lb / 13.6 kg
Small Drawer: 5 lb / 2.3 kg
Middle Drawer: 5 lb /2.3 kg
Large Drawer: 10 lb / 4.5 kg
1. Please read instructions prior to assembly. 4. Recommend to use 2 people for assembly.
2. Verify that there are no missing parts. 5. Do not tighten any bolts until all bolts have been started.
3. Keep instructions for future reference. 6. For indoor use.
MAXIMUM LOAD CAPACITY
MAXIMUM LOAD 1,130 lb / 513.5 kg
FOR WOOD TOP (EVENLY DISTRIBUTED)
GENERAL INFORMATION
,
TIPS & HELPFUL HINTS
B
C
D
A
A
A
A
B
D
D
E
C
MAXIMUM LOAD 25 lb / 11.3 kg
E
Page 3of 6
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are included
before beginning assembly.
Tools required for assembly: Wrench (not included).

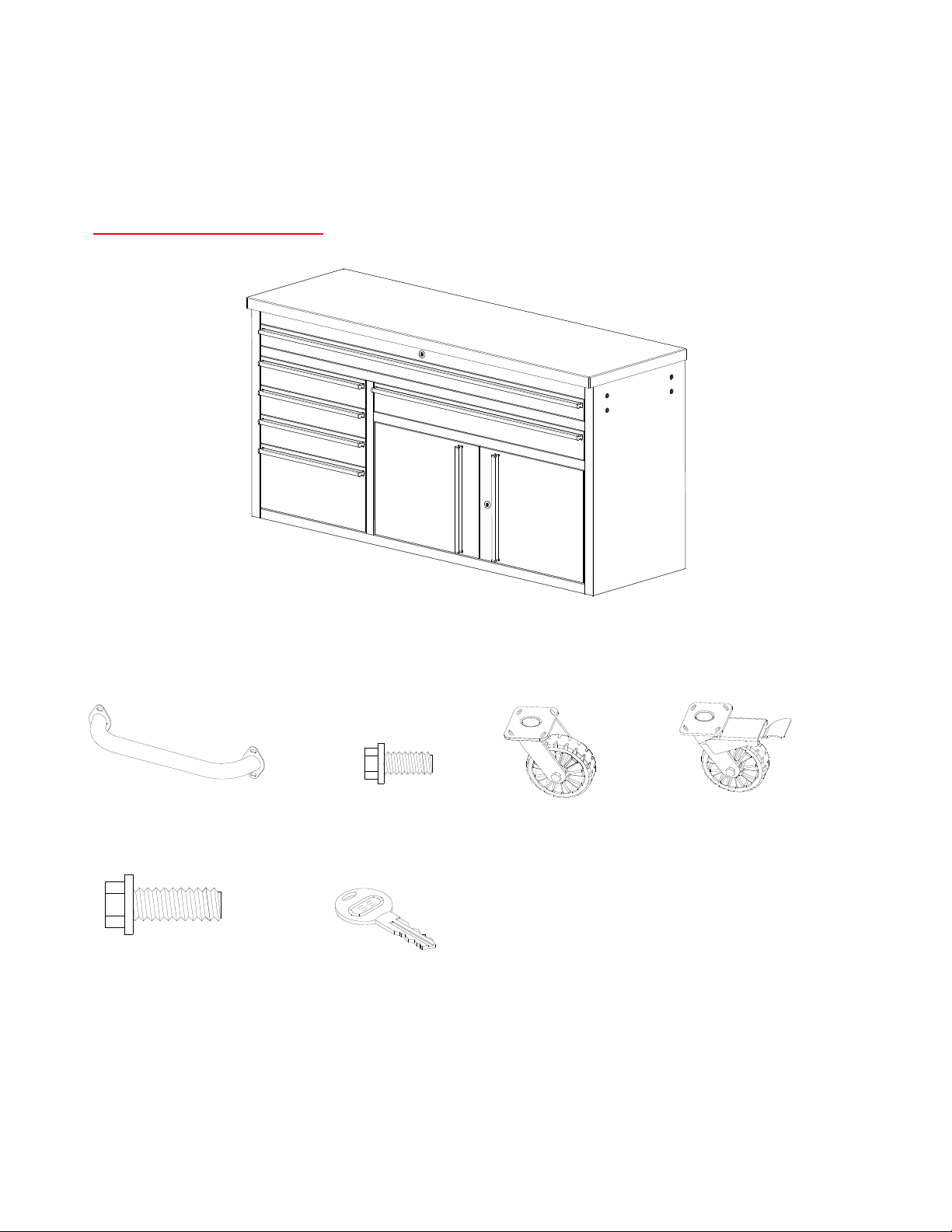

A- Tool Chest (1)
B- Side Handle (2) C- Small Bolt (8) D- Swivel Caster (2) E- Locking Caster (2)
F- Large Bolt (16+1 extra) G- Key (2)
Page 4of 6
Hardware required Sketch QTY
(B)- Side Handle (2)
(C)- Small Bolt (8)
Tools required for assembly: Wrench
Handle Assembly Instructions
1Unpack the unit and confirm that you have all the hardware and required parts listed.
2Stand the unit upright and attach Side Handle (B) to Tool Chest (A) securing with Small Bolts (C) as
shown below figure.
3Repeat step for the other side handle.
Note: Assemble the unit on a sturdy and level surface. Avoid assembling on carpet. You should place the
unit on a protective surface when assembling to the unit to prevent scratching or damage to any of the
surfaces.
Caster Assembly Instructions
Page 5of 6
Hardware required Sketch QTY
(D)- Swivel Caster (2)
(E)- Locking Caster (2)
(F)- Large Bolt (16)
Tools required for assembly: Wrench
CARE & MAINTENANCE
Use a soft, clean cloth that will not scratch the surface when dusting.
Using solvents of any kind on the wood top may damage the finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing
4Attach Locking Casters (E) and Swivel Casters (D) to the bottom of Tool Chest with Large Bolts (F). Securely
tighten all the bolts with Wrench . Make sure the Locking Casters (E) locate at same side of the unit.
Note: Please adjust the bins and liners in the
drawers after finishing the casters.
D
D
E
E
6of 6
9 Drawer Liner Large
10 Drawer Liner Extra Large
11 Small Drawer
12 Middle Drawer
13 Large Drawer
14 Big Drawer
15 Door Kit
16 Left Door
17 Bin
18 White Labek Insert
Complete Hardware
Pcs
Pcs
Set
Set
Set
Set
Set
Set
Pcs
Pcs
Set
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
