NEFF U1661N2AU User manual

Operating and Fitting Instructions

Table of Contents

Page

Important Information

❑Notes on disposal 3

❑Before connecting your

new appliance 3

❑Appliance safety considerations 4

Introducing: Your New Oven

❑Control panel overview 5

❑Accessories 6

❑Shelf positions 6

Before Using Your Appliance for the

First Time

❑Setting the time of day 7

❑Preliminary cleaning 7

❑Initial burn-in 7

Electronic Timer

❑Minute timer 8

❑Automatic timer 9+10

❑Special functions 10

❑Information 10

Baking Roasting and Grilling

❑Definition of Oven Features 11+12

❑Switching the oven ON and OFF 13+14

❑Safety features 14

❑Baking – Main oven 15

❑Roasting – Main oven 16

❑Grilling – Main oven 17

❑Roasting – Mini oven 18

❑Grilling – Mini oven 18

Cooking Tips and Helpful Hints 19

Defrosting and Cooking

– Main oven 20+21

Dough proving function

– Main oven 22

Page

Cleaning and Care

❑Important cleaning basics 23

❑Enamel and glass 23

❑Stainless steel front 23

❑Oven interior 23

❑Hydroclean system – Main oven 24+25

❑Removing/installing the oven door 26

❑Oven light 27

❑Removing shelf railings – Main oven 27

❑Removing shelf railings – Mini oven 27

❑Heating element – Main oven 27

Service and Repair Information 28

Trouble-shooting Guide 29

Assembly Instructions

❑For the installer and kitchen expert 30

❑Installation of the built-in oven 31

Notes on disposal

❑Old appliances still have some residual

value. An environment-friendly method

of disposal will ensure that valuable raw

materials can be recovered and used

again.

Before you dispose of your old

appliance, make sure that it has been

rendered inoperable.

❑Your new appliance was protected by

suitable packaging while it was on its

way to you. All materials used for this

purpose are environment-friendly and

suitable for recycling. Please make a

contribution to protecting the

environment by disposing of the

packaging appropriately.

Up-to-date information concerning

options for disposing of your old

appliance and the packaging from the

new one can be obtained from your

retailer or local government office.

Before connecting your new

appliance

❑Before using your new appliance, please

read these Instructions for use carefully.

They contain important information

concerning your personal safety as well

as on use and care of the appliance.

❑The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

specific appliance.

❑Please keep the operating and

installation instructions in a safe place;

this important documentation may also

be of use to a possible subsequent

owner.

❑Do not use the appliance if it is

damaged in any way.

❑Installation and connection of the

appliance should be performed

according to the instructions and

connection diagram provided, and

should be entrusted to a competent

electrician. In the event of a damage

that occurs as a result of improper

connection, the warranty will be void.

❑Our appliances meet the applicable

safety regulations for electrical

appliances. Repairs must only be

performed by service engineers trained

by the manufacturer. Repairs carried out

by incompetent service agents can

make the appliance unsafe.

Important Information

Appliance safety considerations

Important Information

❑If using hot air v, do not place

greaseproof paper loosely in the oven

(e.g. when heating the oven).

The hot-air fan could draw in the paper

which may damage the heater and fan.

❑Do not insert a baking sheet at the

bottom of the oven, or cover the base of

the oven with aluminium foil, as this

would result in heat build up. Roasting

and baking times would change, and

the enamel would be damaged.

❑Never pour water directly into the hot

oven. Damage to the enamel could

result.

❑Dripping juices may leave spots on the

oven lining. Always place a baking tray

below to prevent this from happening.

❑Never stand or sit on the open oven

door.

❑The oven door must close properly.

Keep the door seal surfaces clean.

❑The appliance should only be used for

the preparation of food.

The appliance is not intended for

use by young children or infirmed

persons without supervision.

Young children should be supervised to

ensure they do not play with the

appliance.

❑The surfaces of heating and cooking

appliances get hot during operation.

The interior oven walls and the heating

elements get extremely hot. Always

keep children away from the appliance.

❑Never leave the appliance unattended

when cooking with fat or oil. They can

catch fire if overheated.

❑Clean the oven regularly.

Fatty or oily remants could ignite when

the oven is switched on.

❑Make sure that the power cord does not

get caught in the hot oven door. The

plastic insulation could melt.

❑In the case of a defect, switch off (or

remove) the mains fuse in the building

electrical system.

❑Do not store combustible items in the

oven. They could ignite if the oven is

switched on accidentally.

❑Do not clean the oven with steam or

high-pressure cleaners.

Main oven functions

Introducing: Your new Oven

Function selector

with setting for

preferred

temperature

Function selector

with setting for

preferred

temperature

Temperature selector

with oven temperature

display

Temperature selector

with oven temperature

display

Oven temperature

control lamp

Oven temperature

control lamp

Electronic timer

controls

Mini oven functions

vCircotherm and defrosting position

eConventional

(top and bottom heat)

0Radiant grill-full element

ZRadiant grill-centre element

only, for small amounts of food

ICirco-roasting

nBread-baking position

wBottom heat

SDough-proving setting

xHydroclean system

mOven light

Main oven functions:

eConventional

(top and bottom heat)

0Radiant grill-full element

ZRadiant grill-centre element

only, for small amounts of food

wBottom heat

mOven light

Mini oven functions:

The control

panel:

❑The switches are

retractable.

❑To engage and

disengage,

depress the

switch, making

sure that it is in

OFF position.

Note:

❑The oven light switches on for every

oven function.

Exception: Oven cleaning.

❑During the heating phase and while

re-heating to maintain oven temperature,

the oven temperature control lamp C

indicates red.

When the set temperature has been

reached, the indicator light goes out.

Main oven

Mini oven

Shelf positions

❑Your oven features 3 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked

in the oven.

❑Your oven features 4 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked

in the oven.

 When using circotherm, do not

use shelf position »2«, in order not to

block air circulation.

Introducing: Your new Cooker

Accessories

❑Your appliance is supplied with:

Order no.

Deep roasting pan

Baking tray, aluminium

Baking tray, enamelled

Pizza stone

Z 1270 X2

Z 1330 X0

Z 1340 X2

Small grill-set Z 1240 X2

Z 1910 X0

Supplementary equipement set – Telescopic for Main oven Z 1750 X0

❑The following accessories can be obtained from a specialist dealer:

Note:

❑The baking tray or roasting pan may

distort while the oven is operating. This

is caused by major temperature

differences on the utensil. These

differences may occur if only one part of

the utensil was covered or if deep-frozen

food, e. g. pizza, was placed on the

utensil.Note:

Note:

The distortion will already subside again

during baking, roasting or grilling.

1 Roasting pan

4 Wire shelves

1 Handle

Before Using Your Appliance for the First Time

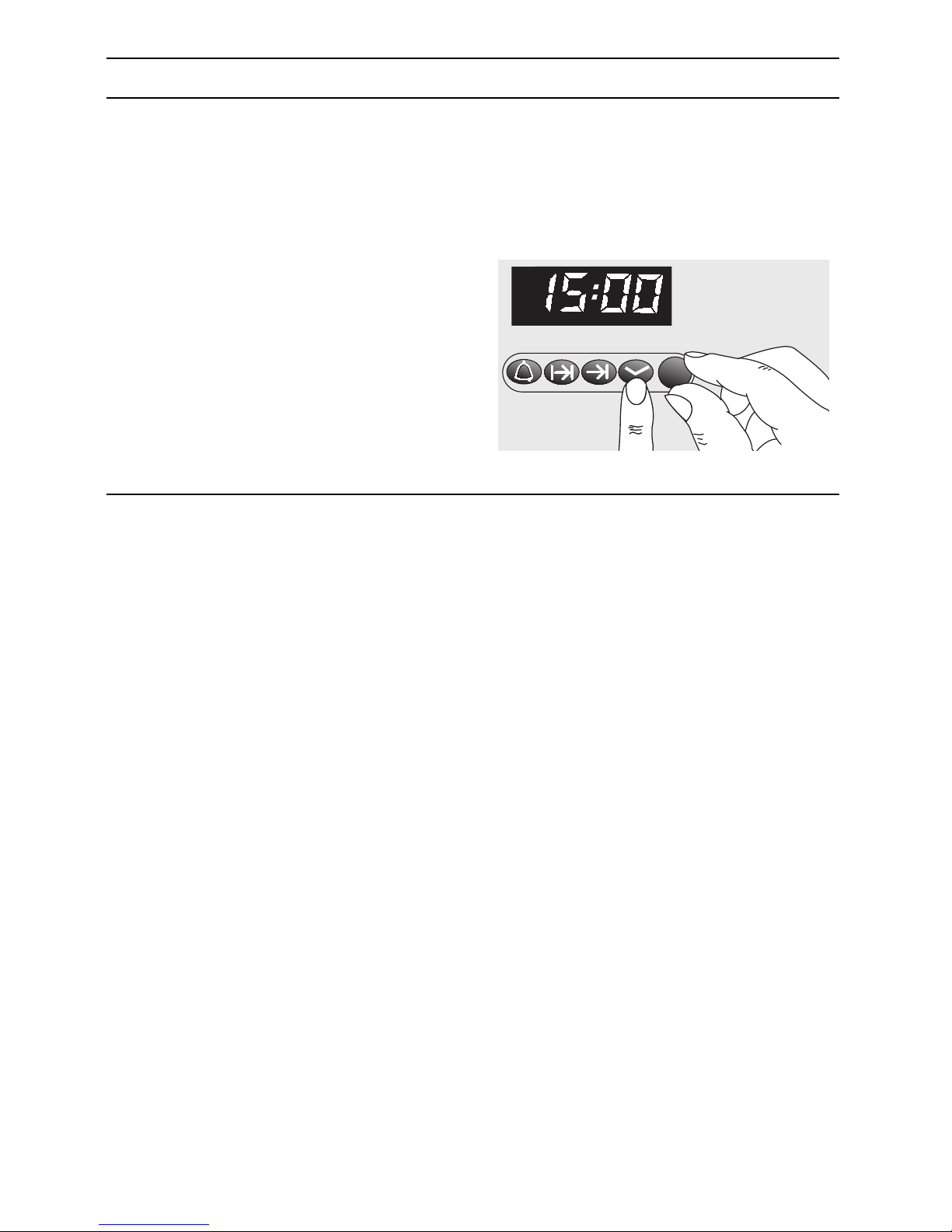

Time of day

❑Before you use your appliance for the

first time, it is necessary to set the

current time on the electronic timer.

❑After connecting to the mains, or after a

power failure, the display {:{{ will blink.

Setting the time:

Press the +button and set the current

time with the rotary knob (e.g. |Å:{{).

Note: The time cannot be set if an

automatic function is active (see Electronic

clock for cancelling automatic function).

Preliminary cleaning:

1. Clean the appliance exterior with a soft

moistened cloth.

2. Clean the oven and the accessories with

a hot detergent solution.

Initial burn-in

1. Preheat the empty oven for about

30 minutes.

Select heat for the main and mini oven at

a setting of 190° C.

During the initial burn-in phase, please

open the kitchen windows to dissipate

unpleasant odours.

Electronic timer

❑The electronic timer can be operated

with one hand; after pressing the button,

set the time with the rotary knob.

Adjustments can be made for as long as

the display flashes (4 seconds).

❑Setting the time:

See section ”Before using your

appliance for the first time”.

Minute timer:

1. Press the tbutton and set the cooking

time (e.g. Åminutes).

When the timer switches on, the

remaining time is displayed.

2. If you want to display the current time,

press the +button.

3. When the time has elapsed, a signal is

emitted and the arrow display flashes.

To stop the signal, press the tbutton.

Minute timer

Cooking time

Off time

Rotary knob

To engage and

disengage, depress

gently.

Setting the timer:

Time

Function indicator

❑You can switch the oven on and off via

the electronic clock.

Automatic switch off:

❑If you wish to bake or roast food

immediately, it is only necessary to set

the cooking time.

1. Select the heating system and the oven

temperature.

2. Press the gbutton and set the cooking

time with the rotary knob (e.g. |hour

and ~{ minutes).

When the cooking time has been set,

the time of day is displayed.

The ,displayed above the gbutton

indicates automatic mode.

3. When the time has elapsed (e.g. |hour

and ~{ minutes), a signal is emitted and

the ,flashes. The oven is automatically

switched off. To stop the signal, press

the gbutton.

4. Switch the oven off.

5. To end automatic mode, press the g

button again.

Setting the length of cooking time:

Electronic timer

Automatic timer for the main oven

Electronic timer

Automatic switch on and switch off:

❑If the food is to be cooked later on, both

the cooking time and Off time must be

set.

1. Select the heating system and the oven

temperature.

When the settings have been made, the

time of day is displayed.

2. Press the gbutton and set the cooking

time with the rotary knob (e.g. |hour

and ~{ minutes).

3. Press the hbutton and set the Off time

with the rotary knob. The ,displayed

above the hbutton indicates automatic

mode (e.g. |}:~{).

4. The oven is automatically switched on

and off at the preset times (e.g. ||:{{

and |}:~{).

5. When the time has expired, a signal is

emitted and the ,flashes. To stop the

signal, press the hbutton.

6. Switch the oven off.

7. To end automatic mode, press the h

button.

Checking, correcting and cancelling

settings:

1. To check your settings, press the gor

hbutton.

2. If required, correct the settings with the

rotary knob.

3. If you want to cancel your settings, turn

the set time back to {:{{ and switch

the oven off.

Special functions

Masking out the display:

1. Press the +button for 4 seconds.

The display then goes blank and the

time continues running in the

background.

2. To switch on the display, briefly press

the +button.

Dimming the display:

❑Between 22.00 and 6.00 the display is

automatically dimmed.

Note:

❑The automatic timer is best used with

dishes which require little attention.

❑The minute timer and OFF time can be

pre-programmed up to a max. 24 hours.

❑The settings can be displayed at any

time by pressing the relevant button.

❑To cancel the preset time:

Press the gbutton and reset the time

to {:{{.

Setting the length of cooking time:

Setting the end of cooking time:

This manual suits for next models

Table of contents

Other NEFF Oven manuals

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use
