Nedap EQ 45-F User manual
Page 1 of 3
®
INSTALLATION MANUAL
FLOOR ANTENNA
EQ 45-F
February 07, 2012 Part#: 9886168
This information is furnished for guidan e, and with no guarantee as to its a ura y or ompleteness;
Its publi ation onveys no li ense under patent or other right, nor does the publisher assume
Liability for any onsequen e of its use; spe ifi ations and availability of goods mentioned in it are
Subje t to hange without noti e; it is not to be reprodu ed in any way, in whole or in part, without the
written onsent of the publisher.
© N.V. Nederlandsche Apparatenfabriek “Nedap”
Page 2 of 3
INSTALLATION

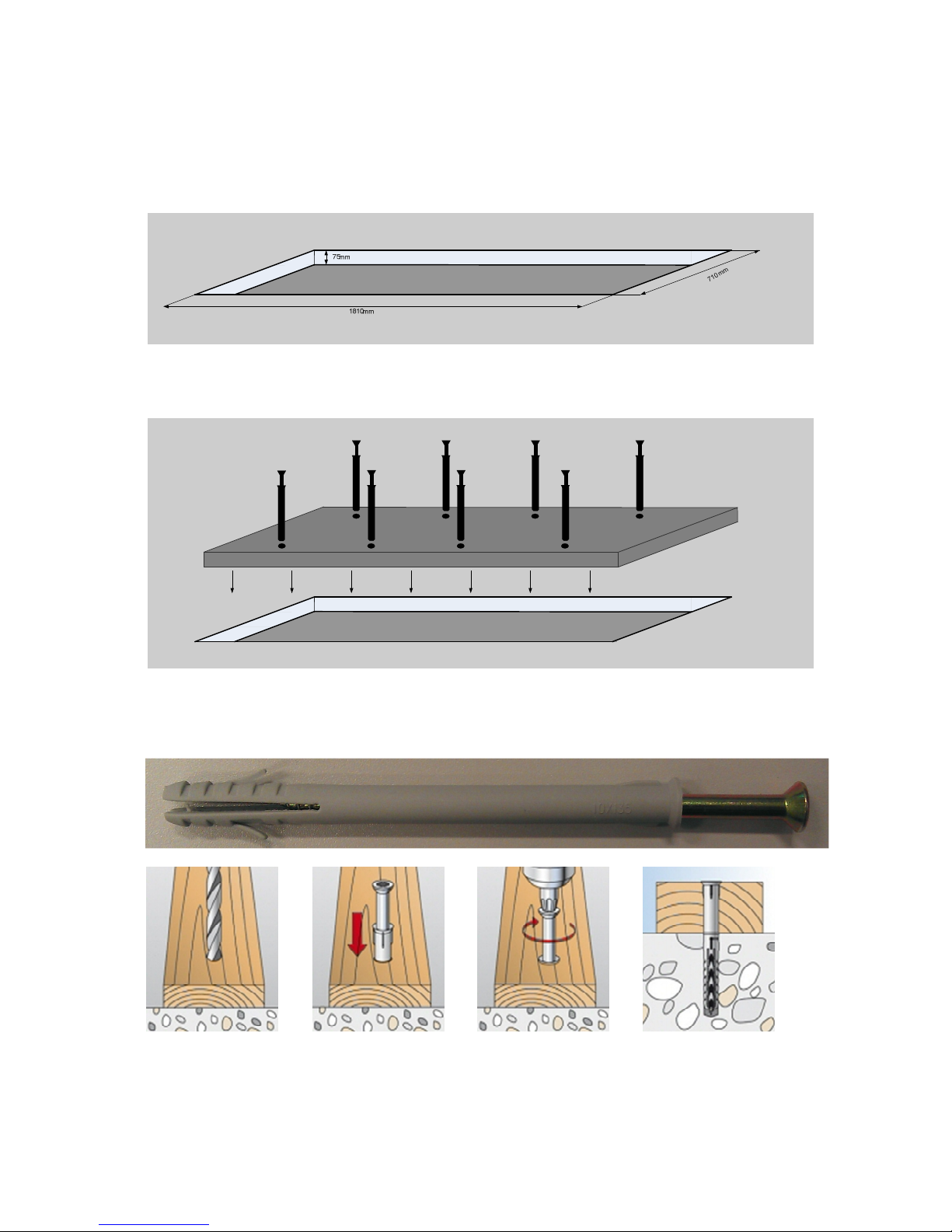

1 Make a hole in the floor 1810mm x 710mm with a depth of 74 mm.
Equalize the surfa e with fluid on rete or another material to equalize the surfa e.
2 Fit the antenna in the hole and mark the drill holes to drill 8 holes with a diameter of 10mm deep
80mm.

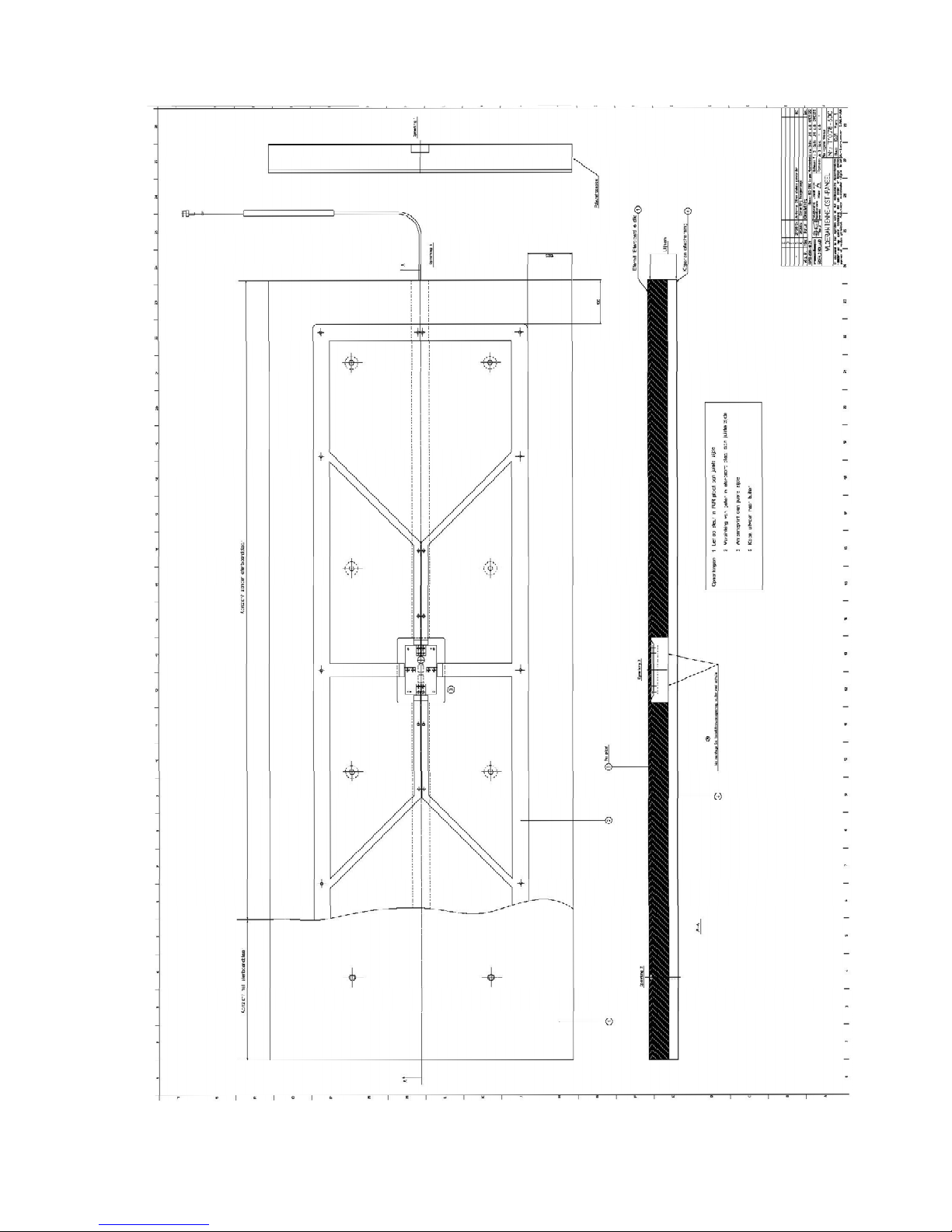

3 Pla e the Antenna assembly 9886168 in the hole and fix the antenna assembly so that the surfa es
from the floor and antenna are equal.
4 Fix the Antenna onstru tion with the fisher s rews arti le Fisher Hammerfix arti le 50347
5 After mounting the antenna assembly the rest holes an be filled with fluid on rete or another fill
material.
