NEC DT300 Series User manual
DT300/DT700 Series Terminals
SV8300 USER’S GUID
E
NEC Unified Solutions, Inc.
February, 2008
LIABILITY
DISCLAIMER
NEC
Unified Solutions, Inc.
reserves
the
right
to
change
the
specifications, functions,
or
features,
at
any
time,
without
notice.
NEC
Unified Solutions, Inc.
has
prepared
this
document
for
use
by
it
s
em
ployees
and
customers.
The
information
contained
herein
is the
property of
NEC
Unified Solutions, Inc.
and sh
all
not
be
reproduced
without
prior written
approval
from
NEC
unified Solutions, Inc. All
brand
names
and product
names
on
this
docu
ment are
trademarks
or
registered
t
rademarks
of
their respective
companies.
Copyright
2008
NEC
Unified Solutions, Inc.
1

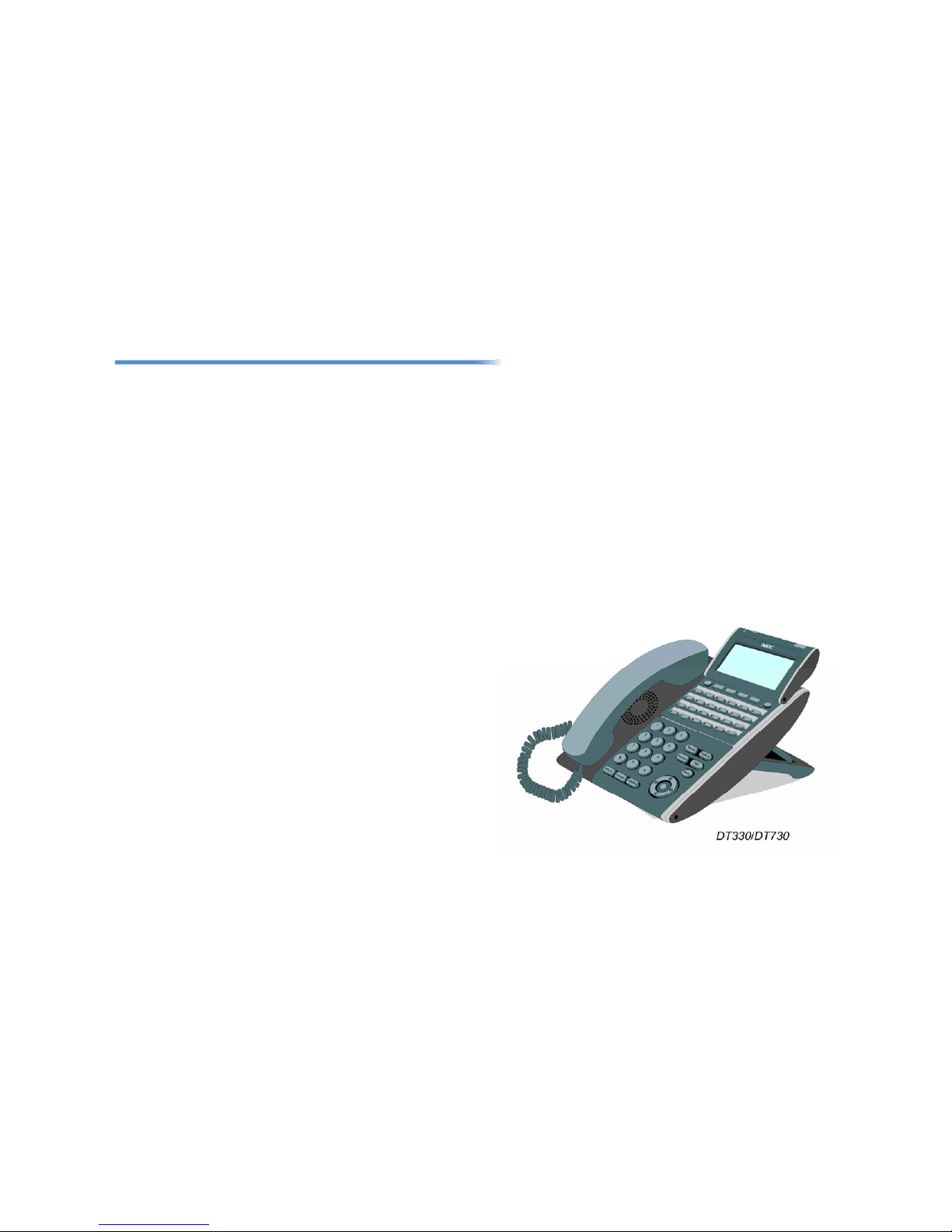

1.
I
NTRODUCTION
• General
This guide explains how to operate DT300/DT700 Series terminals.
CHAPTER 1 INTRODUCTION
Explains the configuration of this guide and contains
the following information.
• Face layout of DT Series
• Keys and Parts of DT Series
• Icon Display
• Menu List
CHAPTER 2 TERMINAL SETUP
Explains the terminal settings from DT Series.
CHAPTER 3 BASIC OPERATION
Explains the basic operation of DT Series.
CHAPTER 4 FEATURE OPERATION
Explains operating procedures for various Telephony
Server features.
2
• Face Layout

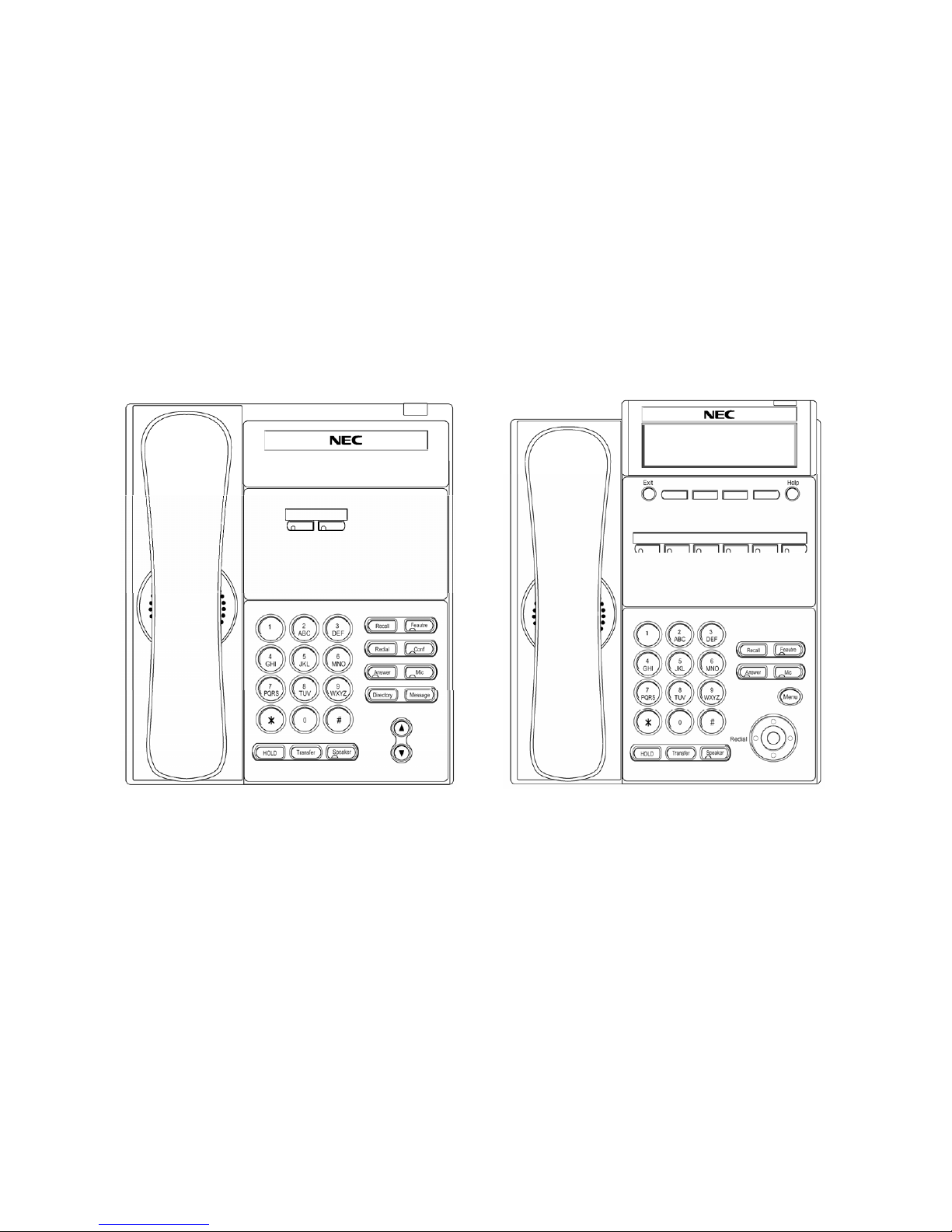

DT310/710 (2-Button without LCD)
DT310/710 (6-Button with LCD)
3

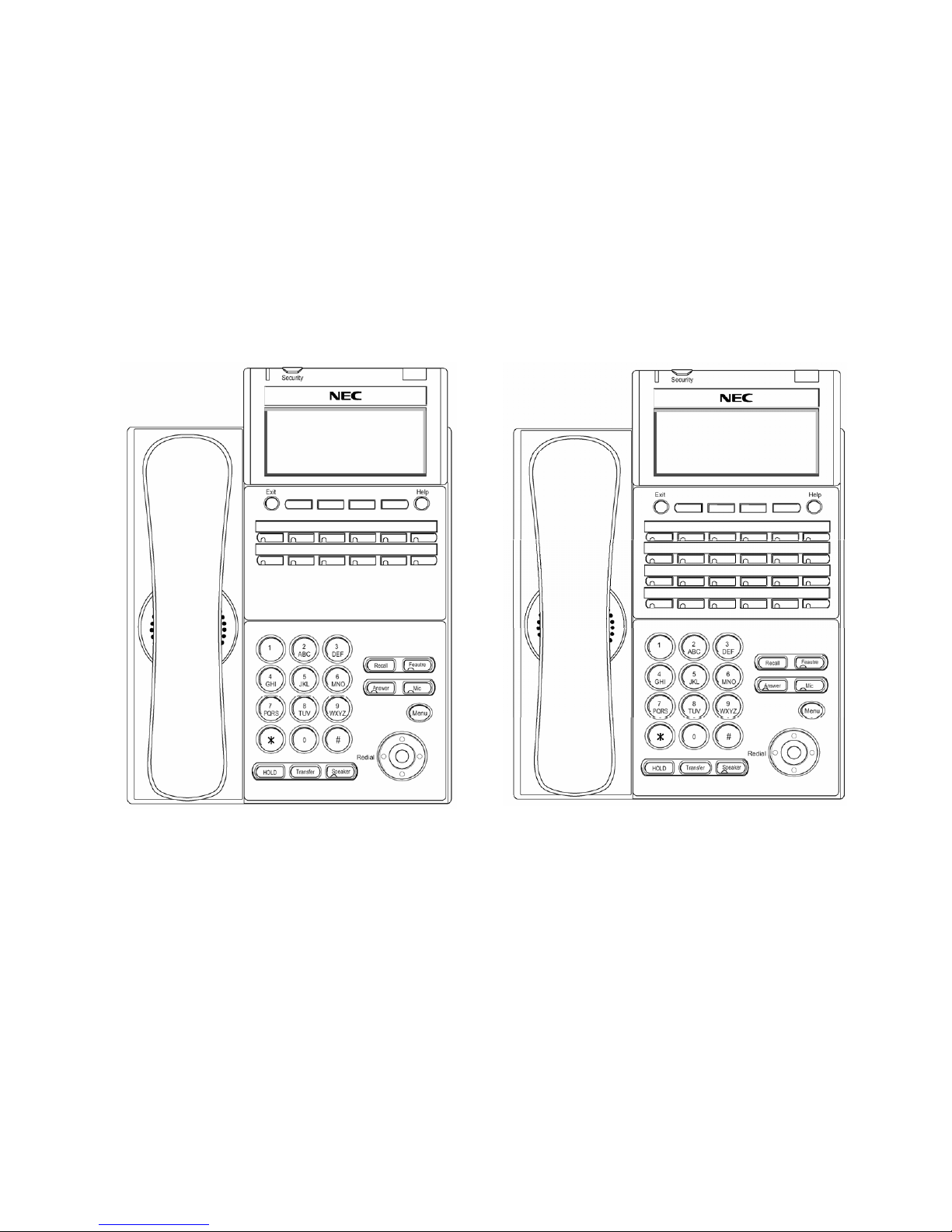

DT330/DT730 (12-Button with LCD)
Note: Security button is equipped on DT730 only.
DT330/DT730 (24-Button with LCD)
Note: Security button is equipped on DT730 only.
4

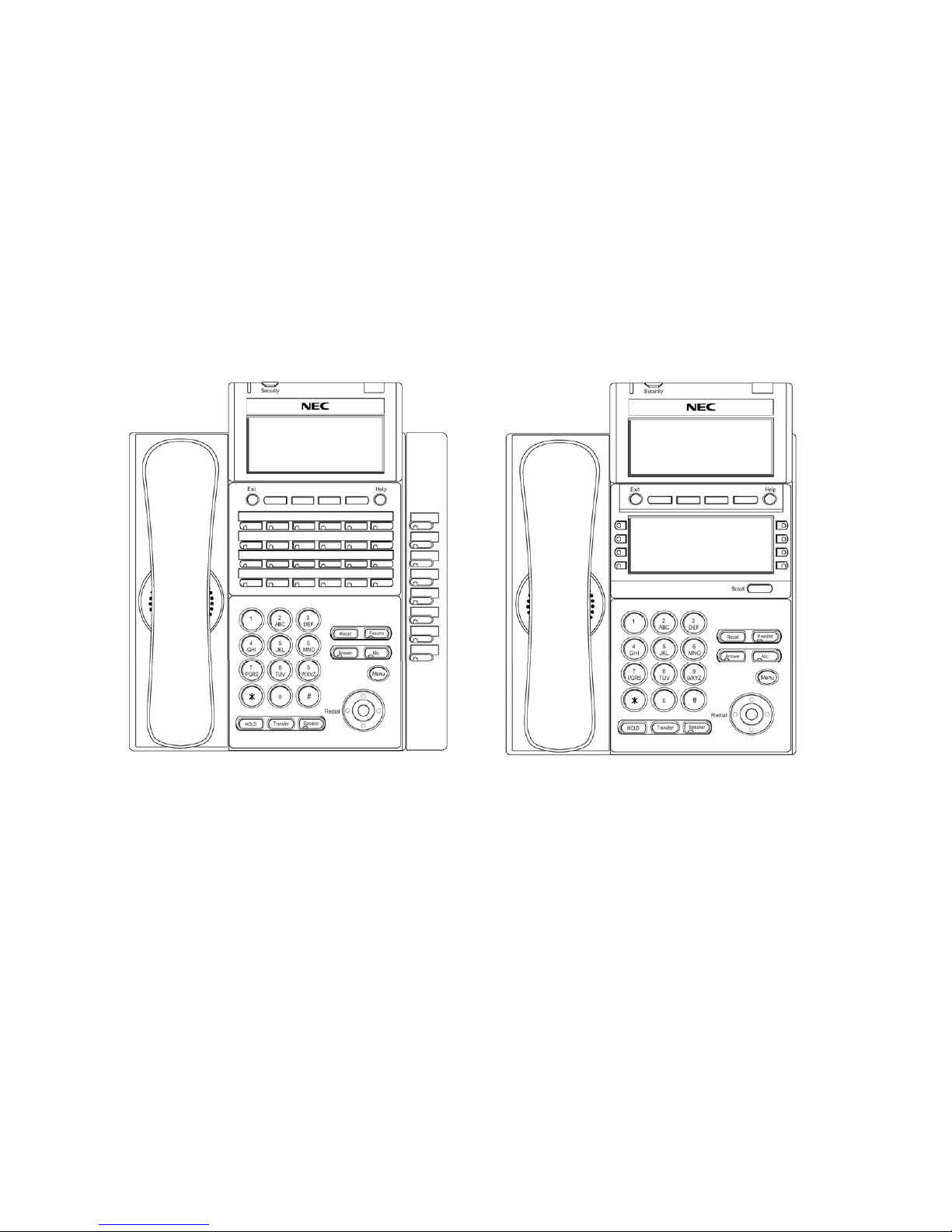

DT330/DT730 (32-Button with LCD)
Note: Security button is equipped on DT730 only.
DT330/DT730 (DESI Less 8-Button)
Note: Security button is equipped on DT730 only.
5
• Keys And Parts

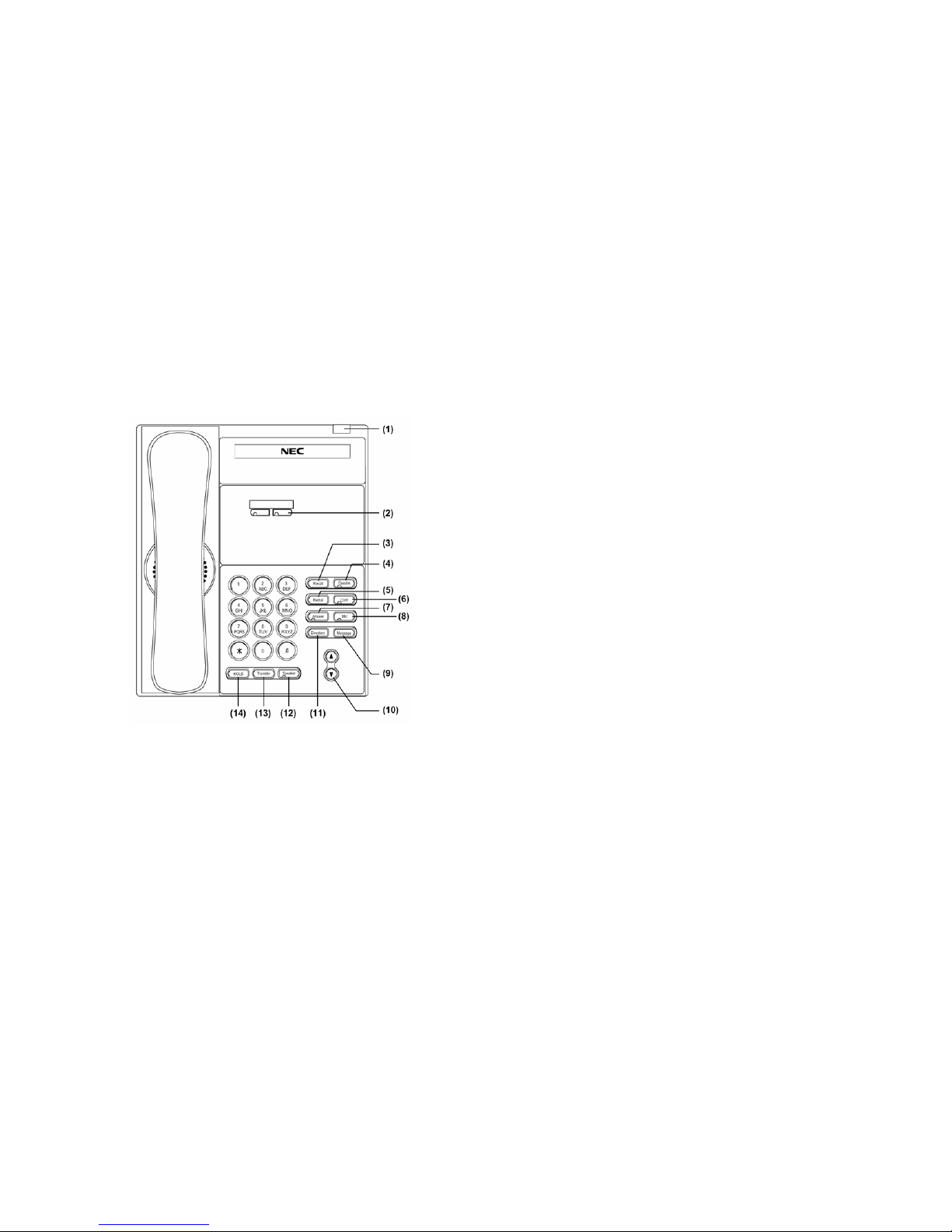

DT310/DT710
(2-Button without LCD)
(1) Call Indicator Lamp
Lamp at top corner of DT Series Display flashes when a call
terminates to the terminal. Lamp lights steadily when a
message has been left.
(2) Programmable Keys
These keys can be programmed as Flexible Line
ke
y
/Pro
g
rammable Feature Ke
y
b
y
Tele
p
hon
y
Server Administrator.
When Telephony Server Administrator sets “One-Touch Speed
Dial key” on the programmable keys, users can assign any
numbers (ex. Telephone number, etc.) to the key (up to 24
digits).
* For the assignment of the keys, confirm to the
Telephony Server Administrator.
(3) Recall
Press key to finish the call and hear the dial tone.
(4) Feature
Used to activate any features as terminal setup
functions, etc. and to program One-Touch Speed
Dial Keys.
(5) Redial
(Last Number Call, Speed Calling-Station/Group) Press key to
activate redial feature. Press redial and scroll back through
numbers that have been dialed.
(6) Conf
Press key to establish a three-way conversation. LED on key
lights when key is active.
(7) Answer
When LED on this key is lit, press key to answer a waiting call.
(8) Mic
Press key to respond hands free. LED on this key lights during
speakerphone operation.
6
(9) Message
Press key to access the voice mail system.
(10)Up/Down
( DOWN UP)
Used to adjust LCD contrast, speaker/receiver volume, and
ringer volume.
• LCD Contrast:
Press ( ) or ( ) key while idle.
• Speaker/Receiver Volume:
Press ( ) or ( ) key during conversation.
• Ringer Volume:
Press ( ) or ( ) key during ringing.
(11) Directory
Press key to activate speed calling - system feature.
(12) Speaker
Controls the built-in speaker which can be used for Hands Free
dialing/monitoring.
LED on key lights when key is active.
(13)Transfer
Allows the station user to transfer established calls to another
station, without attendant assistance.
(14)Hold
Press this key to place an internal or external call on hold.
7

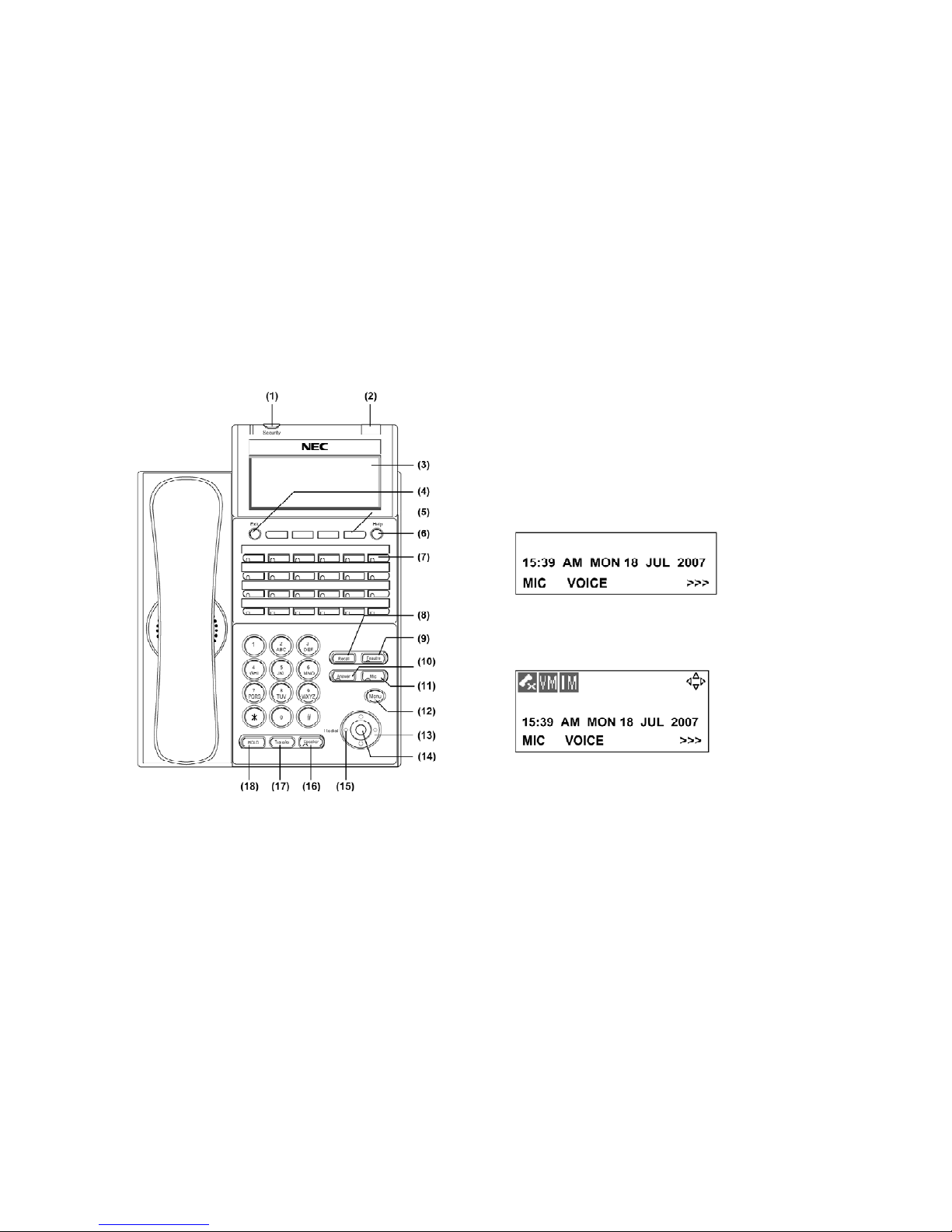

DT330/DT730
(24-Button with LCD)
(1) Security Button (DT730 only)
The user can prevent information leakage from
terminal by simple operation.
(2) Call Indicator Lamp
Lamp at top corner of DT Series Display flashes when a call
terminates to the terminal. Lamp lights steadily when a
message has been left.
(3) LCD (Note 1)
LCD (Liquid Crystal Display) provides DT Series activity
information plus data, time and Soft Key Operation.
The LCD on DT310/DT710 has 24-character, 3-line capability.
The LCD on DT330/DT730 has 24-character, 4- line capability.
Top line is used exclusively for the status icons.
(4) Exit
The user can exit from the Help key mode by
pressing this key.
8
(5) Soft Keys
Any feature shown at the bottom of the LCD is
available. The appropriate feature key is displayed
on the screen according to the call handling process.
(6) Help
Explanations of the Soft Keys can be called up on
the LCD by pressing this key.
(7) Programmable Keys
These keys can be programmed as Flexible Line
key/Programmable Feature Key by Telephony
Server Administrator.
When Telephony Server Administrator sets “One-
Touch Speed Dial key” on the programmable keys,
users can assign any numbers (ex. Telephone
number, etc.) to the key (up to 24 digits).
* For the assignment of the keys, confirm to the
Telephony Server Administrator.
(8) Recall
Press key to finish the call and hear the dial tone.
(9) Feature
Used to activate any features as terminal setup
functions, etc. and to program One-Touch Speed
Dial Keys.
(10) Answer
When LED on this key is lit, press key to answer a
waiting call.
(11) Mic
Press key to respond hands free. LED on this key
lights during speakerphone operation.
(12) Menu
From this key, the user can access to the functions
not normally used (such as terminal settings,
downloads and access to XML applications) easily.

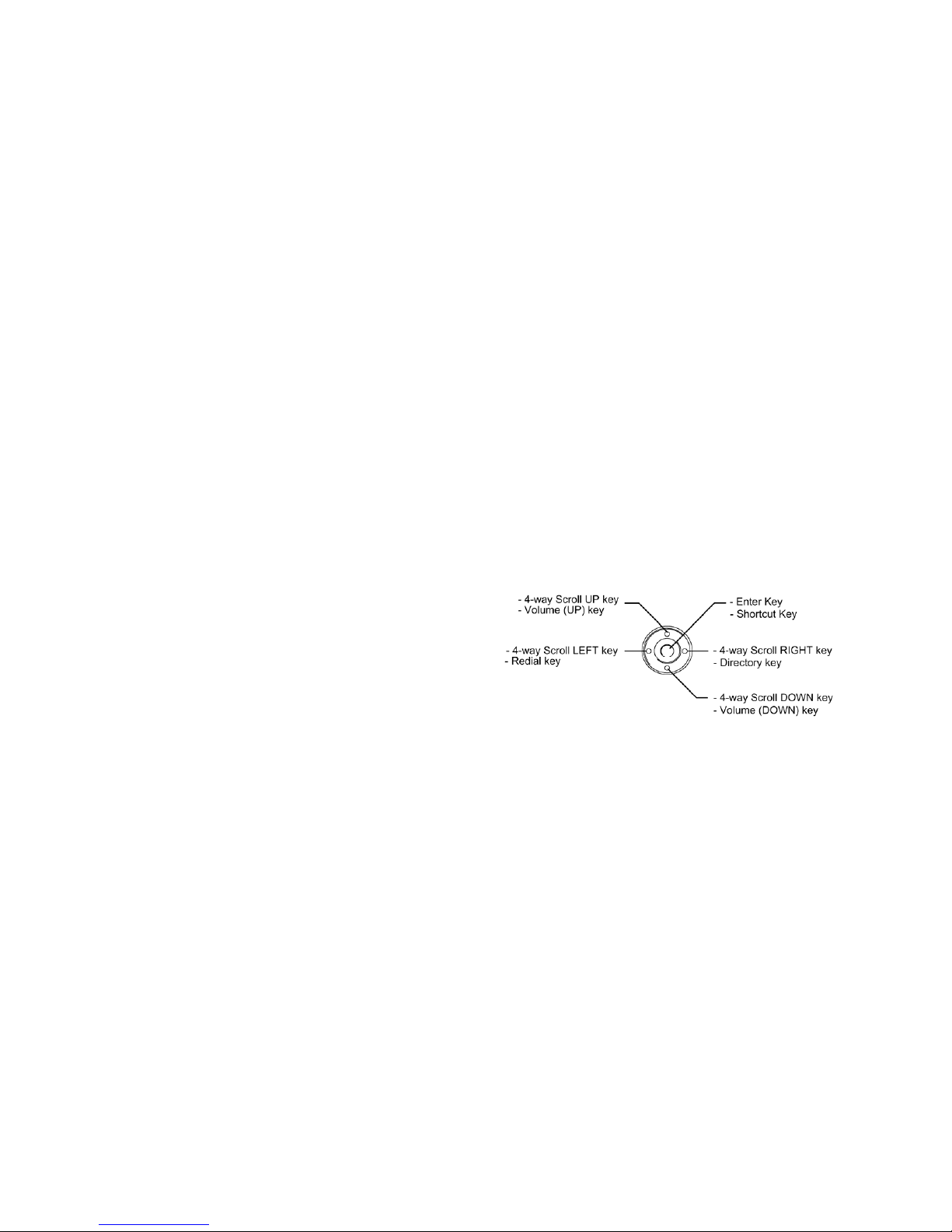

(13) Cursor
By using this Key, DT Series user can access to
various features with simple operation.
Two lines of menu items can be displayed at a
time. Use "Up" or "Down" key to scroll the item.
