NEC S401-AVT User manual
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 1 of 11
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation Page 1
Ventilation Requirements Page 2
Display Dimensions
Front, Top & Right Side Page 3
Rear & Bottom Page 4
Display Dimensions w/Optional Speakers and Stand Page 5
Optional Table Top Stand Dimensions Page 6
Optional Speaker Dimensions Page 7
Dimensions with Optional Wall Mount (WMK3260) Page 8
Dimensions with Optional Wall Mount (WMK3257) Page 9
Input Panels Page 10
Control Codes Page 11
Product Description
Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1920 x 1080 Dimensions without stand: 38.7”(W) x 22.8”(H) x 5.5”(D)
Aspect Ratio: 16:9 Dimensions with stand: 38.7”(W) x 24.1”(H) x 13.0”(D)
FCC: Class B Weight without stand: 52.5 lbs
Power Consumption: 175W (typ) Weight with stand: 56.5 lbs
BTU’s: 597.13 BTU/hour
NOTES:
•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
•Distances are in inches, for millimeters multiply by 25.4.
•Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
Max. 20 deg
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 2 of 11
Ventilation Requirements (all models)
Dimensions below are minimum required for proper ventilation.
NOTE:
•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be
covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and
recommendations.
WALL
WALL
100mm
4”
5 to 40 degC
41 to 104 degF
WALL
100mm
4”
100mm
4”
100mm
4”
100mm
4”
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 3 of 11

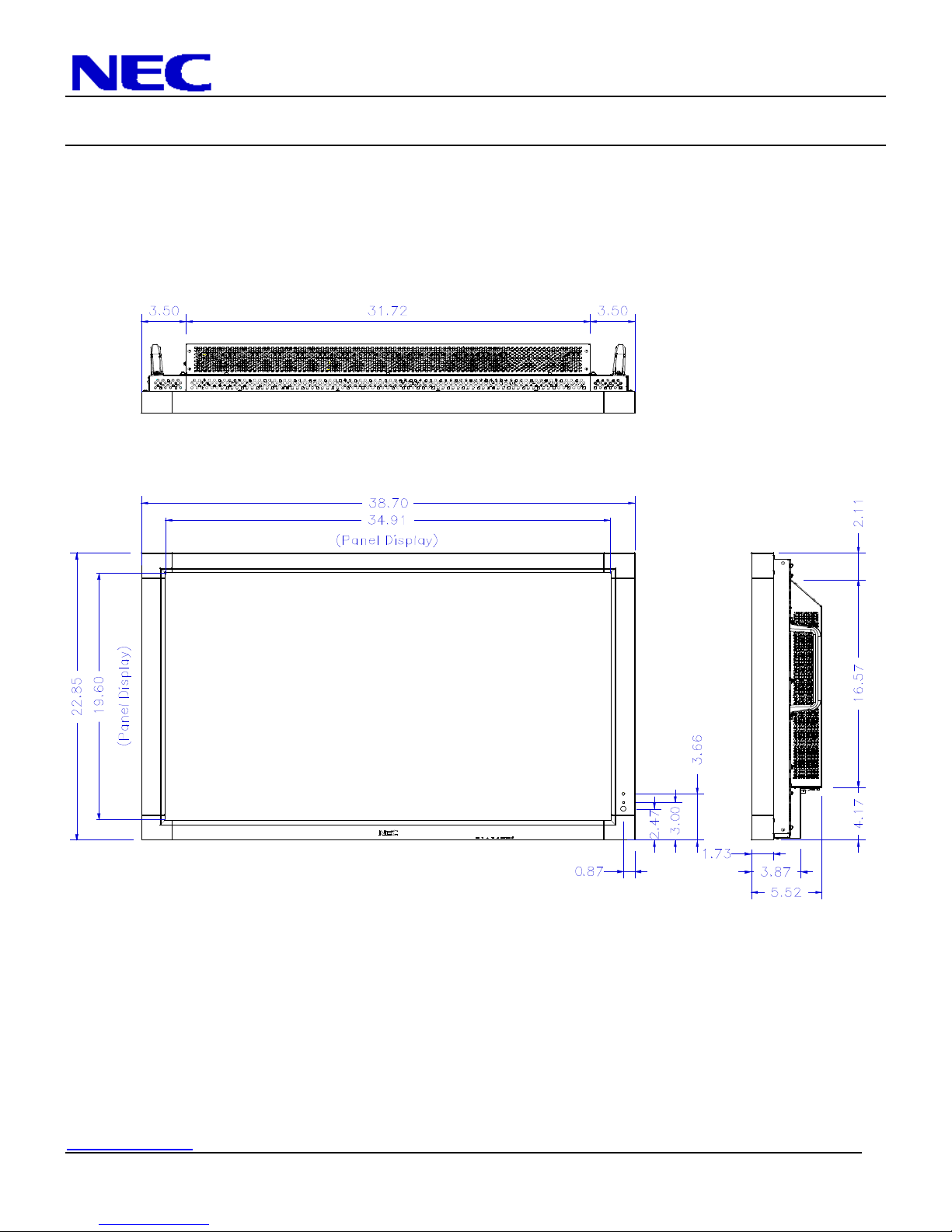

Display dimensions
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 4 of 11
Display dimensions (cont.)
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 5 of 11
Dimensions with optional speakers and stand
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 6 of 11
Optional Ta le Top Stand Dimensions (ST-4020)
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 7 of 11

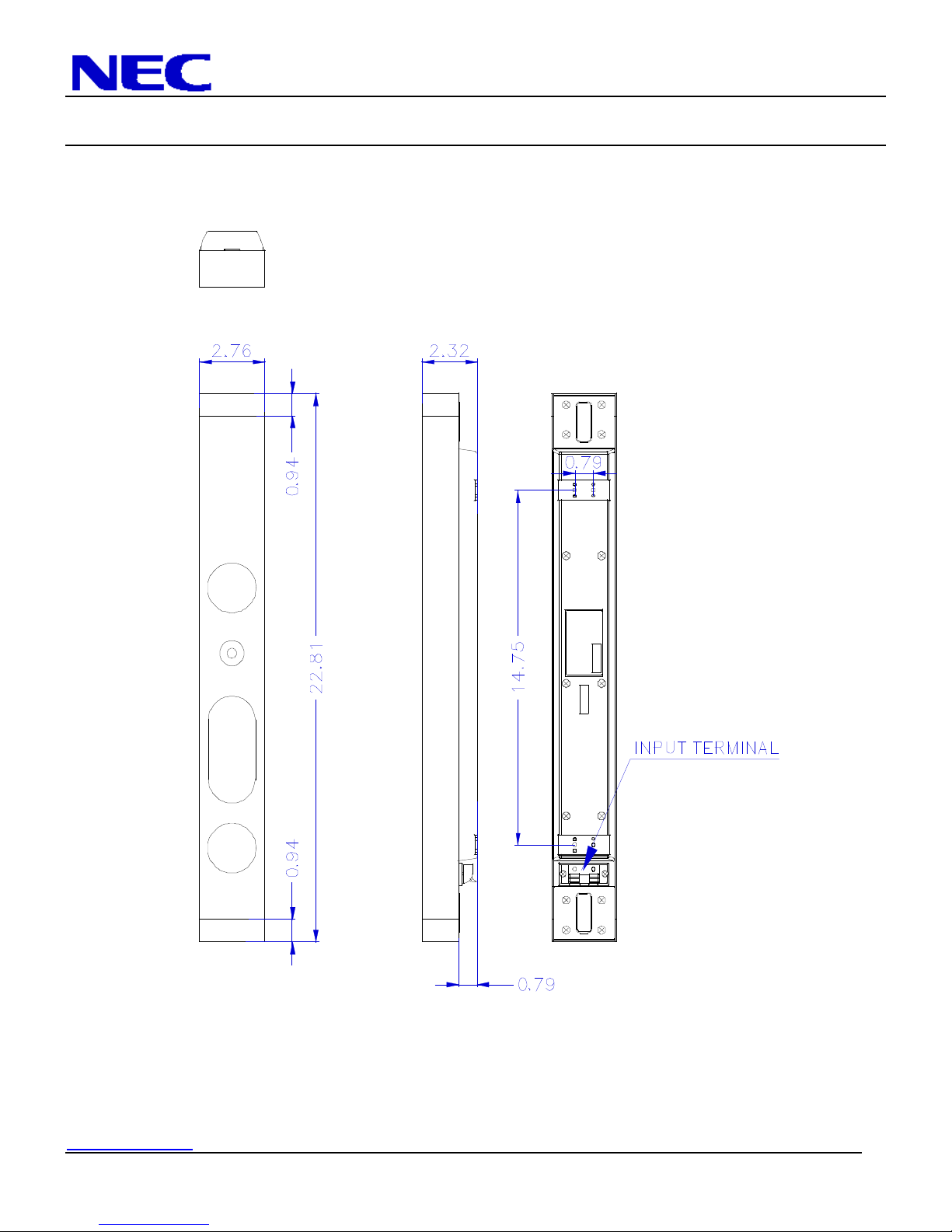

Optional Speaker Dimensions (SP-S4046)
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 8 of 11

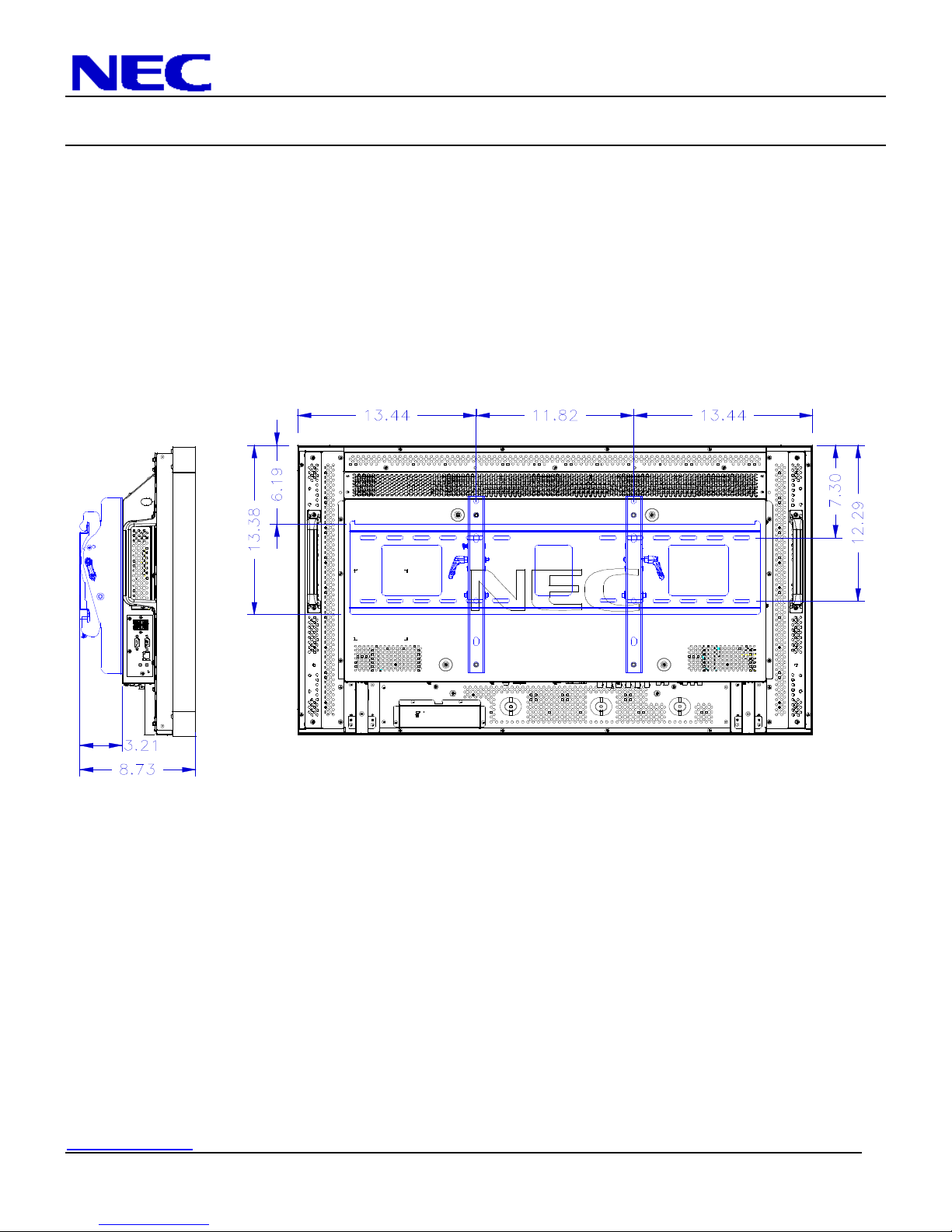

Dimensions with Optional Wall Mount Kit (WMK3260-L)
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 9 of 11
Dimensions with Optional Wall Mount Kit (WMK3257)
NEC Display Solutions of America, Inc.
S401 Installation Guide
40” LCD Display
Rev 1.3
www.necdisplay.com S401 Page 10 of 11
Input Panels
Bottom:
Side:
