NEC OL-V801 User manual

NEC Display Solutions of America, Inc.

OL-V801 Installation Guide

10 Point Touch Overlay for the V801 Rev 1.0

www.necdisplay.com OL-V801

1.0 Contents

GuidePurpose Page 1

Notes and Warnings Page 1

Equipment Page 2

Dimensional Drawings Page 2

Integration Procedures

Page 3

2.0 Purpose

2.1 This procedure describes the steps to install the OL-V801 IR Touch Overlay onto the V801 display

3.0 Notes and Warnings

3.1 The overlay contains tempered glass. Use caution when handling.

3.2 The overlay has an integrated USB cable located in the bottom right corner. Ensure the cable is not

pinched, crushed, or damaged during installation.

3.3 Installation requires two persons at all times to ensure the touch screen frame does not bend or torque.

3.4 Once the touch screen is installed, do not lift the monitor by grasping or holding the touch screen

overlay.

3.5 Contact NEC Display Solutions support if you have any questions or require additional installation

guidance support.

500 Park Boulevard, Suite 1100

Itasca, IL 60143

Phone: (800) 632-4662

NEC Display Solutions of America, Inc.

OL-V801 Installation Guide

10 Point Touch Overlay for the V801 Rev 1.0

www.necdisplay.com OL-V801

4.0 Equipment

4.1 (1) OL-V801 IR touch screen overlay

(8) M3 x 30 Flathead Phillips Machine Screws

Note: Quantity (1) Machine Screw Provided as Spare

(1) 10ft. USB Extension Cable

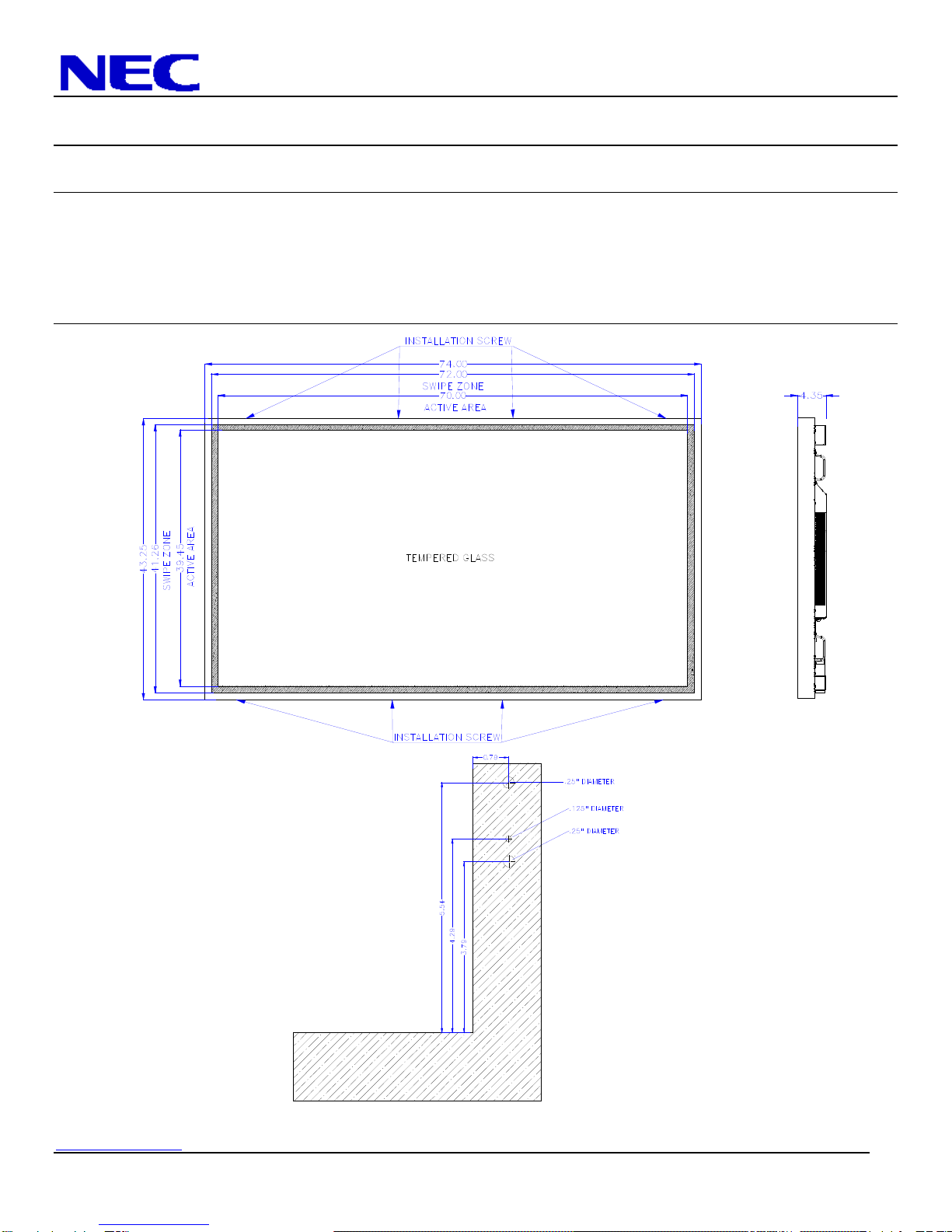

5.0 Dimensional Drawings

NEC Display Solutions of America, Inc.

OL-V801 Installation Guide

10 Point Touch Overlay for the V801 Rev 1.0

www.necdisplay.com OL-V801

6.0 Integration Procedure

6.1 Place the display face up on a padded surface for overlay integration

6.1.1 Note that if the unit is already mounted, removing the unit and placing it face up is optional;

integration of the touch screen can also be done while the display is mounted

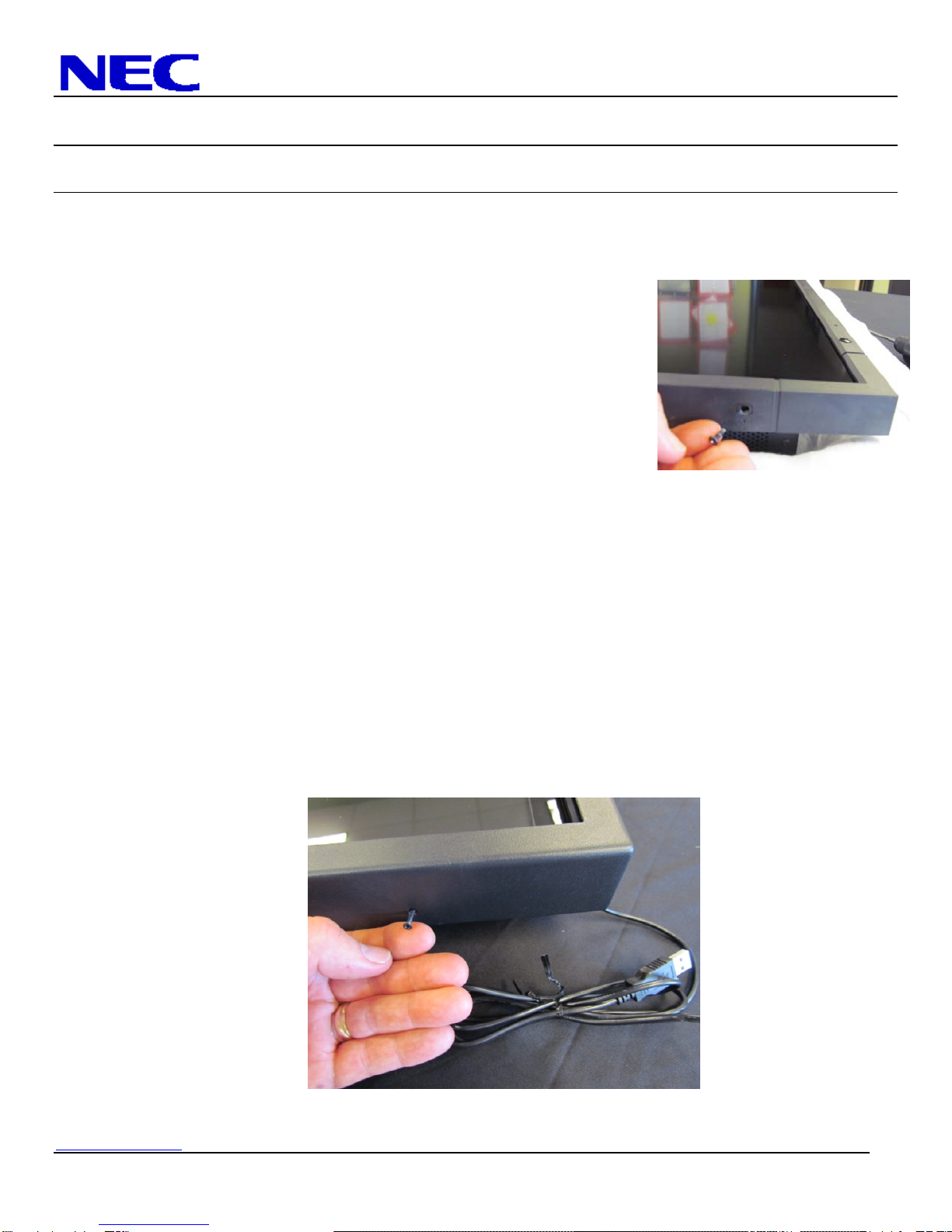

6.2 Remove bottom right corner screw from the factory bezel as shown.

6.3 Remove additional three (3) bottom screws; one located on the

bottom far left corner and two located in the bottom centermost

location of the factory bezel.

6.4 Remove four (4) screws located in the top of the factory bezel similar

to the bottom screw removal in steps 6.2 and 6.3

6.4.1 Note that only these eight (8) screws should be removed. The

other screws are used to keep the bezel secured to the body

of the display

6.5 Remove the IR touch screen overlay from packing and verify contents of kit parts.

6.6 Clean inside surface of the glass.

6.6.1 Use a glass cleaner or mild cleaning solution to clean glass.

6.6.2 Spray solution onto clean soft cloth then wipe the surface. Spraying cleaning solution directly onto the

monitor may damage the unit.

6.6.3 Use circular motion to avoid smudges and streaks.

6.6.4 DO NOT USE any chemical solvents such as an Acidic, or Alkali solution.

6.7 With help from a partner, lift the touch frame on the side edges and place over the monitor.

6.8 Ensure the eight (8) mounting holes on the touch screen overlay align with the screw holes of the

monitor.

6.9 Install the touch screen overlay using four (8) M3 x 30 flathead Phillips machine screws.

6.10 Connect the touch screen USB cable to the PC / media player providing video to the display.

6.11 Installation is complete.
