NCR 7772-K038 User manual

Kit Instructions

Remote I/OChassis

7772-K038/K039

Issue B

The product described in this document is a licensed product of NCR Corporation.

NCR is a registered trademark of NCR Corporation. Product names mentioned in this publication may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is

permitted under the terms and conditions of an agreement you have with NCR, NCR's copyright notice

must be included.

It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software,

and firmware become available. NCR, therefore, reserves the right to change specifications without prior

notice.

All features, functions, and operations described herein may not be marketed by NCR in all parts of the

world. In some instances, photographs are of equipment prototypes. Therefore, before using this document,

consult with your NCR representative or NCR office for information that is applicable and current.

By NCR Corporation

Global Headquarters

864 Spring St NW

Atlanta, GA 30308

U.S.A.

Revision Record

Issue Date Remarks

AAug 2020 First Issue

BDec 2021 Added Warning statement

Remote I/O Chassis

This kit provides a Remote I/O Chassis for the NCR CX7 All-in-One POS (7772) or

NCRCX5 All-in-One POS(7773).

•7772-K038 – Remote USBCentric I/O (Retail) Chassis

•7772-K039 – Remote SerialCentric I/O (Hospitality) Chassis

2 Remote I/O Chassis

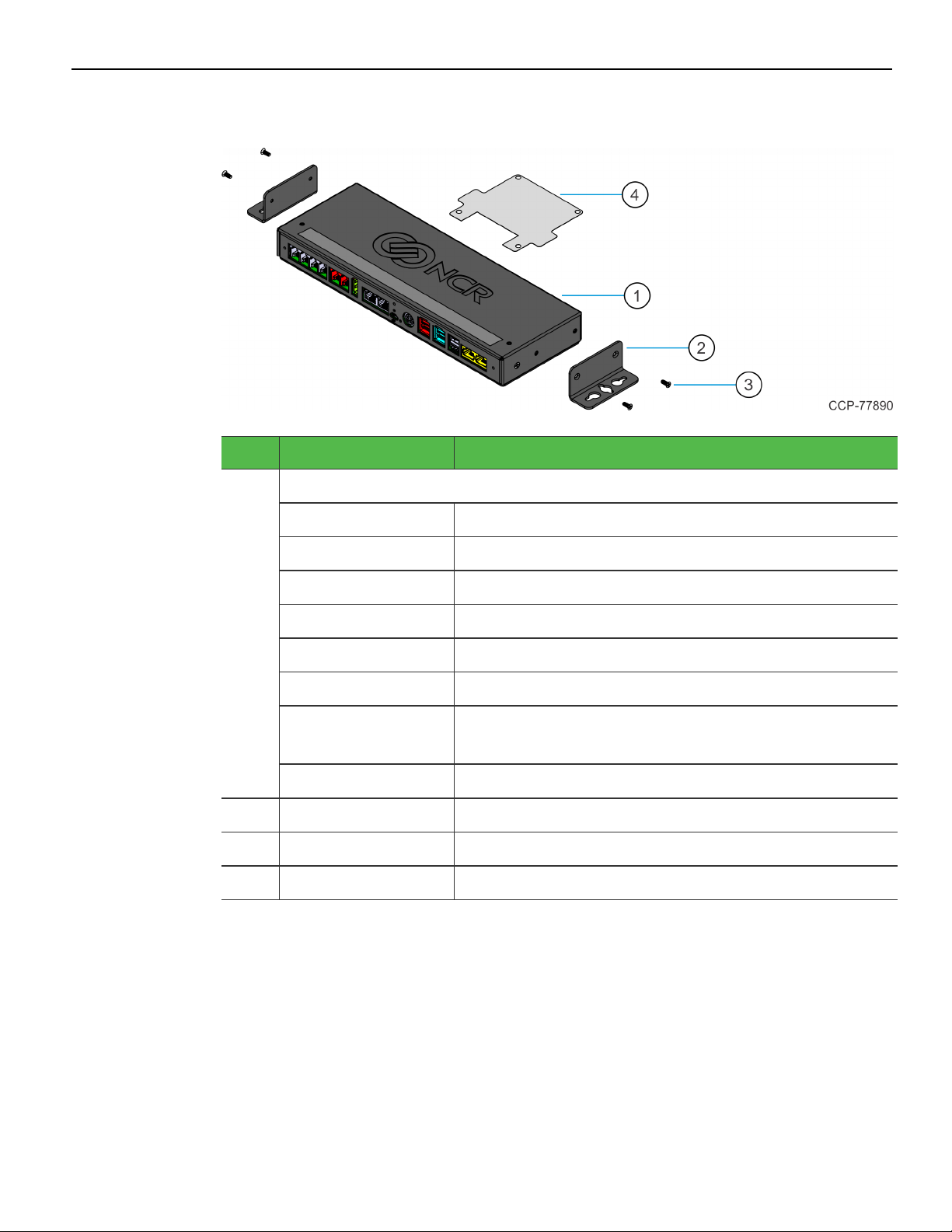

Kit Contents

7772-K038 Remote USBCentric I/O(Retail) Chassis

Item Part Number Description

1Remote USBCentric I/O(Retail) Chassis Assembly

497-0526508 Bottom Plate, Remote I/O, CX7

497-0526509 Casing,Remote I/O, CX7

497-0526511 Remote I/OPlate and Shield, Retail, CX7

497-0467780 Foot, Rubber, 7600

497-0525283 PCBAssembly – CX7 I/OBoard, Retail

006-8617798 Screw, M3 x 8mm Machine, Phillips, Flat, Black

006-8613167 Screw, M3 x 6mm, SEMS, Pan Head, Phillips, Machine

Screw External Tooth Washer, Zinc Plate

497-0527120 Label, CX7 Remote I/O, Retail

2 497-0526512 L-Shaped Bracket, CX7

3 006-8617798 M3 x 8mm Machine, Phillips, Flat, Black

4 497-0527274 Label, Vesa Flame Retardant, Black

Remote I/O Chassis 3

7772-K039 Remote Serial Centric I/O(Hospitality) Chassis

Item Part Number Description

1Remote Serial Centric I/O(Hospitality) Chassis Assembly

497-0526508 Bottom Plate, Remote I/O, CX7

497-0526509 Casing,Remote I/O, CX7

497-0526510 Remote I/OPlate and Shield, HSR, CX7

497-0467780 Foot, Rubber, 7600

497-0525263 PCBAssembly – CX7 I/OBoard, HSR

006-8617798 Screw, M3 x 8mm Machine, Phillips, Flat, Black

006-8613167 Screw, M3 x 6mm, SEMS, Pan Head, Phillips, Machine

Screw External Tooth Washer, Zinc Plate

497-0527119 Label, CX7 Remote I/O, Hospitality

2 497-0526512 L-Shaped Bracket, CX7

3 006-8617798 M3 x 8mm Machine, Phillips, Flat, Black

4 497-0527274 Label, Vesa Flame Retardant, Black

4 Remote I/O Chassis

Installation Procedure

Warning: Disconnect the AC power cord from the AC outlet and wait 30 seconds

before servicing the terminal.

1. Install the Brackets on each side of the Remote I/O Chassis (2 screws per bracket) in

the orientation shown below.

Note: The Brackets may also be mounted 180° from the position shown below.

Illustration below shows the Remote SerialCentric I/O(Hospitality) Chassis (7772-

K039).

Remote I/O Chassis 5

2. Mount the assembly on the wall as desired. The Remote I/OChassis can be mounted

in four (4)ways:

I/O Facing Up

I/O Facing Down

6 Remote I/O Chassis

I/O Facing Right

Remote I/O Chassis 7

I/O Facing Left

3. Connect the cables to the appropriate I/Oport. For information on the ports

available for each kit, refer to the I/OPorts section:

•7772-K038 Remote USBCentric I/O(Retail) Chassis on the next page

•7772-K039 Remote Serial Centric I/O(Hospitality) Chassis on page9

4. Mount the Vesa Flame Retardant Label on the Back Cover as shown.

Note: The Label is needed when mounting on a third-party arm.

8 Remote I/O Chassis

I/OPorts

7772-K038 Remote USBCentric I/O(Retail) Chassis

Callout Port Name

1 RJ50 Serial (Enhanced UART)

2 Dual USB 3.0

3 DisplayPort

4 DB9 Serial (Standard UART)

5 LAN In

6 LANOut

7 USB-C

8 LED

9 24VPower In

10 USB12V

11 USB24V

12 Cash Drawer
