Navman S300 Service manual
S300
Setting options
NAVMAN
Press and hold to enter setup
Press repeatedly to step through the setting options.
Press both buttons toghether ( ) to start or stop
editing a setting option.
While editing, press or repeatedly to step through selectable states,
or increase/decrease values. Press and hold the appropriate button to
increase/decrease values quickly.
Set (12hr)
lets you set 12hr or 24hr time format
Set (31-12)
lets you set dd-mm or mm-dd date format
Beep
When beep is «ON» a beep will sound when the buttons
are pushed.
Set units (km/h)
lets you set speed units to «km/h» or «mph»
Distance is displayed in units corresponding to the speed units, i.e. if you
choose «km/h» for speed units, then distance is displayed in «km».
Set offset
lets you adjust the S300 to display local time
The date is displayed to ensure that time adjustments are made in the
correct direction, i.e. both correct time and correct date should be
displayed. GPS signals must be obtained to set local time.
Press and hold to leave setup
S300 — Settings
S300

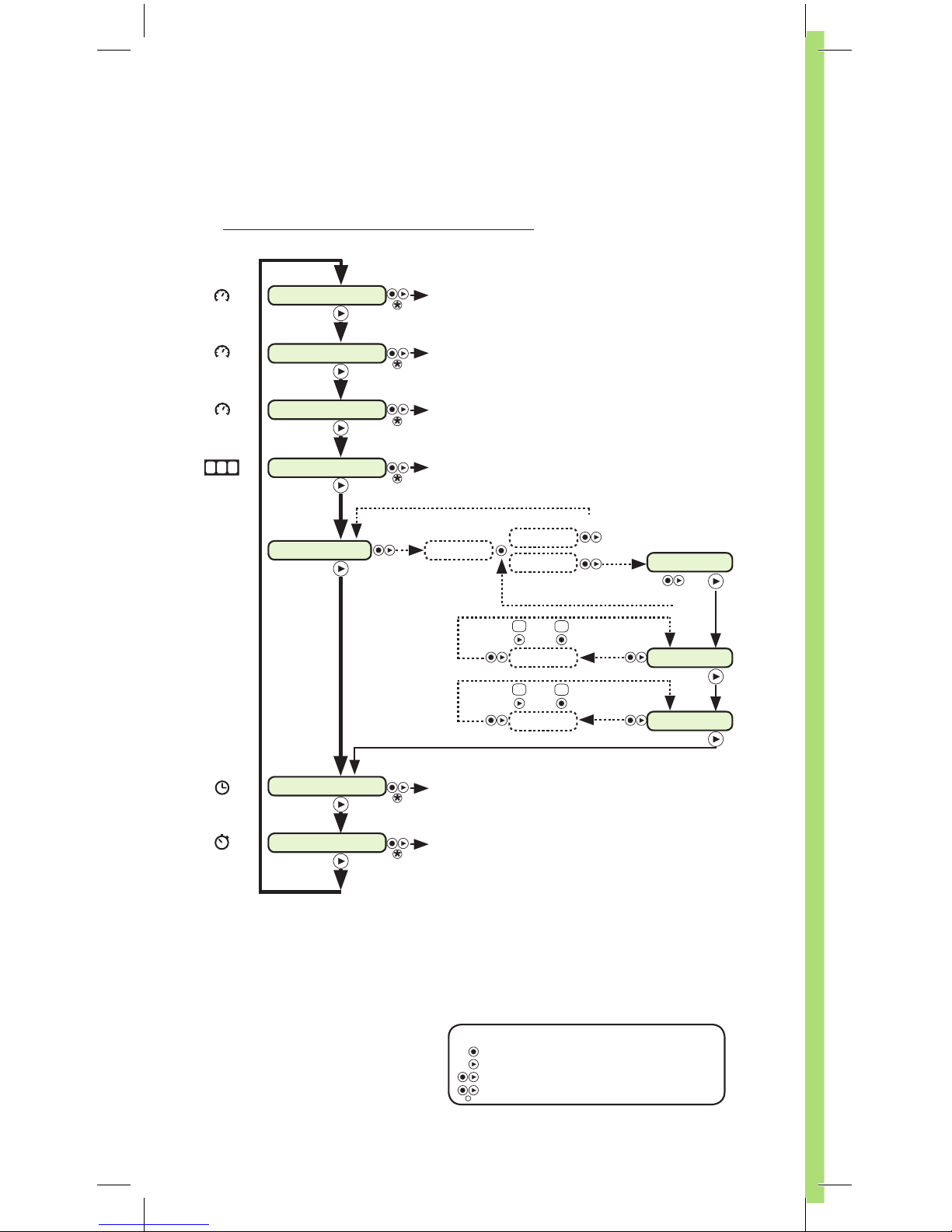

Use the settings
NAVMAN S300 — Settings
KEY
= press this button
= press this button
= press both buttons together
settings editing details
beep beep
beep ON
beep OFF
set units (km/h)
set units (mph)
set units (km/h)
set offset
set 12hr
set 31-12
set 24hr
set 12-31
set units (km/h)
set (12hr) set (12hr)
set (31-12)set (31-12)
time (date)
edit accept
�
�
edit accept
edit accept
edit accept
edit accept
S300

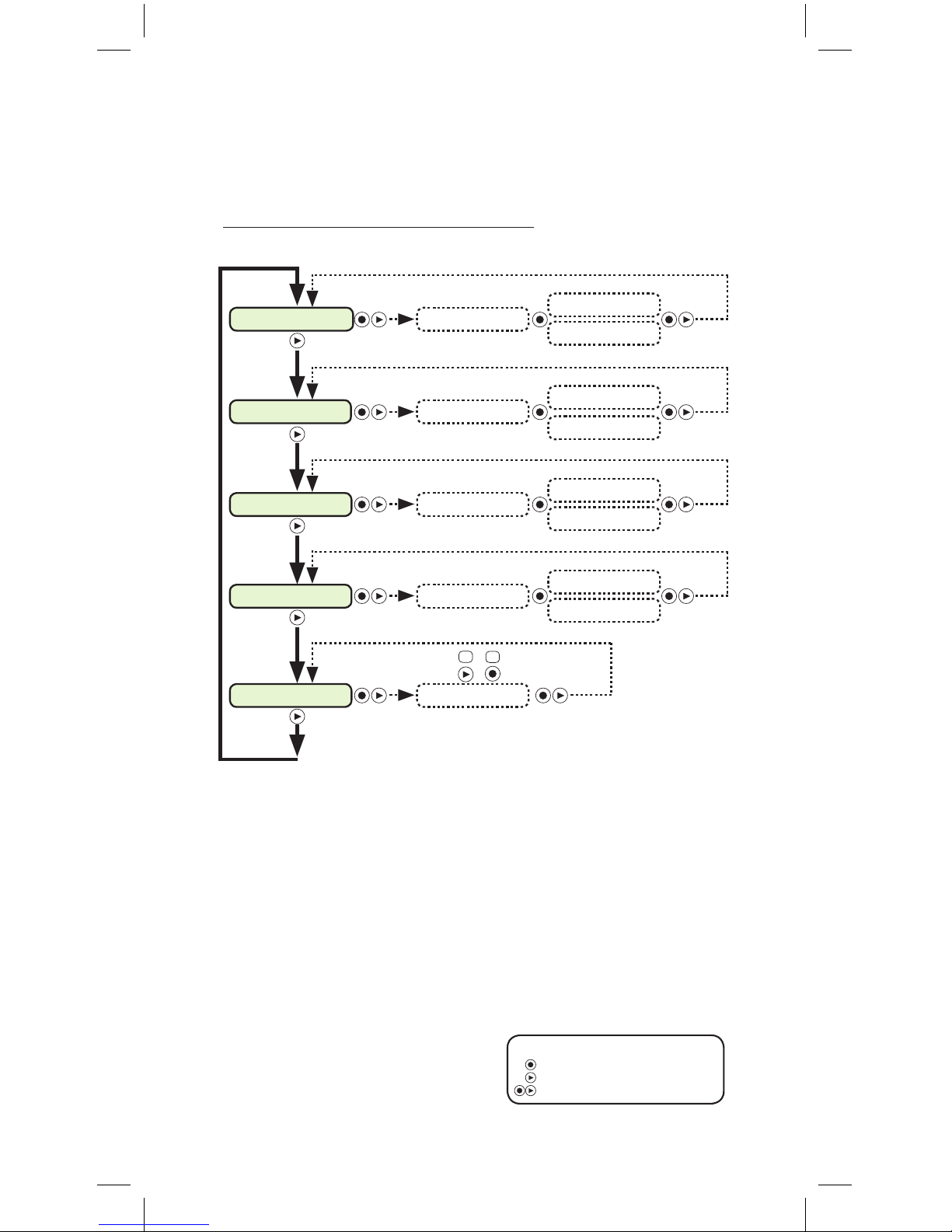

Normal operating modes
Press to start normal operation
Press repeatedly to step through the modes (hold to
cycle automatically through modes).
Speed
shows session distance and current speed
Speed (AVG)
shows session distance and average speed
Speed (MAX)
shows session distance and maximum speed
Odometer
shows total distance
Zone OFF
lets you skip the zone setting options
Zone alerts do not sound if zone status is «OFF».
Zone ON
makes the min and max zone setting options available
If zone status is «ON», alerts sound when zone limits are passed.
Zone (MIN)
lets you set your minimum target speed
Zone (MAX)
lets you set your maximum target speed
Clock
shows the current time and date
(You may need to adjust the settings to display your local time.)
Timer
shows session time
The timer starts automatically whenever you start moving and stops
whenever you stop moving.
Press and hold to shut down the S300
NAVMAN S300 — Modes
S300
Use the modes
*
KEY
= press this button
= press this button
= press both buttons together
= press and hold both buttons together
NAVMAN S300 — Modes
modes operating details
Zone OFF
Zone MAX
Zone MIN
Zone OFF
Zone MIN
Zone OFF
Zone ON Zone ON
Zone MAX
Speed (AVG)
Speed (MAX)
Speed
Clock
Timer
Odometer
clear all session data*
accept
clear max speed only
clear odometer only
(*Does not clear odometer.)
�
�
�
�
�
�
�
�
�
edit
AVG
MAX
ZONE
SET
accept
edit
edit
accept
edit
accept
�
clear all session data*
clear all session data*
clear all session data*
8 7 2
3
QUICK START GUIDE
S300
NOW YOU KNOW.
S300
Be outdoors
The S300 is not intended for operation indoors or under
water as it uses Global Positioning System (GPS) satellites to
get time and date information, and to calculate distance and
speed. For best results, always use the S300 outdoors with
an unobstructed view of the sky.
L
1. Turn D-ring anti-clockwise and slide enclosure cover down to open battery
enclosure.
2. Insert battery with «» end as indicated inside enclosure.
3. Replace enclosure cover (ensuring lugs at the bottom of the cover are aligned
with slots in the enclosure surround), turn D-ring clockwise to seal.
Get ready
Step 1
Fit the battery
Fit the S300

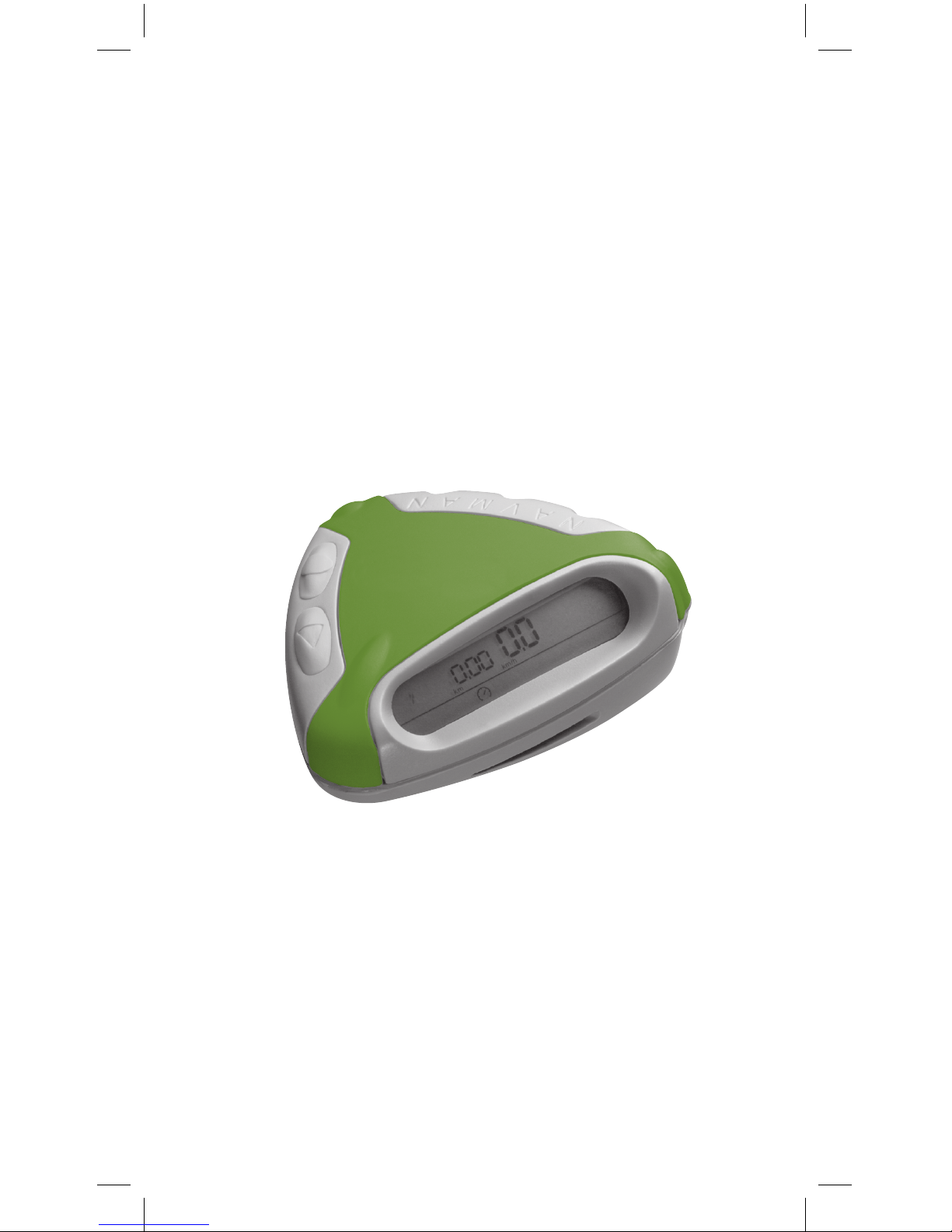

The S300 is designed to be worn on the left upper arm.
You may wish to adjust some of the settings prior to fitting.
For best performance:
General use = Alkaline
Below 5 oC = NiMH
!
S300
The control buttons, and (as shown above) are pressed
separately or together to turn the unit «ON» and «OFF», cycle
through modes, and select mode options.
Know the buttons
Get set
Step 2
!Always enter setup first if you wish to change settings.
To enter setup after starting normal operation, you must
shut down and re-start the S300.
Flashing icon = seeking GPS signals
Constant icon = GPS signals obtained
Startup could take up to 80 seconds to get all satellite data.
If you release before the counter reaches zero, the S300
will immediatly start normal operation.
For details about system settings see over page or consult User Guide.
Press and hold to leave setup
counter
counter
After leaving setup, the S300 automatically starts normal
operation displaying the speed mode first.

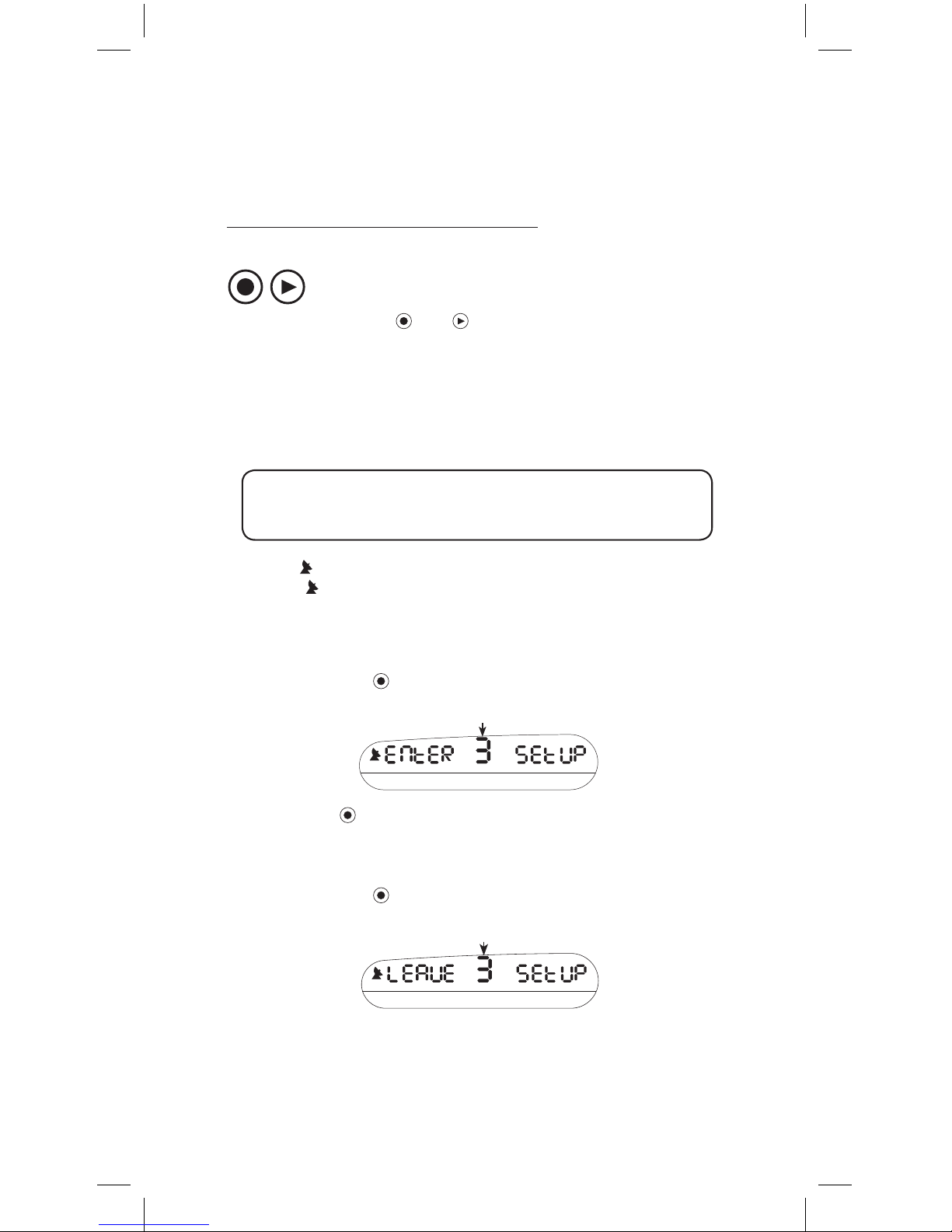

Enter setup
Press and hold to enter setup
Know the startup options
1. enter setup
2. start normal operation
S300
Start normal operation
Press to start normal operation
When starting directly into normal operation S300 will start in
the mode it was in at last shutdown.
The S300 automatically operates whenever you are moving
and pauses operation while you are stationary. Modes are
accessed in the following order:
Go
Step 3
Mode icons appear in the lower section of the screen. While
in Speed mode you can monitor session distance and current
speed. You can also clear session data.
While in Speed mode
Press and hold to clear all* session data (*Does not clear
odometer.)
Press to go to next mode
When you want to shut down the S300
Press and hold
Now you know.
speed mode icon
session distance
current speed
For details about modes or setting zone limits, see over page or consult
User Guide.
Mode example (speed)
km km/h
AVG
8 7 2
3
Zone OFF
Zone ON
Zone MINZone MAX
ClockTimer
Speed Speed AVG Speed MAX Odometer
MAX
ZONE
SET
LA000535A © 2005 Navman NZ Ltd. All rights reserved. "Sport.Tool" and "Now you know" are trademarks of Navman NZ Ltd.
