INSTALLATION GUIDE

TB-2715 TERMINAL BLOCK

This installation guide describes how to install and connect signals to the

TB-2715 terminal block for use with PXI-653Xand PXI-660Xmodules.

Use the TB-2715 terminal block to connect to the signals of a PXI-653Xor

PXI-660Xmodule. Connect your signals to the screw terminals housed in

the terminal block then install the TB-2715 to the PXI front panel.

What You Need to Get Started

To set up and use the TB-2715, you will need the following:

❑TB-2715 terminal block

❑Quick-reference labels for PXI-653Xand PXI-660X

❑One of the following:

– PXI-653Xmodule

– PXI-660Xmodule

❑653X User Manual or 660X User Manual

❑0.10 in. slotted screwdriver

❑Number 1 Phillips screwdriver

❑Wire cutters

❑Wire insulation stripper

Connecting Signals to Your Terminal Block

Refer to Figure 1 as you perform the following steps to connect signals

from the peripheral device to the TB-2715. For more information about

connecting signals to your terminal block, see your 653X User Manual or

660X User Manual.

TB-2715 Terminal Block Installation Guide 2 ni.com

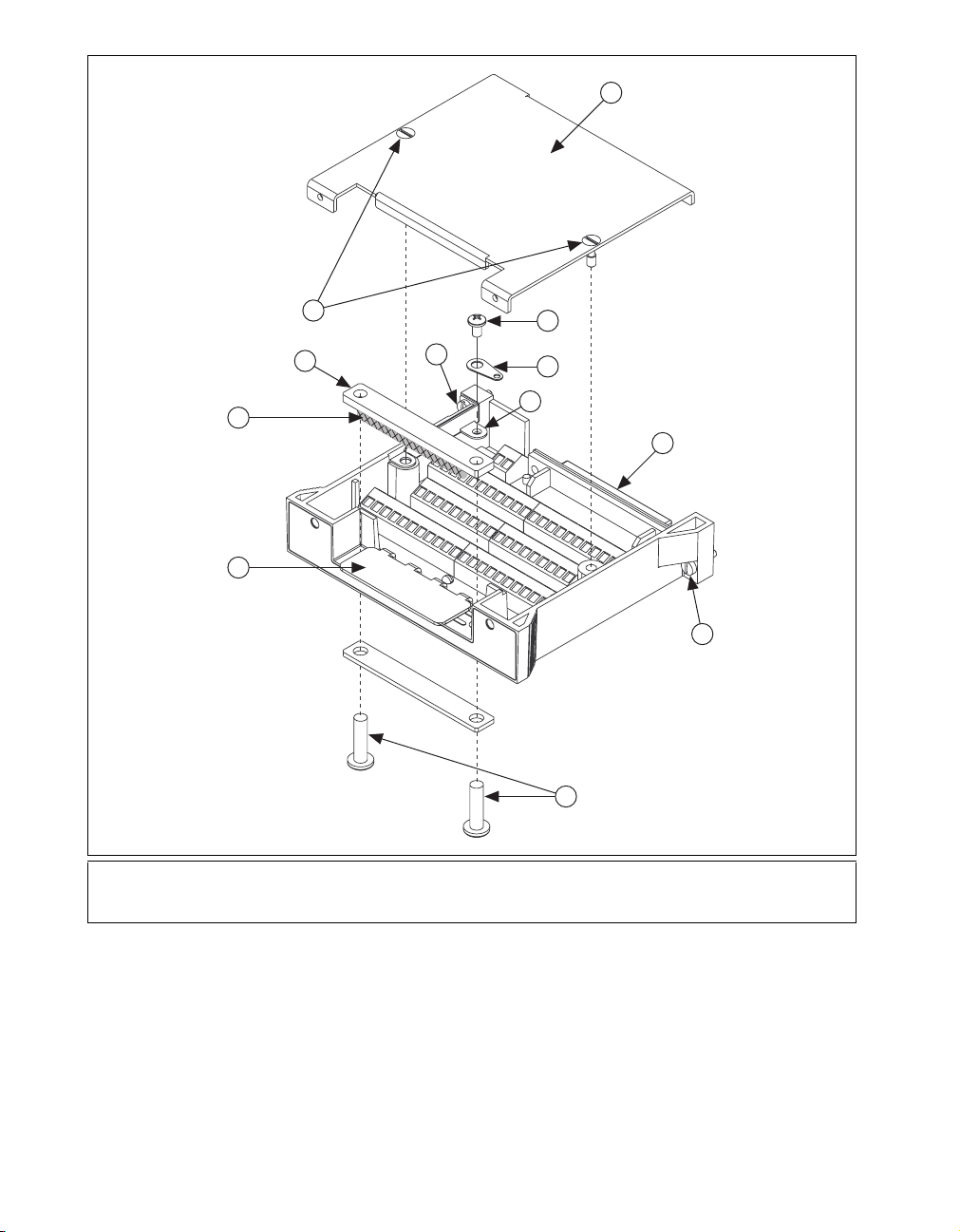

Figure 1. TB-2715 Parts Locator Diagram

1. Remove the terminal block cover by unscrewing the two cover screws

using the 0.10 in. slotted screwdriver.

2. Apply the appropriate quick reference label to the inside of the top

cover as shown in Figure 2. This label provides the corresponding

signal names on the PXI module for each pin number.

1Cover

2CoverScrews

3 Strain-Relief Bar

4 EMI Gasket

5APDShield

6 Strain-Relief Screws

7 Terminal Block Mounting Screws

8 PXI Module Connector

9 Chassis Ground Tab

10 Ground Solder Lug

11 Ground Lug Screw

©National Instruments Corporation 3 TB-2715 Terminal Block Installation Guide

Figure 2. Inserting the Quick-Reference Label

3. Loosen or remove the strain-relief bar by loosening the two

strain-relief screws with a Number 1 Phillips screwdriver.

4. Use wire cutters and wire insulation strippers to strip no more than

7 mm of insulation from the wire ends.

5. Use Figures 3 and 4 to find the 653Xand 660Xsignals that correspond

to the screw terminals on the TB-2715. Please note that lines 19, 35,

43, and 56 are not connected.

PIN# SIGNAL PIN# SIGNAL

PIN# SIGNAL

AO GND

AOGND

DAC7OUT

AOGND

DAC2OUT

AOGND

DAC0OUT

AOGND

+5V

DGND

PFI3

DGND

PFI6

PFI8

GPCTR0_OUT

FREQ_OUT

DAC5OUT

AO GND

DAC3OUT

AOGND

DAC1OUT

EXTREF

AOGND

DIO6

DIO7

DGND

PFI0

PFI2

PFI4

PFI5

DGND

DAC6 OUT

AOGND

DAC4OUT

AOGND

DIO4

DIO0

DIO1

DGND

DIO5

DIO2

DIO3

EXTSTROBE

PFI1

+5V

GPCTR1_OUT

PFI7

PFI9

DGND

TB-2715 Terminal Block Installation Guide 4 ni.com

Figure 3. Pinout Diagram for PXI-653XModules

Figure 4. Pinout Diagram for PXI-660XModules

6. Loosen the screws in the screw terminals with the 0.10 in. slotted

screwdriver.

GND

PIN# SIGNAL

REQ1

GND

ACK1

GND

STOP1

DPULL

PCLK1

GND

PCLK2

CPULL

STOP2

GND

ACK2

GND

REQ2

GND

PIN# SIGNAL

+5V

GND

PIN# SIGNAL

PFI_17(UP_DOWN_5)

GND

PFI_18(GATE_5)

PFI_19(SOURCE_5)

GND

PFI_20(OUT_4)

PFI_21(UP_DOWN_4)

GND

PFI_22(GATE_4)

PFI_23(SOURCE_4)

GND

PFI_24(OUT_3)

PFI_25(UP_DOWN_3)

GND

PFI_26(GATE_3)

PFI_27(SOURCE_3)

GND

PFI_28(OUT_2)

PFI_29(UP_DOWN_2)

GND

PFI_30(GATE_2)

PFI_31(SOURCE_2)

PIN# SIGNAL

PFI_5(DIO_5)

GND

PFI_6(DIO_6)

PFI_7(DIO_7)

GND

PFI_8(OUT_7)

GND

PFI_9(UP_DOWN_7)

PFI_10(GATE_7)

GND

PFI_11(SOURCE_7)

PFI_12(OUT_6)

GND

PFI_13(UP_DOWN_6)

PFI_14(GATE_6)

GND

PFI_15(SOURCE_6)

PFI_16(OUT_5)

PIN# SIGNAL

PFI_39(SOURCE_0)

GND

PFI_36(GATE_0)

RESERVED

PFI_38(OUT_0)

GND

PFI_33(UP_DOWN_1)

PFI_37(UP_DOWN_0)

PFI_35(SOURCE_1)

GND

PFI_34(GATE_1)

GND

PFI_32(OUT_1)

PFI_0(DIO_0)

PFI_1(DIO_1)

GND

PFI_2(DIO_2)

PFI_3(DIO_3)

GND

PFI_4(DIO_4)

PIN# SIGNAL

+5V

GND

PIN# SIGNAL

©National Instruments Corporation 5 TB-2715 Terminal Block Installation Guide

7. Insert the stripped wires into the screw terminals. If you are using a

shielded cable, expose the shield and allow it to make contact with the

EMI gasket.

8. Tighten the screws with the 0.10 in. slotted screwdriver.

9. Connect safety ground or shield wires to the chassis ground connection

tab using the provided solder lug and ground lug screw.

10. Tighten or replace the strain-relief screws.

11. Replace the terminal block cover and tighten the cover screws.

Connecting the TB-2715 to Your PXI Module

Refer to Figure 5 as you perform the following steps to connect the

terminal block to your PXI module.

Figure 5. Connecting the TB-2715 to Your PXI Module

1. Install your PXI module into the chassis and tighten the two module

screws. You must install the PXI module in the PXI chassis before the

TB-2715 is connected to the PXI module.

2. Guide the terminal block onto the module connector.

3. Tighten the two terminal block mounting screws.

Caution Insert the terminal block as shown in Figure 5. The TB-2715 can be attached to a

PXI module only one way. Do not force the terminal block when attaching or removing it

to avoid damaging the TB-2715 or PXI module.

1 Terminal Block Mounting Screws

2 PXI Chassis

3 PXI Module Connector
