Napoleon EF30G User manual

W415-0760 / 12.19.08

$10.00

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

INSTALLATION AND

OPERATION INSTRUCTIONS

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada s(705)721-1212 sfax(705)722-6031

www.napoleonreplaces.com s[email protected]

For customer service inquiries, please call 1-866-592-6667

(9:00am - 5:00pm PST)

CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No-46 / UL 1278 CSA STANDARD

EF30G

ELECTRIC FIREPLACE

CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

SAFETY INFORMATION

- Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

If the information in these instructions are not

followed exactly, an electrical shock or fire may

result causing property damage, personal injury

or loss of life.

WARNING

W415-0760 / 12.19.08

• Do not operate fireplace before reading and understanding operating instructions. Failure to operate fireplace

according to operating instructions could cause fire or injury.

• Risk of burns. The fireplace should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Do not burn wood or other materials in this fireplace.

• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay away to

avoid burns or clothing ignition. Supervise young children when they are in the same room as the fireplace.

• Clothing or other flammable material should not be placed on or near the fireplace.

• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.

• Even after the fireplace is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot

surfaces. These screens and guards must be fastened to the floor.

• Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.

• It is imperative that the control compartments, circulating blower and its passageway in the fireplace and are kept

clean. The fireplace should be inspected before use and at least annually by a qualified service person. More frequent

cleaning may be required due to excessive lint from carpeting, bedding material, etc. The fireplace area must be kept

clear and free from combustible materials, gasoline and other flammable vapors and liquids.

• Under no circumstances should this fireplace be modified.

• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect

the fireplace and to replace any part of the control system which has been under water.

• Do not operate the fireplace with the glass door removed, cracked or broken. Replacement of the glass should be

done by a licensed or qualified service person.

• Do not strike or slam shut the fireplace glass door.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic

bags, these are not toys and should be kept away from children and infants.

WARNING

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

table of contents

1.0 introduction

1.0 INTRODUCTION 2

1.1 WARRANTY 3

1.2 GENERAL INSTRUCTIONS 4

1.3 PRECAUTIONS 4

1.4 LISTING APPROVALS 5

1.5 DIMENSIONS 6

1.6 LOCATING APPLIANCE 6

1.7 UNPACKING AND TESTING APPLIANCE 6

3.0 ELECTRICAL REQUIREMENTS 7

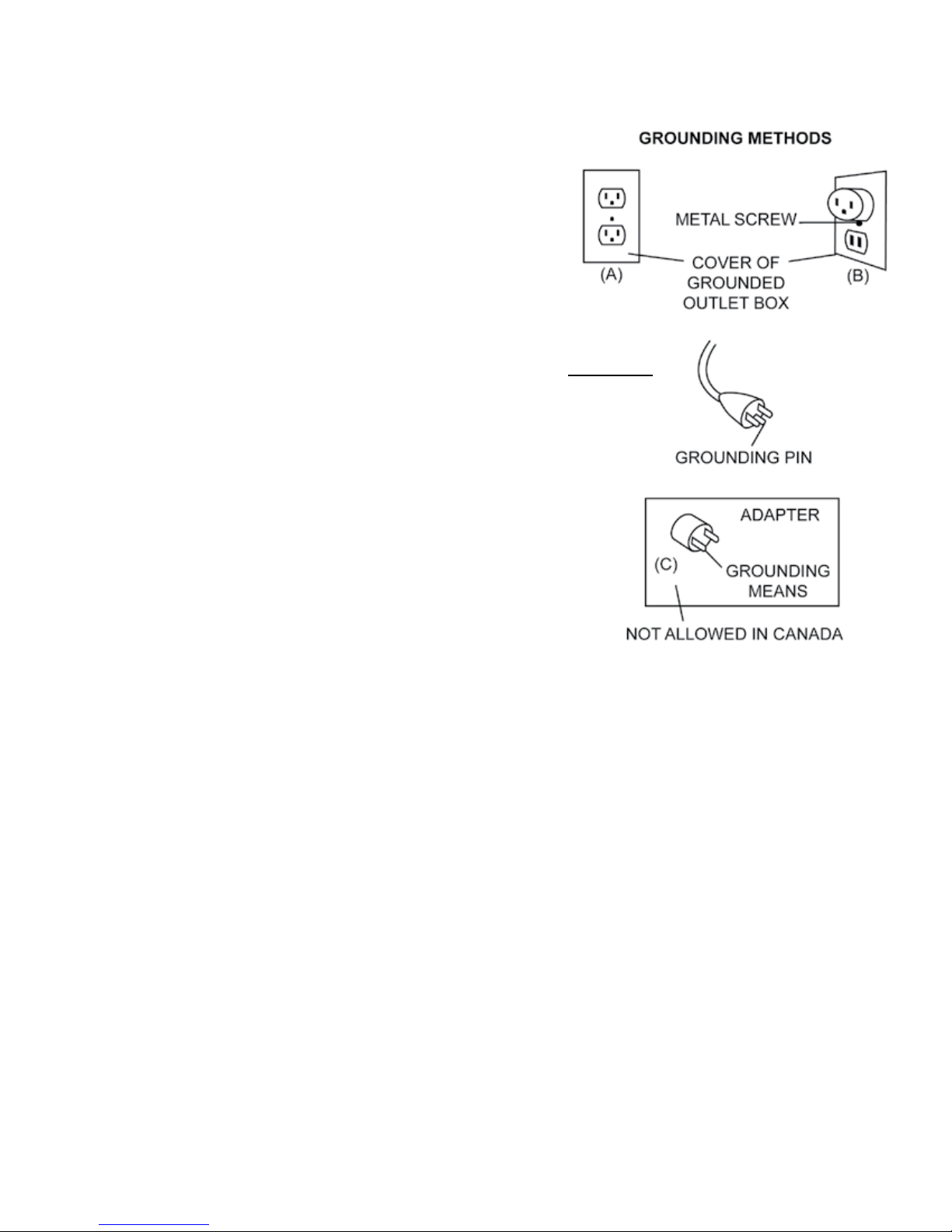

3.1 GROUNDING APPLIANCE 7

3.3 HARDWIRE INSTALLATION 8

3.0 INSTALLATION 10

3.1 MINIMUM CLEARANCE TO COMBUSTIBLES 10

3.2 NEW CONSTRUCTION OR RENOVATION 10

3.3 INSTALLING THE APPLIANCE 11

3.4 GLASS EMBER INSTALLATION 11

3.5 THERMOSTAT AND THERMAL SENSOR INSTALLATION 12

4.0 FRAMING 13

4.1 HEARTH 14

4.2 COLD CLIMATE INSTALLATION 14

4.3 MINIMUM MANTEL CLEARANCES 14

4.4 FINISHING CHECKLIST 14

5.0 OPERATING INSTRUCTIONS 15

5.1 REMOTE CONTROL 16

6.0 MAINTENANCE 17

6.1 FLAME GENERATION BULB REPLACEMENT 17

6.2 EMBER BED BULB REPLACEMENT 18

6.3 CLEANING 18

7.0 REPLACEMENTS 19

8.0 TROUBLESHOOTING 20

TP - ELECTRIC WARNING

W415-0760 / 12.19.08

Electrical components and wearable parts such as fan/heater, motors, switches, nylon bearing components

and remote controls are covered and NAPOLEON® will provide replacement parts free of charge during the

first year of limited warranty.

Light bulbs and fuses are NOT covered by the warranty.

Any labour related to warranty repair is not covered.

* Construction of models vary. Warranty applies only to components included with your specific heater.

NAPOLEON® ELECTRIC FIREPLACE PRESIDENT’S LIFETIME LIMITED WARRANTY

CONDITIONS AND LIMITATIONS

NAPOLEON® warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity (registered

customer) whose name appears on the warranty registration card filed with NAPOLEON® -- provided that the purchase was made through an

authorized NAPOLEON® dealer and is subject to the following conditions and limitations:

This factory warranty is non-transferable and may not be extended whatsoever by any of our representatives.

Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire

codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and parts installed

from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical

cleaners nor chipping on porcelain enamel parts, mechanical breakage of PHAZER™ logs.

In the first year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship

provided that the product has been operated in accordance with the operation instructions and under normal conditions.

NAPOLEON® will not be responsible for installation, labour or any other expenses related to the reinstallation of a warranted part and such

expenses are not covered by this warranty.

Notwithstanding any provisions contained in the President's Limited Lifetime Warranty, NAPOLEON’s responsibility under this warranty is defined

as above and it shall not in any event extend to any incidental, consequential or indirect damages.

This warranty defines the obligations and liability of NAPOLEON® with respect to the NAPOLEON® electric fireplace and any other warranties

expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON® neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this

product.

Any damages to fireplace, brass trim or other component due to water, weather damage, long periods of dampness, condensation, damaging

chemicals or cleaners will not be the responsibility of NAPOLEON®.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your

authorized dealer. The warranty registration card must be returned within fourteen days to register the warranty.

NAPOLEON® reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.

NAPOLEON® electric fireplaces are manufactured under the strict Standard of the world recognized

ISO 9001 : 2000 Quality Assurance Certificate.

NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen

who take great pride in their work. Once assembled the complete fireplace is thoroughly inspected by a qualified

technician before packing to ensure that you , the customer, receive the quality product that you expect from

NAPOLEON®.

1.1 warranty

TP - ELECTRIC WARNING

W415-0760 / 12.19.08

This electric appliance meets the construction and safety standards of H.U.D. for application in manufactured

homes when installed according to theses instructions.

1.2.1 Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the

outlet are on.

1.2.2 The appliance may emit a slight, harmless odour when rst used. This odour is normal and it is caused

by the initial heating of internal appliance elements and will not occur again.

1.2.3 If your appliance does not emit heat, consult the operation section of this manual for further information.

1.2.4 Use with a CSA or UL certied surge protector.

1.2 general instructions

WARNING

Read these instructions completely before beginning installation. Failure to follow them could cause a

fireplace malfunction resulting in serious injury and/or property damage.

All electric fireplaces have hot and arcing or sparking parts inside. Do not use it in areas where gaso-

line, paint or flammable liquids are present.

This electric fireplace is tested and listed for use only with the optional accessories listed in these

instructions. Use of optional accessories not specifically tested for this electric fireplace could void

the fireplace warranty and/or result in a safety hazard.

Risk of electric shock.

Do not open.

No user-serviceable parts inside.

High temperature, risk of fire. Keep electrical cords, drapery, furnishings, and other combustibles at

least 3 feet (0.9m) from the front of the fireplace and away from sides and rear.

Do not use damaged electrical cords.

Servicing should be done only while the fireplace is disconnected from the power supply circuit.

1.3 precautions

When using electric appliances, basic precautions should always be followed to reduce the risk of re, electric

shock, and injury to persons, including the following:

1.3.1 Read all instructions before using this appliance.

1.3.2 This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided,

use handles when moving this appliance. Keep combustible materials, such as furniture, pillows,

bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the appliance and

keep them away from the sides and rear.

1.3.3 Extreme caution is necessary when this appliance is used by or near children and whenever the

appliance is left operating and unattended.

1.3.4 Always unplug appliance when not in use.

TP - ELECTRIC GENERAL INSTRUCTIONS WARNING

W415-0760 / 12.19.08

1.3.5 Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been

dropped or damaged in any manner. Return appliance to authorized service facility for examination,

electrical or mechanical adjustment, or repair.

1.3.6 Do not use outdoors.

1.3.7 This appliance is not intended for use in bathrooms, laundry areas and similar indoor locations. Never

locate appliance where it may fall into a bathtub or other water container.

1.3.8 To disconnect appliance, turn controls to off, then remove plug from outlet.

1.3.9 Connect to properly grounded outlets only.

1.3.10 Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an

electric shock or re, or damage the appliance.

1.3.11 To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on soft

surfaces, like a carpet, where openings may become blocked.

1.3.12 Use this appliance only as described in this manual. Any other use not recommended by the

manufacturer may cause re, electric shock, or injury to persons.

1.3.13 Avoid the use of an extension cord because the extension cord may overheat and cause a risk of re.

However, if an extension cord must be used, the cord shall be No.14 AWG minimum size and rated

not less than 1875 watts.

SAVE THESE INSTRUCTIONS.

This appliance has been tested in accordance with the CSA Standards for xed and location-dedicated electric

room appliances in the United States and Canada. If you need assistance during installation, please contact

your local dealer.

Model Number EF30G

Description Electric Appliance

Voltage 120V AC

Watts MAX 1500W

Amps 15 AMP Grounded Circuit

Appliance

Width

30" (762mm)

Appliance

Height

32.29" (820mm)

Appliance

Depth

11.02" (280mm)

Net Weight 77 lbs (35kgs)

Gross Weight 83.8 lbs (38kgs)

NOTE: This appliance must be electrically wired and grounded

in accordance with local codes or, in the absence of local

codes, with National Electric Code ANSI/NFPA 70-latest edition

or the Canadian Electric Code, CSA C22.1 as appropriate.

1.4 listing approvals

W415-0760 / 12.19.08

Top View

Rating Plate

and Serial

Number

Back View

Power Cord

and

Thermostat

30.375”

26.500”

Side

View 32.250”

Heater vents - DO

NOT COVER

10.250”

11.000”

30.000”

WARNING

Heater vents and air

openings can not be covered

in any circumstances.

Minimum clearance of 1" on all sides, back and top must be

maintained at all times. Illustrations throughout these instruc-

tions reect typical installations and are for design purposes

only. Actual installations may vary slightly due to individual

preferences.

Figure 1.6 illustrates a variety of ways the appliance may be

located in a room. The appliance may be installed directly on

the oor (uncarpeted), or raised on a hearth.

Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance

operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet.

TOP VIEW SHOWING APPROVED ROOM

LOCATIONS OF FIREPLACE

FIGURE 1.6

1.5 dimensions

1.6 locating appliance

WARNING

Due to high temperatures, this electric fireplace should be located out of traffic. Keep combustible materials such

as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the front of the fireplace.

Never locate this electric fireplace where it may fall into a bathtub or other water container.

Wear safety gloves and safety glasses for protection during installation and maintenance.

To prevent contact with sagging or loose insulation, the electric fireplace must not be installed against vapor

barrier or exposed insulation. Localized overheating could occur and a fire could result.

1.7 unpacking and testing appliance

FIGURE 1d

FIGURE 1a

FIGURE 1b

FIGURE 1c

TP - LOCATING APPLIANCE WARNING

W415-0760 / 12.19.08

3.0 electrical requirements

This appliance is for use on 120 Volts. The cord has a plug as

shown in (A) of Figure 1 given below. An adapter as shown in

to two-slot receptacles. The green grounding lug extending

from the adapter must be connected to a permanent ground

such as a properly grounded outlet box. The adapter should

not be used if a three-slot grounded receptacle is available.

To disconnect appliance, turn controls to off, then remove plug

from outlet.

FIGURE 3.1

3.1 grounding appliance

W415-0760 / 12.19.08

235W

IF YOU PUT IN THE TEMPERATURE

SENSOR ON THE WALL.PLS CHOOSE 2

IF YOU USE THE

TEMPERATURE

SENSOR.PLS CHOOSE 1

TEMPERATURE

CONTROL SWITCH

10-10

5-5

4-4

1-1

9-9

6-6

2-2

3-3

12-12 8-8

PTC

t105!

REMO.

SIP2

RECEIVER

MAIN CONTROL

POWER

235W

FLAME MOTOR

BLOWER

MOTOR

HEATER 2

HEATER 1

TEMPERATURE

SENSOR

[

k_RG

TEM.

P-N0

H2 H1+

FAN

P-L

P-NI

MOTOR

LAMP

FIRE

7-7

3.3 hardwire installation

FIGURE 3.3

ELECTRIC DIAGRAM

WARNING

Ensure all power is turned off before hard wiring this fireplace.

TP - HARDWIRE WARNING

If it is necessary to hard wire this appliance, a qualied electrician may remove the cord connection, and wire

the appliance directly to the house hold wiring.

This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In

the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the

ANSI/NFPA 70-1996 NATIONAL ELECTRICAL CODE in the United States.

W415-0760 / 12.19.08

3.3.1 Remove cover plate

located beside the

power cord to reveal

the 7/8” wire hole.

Discard cover plate,

screws and insert a

box connector into

the hole.

3.3.2 Remove the lower

back panel from the

appliance to expose

wiring.

3.3.3 Remove the power

cord strain-relief

from the side of the

appliance and cut

the cord where

shown below. This

will be the hardwire

connection point.

3.3.4 Feed the supply

wires through the box connector and the grommet.

3.3.5 Using wire connectors connect the common (white) wires together, then the hot (black) wires, and then

the ground (green) wires.

3.3.6 Ensure the newly connected wires are kept away from the rotating parts and the circuit board, and

re-install the back panel.

NOTE: This appliance must be serviced from the back, leave enough wire so that the appliance can be

removed from the enclosure without disconnecting the power supply wires.

Remove 2 screws on cover plate.

FIGURE 3.3.1

Cut

Power Cord

FIGURE 3.3.3

Hot Wire

FIGURE 3.3.2

Common Wire

Ground Wire

FIGURE 3.3.4

Final Connection

Box

Connector

W415-0760 / 12.19.08

BEFORE INSTALLATION

Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high trafc

areas. NOTE: Follow all national and local electrical codes. This appliance can be installed into either

an existing appliance opening or as new construction / renovation.

EXISTING APPLIANCE INSTALLATION

Thoroughly clean out the existing appliance and hearth area. Plan the power supply. If an existing grounded

outlet is near the appliance, the power cord can run behind the appliance. If the cord is not long enough to

reach the outlet, a grounded extension cord minimum AWG No. 14 and rated to a minimum of 1875 watts may

be used. If you plan to cut or drill a hole in the existing appliance for wiring, it is best to hire a professional to do

this step in order to prevent personal injury.

Sides, back and top 1"

3.2.1 Select a location that is not prone to moisture and is located at least 0.9 m or 3 feet away from

combustible materials such as curtains or drapes, furniture, bedding, paper, etc.

3.2.2 Place the appliance in selected location to see how it will look in the future.

3.2.3 Mark the desired location on the oor and store appliance in a safe, dry and dust free location.

3.2.4 Frame in an opening leaving at least 1/4" (6 mm) around the edge of the appliance. Any new wiring

must be done in compliance with local and national codes and other applicable regulations in order to

reduce the risk of re, electric shock or other injuries. Therefore, it is strongly recommended that you

hire a professional to complete any such work.

3.0 installation

WARNING

RISK OF FIRE! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or

snagging to reduce the risk of fire, electric shock or personal injury. Do not run cord under carpeting. Do not cover

cord with throw rugs, runners or the like. Arrange cord away from traffic areas and where it will not be tripped over.

RISK OF FIRE! To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft

surfaces where openings may become blocked.

RISK OF FIRE! Do not blow or place insulation against the fireplace.

This electric fireplace is tested and listed for use only with the approved optional accessories. Use of optional

accessories not specifically tested for this electric fireplace could void the warranty and/or result in a safety hazard.

If the information in these instructions is not followed exactly, a fire or explosion may result causing property

damage, personal injury or death. Do not store or use gasoline or other flammable vapors in the vicinity of this or

any other fireplace.

This appliance must remain removable from the enclosure. The appliance may be hardwired, but it is recommended

that it be plugged into a standard outlet using the supplied power cord. This appliance must not be sealed around

the front facing.

Fireplace vents located on the front and back of this electric fireplace cannot, in any way, be covered as it may

create a fire hazard.

3.1 minimum clearance to combustibles

3.2 new construction or renovation

TP - INSTALLATION WARNING

Other manuals for EF30G

Table of contents

Other Napoleon Indoor Fireplace manuals

Napoleon

Napoleon GDS25N User manual

Napoleon

Napoleon GVF42-1N User manual

Napoleon

Napoleon BHD4 PENINSULA User manual

Napoleon

Napoleon B36NT User manual

Napoleon

Napoleon GD33NR User manual

Napoleon

Napoleon Plazmafire 31 User manual

Napoleon

Napoleon NEFI24H User manual

Napoleon

Napoleon PARK AVENUE GD82NT User manual

Napoleon

Napoleon Vittoria GD19N User manual

Napoleon

Napoleon Entice 36 Series User manual

Napoleon

Napoleon GDS 50-N User manual

Napoleon

Napoleon BGD90NT-E User manual

Napoleon

Napoleon B46NTR User manual

Napoleon

Napoleon NEFL50B-HD User manual

Napoleon

Napoleon GX36NTREA-1 User manual

Napoleon

Napoleon GVFT8 User manual

Napoleon

Napoleon NEFL50B User manual

Napoleon

Napoleon NEFM29-1215BW User manual

Napoleon

Napoleon Ascent BL42NTE User manual

Napoleon

Napoleon EFL42S User manual

Napoleon

Napoleon GDIZC - N User manual

Napoleon

Napoleon NEFL42SB-LOWC User manual

Napoleon

Napoleon GX70NTE User manual

Napoleon

Napoleon DL45 User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual

Miles Industries

Miles Industries Vogue 1300IRN Installation & operating instructions
