Napoleon Prestige PRO 500 User manual

Harvest Grove Outdoor Kitchen

Napoleon BBQ Instruction Manual

02-2018

This kit measures 51.5 x 60 x 28 in

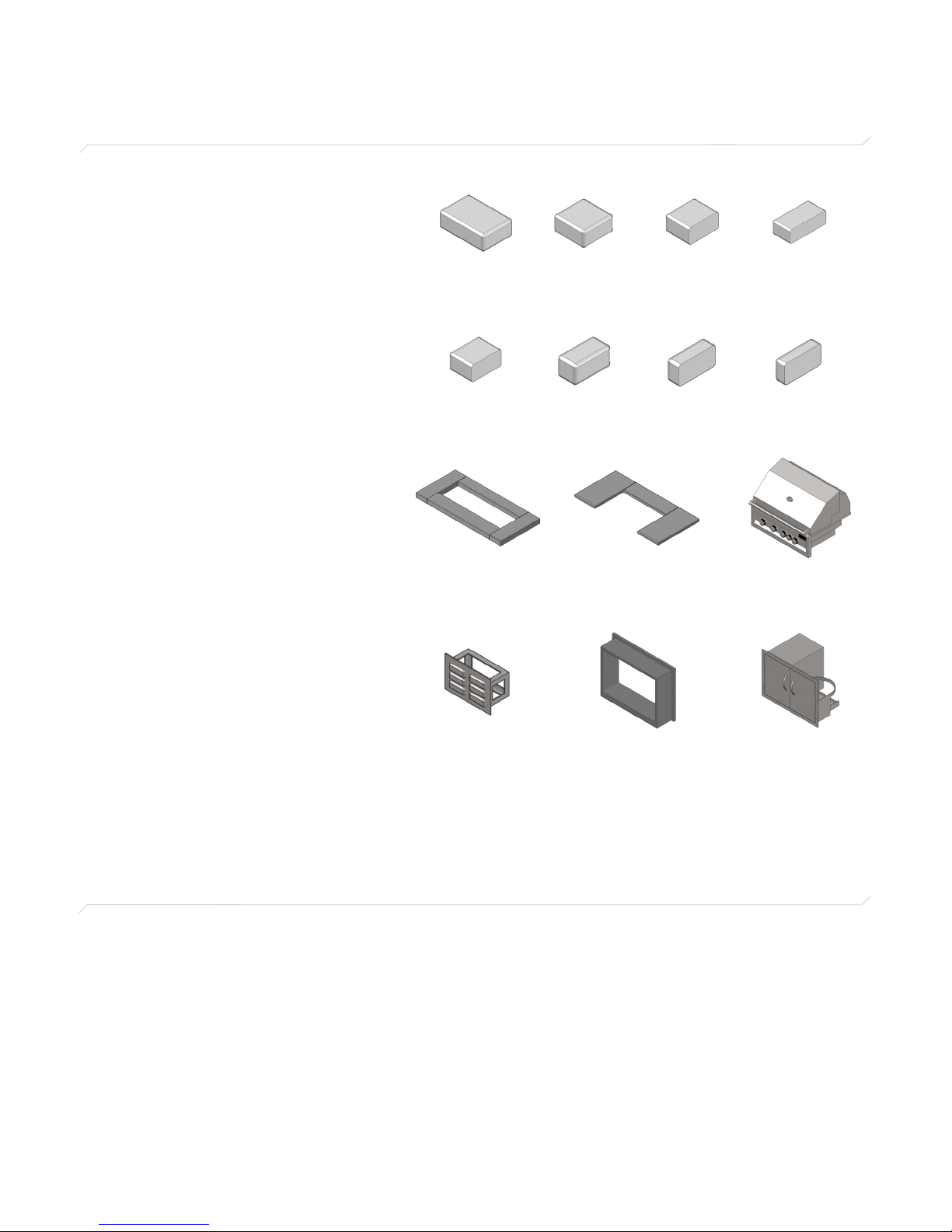

Materials Included:

• 12 x 8 x 4 in Quarry Stone – 57 pieces

• 8 x 8 x 4 in Quarry Stone – 3 pieces

• 4 x 12 x 6 in Quarry Stone – 6 pieces

• 4 x 8 x 6.625 in Quarry Stone – 2 pieces

• 4 x 8 x 6.125 in Quarry Stone – 7 pieces

• 4 x 8 x 2.625 in Quarry Stone – 2 pieces

• 4 x 8 x 2.125 in Quarry Stone – 6 pieces

• 4 x 8 x 4 in Quarry Stone – 9 pieces

• 4-piece Ebony Accent Band

• 3-Piece Ebony Countertop

• Prestige PRO™ 500 Napolean Grill

• Stainless Steel Vent Box

• Tank and Drawer Frame

• Double Door Tank Holder and Dual Drawers

• Concrete Screws with Drill & Driver Bits

• Plastic Shims

• Tube of Landscape Glue

• Gloves

• Instruction Guide

• Napoleon Manual

12 x 8 x 4 8 x 8 x 4 4 x 12 x 6

4-Piece Ebony

Accent Band

Materials

Base Preparation

If installing your Napoleon BBQ Grill on an

unstructured base, please ensure to follow

these steps:

• Excavate area approx. 9 inches below grade.

• Excavate approx. 6 inches larger than your

actual kit dimensions to ensure a stable base.

• Fill with 0.75 inch down limestone and

compact firmly.

• Level out 0.5 inch of sand and install kit as per

the instruction guide.

If you are installing on a solid base such as

an existing patio, base prep is not necessary.

Please proceed to the first step.

These instructions may not refer to all base

conditions. As this kit is incredibly heavy, base

prep will greatly depend on existing ground

conditions and may require alternate techniques.

Note: This manual was updated in January 2018.

Check www.barkmanconcrete.com/resources

for any manual updates.

3-Piece Ebony

CountertopOther Items Needed:

• Drill

• Caulking gun

• Measuring tape/ruler

Prestige PRO™ 500

Napolean Grill

Stainless Steel Vent Box Tank and Drawer Frame Double Door Tank Holder

and Dual Drawers

4 x 8 x 2.1254 x 8 x 6.125 4 x 8 x 2.625

4 x 8 x 6.625

4 x 8 x 4

Note: The Napoleon BBQ units are available in

propane and natural gas. Contact a gas fitter

prior to installing your natural gas BBQ unit.

302-2018

Note: Certain steps indicate the use of

landscape glue. This is for added stability

but it’s optional and at the discretion of the

user.

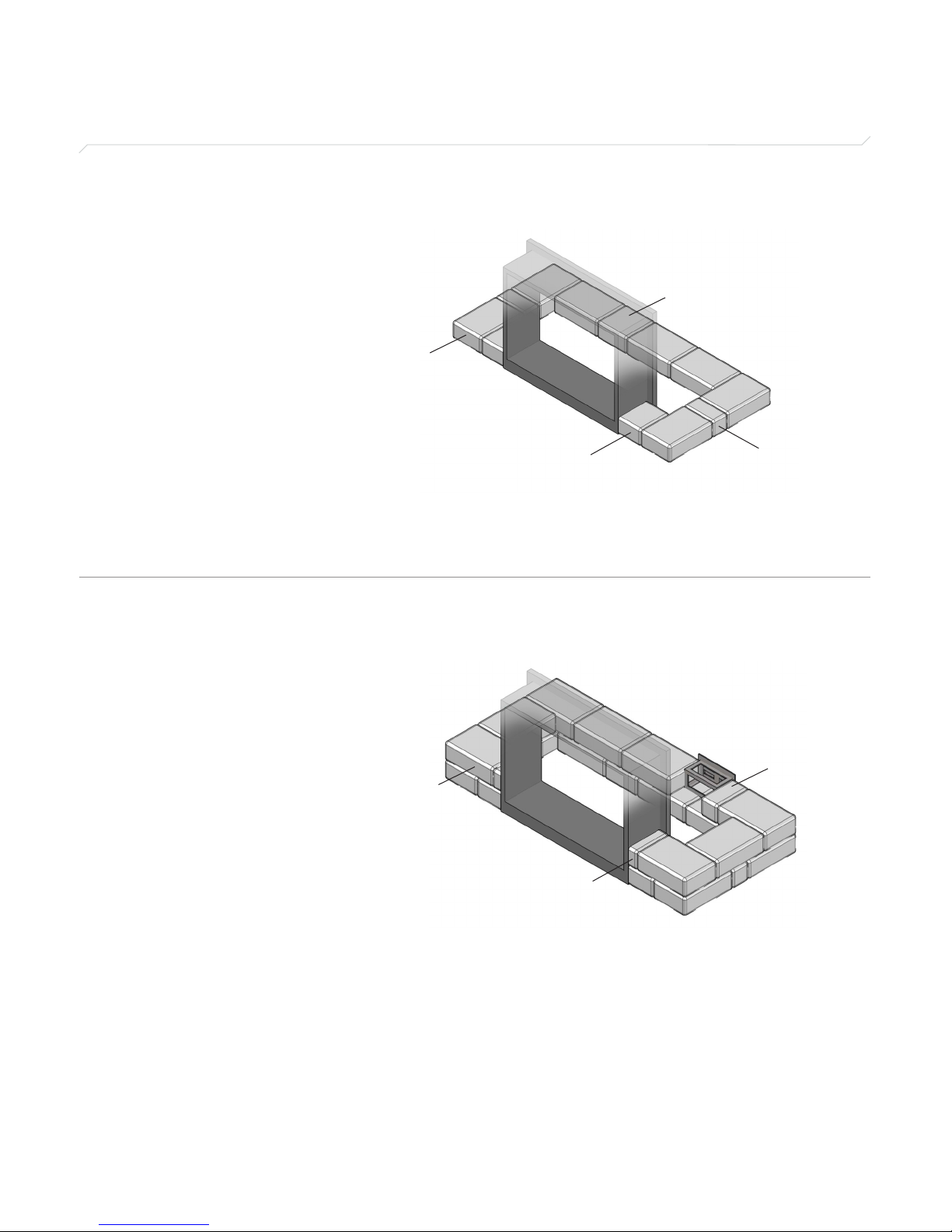

Step 1

Lay down the stone pattern shown along

with the tank and drawer frame. Glue the

cut ends of the blocks to the tank and

drawer frame for this and future layers.

Check that stones are level at every step.

There should be 20 inches between the

stone and top of the frame. Use included

shims for adjustments.

Use (7) 12 x 8 x 4 blocks

Use (1) 8 x 8 x 4 blocks

Use (2) 4 x 8 x 4 blocks

Use (2) 4 x 8 x 6.125 blocks

Use (1) Tank and Drawer Frame

8 x 12

4 x 8 x 6.125

Instructions

Step 2

Lay out the second layer as shown along

with the Vent Box. Check that stones are

level. There should be 16 inches between

the stone and top of the frame. Use

included shims for adjustments. Glue this

layer down to the first layer. Glue the cut

ends of the blocks to the tank and drawer

frame.

Use (8) 12 x 8 x 4 blocks

Use (1) 4 x 8 x 4 blocks

Use (2) 4 x 8 x 2.125 blocks

Use (1) Stainless Steel Vent Box

8 x 8

4 x 8

8 x 12

4 x 8 x 2.125

4 x 8

02-2018

Step 3

Repeat the pattern from step 1. Check that

stones are level. There should be 12 inches

between the stone and top of the frame. Use

included shims for adjustments. Glue the cut

ends of the blocks to the tank and drawer

frame.

Use (7) 12 x 8 x 4 blocks

Use (1) 8 x 8 x 4 blocks

Use (2) 4 x 8 x 4 blocks

Use (2) 4 x 8 x 6.125 blocks

Step 4

Lay out the fourth layer as shown in the dia-

gram. Check that stones are level. There should

be 8 inches between the stone and top of the

frame. Use included shims for adjustments.

Glue the cut ends of the blocks to the tank and

drawer frames.

Use (9) 12 x 8 x 4 blocks

Use (2) 4 x 8 x 2.125 blocks

Step 5

Repeat patterns from Steps 3 & 4. Make sure

this layer is flush with the top of the frame.

Glue the cut ends of the blocks to the tank

and drawer frames.

If installing with the Side Burner, do so on

the right-hand side of the Napoleon BBQ

Grill.

Use (16) 12 x 8 x 4 blocks

Use (1) 8 x 8 x 4 blocks

Use (2) 4 x 8 x 4 blocks

Use (2) 4 x 8 x 6.125 blocks

Use (2) 4 x 8 x 2.125 blocks

Remove this block if installing

Side Burner beside Napoleon

BBQ Grill

502-2018

Step 6

Lay down the 4-piece Accent Band as shown.

Make sure all 4 pieces are level. Glue this down

to the Tank and Drawer Frame and Quarry

Stone below.

Use (1) 4-piece Accent Band

Step 7

Lay out the second layer as shown in the

diagram.

Use (6) 12 x 8 x 4 blocks

Use (3) 4 x 12 x 6 blocks

Use (2) 4 x 8 x 2.625 blocks

Step 8

Lay out the second layer as shown in the

diagram.

Use (4) 12 x 8 x 4 blocks

Use (3) 4 x 12 x 6 blocks

Use (2) 4 x 8 x 6.625 blocks

Use (2) 4 x 8 x 4 blocks

4 x 8 x 2.625

4 x 8 x 6.625

02-2018

Step 9

Lay down the 3-piece Ebony Countertop

as shown. Make sure all 3 pieces are level.

Glue this down to the quarry stone below.

Use (1) 3-piece Ebony Countertop

Step 10

Insert the Double Door Tank Holder and Dual

Drawers into the Tank and Drawer Frame.

Use the included shims to ensure it fits snug

and remains square. Remove the tank holder

and drawers from the sliders by pressing on

the black tabs.

Use (1) Double Door Tank Holder

Step 11

Pre-drill holes into the Tank and Drawer

Frame through openings in the Double Door

Tank Holder and Dual Drawers with the

drill bit provided. Fasten in place with the

provided concrete screws (do not overtight-

en). Reinsert the drawers and tank holders

thereaer.

Front edge flush

with Quarry Stone

1.5 inch overhang at back

702-2018

Step 12

Place the Prestige PRO™ 500 Napolean Grill

into the space provided.

Note: Refer to the manual included with

Prestige PRO™ 500 Napolean Grill for proper

use and installation.

Napolean BBQ Grill

Bar with Fridge Bar Counter

Pizza Oven

Prep Station with

Waste Receptacle

Side Burner

End Units

(Le and Right)

Corner Unit
