NANLUX Evoke 900C User manual
Evoke 900C
LED RGBLAC Spot Light
USER MANUAL
Guangdong NanGuang Photo&Video Systems Co., Ltd.
WWW.NANLUX.COM 01
Thank you for purchasing Nanlux product-Eovke 900C!
Evoke 900C is a high power output, full color spot light with RGBLAC color mixing technology, owning fully adjustable color temperature ranging from 1800K-20000K
(G/M±200). It supports CCT, Advanced HSI, XY, RGBW, GEL and EFFECT lighting modes, and on board control, wire control, APP, DMX/RDM, LumenRadio CRMX
and Art-Net, sACN controlling modes. Besides, with IP55 rating, adjustable cooling system and various accessories, Evoke 900C can provide great performance and
versatile functions in virtual production or other professional projects.
1. Please do not look directly at the emitter when the light is on, to avoid eyes discomfort caused by high luminance.
2. Please do not place the fixture near any flammables and explosives, to avoid fire hazard caused by high luminance.
3. Please do not immerse the fixture in water. While with IP55 rating, the light fixture can be used in the rainy situations.
4. Please place the power cable and DC cable properly to avoid stumbled caused by long cables.
5. Please exchange the power cable if any damage is found, to avoid electric shock.
6. Please use the power cable and DC cable provided by the manufacturer as the power is high. Dangers like melting cable, electric shock or fire may happen if cables of
other brands are used.
7. Please do not block the vents when the fixture is on. The fixture is built with active cooling system, so ensure unimpeded vents to prevent the fixture from protection state
due to overheating.
8. Please do not disassemble the fixture to repair at will, so as not to cause damage to the fixture that contains precision electronic components. If repair is required, please
return to the distributor or have them repaired by any qualified technician.
9. Please switch the fixture off and unplug the cables before cleaning, to avoid electric shock.
10. Please do not use strong detergent for cleaning. Please wipe off the dirt by using a cloth with neutral cleanser when cleaning the fixture.
11. Please hold the handle securely when detaching the accessories or adjusting the beam directions, since the accessories such as Fresnel lens and softbox are heavy.
12. Please ensure that the power cable and DC cable are properly connected when using the fixture, to avoid sparking and heating of the plug.
Introduction
Notice
WWW.NANLUX.COM 02
Product Diagram
Evoke 900C LED RGBLAC Spot Light
Rated Power: 940W
Input: DC 48V/18.75A Max
AC 100-240V 50/60Hz
Color Temperature: 1800K-20000K (G/M±200)
CRI: Average 96
TLCI: Average 96
Technical Data
WWW.NANLUX.COM 03

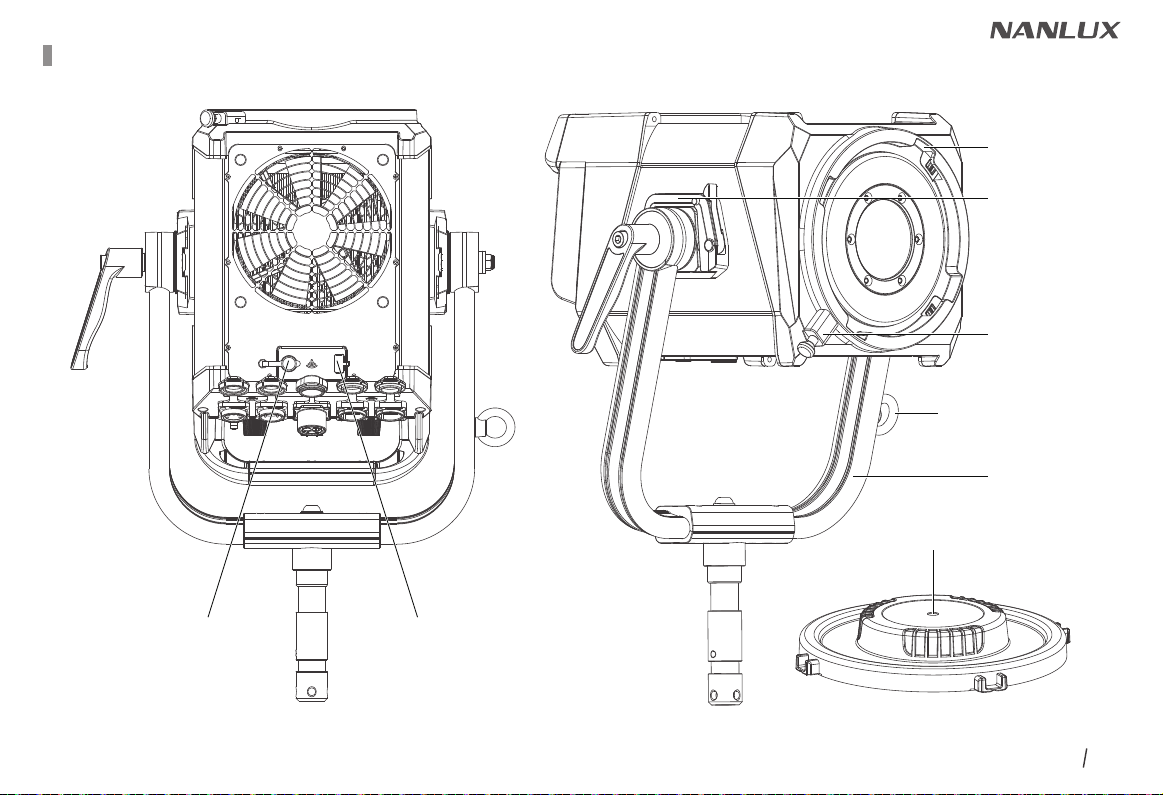

4. Quick Release
Device
5. Lock Catch
7. Yoke
3. NL Mount
6. Eye Bolt
2. USB Port1. Wire Control
Socket
8. COB Protective Cap
Product Details
WWW.NANLUX.COM 04

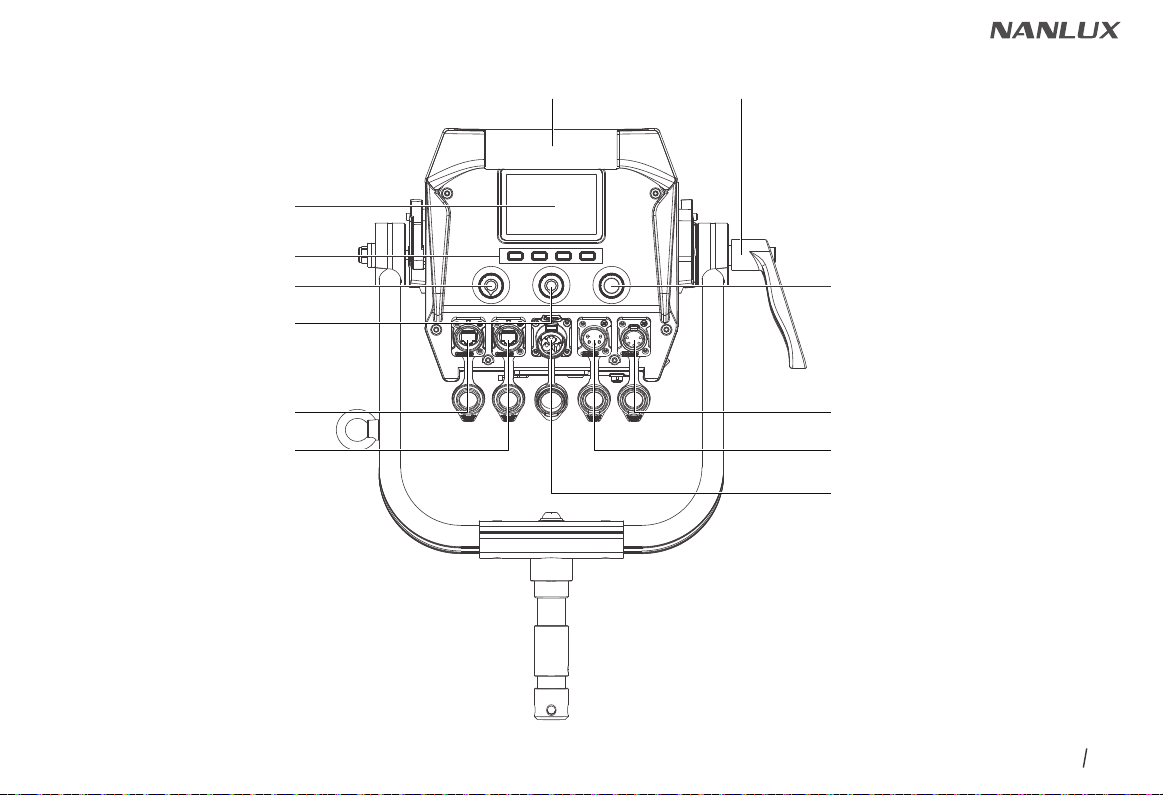

16. Adjustable Handle
17. Right Knob
18. DMX IN
19. DMX OUT
20. DC IN
9. Display
10. Buttons
11. Left Knob
12. Middle Knob
13.LAN1
14.LAN2
15. Fixture Body Handle
WWW.NANLUX.COM 05

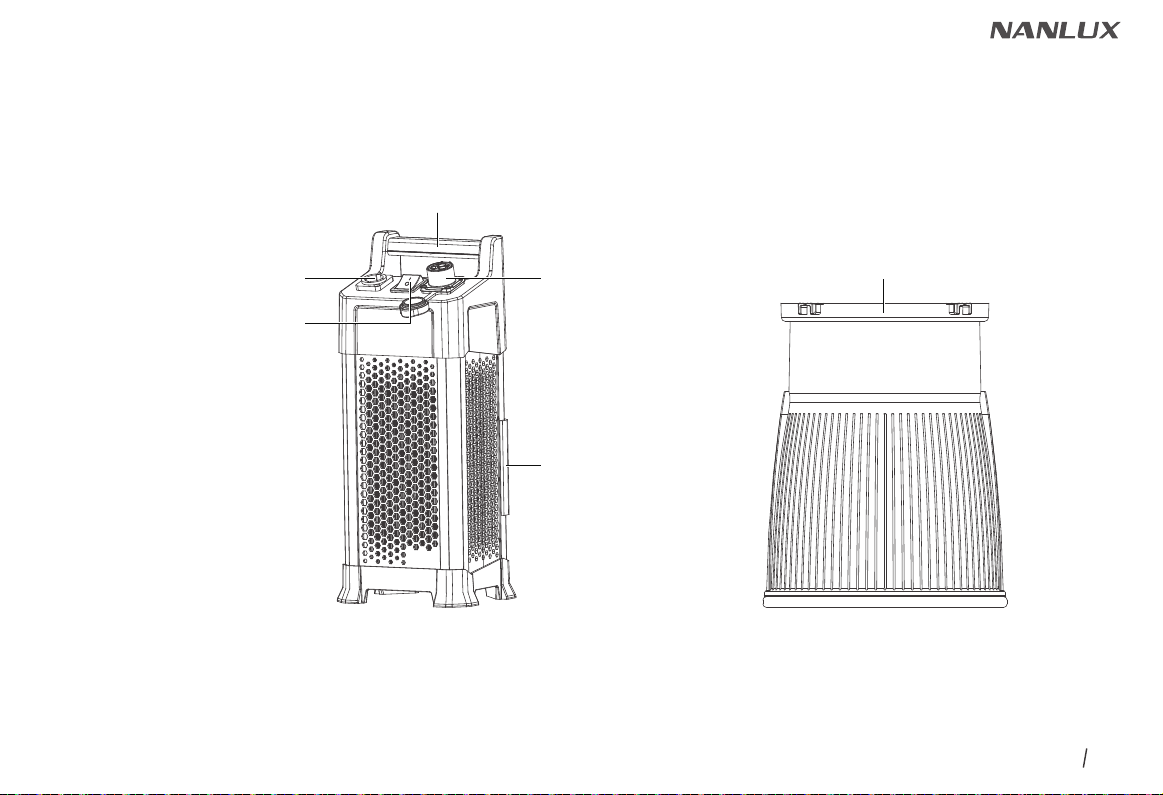

26. Reflector
24. DC Power
Output Socket
25. Quick Release
Plate
23. Power Switch
21. Power Supply Handle
22. AC Power Input Socket
WWW.NANLUX.COM 06
1. Wire control socket: Wire control interface.
2. USB port: For updating firmwares or providing current with maximum 5V/1A to external devices via connecting the USB cable.
3. NL mount: For installing the reflector or other NL mount accessories.
4. Quick release device: For quick installation and detachment of yoke.
5. Lock catch: To lock or release the reflector or other accessories. Note: Please pull in the direction indicated on it.
6. Eye bolt: For hanging safety rope.
7. Yoke: Mount the fixture on a stand, also for pan and tilt.
8. COB protective cap: For protection purpose, please cover the COB with the cap when the fixture is not in use.
(Note: Take off the cap before using.)
9. Display: To display data.
10. Buttons: Including MODE, MENU, PRESET and LOCK.
11. Left knob: For adjusting brightness.
12. Middle Knob: For adjusting settings for each option.
13. LAN 1: Network connecting port.
14. LAN 2: Network connecting port.
15. Fixture body handle: Offer convenient grip for adjusting direction of illumination.
16. Adjustable handle: Tighten or release the tilt movement of the fixture on the yoke.
17. Right knob: For selecting options.
18. DMX IN: DMX signal input interface.
19. DMX OUT: DMX signal output interface.
20. DC IN: DC power input interface.
21. Power supply handle: For lifting the power supply.
22. AC power input socket: For connecting AC cable and supplying power to power supply.
23. Power switch: To turn on/off the fixture.
24. DC power output socket: For connecting the fixture to the power supply with DC cable.
25. Quick release plate: For mounting the quick release clamp.
26. Reflector: For concentrating light to improve the central illumination.
Detailed Description
WWW.NANLUX.COM 07
USER MANUAL
Evoke 900C
LED RGBLAC Spot Light
Guangdong NanGuang Photo&Video Systems Co., Ltd.

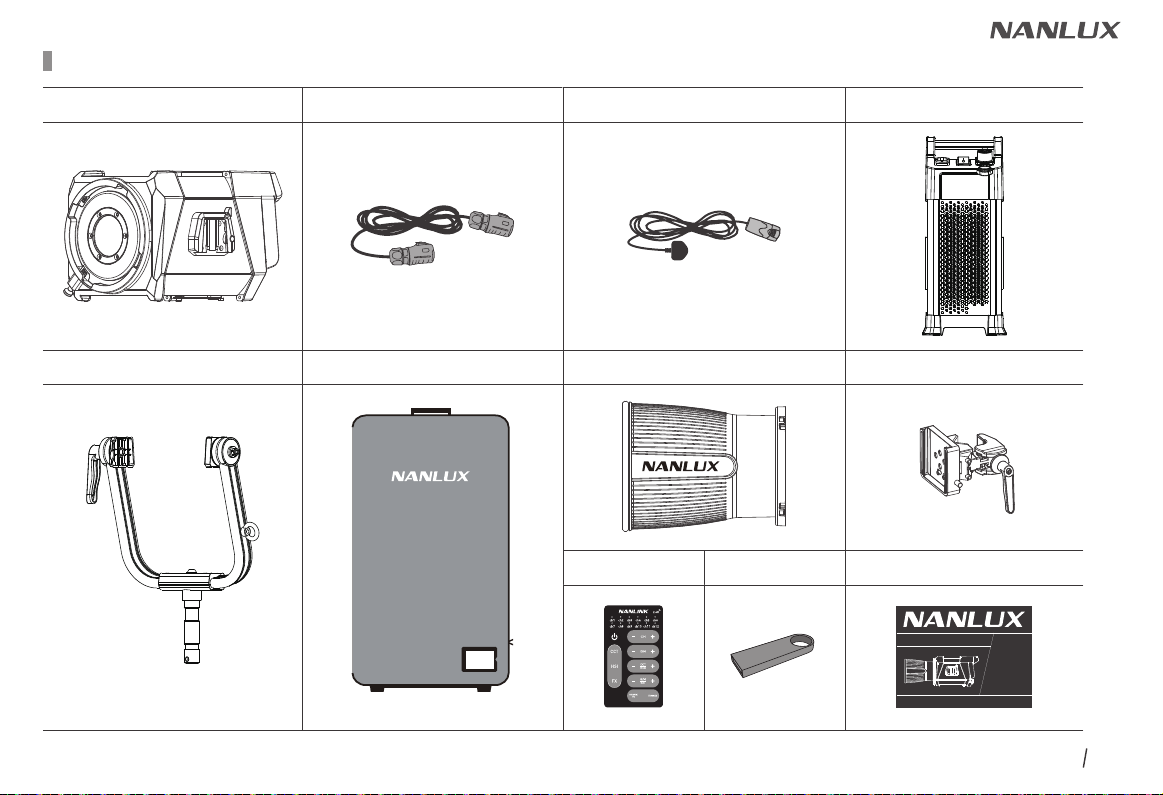

Evoke 900C × 1 Power Supply × 1
AC Power Cable × 1
User Manual × 1
DC Connection Cable × 1
Remote Controller × 1
Includes
USB Flash Drive × 1
AS-CP-QR-EV × 1Reflector × 1Yoke × 1 CC-ST-EV900C Trolley Case × 1
WWW.NANLUX.COM 08
Evoke 900C × 1
Yoke × 1
Power Supply × 1
Reflector × 1
DC Connection Cable 7.5M × 1
AC Power Cable 6M × 1
AS-CP-QR-EV × 1
USB Flash Drive × 1
WS-RC-C2 Remote Controller × 1
User Manual × 1
Carton Packaging
Evoke 900C × 1
Yoke × 1
Power Supply × 1
Reflector × 1
DC Connection Cable 7.5M × 1
AC Power Cable 6M × 1
AS-CP-QR-EV × 1
FL-35YK Lens × 1
USB Flash Drive × 1
WS-RC-C2 Remote Controller × 1
User Manual × 1
CC-EV1200-FL-YK-FT Flight Case × 1
Evoke 900C FL-YK-KIT Flight Case Kit
Multi-light Kit
WWW.NANLUX.COM 09
Evoke 900C × 1
Yoke × 1
Power Supply × 1
Reflector × 1
DC Connection Cable 7.5M × 1
AC Power Cable 6M × 1
AS-CP-QR-EV × 1
USB Flash Drive × 1
WS-RC-C2 Remote Controller × 1
User Manual × 1
CC-EV1200-FT Flight Case × 1
Evoke 900C Flight Case Kit
