My Pet Command DF113R User manual
- 1 -
My Pet Command Dual Function
Pet Containment Fence and
Remote Trainer
Operation Guide
www.mypetcommand.com
Email:- [email protected]
Tel:- USA 888 686 6495
Tel:- Australia:- 1300 416 703
For Model Number DF113R
PLEASE READ FULLY BEFORE USE
- 2 -
Introduction
Congratulations on your purchase of the MY PET
COMMAND Dog Fence System Dual function with
remote trainer! We understand that along with the
proper setup of your new electronic fence system,
it’s also important to properly train and teach your
pet to understand it’s new boundaries. This
training will ensure your pet(s) will be happy and
safe for years to come, and we look forward to
helping you successfully achieve this goal.
Please read the operation guide fully and carefully
before beginning system setup and training your
pet. As always, if you have any questions when
reading through this manual, don’t hesitate to
contact us via the contact details in this Manual.
- 3 -
Table of Contents
Components……………………………..…………........4
How the system works…………………….…..…….5
Main Features ……………………………………..........7
Fence Transmitter ……………………………..….…..9
Transmitter…….……………..…………………………12
Receiver Collar……………………………….…...……16
Switch Single Mode and Dual Mode……...…...16
Setting Up In Ground Fence System ……...…..21
Examples of Cable layouts………………………...30
Fence System Training Guide………..…………..33
Dog Pass Through Fence System Mode ……..35
Setting Up Multi-Dog System…………………….37
Charging …………………………………………………45
Troubleshooting Guide……..………………….…..48
- 4 -

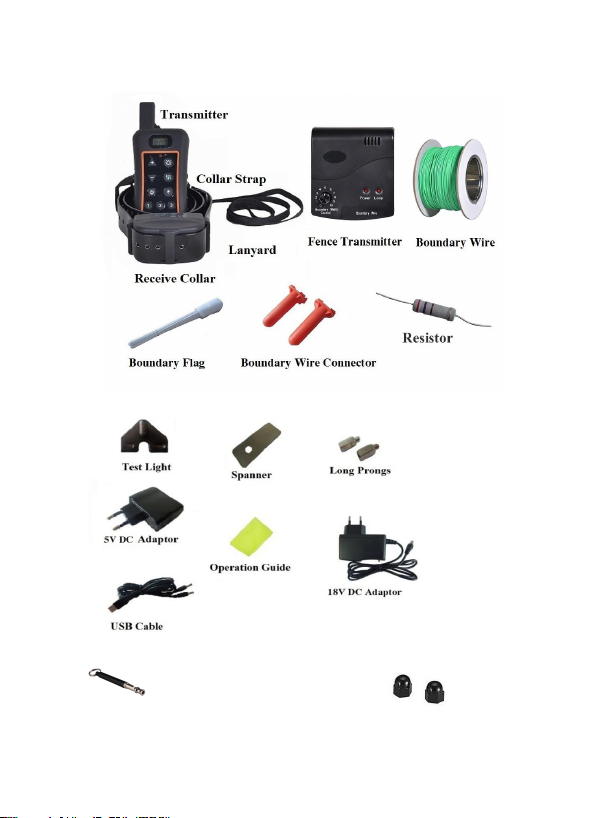

Components
Bonus Ultrasonic whistle Plastic Prongs
- 5 -
How the System Works
Proven to be safe, comfortable, and effective
for dogs over 10 lbs./5kg., the MY PET
COMMAND Dog Fence System is a 2 in 1 dual
system of both the in ground wire fence
system and the remote dog training system.
To begin with, you define the Pet Area or
boundaries you wish to have for your pet.
Once that is determined, Boundary Wire is
buried or attached above ground to a fixed
object to enclose the Pet Area. Your fence
system works by producing a radio signal
from the Fence Transmitter through the
Boundary Wire, helping your pet to learn and
understand their boundaries. When first
implementing this system, you should
temporarily define the Pet Area with
Boundary Flags for a visual aid in training
your pet.
- 6 -
In addition to the Boundary Wire, your pet
wears a Receiver Collar with Contact Prongs
that touch your dog’s neck. When your pet
reaches the Warning Zone, the Receiver Collar
gives a warning beep to indicate you pet has
reached the boundary. If your pet continues
into the Correction Zone, a safe Vibration and
Static Correction will be delivered through the
Contact Prongs to get your dog’s attention
until your dog returns to the ‘Safe Pet Area.’
Once trained, your pet is allowed to roam
freely in the designated ‘Safe Pet Area.’
Also included is the remote control (For
selected kits only), designed to assist you in
controlling your pet without a leash and from
long distances. At the push of a button, the
Remote Transmitter sends a signal, activating
the Receiver Collar. Using the Remote Trainer
consistently and correctly, will aide in the
training of your pet and correct many
nuisance behaviors your pet currently
- 7 -
displays i.e. excessive barking, pulling
washing off your line, digging under your
fence, etc.
Important: The Remote Trainer’s effectiveness
and range is highly dependent on the way you
hold the Remote Transmitter. Hold the Remote
Transmitter in a horizontal position away from
your body to achieve maximum range. Terrain,
weather, vegetation, vehicle, buildings,
transmission from other radio devices, and
other factors may affect the range of your
Remote Trainer.
Main Features
1. Dual 2 in 1 in ground fence system and remote
training system.
2. Train up to three dogs from the same Remote
Trainer, with extended range up to 1,200
meters (¾ Mile) in open areas.
3. 10 levels of shock stimulation.
4. 10 levels of vibration.
- 8 -
5. “Buzz” sound activated with a separate button.
6. Buttons “+” and “-” allow you to set your shock
and vibration intensity.
7. Dog selection buttons allow you to select
specific dog.
8. LCD digital display provides easy visibility for
selecting 10 shock and vibration levels, and
seeing dog ID.
9. 8 seconds safety termination. Your pet’s
Receiver Collar will automatically cease
vibration or static correction when your pet
gets stuck in the correction zone for more than
8 seconds.
10. Audible wire-break alarm to ensure you
system is never down.
11. Beep warning with vibration and three levels
of static correction for pet boundary
awareness training.
12. Ability to set pet pass through areas for your
pet to pass through without any static
corrections.
- 9 -
13. 492 FT(150M)of Durable Polyolefin solid
copper wire, 50 flags, and 2 Adaptors included.
Expand you area by adding extra wire.
14. IPX7 Waterproof receiver and remote trainer.
15. Rechargeable 3.7V Li-ion battery for Receiver
Collar and Remote Trainer.
16. LED low power indicator that flashes red
when battery is low.
17. Fully functional multi-dog training system.
Fence Transmitter
Power
Light
Loop
Indicator
Light
Power Jack
Boundary Width
Control Switch
Boundary Wire
Terminals
- 10 -
Boundary Width Control Switch:
This knob allows you to adjust the Boundary
Width, which is the combination of Warning
Zone and Vibration & Static Correction Zone.
Boundary Wire Terminals:
These terminals are where the Boundary Wire
connect to the Fence Transmitter in order to
form a continuous loop, designating the pet
area.
Power Light:
This light indicates if the system is on or off. If
the light is glowing, the system is on and
functioning.
Loop Indicator Light:
This light indicates whether or not the
Boundary Wire is forming a complete loop
