Mvix XHIBIT MYKRO User manual
XHIBIT MYKRO INSTALLATION
CAT5 CABLE
Connects the signage device to
the network switch or router
POWER ADAPTER
Supplies power to the signage device
Input power: 12V 1.5A (110/220V compatible)
HDMI CABLE
Connects the signage device to
the display screen or monitor
HDMI can transmit both video
and audio signals
Headphone
microphone
jack
LAN
HDMI
VGA
DC IN
Power button
USB 3.0
SD card slot
USB 3.0
LED
866.310.4923 www.mvixdigitalsignage.com
1
3
5
2
4
6

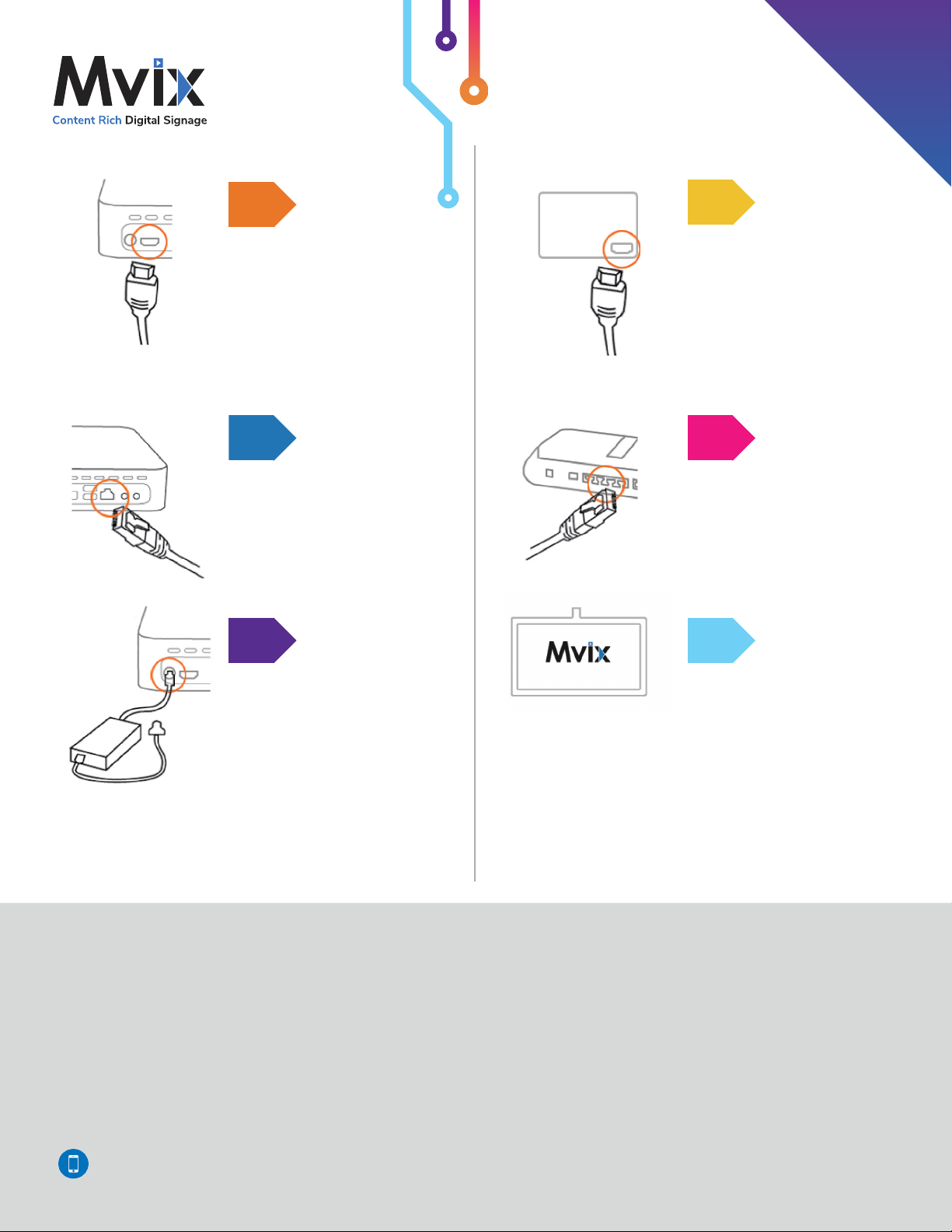

Plugin HDMI Video cable to
the signage device.
Connect the network cable
to the signage device.
Connect the power adapter
to the signage device and
the plug to the wall socket.
Plugin HDMI Video cable to
the rear panel/HDMI port of
your screen or monitor.
Connect the network cable
to your network switch /
router.
Once the signage device boots up, it will show a
startup logo on the screen.
Mount the device behind the display screen.
Operate the signage device via the web-based
software (www.xhibitsignage.com).
POWER PORT
Power port is to connect the
signage device to a power source
via an AC adapter (included).
Location of this port may vary
according to the model. Please
check the sides of the device, if
needed.
HDMI VIDEO
HDMI port is to connect the
signage device to the screen via a
HDMI cable (included).
Connect one end of the HDMI cable
to the signage device and the other
end to the display screen.
NETWORK PORT
Network Port is to connect the
signage device to the internet via a
CAT5 cable (included).
Connect one end of the network
cable to the signage device and the
other end to the network switch /
router.
866.310.4923 www.mvixdigitalsignage.com
