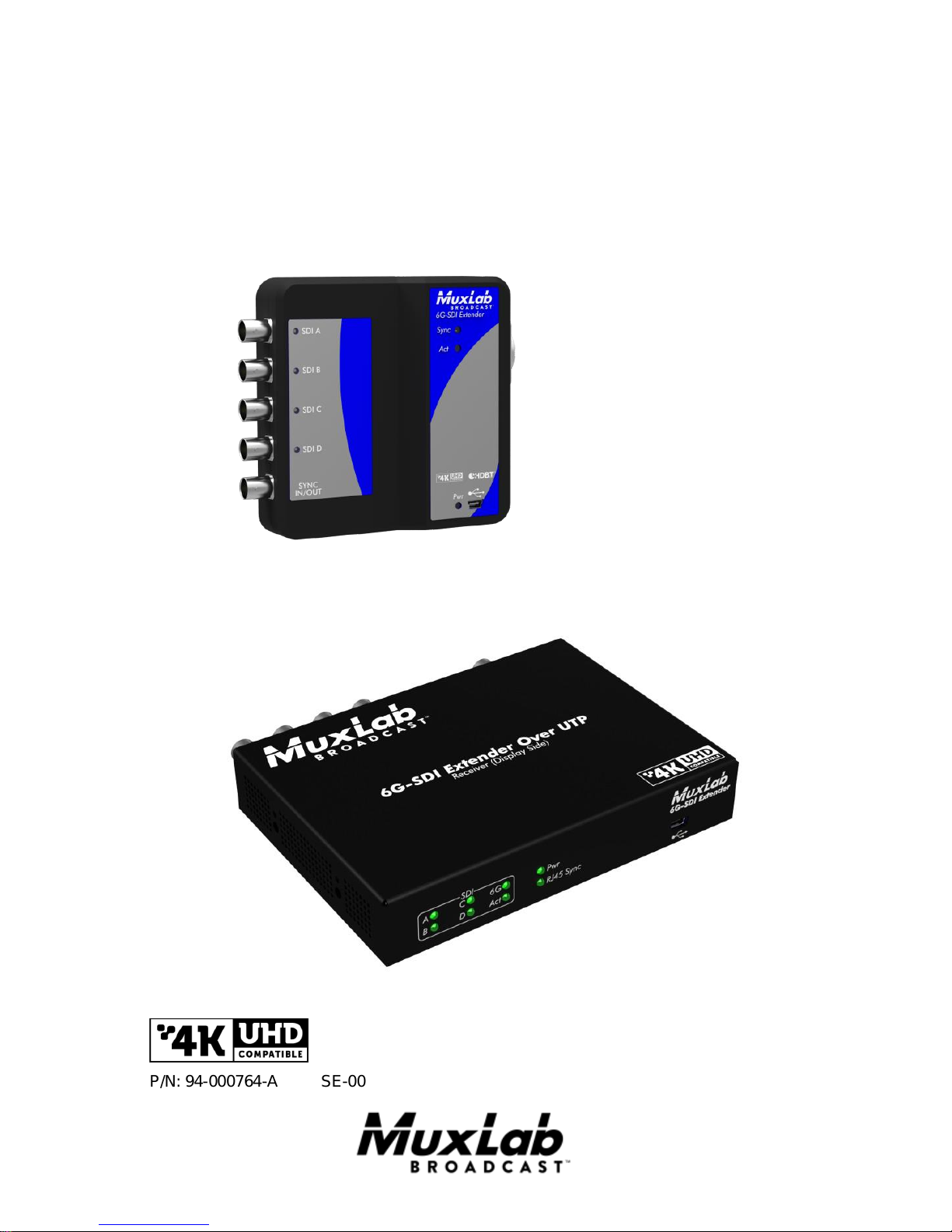

MuxLab 500730 User manual

P/N: 94-000764-A SE-000764-A

6G-SDI EXTENDER OVER UTP

500730

Installation

Guide

Page 2

Printed in Canada. No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in any form or by any

means, electronic, mechanical, photocopying, recording or

otherwise without prior written permission of the author.

Trademarks:

MuxLab Broadcast is a registered trademark of MuxLab Inc.

Page 3

Table of Contents

1. Overview ..................................................................... 4

1.1. Description...........................................................4

1.2. Features................................................................6

2. Technical Specifications.............................................. 7

3. Installation Procedure ................................................ 9

3.1. Parts List...............................................................9

3.2. Product Overview ............................................... 10

3.3. Physical Installation............................................ 12

3.4. Installation & Power-up Procedure...................... 13

3.5. Supported SDI Modes.........................................14

3.6. Supported Video Modes......................................15

3.7. SDI Input Connection .........................................16

3.8. SDI Output Connection.......................................16

4. Firmware Upgrade Procedure ..................................17

4.1. Firmware Upgrade Procedure..............................17

4.2. USB Driver Setup...............................................20

5. Unit Control and Status.............................................23

6. Troubleshooting.........................................................24

7. Appendix....................................................................26

A. ASCII Command Set ..........................................26

8. Product Warranty Policy...........................................29

Page 4

Overview

1.1.

Description

The 6G-SDI Extender is a unique new solution from Muxlab for

extending SDI based cameras* or other SDI sources* up to 4K

resolution with the added benefit of extending the Hi Resolution

signal up to 330 feet (100M).

Standard Cat5e/6 UTP cable is used for the extension. The pair

(Transmitter, Receiver) uses PoE for power and only requires the

Receiver (Rx) side to be powered. The input source for the 6G-SDI

Extender over UTP is either HD-SDI using four coax cables, 3G-

SDI using two coax cables, and 6G-SDI using a single coax cable.

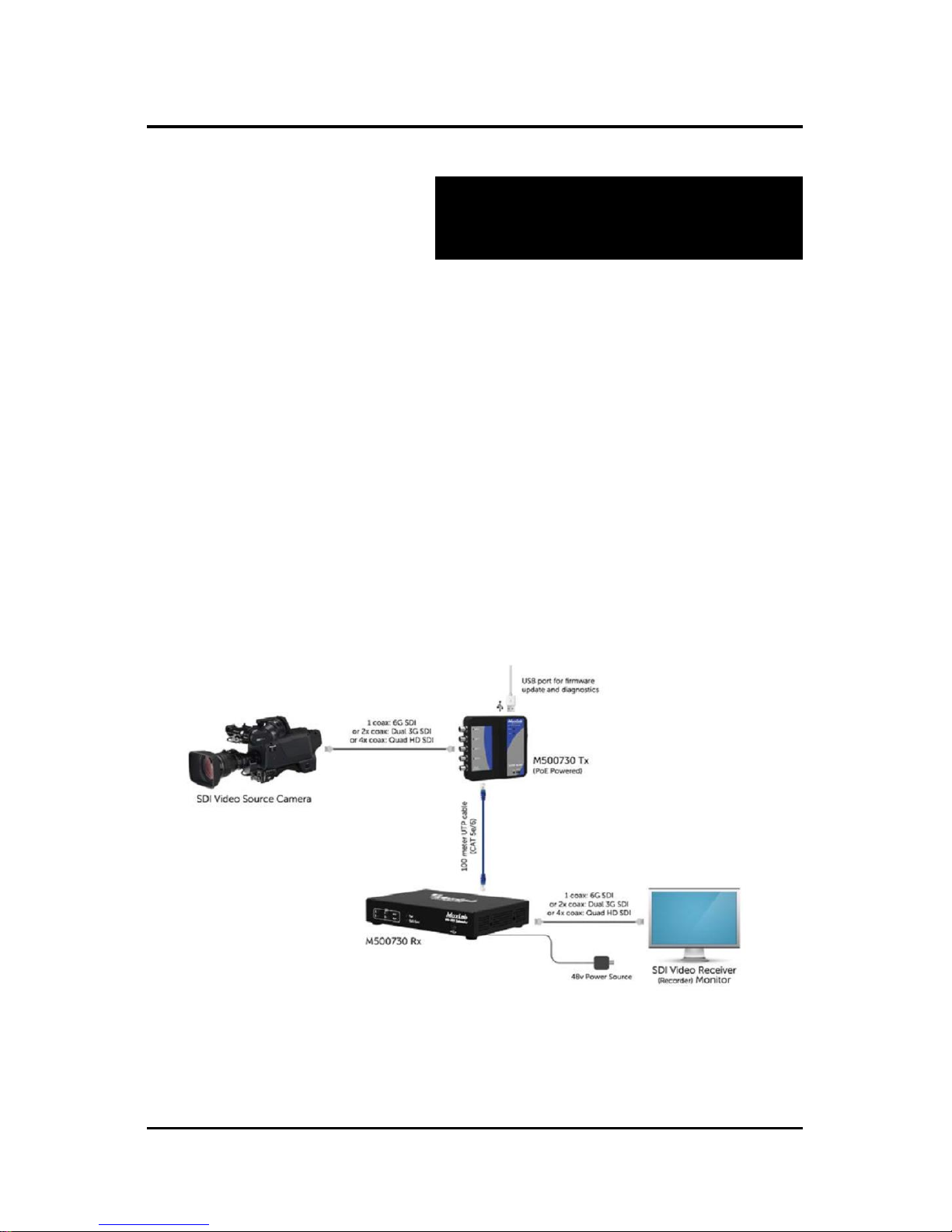

Figure 1: System Overview

Applications:

Page 5

• Cinema recording

• Movie making

• Studio production

• News coverage / live reporting

Page 6

1.2.

Features

Up to 330 feet (100m).

HD-SDI using single, two or four coax cables, 3G-

SDI using single or two coax cables, 6G-SDI using

a single coax cable HDMI 3D support.

Maximum resolution supported:

4096x2160@24/25Fps, 3840x2160@30Fps

Supported SMPTE Standards:

SMPTE-292M, SMPTE-296M, SMPTE-372M,

SMPTE-424M, SMPTE-425M

Supports all 6G channel configurations (1/2/4).

Automatic SDI Link recognition and configuration

Firmware is field upgradable.

Automatic turn on of the long reach mode

(150meters) when HD signal is detected.

USB interface for field upgradable firmware and

diagnostics.

PoE to power the Transmitter .

Ethercon connectivity and solid Aluminum

enclosure for ruggedized use.

Multiple ¼”-20 threads for Camera mounting or

equipment attachment.

Page 7

Technical Specifications

Specifications

Environment

6G-SDI Digital Signal Transmission

Enclosures

Measurements

Tx: 110mm (4.3”) x 110mm (4.3”) x 32mm (1.250”)

Rx: 146mm (5.75”) x 105mm (4.13”) x 26mm

(1.02”)

Color

Black Enamel (Rx Unit)

Black Electrophoresis (Tx Unit)

Control

Serial Console Emulation with USB Interface

Compliance

FCC, CE, RoHS

Power

48VDC, 0.7Amp

External Power Supply with US, UK and Euro

blades

Table 1 - Specifications

Page 8

Connectivity - Transmitter

Front Side

4x BNC SDI Input Connectors (0.8V pp, 75Ohms)

1x BNC Sync Output Connector

Rear Side

1x RJ-45 Ethercon Connector (Compatible with NE8MC

System)

Top Side

Mini USB for firmware updates (and control & status)

Table 2 –Connectivity Transmitter

Connectivity - Receiver

Front Side

Mini USB for firmware updates (and control & status)

Rear Side

1x RJ-45/UTP Connector

4x BNC SDI Output Connectors (0.8V pp, 75Ohms)

1x BNC Sync Input Connector

1x Power Connector (5.5mm x 2.1mm)

Table 3 –Connectivity Receiver

Page 9

Installation Procedure

3.1.

Parts List

The 6G-SDI Extender over UTP Kit (500730) comes

with the following parts:

1x Transmitter Unit (Tx)

1x Receiver Unit (Rx)

1x 48VDC Wall-mount Power Supply

Blades for the Wall-mount Power Supply

Page 10

3.2.

Product Overview

3.2.1.

Transmitter

The external connections and light indicators of the

transmitter unit are detailed in Figure 2. Please

familiarize yourself with them before installing the unit.

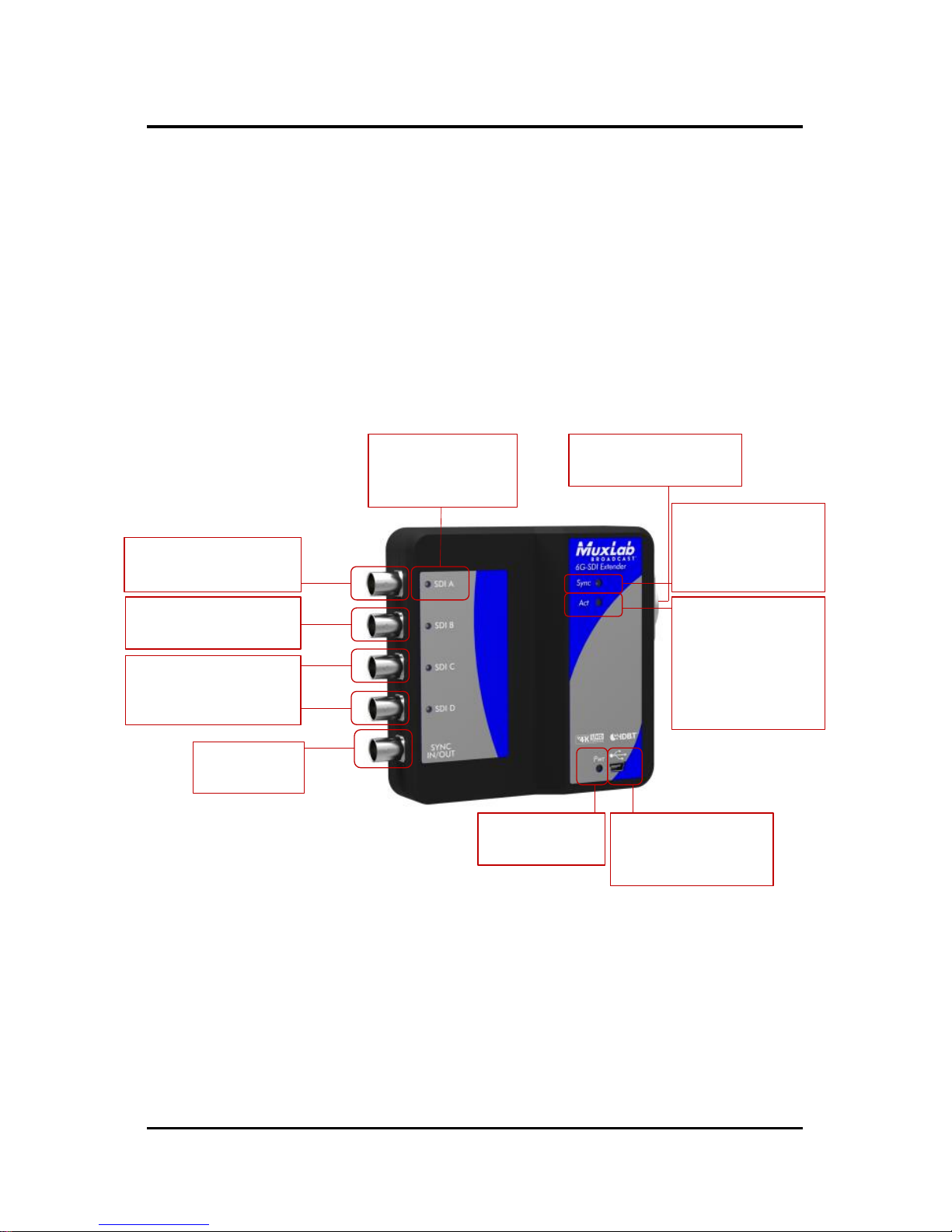

Figure 2: Front Transmitter Unit

6G/3G/HD-SDI Input

Compatible

LED Indicator

When SDI Link

is established

Power

LED

Indicator

Mini-USB Port

Firmware Upgrade

Unit Control

Flashing LED

Indicator

When

information

Is passing

through the link

LED Indicator

when the

HDBase-T link is

established

Sync

Output

RJ45/UTP

Ethercon Connector

3G/HD-SDI Input

Compatible

HD-SDI Input

Compatible
