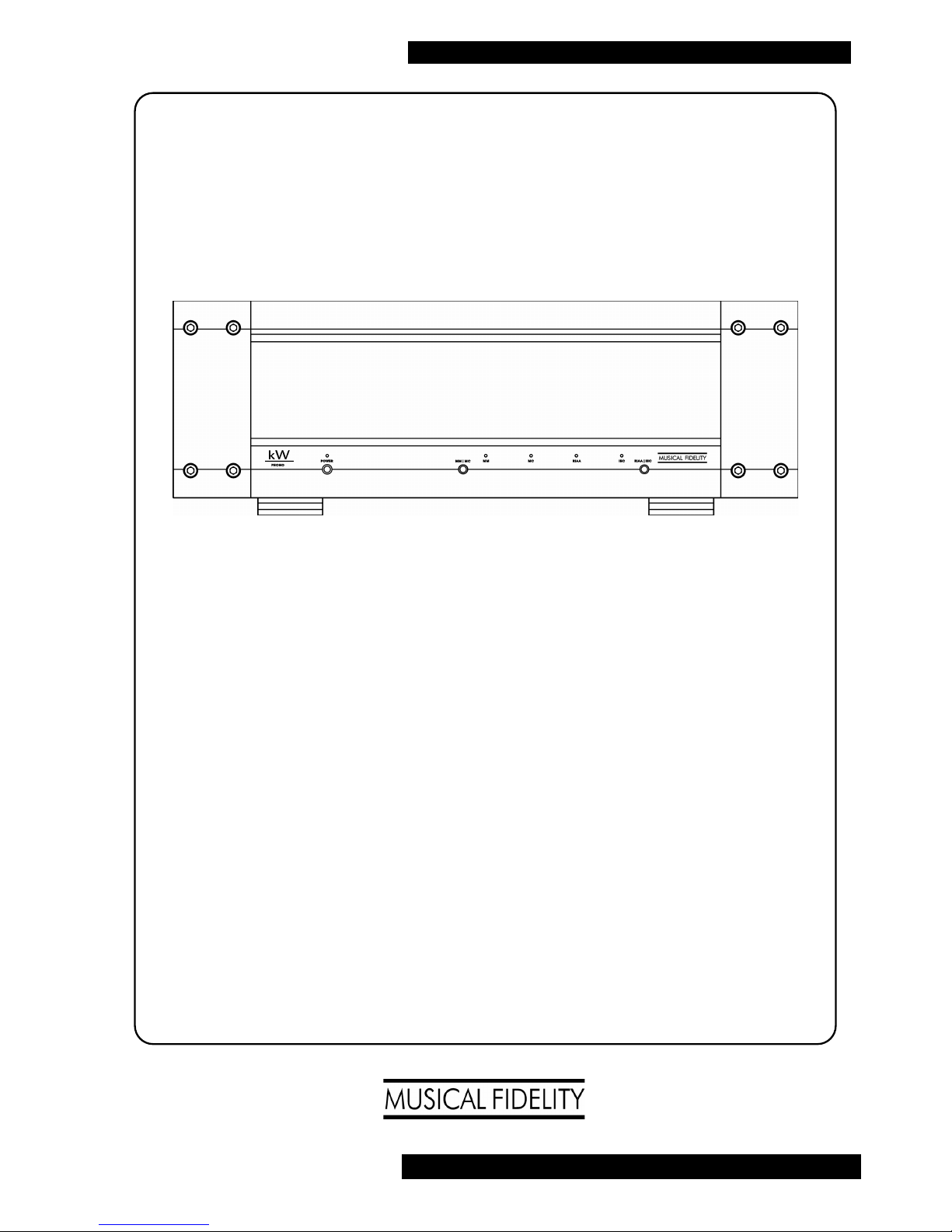

Musical Fidelity KW Phono User manual

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 1 of 7

kW Phono

PHONO PREAMPLIFIER

INSTRUCTIONS FOR USE

Thank you for purchasing the Musical Fidelity kW Phono preamplifier.

Used properly and carefully, it should give many years of outstanding musical

reproduction.

Aesthetically, the kW Phono is a perfect match for the

kW 750 Power Amplifier, kW Hybrid Line Level Preamplifier

and kW SACD Player.

Together they form one of the finest hi-fi systems available.

Dust regularly with a soft duster or soft brush, but be careful when using cleaning

or polishing agents - they may harm the surface finish.

If you have any questions about your audio system,

please consult your dealer who is there to help and advise.

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 2 of 7

SAFETY INFORMATION

IMPORTANT!(U.K. only)

This unit is supplied in the U.K. with a mains lead fitted with a moulded 13 amp plug. If, for any

reason, you need to cut off the plug, please remove the fuse holder and dispose of the plug safely,

out of reach of children. It must not be plugged into a mains outlet.

The wires in the mains lead supplied with this appliance are coloured in accordance with the

following code:

Green and yellow..............Earth

Blue................................Neutral

Brown.................................Live

WARNING - This appliance must be earthed

As the colours of the wires of the mains lead of this appliance may not correspond with the

coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which

is marked with the letter E or coloured green or green-and-yellow, or by the earth symbol:

The wire which is coloured brown must be connected to the terminal which is marked with the

letter L or coloured red.

The wire which is coloured blue must be connected to the terminal which is marked with the letter

N or coloured black.

If connecting to a BS1363 plug, a 13 amp fuse must be used.

WARNING:

Any modifications to this product not expressly approved by Musical Fidelity who

is the party responsible for standards compliance could void the user’s authority to

operate this equipment.

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 3 of 7

GENERAL ADVICE

INSTALLATION PRECAUTIONS and USER INFORMATION

Your new kW Phono is designed and built to provide trouble-free performance, but as with all

electronic devices it is necessary to observe a few precautions:

Heed all warnings shown on the back of the product.

Only connect the kW Phono to a mains outlet having the same voltage as marked at the back of the

unit.

Always ensure that when disconnecting and reconnecting your audio equipment the mains supply

is switched off.

Position the mains lead and signal interconnects where they are not likely to be walked on or

trapped by items placed on them.

Do not use near water, or place water-filled containers on the preamplifier, for example, a flower

vase or potted plants. If water does spill inside, immediately pull out the mains plug from the

wall socket and inform your dealer, who should then check the unit before further use.

Entry of liquid into the preamplifier is dangerous, and may cause electric shock or fire

hazard.

Do not place the unit near direct heat sources such as radiators, direct sunlight or other equipment.

Do not remove any covers or try to gain access to the inside. There are no internal adjustments or

fuses you can replace yourself. Refer all service work to an authorised Musical Fidelity agent.

Note: Unauthorised opening of the equipment will invalidate any warranty claim.

Dust regularly with a soft cloth or soft brush but be careful when using cleaning or polishing agents

- they may harm the surface finish.

The electronics in modern hi-fi equipment is complex and may, therefore, be adversely affected or

damaged by lightning. For protection of your audio system during electrical storms, remove the

mains plugs and disconnect any aerial lead.

If after-sales service is required, to help your dealer identify the kW Phono preamplifier please

quote the serial number located on the rear panel of the unit.

RADIO FREQUENCY INTERFERENCE (R.F.I)

This product has been tested to ensure that its operation is not adversely affected by normal

background levels of R.F.I., and that it does not itself generate excessive amounts of interference.

However, if a problem persists, please contact your Musical Fidelity agent.

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 4 of 7

CONNECTIONS and FACILITIES

1 2 3 4 5 6 7 8 9 1

FRONT PANEL

1 Illuminated feet with multi-colour

indicator LEDs (see page 6)

2 POWER mains on/off push switch

3 Power on indicator LED

4 Moving Magnet /Moving Coil

input selection button (see page 6)

5 Moving Magnet input indicator LED

6 Moving Coil input indicator LED

7 RIAA compensation indicator LED

8 IEC compensation indicator LED

9 RIAA /IEC compensation selection button

(see page 6)

REAR PANEL

10 Moving Coil input socket - right channel

11 Moving Magnet input socket - left channel

12 Moving Coil input socket - left channel

13 Mains inlet socket - IEC type (10 Amp)

14 Moving Magnet input socket - right channel

15 Moving Magnet impedance selection switch

- right channel

16 Moving Coil LOADING selection switch

- right channel

17 Moving Coil LOADING socket

- right channel

18 Phono chassis earth terminal

19 Moving Magnet impedance selection switches

- left channel

20 Moving Coil LOADING selection switch

- left channel

21 Moving Coil LOADING socket

- left channel

22 Audio output socket - RIGHT channel

23 Audio output socket - LEFT channel

(see page 5 for connection and switch setting details)

10 11 12 13

14 15 16 17 18 19 20 21 22 23

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 5 of 7

CONNECTIONS

Pickup loading adjustments and all input,

output and power connections should be made

with the mains power switched OFF.

INPUT CONNECTIONS

The rear panel of your kW Phono pre-

amplifier has two pairs of RCA phono input

sockets, one pair for left and right moving

magnet (MM) and the other pair for moving

coil (MC) pickup cartridges.

(See also page 6, MM / MC switching).

The switches and loading sockets located on

the rear panel are for optimising phono

performance as follows : ....

MC (only):

Input loading can be changed to suit an

individual pickup cartridge by sliding the

LOADING switch underneath the PHONO

MC input socket between the 10 Ohm

internal and EXTERNAL loading options as

required.

In the EXTERNAL position, loading

impedance can be set by inserting the

preferred accessory plugs into the left and

right LOADING sockets.

The unit is supplied with five sets of load

plugs as standard accessories. There are two

each (one per channel) in 100, 200, 500, 1K

and 5K Ohm options, and are marked on the

sides with their resistance value.

Simply select and insert the loading plugs

which suit your pickup manufacturer’s

recommendation.

MM (only):

A four-way switch underneath the PHONO

MM input socket is for matching the

characteristics of your phono pickup and lead

to the kW Phono. When all the switches are

off (up), the input impedance is 68K Ohms in

parallel with 47pF capacitance.

When each individual lever is moved

downwards, loading of the MM phono input

circuit changes as shown by adjacent graphics

on the rear panel (see also specification on

page 7). If you are not sure which

combination to select, please consult your

dealer.

PICKUP ARM EARTHING

Some turntables or pickup arms are fitted with

an extra wire for chassis earthing. This

should be connected to the chassis earth

terminal on the back panel.

(Note : this is not a safety earth).

OUTPUT CONNECTIONS

The kW Phono has two line level audio

outputs from RCA sockets on the back panel,

marked OUTPUTS. Using good quality

RCA co-axial audio leads, connect the left

and right outputs to the preamplifier input of

your audio system.

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 6 of 7

OPERATION

BEFORE SWITCHING ON . . . . .

Plug the accessory IEC mains lead into the

rear panel socket, then the other end into a

convenient wall outlet.

STARTING

Press the POWER switch button on the

preamplifier front panel - the blue LED just

above the button will light indicating that

power is applied to the unit.

LEDs in the support feet will also light red for

about six seconds, indicating that both left

and right audio outputs are muted.

Muting is then disabled, and feet illumination

then fades over approximately fifteen seconds

to yellow, showing that your kW Phono is

now ready for use.

After a period of about 35 minutes, the LED

feet colour fades to blue, confirming that the

preamplifier is fully warmed up.

PHONO MM / MC SWITCHING

Your kW Phono preamplifier has independent

circuits for moving magnet (MM) or moving

coil (MC) phono pickups.

To obtain the preferred input, press the MM /

MC selector button on the front panel. A

corresponding blue indicator on the front

panel will light to confirm your selection.

Each press of the button changes over input

between the two options.

CAUTION - only operate this function at low

volume setting.

RIAA / IEC COMPENSATION

As a further refinement, the phono pickup

characteristic can be adjusted to suit either

RIAA or IEC compensation curves.

Historically, the original RIAA curve defined

the low audio frequency limit as 20Hz.

The later IEC standard specifies frequency

response down to 10Hz to restrict possible

turntable rumble, or the effect of a warped

record.

Each time the RIAA / IEC button on the front

panel is pressed, the phono pickup stage is

switched alternately between the two options.

A corresponding blue indicator on the front

panel lights up to confirm your choice.

Issue 2 (LP) : 10 March 2005 kW Phono Preamplifier Instructions for use Page 7 of 7

kW Phono

PREAMPLIFIER

.SPECIFICATIONS.

Output :

Voltage RMS, maximum > 43 Volts

Impedance 32 Ohms

Frequency response deviation from RIAA 20Hz to 20kHz ±0.1dB

Input :

Total harmonic distortion + noise, < 0.012% (MM, 10 Volts output)

20Hz to 20kHz

Input sensitivity for 300mV RMS output 2.9mV Moving Magnet, 500µV Moving Coil

Input impedance MC : Switched : 10 Ohms internal, or user adjustable by external

RCA-type loading plug. Without plug 47k Ohms.

Input capacitance 470pF.

MM : All switches up : 68k Ohms in parallel with 47pF,

Switch no. 1 down : 47k Ohms + 47pF,

Switch no. 2 down : extra 50pF added,

Switch no. 3 down : extra 100pF added,

Switch no. 4 down : extra 200pF added

Overload margin 42dB above rated input at 1kHz (MM)

Channel separation > 64dB 20Hz to 20kHz

Channel balance error < 0.5dB typical

Signal / noise ref. 1Volt RMS output > 78dB Moving Magnet (“A”-weighted)

> 75dB Moving Coil (“A”-weighted)

Frequency response reference IEC, RIAA

-20.0

-15.0

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

20.0 31.5 50.0 80.0 125 200 315 500 1000 1600 2500 4000 6300 10000 16000

RI AA

PHONO

RIAA/IEC

PHONO RESPONSE

Frequency (Hz)

- see graph . . . .

Input sockets : 2 phono Moving Magnet via RCA connector

2 phono Moving Coil via RCA connector

Output sockets : 2 RCA connectors for line level output

Power requirements : 115 /230 Volts or 100 V AC 50 /60Hz (factory preset)

25 watts maximum

Dimensions : 483mm, 19 inches wide

167mm, 6.6 inches high (including feet)

456mm, 18 inches deep (including buttons and rear terminals)

Weights : 18.15Kg, 40 lbs unit only, unboxed

23Kg, 51 lbs in shipping carton

Standard accessories : IEC mains lead - 10 Amp type

Moving coil pickup loading plugs, (2 each) of

100, 200, 500, 1K and 5K Ohms resistance

Musical Fidelity reserves the right to make improvements which

may result in specification or feature changes without notice

Table of contents

Other Musical Fidelity Amplifier manuals

Musical Fidelity

Musical Fidelity M250 User manual

Musical Fidelity

Musical Fidelity A1 FBP User manual

Musical Fidelity

Musical Fidelity M1PWR User manual

Musical Fidelity

Musical Fidelity M8 PRE User manual

Musical Fidelity

Musical Fidelity X-P200 User manual

Musical Fidelity

Musical Fidelity kW 750 User manual

Musical Fidelity

Musical Fidelity X-A200 User manual

Musical Fidelity

Musical Fidelity F225 User manual

Musical Fidelity

Musical Fidelity kW750 Power User manual

Musical Fidelity

Musical Fidelity AMS35i ANTONY MICHAELSON User manual

Musical Fidelity

Musical Fidelity M2si User manual

Musical Fidelity

Musical Fidelity M6 VINYL User manual

Musical Fidelity

Musical Fidelity X-P100 User manual

Musical Fidelity

Musical Fidelity MM/MC PHONO STAGE M1 VINL User manual

Musical Fidelity

Musical Fidelity MM/MC PHONO STAGE M1 VINL User manual

Musical Fidelity

Musical Fidelity Nu-Vista M3 User manual

Musical Fidelity

Musical Fidelity MX-VYNL User manual

Musical Fidelity

Musical Fidelity A1 Integrated User manual

Musical Fidelity

Musical Fidelity M8S-500S User manual

Musical Fidelity

Musical Fidelity KW550 User manual

Musical Fidelity

Musical Fidelity M8700m User manual

Musical Fidelity

Musical Fidelity A1008 User manual

Musical Fidelity

Musical Fidelity M6PRX CRPS User manual

Musical Fidelity

Musical Fidelity M8xi User manual

Popular Amplifier manuals by other brands

ASTRO

ASTRO HVO V40 P operating manual

Marantz

Marantz SUPERSCOPE BLA-545 Service data

NAD

NAD CI980 Quick setup guide

Technics

Technics SE-CH770 Service manual

Harman Kardon

Harman Kardon HK6300 instruction manual

NAD

NAD T975 owner's manual

McIntosh

McIntosh MA6850 Brochure & specs

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N manual

Viatron

Viatron Autrix Technical manual

GME

GME GA9800 instruction manual

Atlas

Atlas CP700 Specification sheet

Roland

Roland KC-1000 owner's manual

Pyle

Pyle PFMRA350BW user manual

Advantage

Advantage S-250 manual

IRT Electronics

IRT Electronics DVA-3007 manual

Dimavery

Dimavery BA-100 Series user manual

Sony

Sony XM-S400D operating instructions

Schertler

Schertler ROY X quick guide

Musical Fidelity kW Phono User manual

Popular Amplifier manuals by other brands
