Murphy Swichgage WDU-0277 User manual

DTZ-94098B page 1 of 2

WDU-0277

■

OEM Replacement Panel

■

Complete Kit

■

Weatherproof

■

Full Features

Description

The WDU-0277 Swichgage

instrument panel is suitable for all open

frame DEUTZ 413, 511, 912 and 913

series engines.

This OEM panel is ideal for all power unit

applications such as pumps, generators

and compressors.

Swichgage instruments are provided for

engine oil pressure and cylinder head

temperature. Also included is a complete

array of components for easy installation.

The panel mounts onto existing pads on

the flywheel housing and can face to

either side of the engine. Shockmounts

in the mounting bracket provide protec-

tion from shock and normal vibration for

the panel and its components.

Specifications

•

Weatherproof panel with hinged and

gasketed rear access door.

•

Suspension shock mounted bracket

•

Low Lube Oil pressure Swichgage

with

2 ft. (0.61 m) oil pressure line

and banjo fitting.

•

High Cylinder Head temperature

Swichgage with 4 ft. (1.2 m)

capillary tubing.

•

Magnetic Switch/relay for

automatic shutdown

•

Ammeter

•

Hourmeter

•

Off-Ign-Heat-Start Key switch

•

Alarm lights for Alternator Failure

and Preheat

•

Fuel return check valve (not shown)

•

Plug-in wire connector to match Deutz

wire harness (not shown)

•

Provision for 3 additional Swichgage or

Murphygage®instruments.

How to Order

To order the WDU-0277, specify model

and voltage. Example: WDU-0277-12

WDU-0277 – ______

Warranty

A limited warranty on materials and workmanship

is given with this FW Murphy product. A copy of

the warranty may be viewed or printed by going to

www.fwmurphy.com/support/warranty.htm

Voltage

12 = 12 VDC

24 = 24 VDC

DTZ-94098B

Revised 04-06

Catalog Section 30

00-02-0081

Swichgage®Panel Assembly for

DEUTZ 413, 511, 912, and 913 Series

DTZ-94098B page 2 of 2

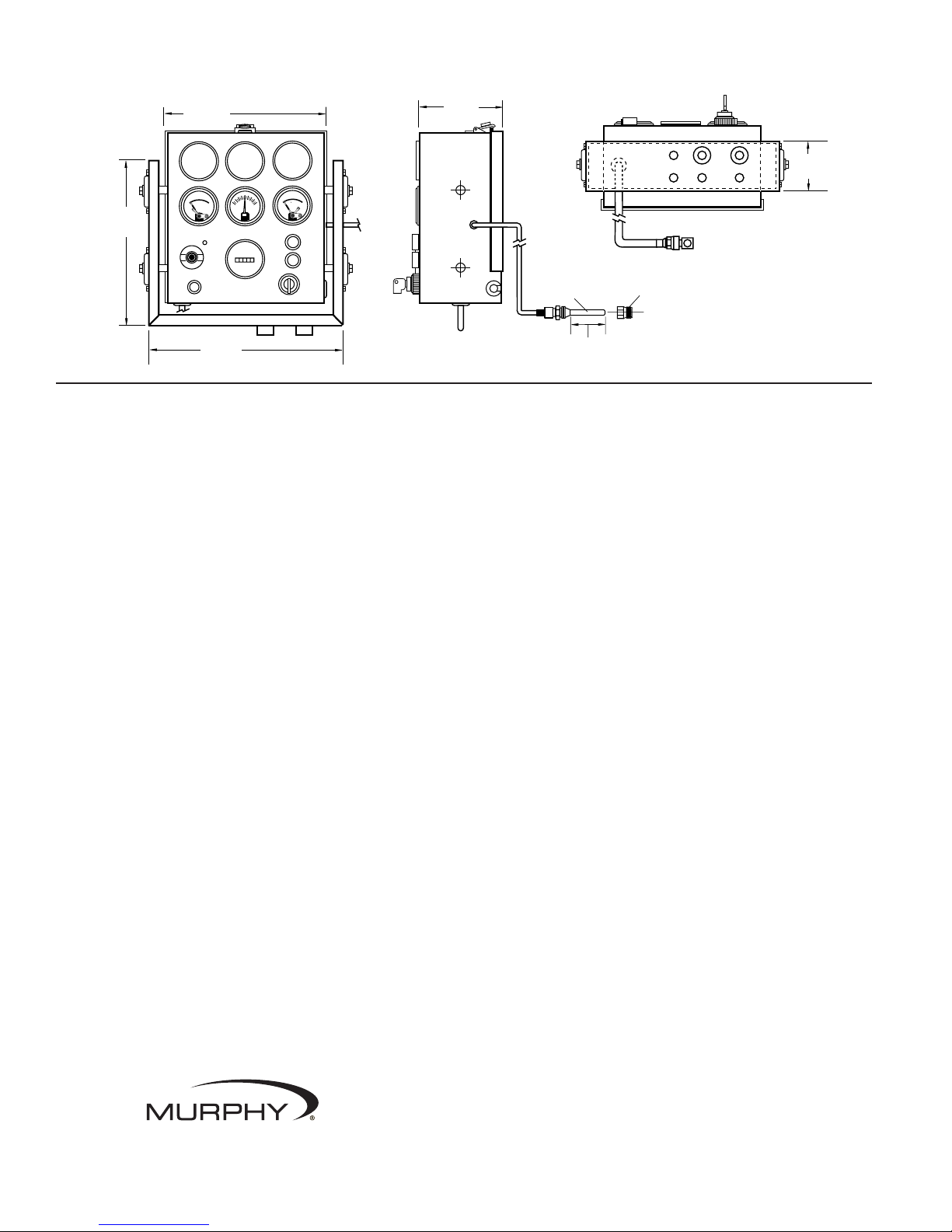

Dimensions

8-1/4 in.

(210 mm)

FRONT VIEW SIDE VIEW

NOTE: Mounting brackets

and shockmounts not

shown in this view.

BOTTOM VIEW

9-3/4 in.

(248 mm)

P.S.I.

3 in.

(76 mm)

1-13/16 in.

(46 mm)

1/4 in. (6 mm)

diameter M10 x 1.5

10-1/4 in.

(260 mm)

4-5/8 in.

(117 mm)

CAUTION: “OIL FILLED INSTRUMENTS CONTAIN SILICON OIL” Exposure may be hazardous under certain circurmstances.

“DO NOT CUT CAPILLARY” It contains chemicals or solvents which may be hazardous under certain circurmstances.

“Keep out of Eyes, Mouth and Do Not expose to Skin”. Keep out of reach of children. Flush thoroughly with water and seek medical attention.

If swallowed, call physician immediately. MSDS Sheets ara available by calling: 918/627-3550.

CAUTION::Certain dangers to human safety and to equipment may occur if some equipment is stopped without

pre-warning. It is recommended that monitored functions be limited to alarm-only or to alarm before shutdown.

In order to consistently bring you the highest quality, full featured products, we reserve the right to change our

specifications and designs at any time. MURPHY, the Murphy logo, and Swichgage

are registered and/or com-

mon law trademarks of Murphy Industries, Inc. This document, including textual matter and illustrations, is copy-

www.fwmurphy.com

918.317.4100 Email: [email protected]
