Multitech MultiFRAD FR2201 User manual

Router/Two-Port Frame Relay Access Device

Model FR2201

Quick Start Guide

82092700 Revision A

MultiFRAD Model FR2201 (MultiFRAD II)

This publication may not be reproduced, in whole or in part, without

prior expressed written permission from Multi-Tech Systems, Inc.All

rights reserved.

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time in

the content hereof without obligation of Multi-Tech Systems, Inc. to

notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual released. All pages at revisionA.

(10/2/98) Patents

This Product is covered by one or more of the following U.S.

Patent Numbers:

5.301.274; 5.309.562

;

5.355.365; 5.355.653;

5.452.289; 5.453.986

. Other Patents Pending.

TRADEMARK

Trademark of Multi-Tech Systems, Inc. are MultiFRAD, MultiFRAD

II, and the Multi-Tech logo.

Windows is a registered trademark of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(612) 785-3500 or (800) 328-9717

Fax 612-785-9874

Tech Support (800) 972-2439

MultiRouter 200-Series Quick Start Guide

Contents

Introduction ................................................................................... 6

Related Documentation................................................................. 7

Unpacking your MultiFRAD II........................................................ 8

Cabling your MultiFRAD II............................................................. 9

Installing your Software................................................................11

Limited Warranty ......................................................................... 25

Service ........................................................................................ 26

MultiFRAD II Quick Start Guide

Introduction

Welcome to Multi-Tech's new MultiFRAD II™, model FR2201, a

Router/ Two-Port Frame Relay Access Device (FRAD) that

encapsulates non-packetized data streams from serial and LAN

devices into frame relay frames and frames that data with header and

trailer information prior to sending it to a frame relay network. The

MultiFRAD enables non-frame relay devices to connect to a

common carrier frame relay network service or private frame relay

network. The FR2201 is designed with channels to two non-frame

relay devices, an Ethernet LAN connection for IP or IPX routing or

bridging, and a trunk interface to a Frame Relay network. On the

receiving end of the communication, the MultiFRAD strips away the

frame relay control information so the target device receives the data

packaged in its original form.

Since frame relay networks use shared resources, they typically

are more reliable and less expensive per month than equivalent

leased lines. Depending on the location and distances between

points, simple point-to-point networks can cost less per month than

leased lines. The cost savings are even greater when multiple

leased lines are replaced with frame relay.

The FR2201 has two data ports for Data Terminal Equipment

(DTE) devices that are either asynchronous or HDLC

synchronous.Asingle Ethernet LAN connection is provided for IP

or IPX routing and Media Access Control (MAC) layer bridging for

all other protocols on either a 10Base-T or AUI port connection.

The trunk connection provides the link to a synchronous Data

Communications Equipment (DCE) device for access to the Frame

Relay network.

Systems

Figure 1. MultiFRAD II

Introduction

Related Documentation

This MultiFRAD Quick Start Guide is intended to be used by

qualified systems administrators and network managers. This

quick start guide provides the necessary information for a

qualified person to unpack, cable, install software, and

configure the unit for proper operation.

A detailed MultiFRAD User Guide is also provided with your

unit. The user guide provides in-depth information on the

features and functionality of Multi-Tech’s MultiFRAD. The User

Guide is provided in disk form and is also available from our

Web site.

The disk version is produced usingAdobe Acrobat. To view or

print your copy of a user guide, loadAdobe Acrobat Reader on

your system.Adobe Acrobat Reader can be downloaded from

Adobe’s Web site at:

http://www.adobe.com/prodindex/acrobat/readstep.html

Launch the Reader and open the .pdf file that is on the disk.

Viewing and printing a user guide from the Web also requires

that you have theAdobe Acrobat Reader loaded on your

system. The MultiFRAD II User Guide is also available on

Multi-Tech’s Web site at:

http://www.multitech.com

From the MTS home page, click Support | Manuals | Multi-

FRAD and choose MultiFRAD II to download the .pdf file.

MultiFRAD II Quick Start Guide

Unpacking your MultiFRAD II

Remove all items from the box.

MADE IN U.S.A

Systems

Figure 2. Unpacking

Cabling

Cabling your MultiFRAD II

Cabling your MultiFRAD involves making the proper Power,

Command Port, Ethernet, and Channel connections. Figure 3

shows the back panel connectors and the associated cable

connections. The MultiFRAD II supports up to 2 data channels.

Table 1 details the procedures for connecting the cables to your

MultiFRAD.

Power Connection

Command Port Connection

T1 CSU/DSU or Comparable

Link Device

Back-to-Back Cables

to Channel Devices

Ethernet Connection

POWER

COMMAND PORT

TRUNK (RS232/V.35)

CHANNEL 2

CHANNEL 1

AUI

10BASE T

ETHERNET

Figure 3. Cable Connections

MultiFRAD II Quick Start Guide

Table 1. Cabling Procedure

Step Procedure

1 Connect one end of a DB25 back-to-back cable to each of

the data channel connectors on the back of your

MultiFRAD (labeled CHANNEL 1-2). See Figure 3.

Connect the other end of each cable to a channel device.

NOTE: Both channels support the RS232/V.35 protocols,

and either asynchronous or HDLC synchronous RS232

data equipment such as multiplexers.

2 Connect one end of an DB25 (female) cable to the Trunk

connector (Figure 3). Connect the other cable end to your

T1 CSU/DSU or compatible link device.

3 To make the network connection, connect an RJ45 (UTP)

cable to the 10 BASE-T Ethernet connector or the male

connector for a 10Base5 cable to theAUI Ethernet

connector (shown in Figure 3). Connect the other end of

the cable to your LAN.

4 Connect the MultiFRAD to your PC with a standard RS232

cable. Plug the male end of the cable into the Command

Port (Figure 3) and the other end into the PC’s serial port.

5 Connect one end of the power supply to a liveAC outlet,

then connect the other end to the MultiFRAD as shown in

Figure 3. The Power connector is a 7-pin circular DIN

connector.

6 Apply power to the MultiFRAD by setting the Power switch

(Figure 3) to the “1” (on) position.

At this time your MultiFRAD is completely cabled. Proceed to the

next section to install your software.

Other manuals for MultiFRAD FR2201

This manual suits for next models

Table of contents

Other Multitech Network Router manuals

Multitech

Multitech MTR-L4G1 Installation instructions

Multitech

Multitech MultiConnect rCell 100 Series User manual

Multitech

Multitech MultiVOIP 100 (MVP110 User manual

Multitech

Multitech rCell 500 Series User manual

Multitech

Multitech RouteFinder RF550VPN User manual

Multitech

Multitech MULTIFRAD FR3060 User manual

Multitech

Multitech RouteFinder RF560VPN User manual

Multitech

Multitech MultiConnect rCell MTR-H5 Instruction Manual

Multitech

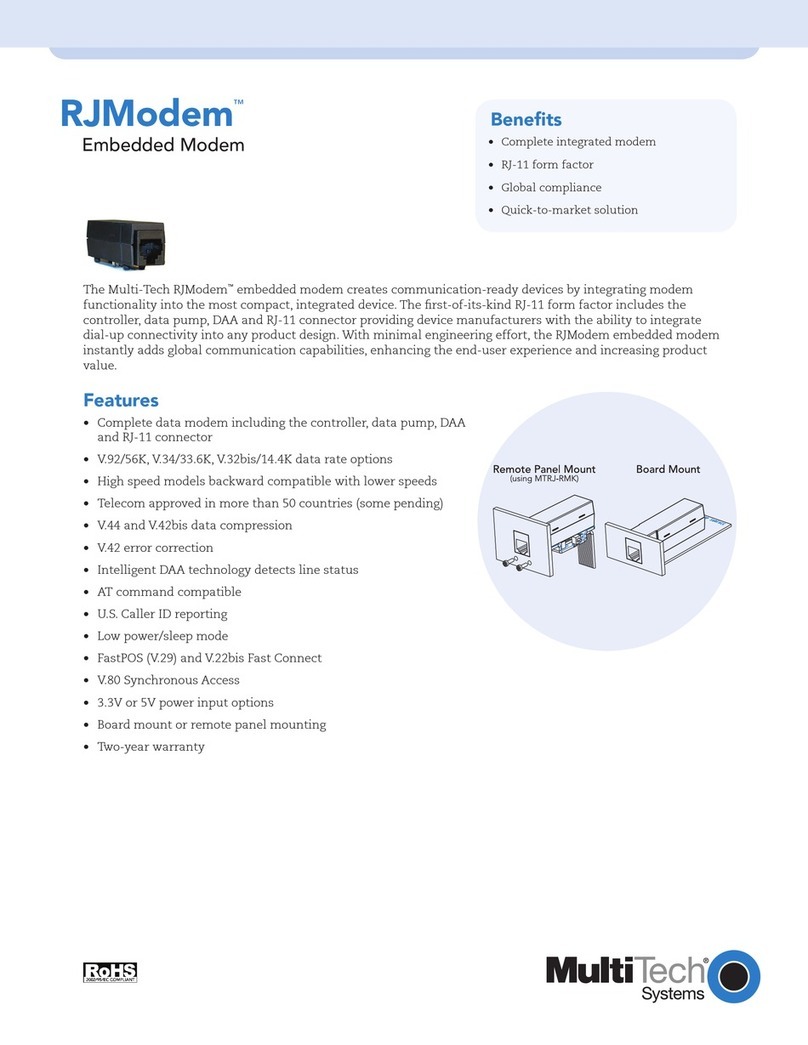

Multitech Embedded Modem User manual
