MTX PROXP-20-SW User manual
MTX.COM

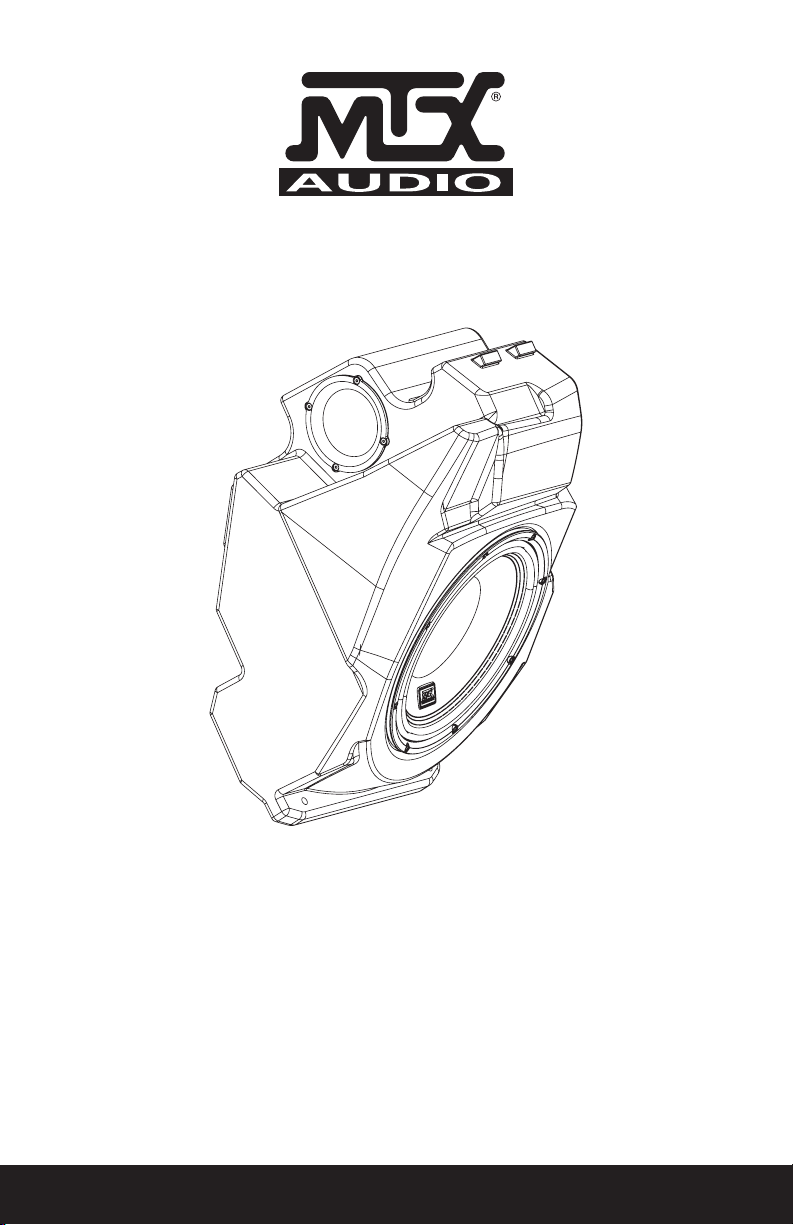

PROXP-20-SW
POLARIS®RZR®PRO XP SUBWOOFER ENCLOSURE
OWNER’S MANUAL
MTX.COM
2
THANK YOU
Thank you for making the AWESOME decision to purchase our MTX Audio direct-t subwoofer
enclosure designed for the Polaris®RZR® Pro XP. Our sub enclosure, with its high output 10"
subwoofer, will belt out the bass and deliver ground pounding audio making you the party vehicle in
any ride! With a few basic hand tools in your trusty toolbox, you can have this installed in no time.
So, what are you waiting for? It’s time to get the rumble in your ride and go hit the trails! Oh, and
congratulations on your purchase, thanks for your support and most importantly, enjoy the ultimate
audio experience with MTX!
WE’RE HERE TO HELP
We’re here to help with any installation or technical support. Visit mtx.com to chat, call
1-800-225-5689 to speak with an MTX Technical Support representative, or visit
youtube.com/user/MTXAudioUSA to view product videos.
DON’T FORGET TO REGISTER YOUR PRODUCT
Don’t forget to register your new MTX Audio product. Visit mtx.com/productregistration or scan the
QR code to the right.
Model #
Serial #
Dealer’s Name
Date of Purchase
IMPORTANT NOTICE
Whenever working on the vehicle, it is recommended to disconnect the battery prior to starting work.
Failure to do so may lead to a risk of electric shock or equipment damage.
When connecting power and ground wires ensure that the red power wire is fused at the point
where it is connected to the vehicle’s battery. Failure to do so can result in damage to the vehicle if a
short circuit develops between the vehicle connection point and the product.
MTX.COM 3
FEATURES
• Ported Enclosure Design Produces Louder, Deeper Bass Output
• Includes an MTX 55 Series Subwoofer for its Deep Bass Reproduction Capabilities
• Compatible with Existing OEM Front Speaker Enclosures
• Mounts Behind Dashboard
• Factory Matched Texture
• Installer Friendly Design
• Direct Fit, No Cutting or Drilling Required
SPECIFICATIONS
• 10" Loaded Subwoofer Enclosure
• RMS Power Handling: 400-Watts
• Peak Power Handling: 800-Watts
• Sensitivity (2.83V/1m): 90.2dB
• Sensitivity (1W/1m): 83.5dB
• Frequency Response: 28Hz - 130Hz
• Impedance: Dual 4Ω
FIT GUIDE
Pro XP / XP4 Sport .................................................................................................................................2021 - 2022
Pro XP / XP4 Premium...........................................................................................................................2020 - 2022
Pro XP / XP4 Ultimate............................................................................................................................2020 - 2022
Pro XP / XP4 Sport RFLE...................................................................................................................................2021
Pro XP / XP4 Ultimate RFLE .............................................................................................................................2021
IN THE BOX
• PROXP-20-SW Loaded Subwoofer Enclosure
• Mounting Hardware
(1) Mounting Bracket
(3) M6 (10mm) Hex Head Bolts - 15mm Long
(2) T40 Torx Pan Head Bolts - 45mm Long
(8) Zip Ties
MTX.COM
4
DISASSEMBLY

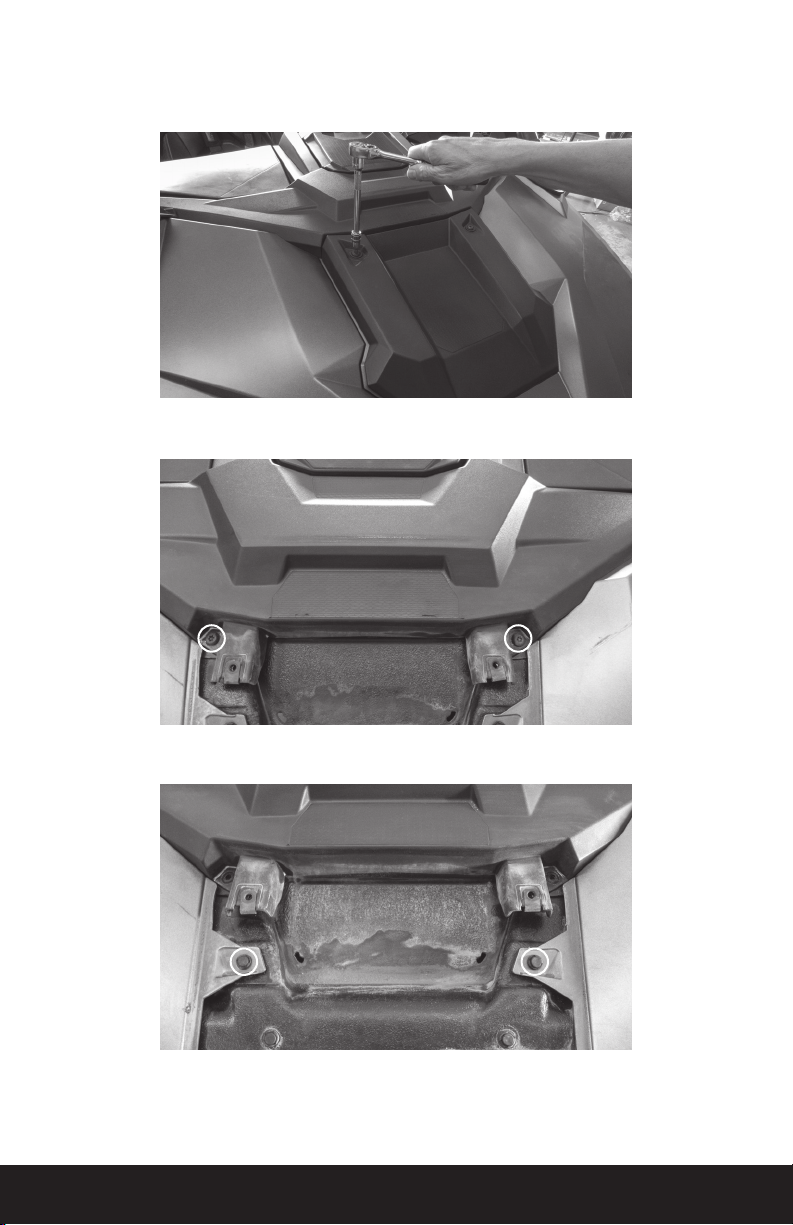

Step 1 - Start by removing the hood. Remove two (2) T-40 TORX bolts and lift off.
Step 2 - Remove two (2) T-40 TORX bolts located under hood securing the front of the dash.
Step 3 - Remove two (2) panel clips located under the hood securing the left and right fenders.
MTX.COM 5
Step 4 - Remove three (3) grey trim pieces from the front of the dash using a panel removal tool or by
gently prying with a at blade screwdriver.
One left of steering wheel
One right of steering wheel
One on passenger side
MTX.COM
6

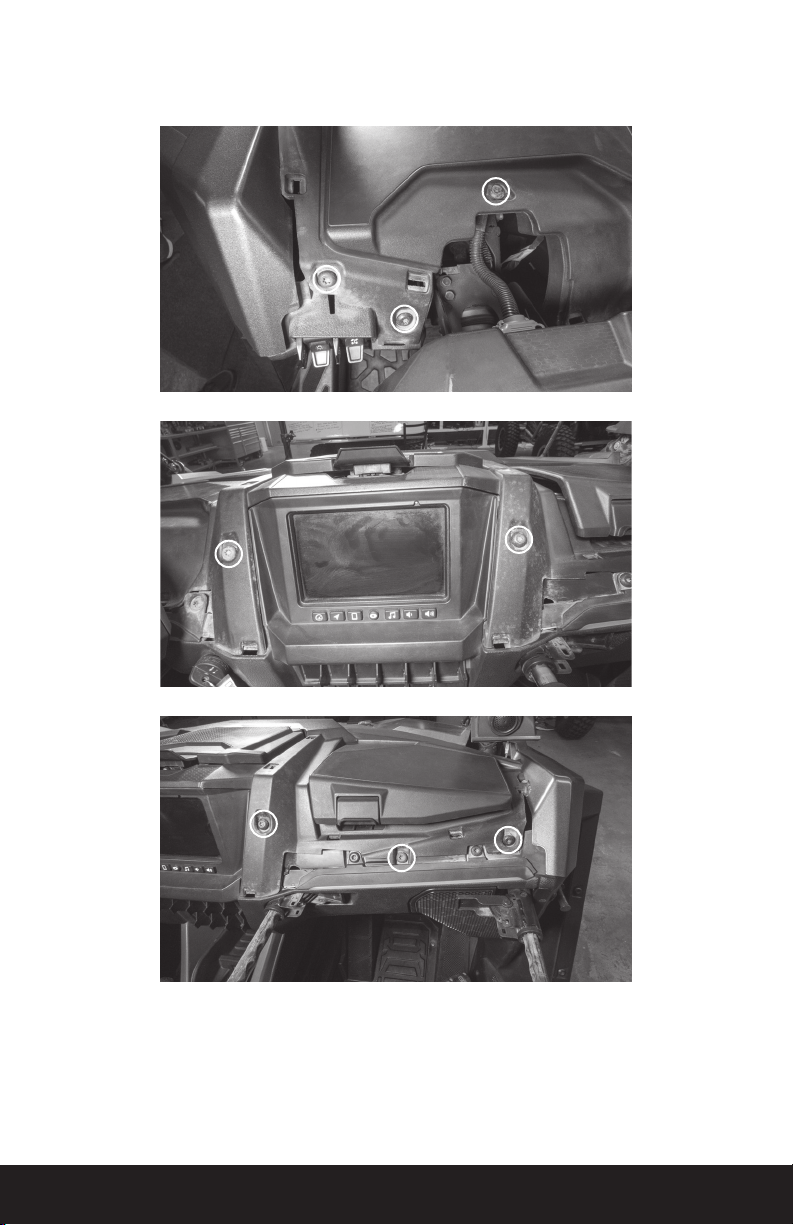

Step 5 - Remove seven (7) T-40 TORX bolts across the bottom front and top of the dash panel as
indicated.
MTX.COM 7

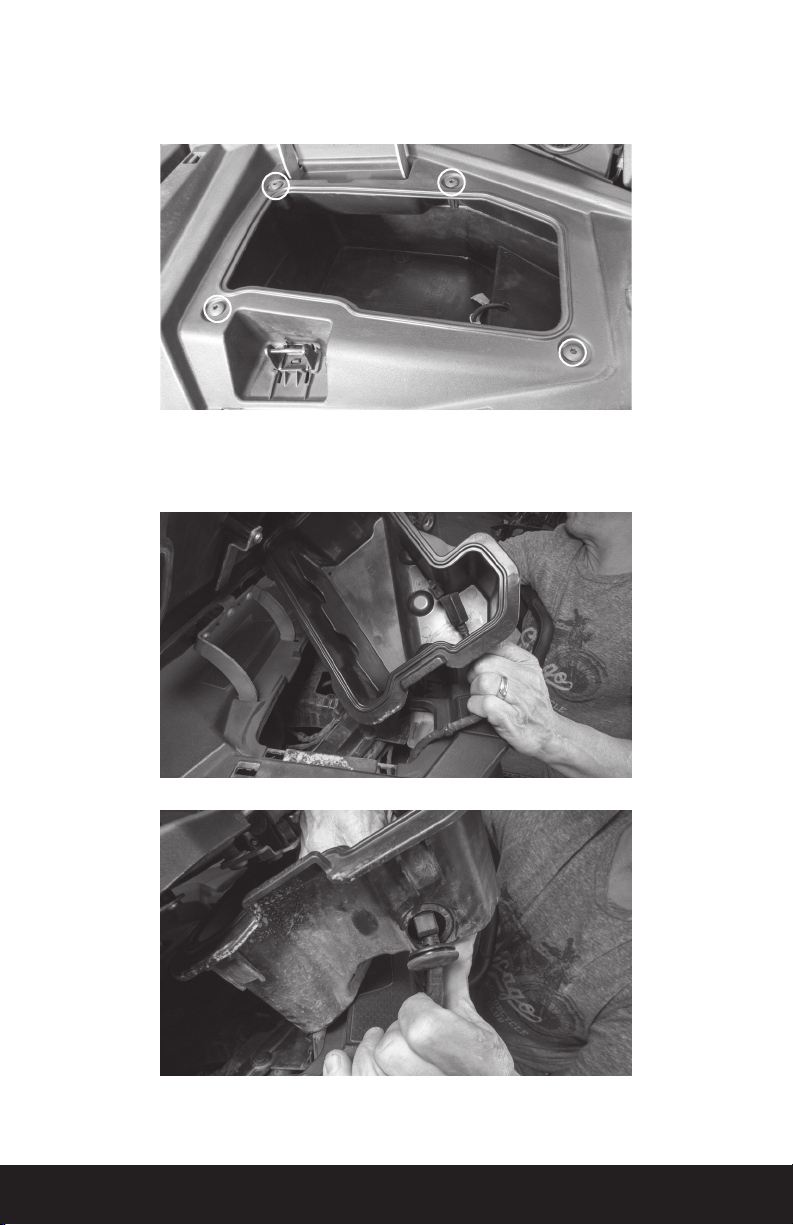

Step 6 - Remove four (4) T-20 TORX screws found under the passenger side glove box lid. This will
allow the glove box to drop out from the bottom of the dash. Note: This pocket will not be reused with
the subwoofer enclosure installation.
Step 7 - Open the top center storage compartment and lift out the pocket liner. Push the USB
connector through the side of the pocket, freeing it and lift out of the vehicle. Note: This pocket will
be reinstalled upon reassembly.
MTX.COM
8

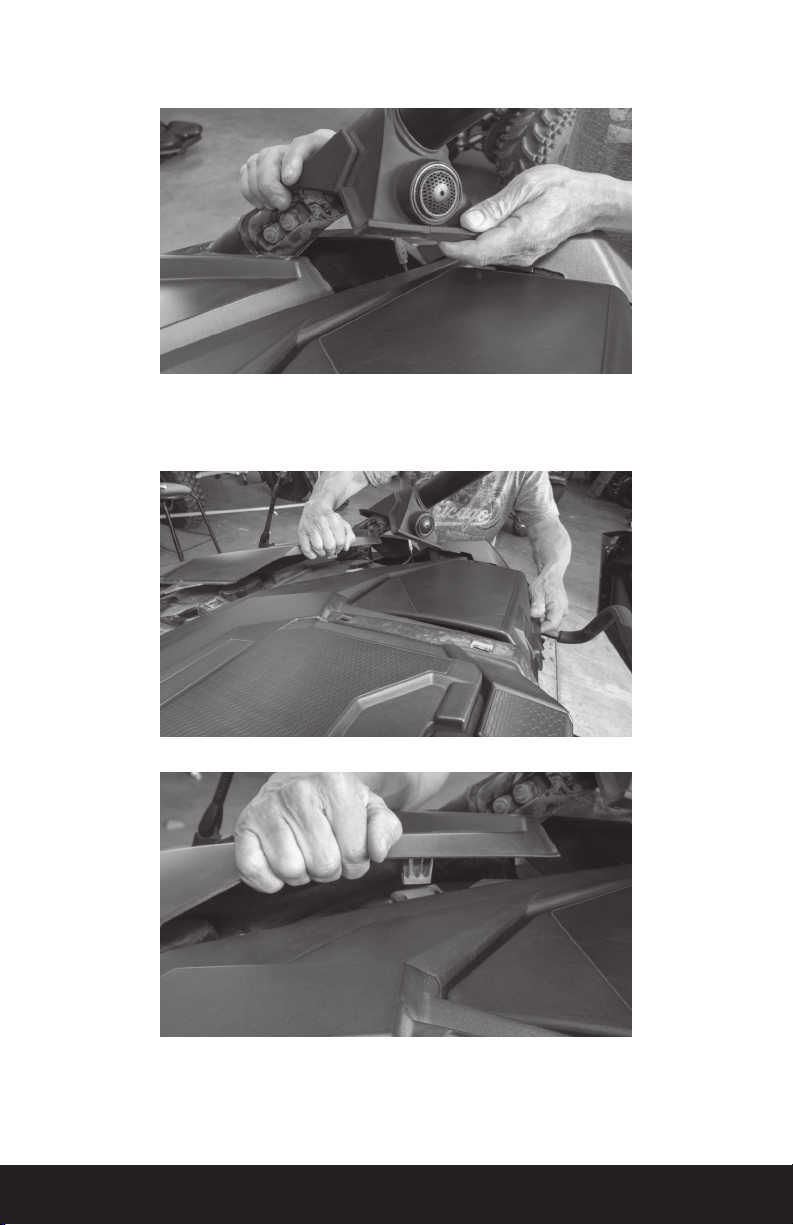

Step 8 - Disengage the tweeter housing from the top of the dash panel and slide up the cage.

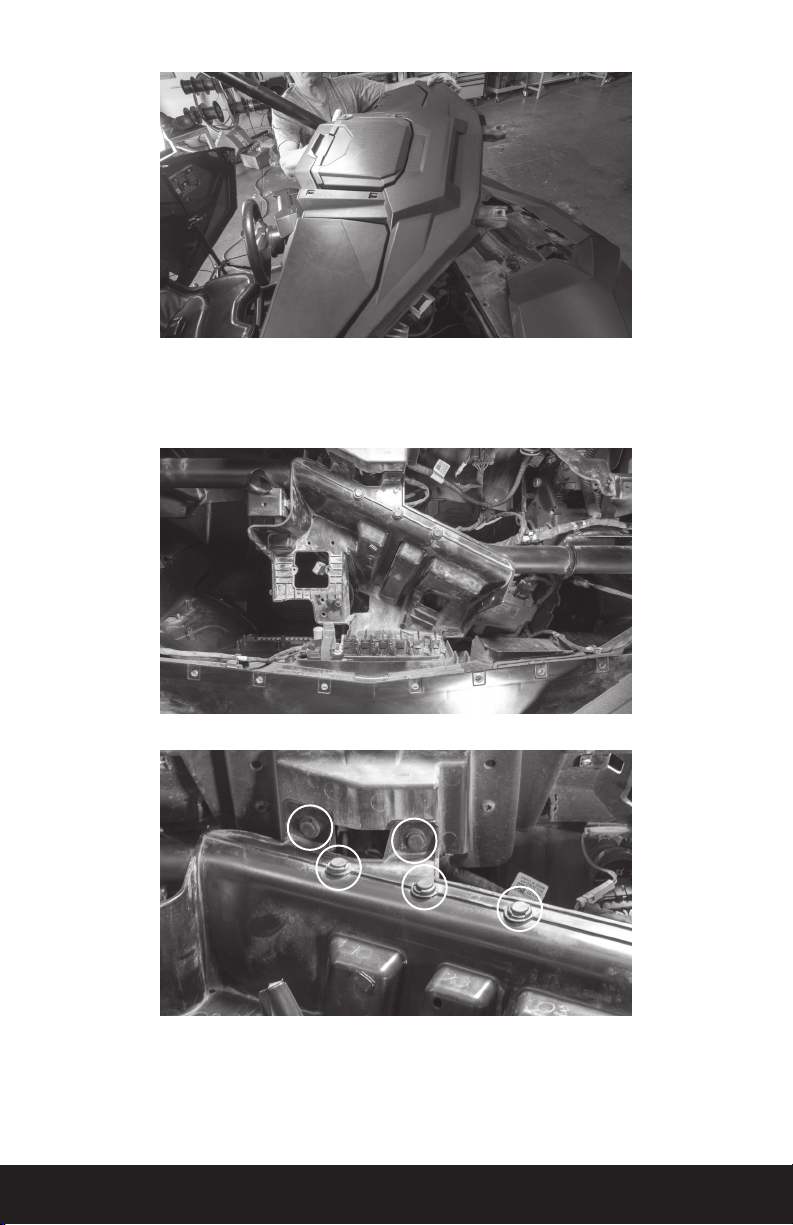

Step 9 - Starting on either side, lift on the fender panel to disengage the tabs that pass through the
dash panel. While lifting, slide the dash panel toward the back of the vehicle freeing it from the
fender. Repeat this on the other side. Once the dash panel is free lift out of the vehicle and set aside.
MTX.COM 9

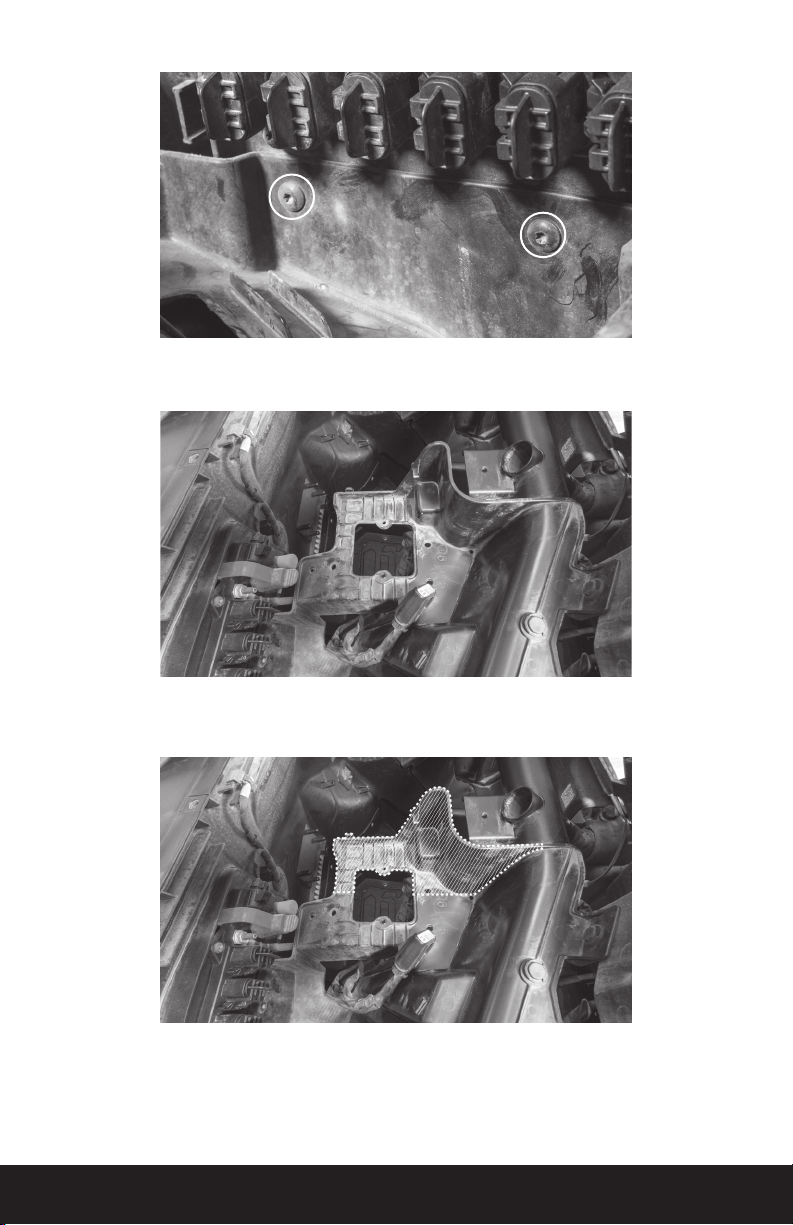

Step 10 - Locate and remove the under-dash tray found below the center storage pocket location by
removing ve (5) panel clips and two (2) T-25 TORX screws located on the rewall below the pulse
connector bank. If the vehicle has the OE audio amplier installed, disengage its harness connector,
and lift the panel out.
MTX.COM
10
Note: If you are installing the subwoofer enclosure as part on an MTX Thunder kit, this tray will not be
reused. The kit amplier mounting rack will replace this part.
If not installing as part of an MTX Thunder kit, the tray will need to be modied as indicated prior to
reinstallation. Cut and remove the area indicated.
