MSI TV@nywhere Duo User manual

TV@nywhere Duo

User Manual

Ver: 1.8

Information in this document is subject to change without notice. No part of this

document may be reproduced or transmitted in any form or by any means, electronic

or mechanical without our prior written permission.

Micro-Star International makes no representation or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for any particular purpose. Micro-Star International reserves the right to revise

this manual and to make changes in its content without obligation to notify any person

or organization of such revision or change. In no event shall Micro-Star International

be liable to you or any third party for any consequential, incidental, direct, indirect,

special, punitive, or other damages (including without limitation, damages for loss of

profits, interruptions, loss of information, pecuniary loss, etc.), even if Micro-Star

International has been advised of the possibility of such damages arising from any

defect or error in this manual or product.

Windows®is a trademark of Microsoft Corporation. All other brand names used in this

document are registered trademarks of their respective companies.

CE Statement: This equipment has been tested and complies with EN 55022, EN

55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,

EN 61000-4-5, 61000-4-6, EN 61000-4-8, EN 61000-4-11 standards.

Contents

1. Getting Started ................................................................... 1

1.1 Introduction................................................................................................... 1

1.2 Features ....................................................................................................... 1

1.3 Package Contents ........................................................................................ 1

1.4 System Requirements .................................................................................. 2

2. Input & Output Connections ............................................... 3

2.1 Card Connections......................................................................................... 3

2.2 TV Connections ............................................................................................ 4

3. Installation .......................................................................... 5

3.1 DirectX.......................................................................................................... 5

3.2 Installing the TV@nywhere Duo ................................................................... 6

3.3 Driver Installation for Windows 2000 / Windows XP ..................................... 7

3.4 Installation of the DTV .................................................................................. 8

3.5 Installation of DVD MovieFactory ................................................................. 8

4. DTV .................................................................................... 9

4.1 DTV Interface Overview................................................................................ 9

4.2 Scanning for TV Channels (Digital)............................................................. 10

4.3 Scanning and editing channels (Analog) .................................................... 12

4.4 Scanning for stations (FM Radio) (FM models only)................................... 13

4.5 Choosing your source................................................................................. 14

4.6 Channel list................................................................................................. 15

4.7 Volume controls.......................................................................................... 15

4.8 Signal Strength Meter................................................................................. 15

4.9 Teletext....................................................................................................... 16

5. Setting .............................................................................. 17

5.1 DVB Settings .............................................................................................. 17

5.2 Analog TV/Video Settings (TV/AV-In/S-Video) ........................................... 19

6. PIP (Picture-In-Picture) and Twin Mode........................... 24

7. Recording......................................................................... 26

7.1 The Recording Button................................................................................. 26

7.2 The TimeShift Button.................................................................................. 27

7.3 Schedule Recording ................................................................................... 28

7.4 Snapshots................................................................................................... 29

7.5 Play Mode................................................................................................... 29

8. The Remote Control and Keyboard Shortcuts ................. 30

8.1 Remote Control (optional)........................................................................... 30

8.2 Keyboard Shortcuts .................................................................................... 31

Getting Started

1. Getting Started

1.1 Introduction

Thank you for choosing the TV@nywhere Duo TV tuner and video capture card. This

product turns your PC into a powerful desktop multimedia system quickly and easily.

Capture video and still images and experience real-time MPEG-1/2/4 recording.

Watch both digital TV and analog TV or video at the same time, on the same screen!

The TV@nywhere Duo provides you with a high quality TV viewing experience with

true stereo sound!

1.2 Features

•Antenna ready DVB-T Silicon Tuner

•Universal Analog TV Silicon Tuner

•S-Video/composite video inputs

•PIP (Picture in Picture)

•Real-time recording from Digital TV, Analog TV, and Analog inputs

•Watch both Digital TV and Analog TV or video simultaneously

•Watch TV in a resizable window or full-screen

•TimeShifting functions

•Capture still images

•Listen to DVB radio

•Listen to FM radio

•Compatible with Windows®2000 and XP

1.3 Package Contents

When removing the contents of the package, please inspect all items to ensure no

damage was sustained during shipping. The following items should be included in the

package:

•TV @nywhere Duo

•Software Pack CD

•User manual

•Remote receiver Cable

•PAL to NTSC Converter (country dependant)

•AV-Cable

•IR Remote Controller

•Portable antenna

*Portable antenna:

The enclosed antenna is a free gift for outdoor use only. The performance may vary or

be limited according to your location and signal coverage. For indoor use, a good

quality ROOF antenna is highly recommended for better signal strength.

Getting Started

1.4 System Requirements

To successfully use the TV@nywhere Duo solution, please ensure that your system

meets the following requirements:

•Pentium®4 or AMD Athlon 2.0 GHz or faster, 2.4GHz or faster recommended

•256 MB RAM (minimum), 512 MB RAM recommended

•Microsoft Windows 2000/XP

•100 MB available hard disk space for installation, additional space required for

recording or TimeShifting

•CD-ROM or DVD drive

•VGA chipset with full DirectX 9.0 support

•DirectX 9.0c or higher installed

•Available slot

•TV antenna or cable for digital TV

•TV antenna or cable for analog TV

Input & Output Connections

2. Input & Output Connections

2.1 Card Connections

The TV@nywhere Duo card supports S-Video, Composite and Analog TV input. See

the diagram below for connection details.

DVBT: Connects to your home or room antenna for Digital Terrestrial TV

TV: Connects to your home antenna or cable for Analog TV

FM: Connects to FM antenna

AV Cable: Connect the AV Cable to the 9-pin connector of the TV@nywhere

Duo

S-Video: S-Video input for external devices like VCRs or camcorders

Composite Video: Composite video input for external devices like VCRs or

camcorders

Audio (R): Connects to the right audio channel of an external audio device

Audio (L): Connects to the left audio channel of an external audio device

Remote: Connects to the IR remote cable

Input & Output Connections

2.2 TV Connections

Connect your digital TV antenna to the digital TV input on the TV@nywhere Duo, and

your analog source to the analog TV input. You can use a house antenna or the

included portable antenna for digital TV reception, and you can use a house antenna,

cable TV line, or another source for your analog TV input.

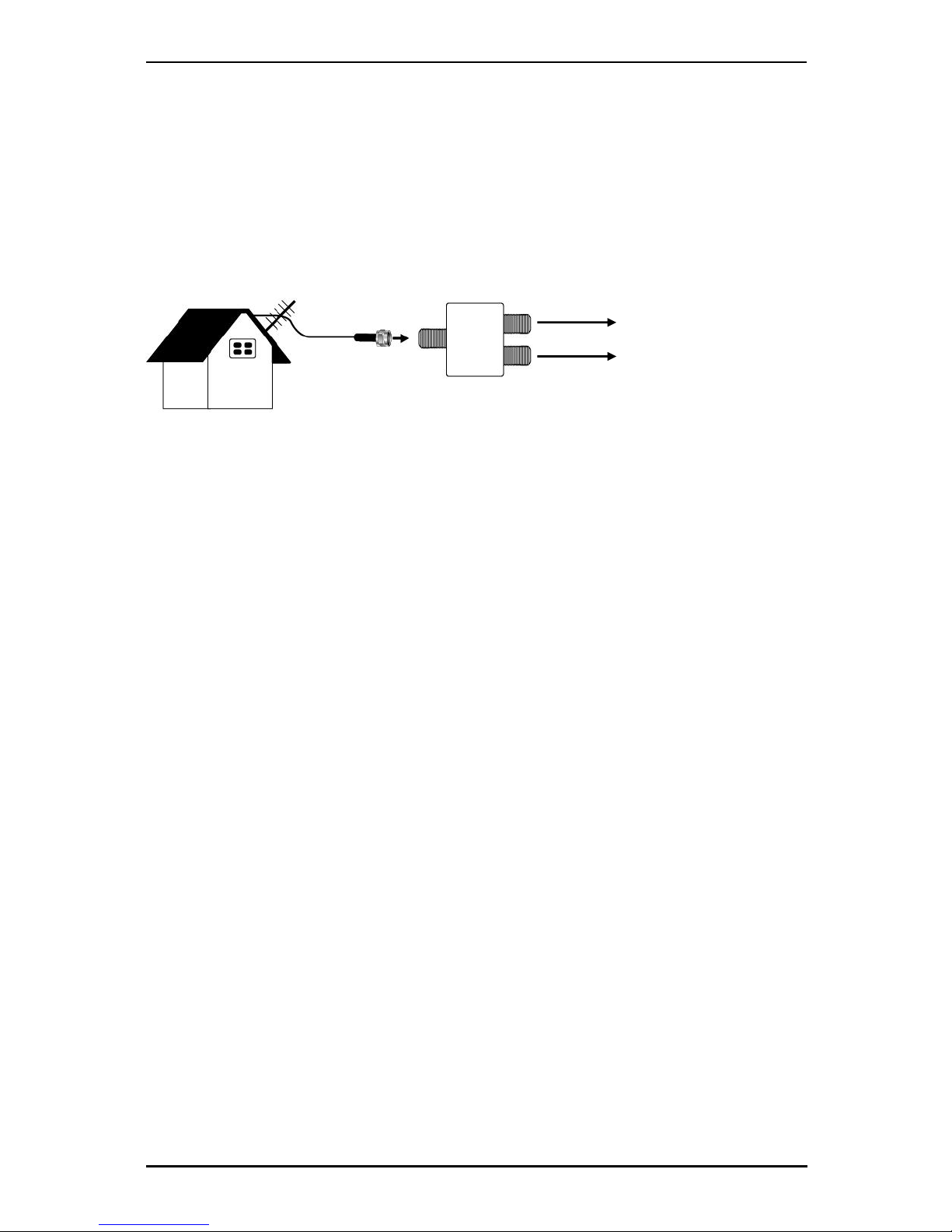

If you use a house antenna for both digital and analog TV reception, you may need to

use a signal splitter to connect to the TV@nywhere Duo.

Digital TV input

Analog TV input

Installation

3. Installation

The following sections provide step-by-step instructions on installing and configuring

the card, accessories and software.

3.1 DirectX

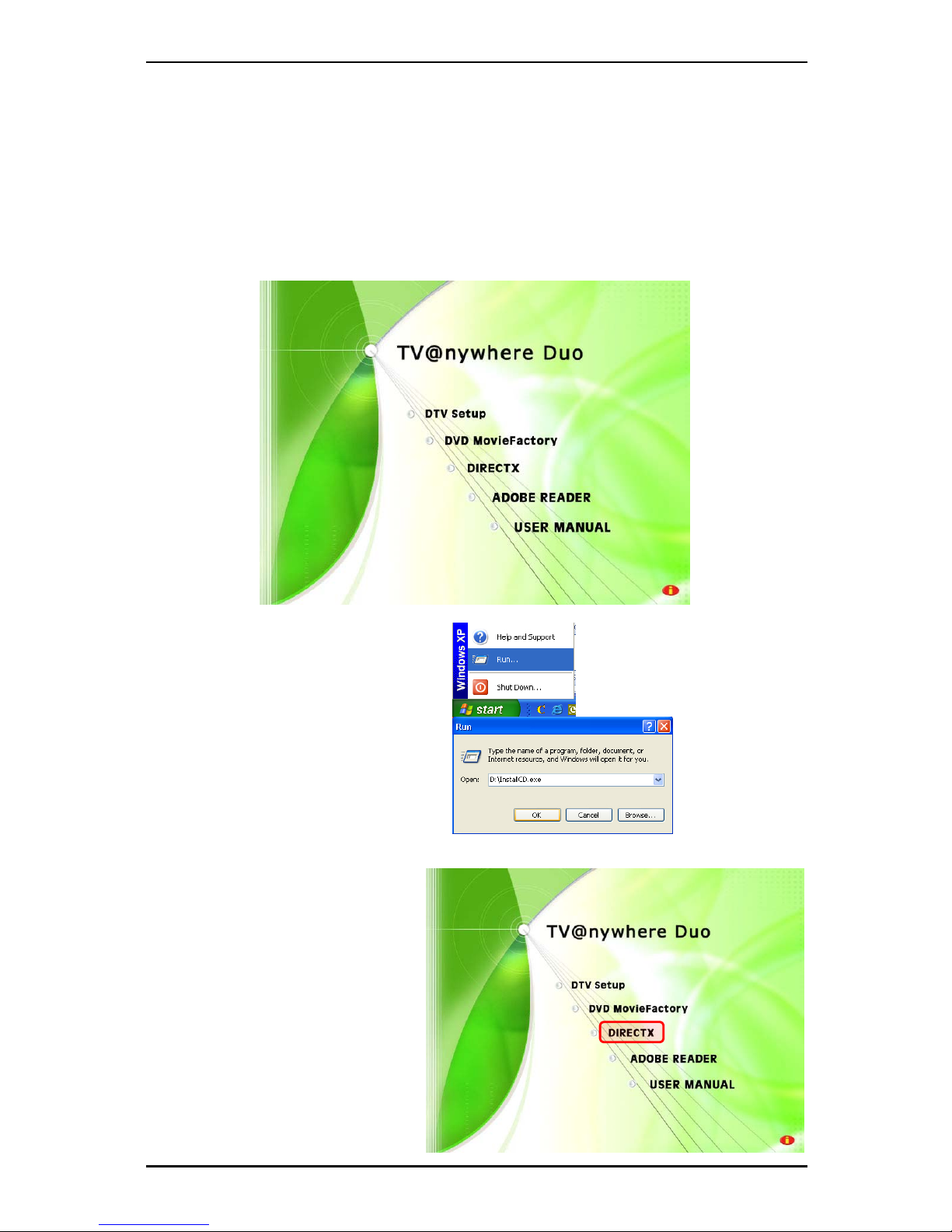

Before installing your the TV@nywhere Duo, it is necessary to install DirectX 9.0c or

higher. Insert the installation CD and an installation menu should load automatically.

If the Autostart program does not

appear automatically when you insert

your Installation CD, start it manually

by running the InstallCD.exe file

located on the Installation CD, or by

clicking the Start button, choosing

Run…, and typing in D:\InstallCD.exe.

(if D: is your CD-ROM drive)

Click on DirectX and follow the

prompts to install DirectX. After

the installation is completed, shut

down the computer.

Installation

3.2 Installing the TV@nywhere Duo

1. Switch off your PC and all connected peripheral devices such as your printer and

monitor. Leave the AC power cable connected for the time being, so that your

computer is still grounded.

2. Touch the metal chassis at the rear of the PC to ground and to discharge static.

Now unplug the cord from the AC power socket.

3. Remove the cover from the case of your PC.

4. Look for a free PCI expansion slot. When selecting the PCI slot, note that DVB-T

cards should not be plugged into PCI slot 1 in conjunction with an AGP graphics

card because PCI slot 1 is very frequently assigned to the same interrupts as the

AGP slot. This would give both cards the same interrupt, which can lead to crashes

during operation!

(This is usually the PCI slot closest to the AGP slot, but always check your

mainboard manual).

5. Carefully remove the card from its packaging and pick it up by the edges with one

hand while your other hand is touching a metal part of the PC. This will ensure that

your body is completely discharged via your computer without damaging the TV

card.

6. Align the holder at the rear of the TV card in the expansion slot in such a way that

the card’s connectors are directly in line with the slot’s socket.

7. Push the TV card firmly into the slot, ensuring good contact.

8. Fasten the TV card with an appropriate screw.

9. Reinstall the cover of your PC case.

10.Connect the antenna cable (which you would normally connect to the antenna

input terminal on your television) to the TV antenna terminal on the TV card.

Reconnect the AC power cable as well as all other cables. Make sure that your

speakers are set to low volume.
