MRMC MRMC-1579-01 User manual
CRANES AND RIGS | BROADCAST | HEADS & DSLR | PRODUCT PHOTOGRAPHY | RENTALS
Turntable
AUTOMATED PRODUCT PHOTOGRAPHY
Quick Start Guide
QSG Product Code: MRMC-2279-00
Products covered: MRMC-1579-01, MRMC-1097-00
ii
Turntable Quick Start Guide
QSG Product Code: MRMC-2279-00
Products covered: MRMC-1579-01, MRMC-1097-00
Modification date: 15 June 2023
© 2023 Mark Roberts Motion Control ® Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, or translated
by any means — graphical, electronic, or mechanical — including
photocopying, recording, taping, or storage in an information retrieval
system, without the express written permission of Mark Roberts Motion
Control.
Although every care has been taken to ensure that the information in this
document is accurate and up to date, Mark Roberts Motion Control
continuously strives to improve their products and may make changes to
the hardware, firmware, and software described in this document. Mark
Roberts Motion Control therefore cannot be held responsible for any
error or omission in this document.
All product names mentioned herein are the trademarks or registered
trademarks of their respective owners.
Contact information
Mark Roberts Motion Control Ltd.
Unit 3, South East Studios
Blindley Heath
Surrey
RH7 6JP
United Kingdom
Telephone: +44 (0) 1342 838000
Web: www.mrmoco.com
www.mrmocorentals.com
Large Turntable Quick Start Guide
iii
Large Turntable Quick Start GuideLarge TurntableQuick Start Guide
Contents
Chapter 1 Quick Start..................................................................... 1
Important safety instructions ...............................................1
General care...................................................................1
Location .........................................................................1
Intellectual property .....................................................1
Overview ................................................................................. 2
Large Turntable (Ethernet) ...................................................3
Adding the Legs for 6ft Disk .......................................3
Attaching the control box............................................4
Connecting the cables ..................................................6
Connecting the cables (Large Turntable that
runs off Milo driver box).............................................7
Fitting the disc...............................................................8
Adjusting the legs..........................................................9
Adding Large Turntable via Ethernet in Flair ....................9
Resolving IP Address Conflict ..................................12
Setting up the Axis......................................................13
Appendix 1 Specifications............................................................... 15
Large Turntable ....................................................................15
Large Turntable Quick Start Guide
iv
Large Turntable Quick Start Guide
1
Large Turntable Quick Start GuideLarge TurntableQuick Start Guide
Chapter 1 Quick Start
Important safety instructions
To ensure the best from the product, please read this manual carefully.
Keep it in the safe place for future reference.
To reduce the risk of electric shock, do not remove the cover from the
unit. No user serviceable parts inside. Refer servicing to qualified
personnel.
General care
Do not force switches or external connections.
When moving the unit, disconnect the mains cable.
Do not attempt to clean the unit with chemical solvents or
aerosol cleaners, as this may damage the unit. Use a clean dry
cloth.
Do not use around flammable gas. All electrical equipment can
generate sparks that can ignite flammable gas.
Keep away from pets and children. The head has powerful
motors that can pinch, so take care not to get your hands
trapped in the head or cabling.
Keep cables tidy. Use cable ties to keep them out of harm’s way.
If you have a head with slip rings then make use of them; avoid
running any cables between the base and the rotating head or
camera.
Location
Installation of this unit should be away from sources of excessive heat,
vibration, and dust.
Intellectual property
This product includes confidential and/or trade secret property.
Therefore, you may not copy, modify, adapt, translate, distribute, reverse
engineer, or decompile contents thereof.
Large Turntable Quick Start Guide
2
Overview
Thank you for using the Large Turntable from Mark Roberts Motion
Control (MRMC). You can use the Turntable for day in and day out use in
product photography. It comes in both Servo and Stepper motor options.
Turntable gives you the following features:
High speed
Zero backlash
Precise movement
Different size disks can be used depending on your product
dimensions
Centreless so cables or power can be fed through to appliances
Can take weight of up to 600kg
Large Turntable Quick Start Guide
3
Large Turntable (Ethernet)
Adding the Legs for 6ft Disk
The 6ft disk support can be added to the large turntable to support wider
objects on the turntable.
1. Slide the leg under the turntable while sliding the large D-nuts into
the cross beam of the leg.
2. Use a tape measure to ensure that all the legs are pulled by the same
length so the turntable is balanced properly.
3. Tighten the 4 x screws on the legs but not fully tighten them yet.
4. Repeat step 3 for any other legs to be attached to the turntable.
5. Level the legs using the swivel pads. To adjust the swivel pad
unscrew the lock nut and then lower or raise the swivel pad by
turning clockwise or anti-clockwise.
6. Tighten all the screws to secure the legs with the turntable.
Locknut
Swivel pad
Large Turntable Quick Start Guide
4
7. Before adding the disk, ensure that the turntable and all the legs are
level for smother disc rotations over the castor wheels during
turntable movements.

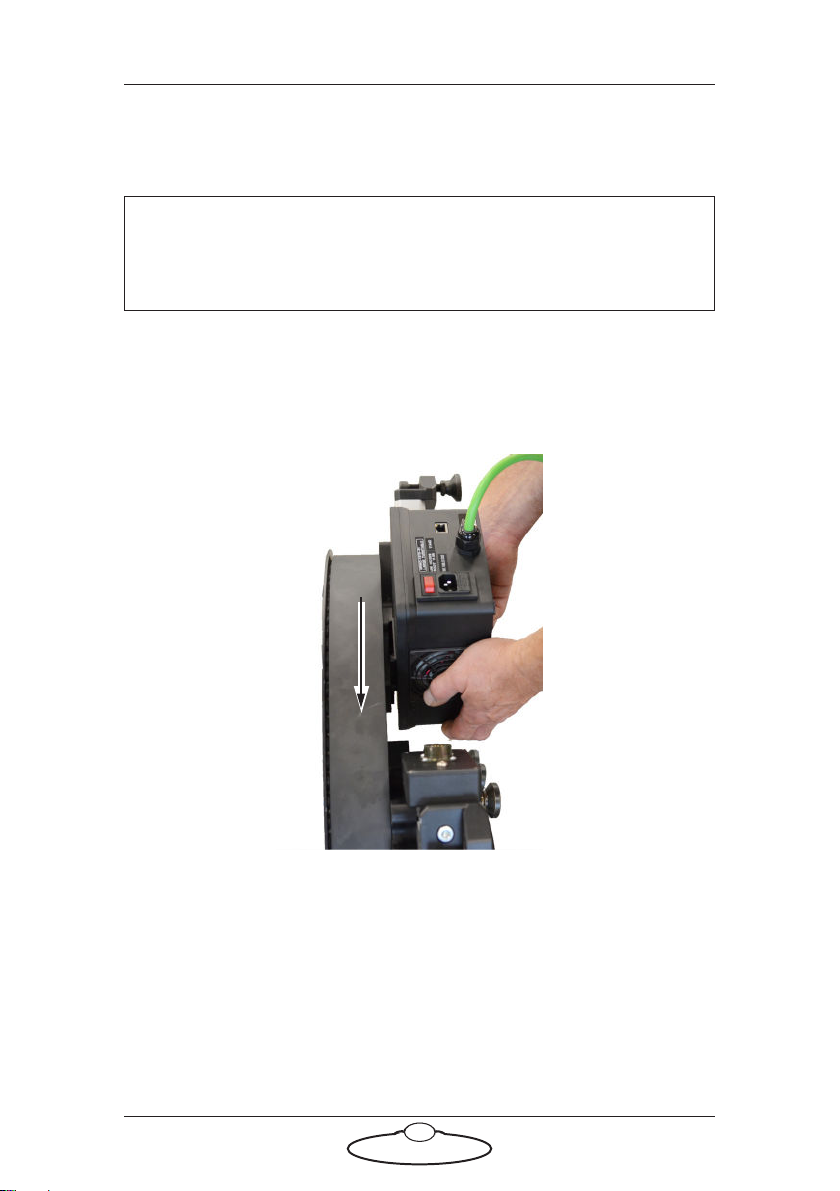

Attaching the control box
1. Rest the Large Turntable on the side opposite to where the
connectors are. Slide the control box into the slot on the Large
Turntable until you hear a slight click.
Note
For smooth moves, ensure that the underside of the disc is even
before adding it on to the turntable.
Large Turntable Quick Start Guide
5
2. Use an hex key to tighten the grub screw to secure the control box to
the Large Turntable.
Grub screw
Large Turntable Quick Start Guide
6
Connecting the cables
The diagram shows a typical application.
MRMC Controller
Examplecontroller:
PC running Flair
Network Hub
Large Turntable
USB
ETHERNET
ETHERNET
POWER
POWER
100-240volts
AC/50-60Hz
